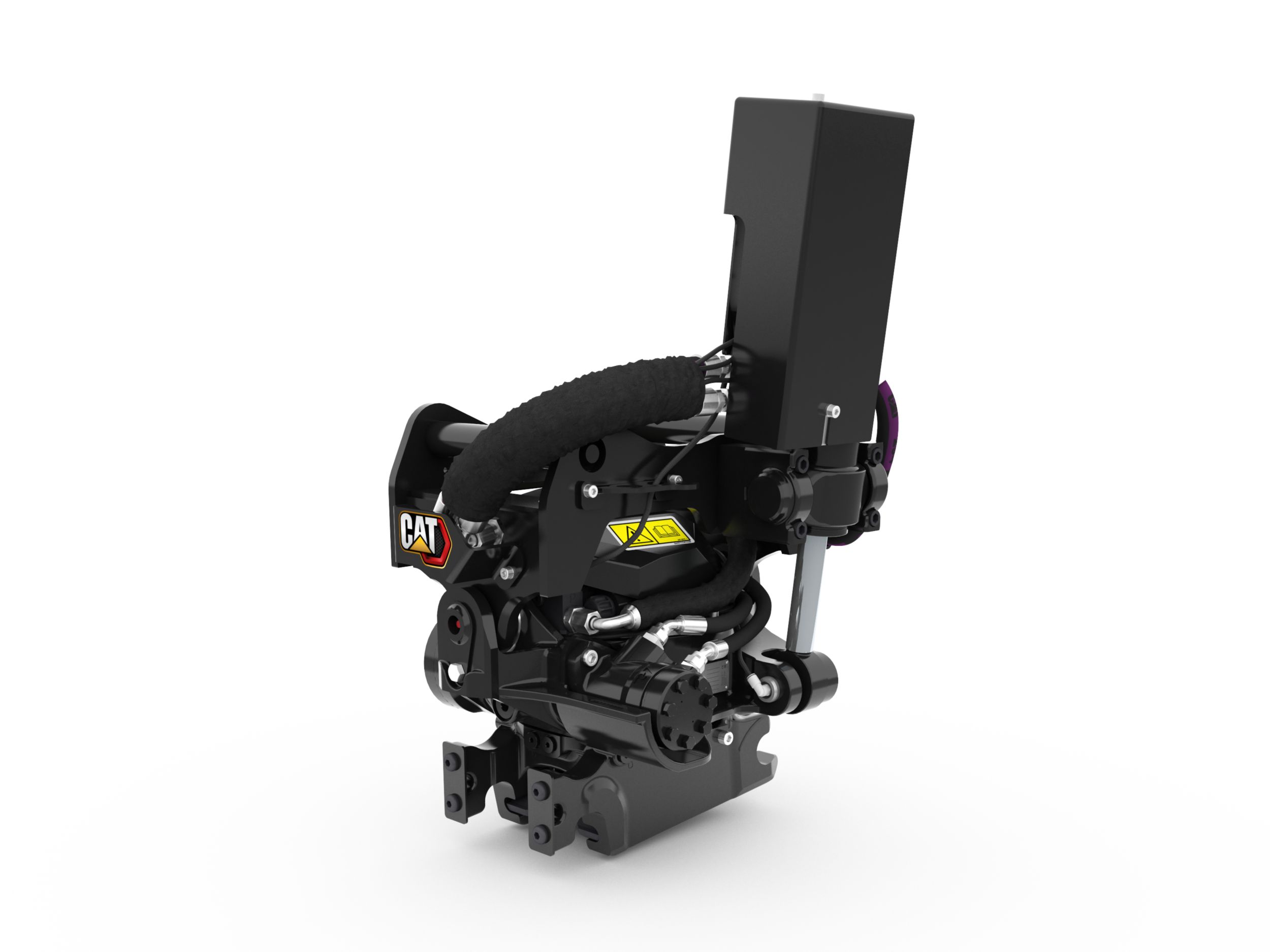

TRS6 S40 Coupler Tiltrotator For 5-6 Tonne Excavators
Complete 360 Degree Rotation
Provides optimal control of your work tools to provide greater flexibility.
Integrated Central Lubrication System
A single point of entry for grease allows the entire unit to be greased quickly and easily.
TRS6 Positioning System
Upgraded software informs the operator of the attachments position via standard equipped monitoring sensors.
Oil Filled Gearbox
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Heavy Duty Worm Gear
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Double Acting Cylinder with Load Hold Valve
Valves sustain holding pressures and prevent cylinder movement under load constraints.
Visual Verification Indicator
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Optional Grapple Attachment
Used to pick up objects such as pipe and debris.
Locking Control System (LCS)
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
| Product Specifications | |
|---|---|
| Machine Class | 5-6 Ton Mini Excavators |
| Weight | 210 kg (463 lb) |
| Interface Options: Top-Bottom | S40 Coupler / S40 Coupler |
| Overall Height | 819 mm (32.2 in) |
| Length | 526 mm (20.7 in) |
| Overall Width | 490 mm (19.3 in) |
| Rotation Speed | 7 Seconds per 1 Full Rotation |
| Tilt Angle Range | 40u00b0 Left/Right |
| Maximum Bucket Capacity | 250 l (8.8 ftu00b3) |
| Maximum Bucket Width | 1200 mm (47.2 in) |
| Optimal Hydraulic Flow | 45-80 L/min (12-21 gpm) |
| Maximum Operating Pressure | 25000 kPa (3625.9 psi) |
| Required Hydraulics | 1st Auxiliary |
| Tilting Torque | 14408.3 N·m (10627 lb/ft) |
| Turning Torque | 3900 N·m (2876.5 lb/ft) |
| Compatibility | Only compatible with the following Mini Excavator model serial number prefixes: 306 CR (6G6 1 & up) |
