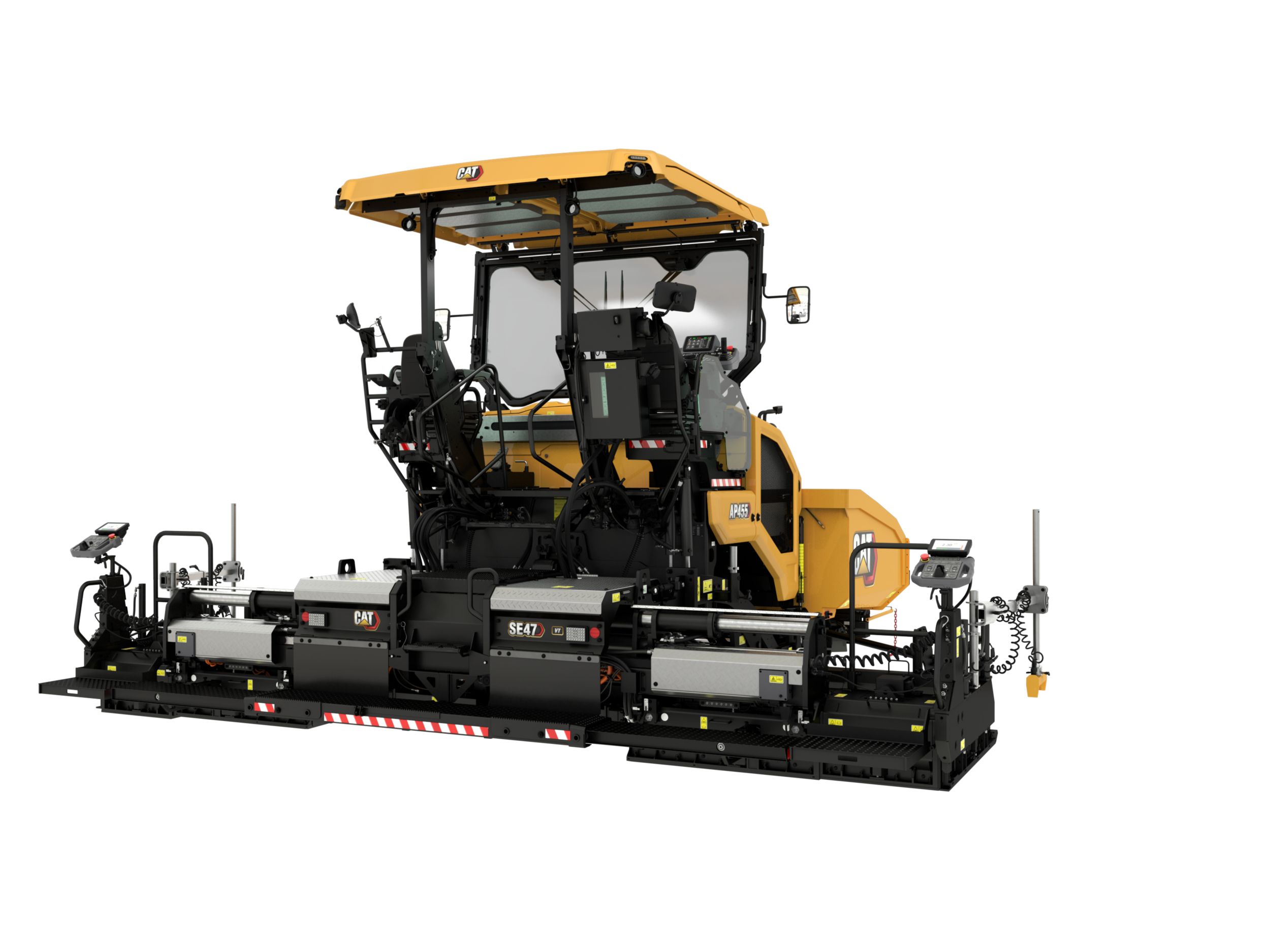

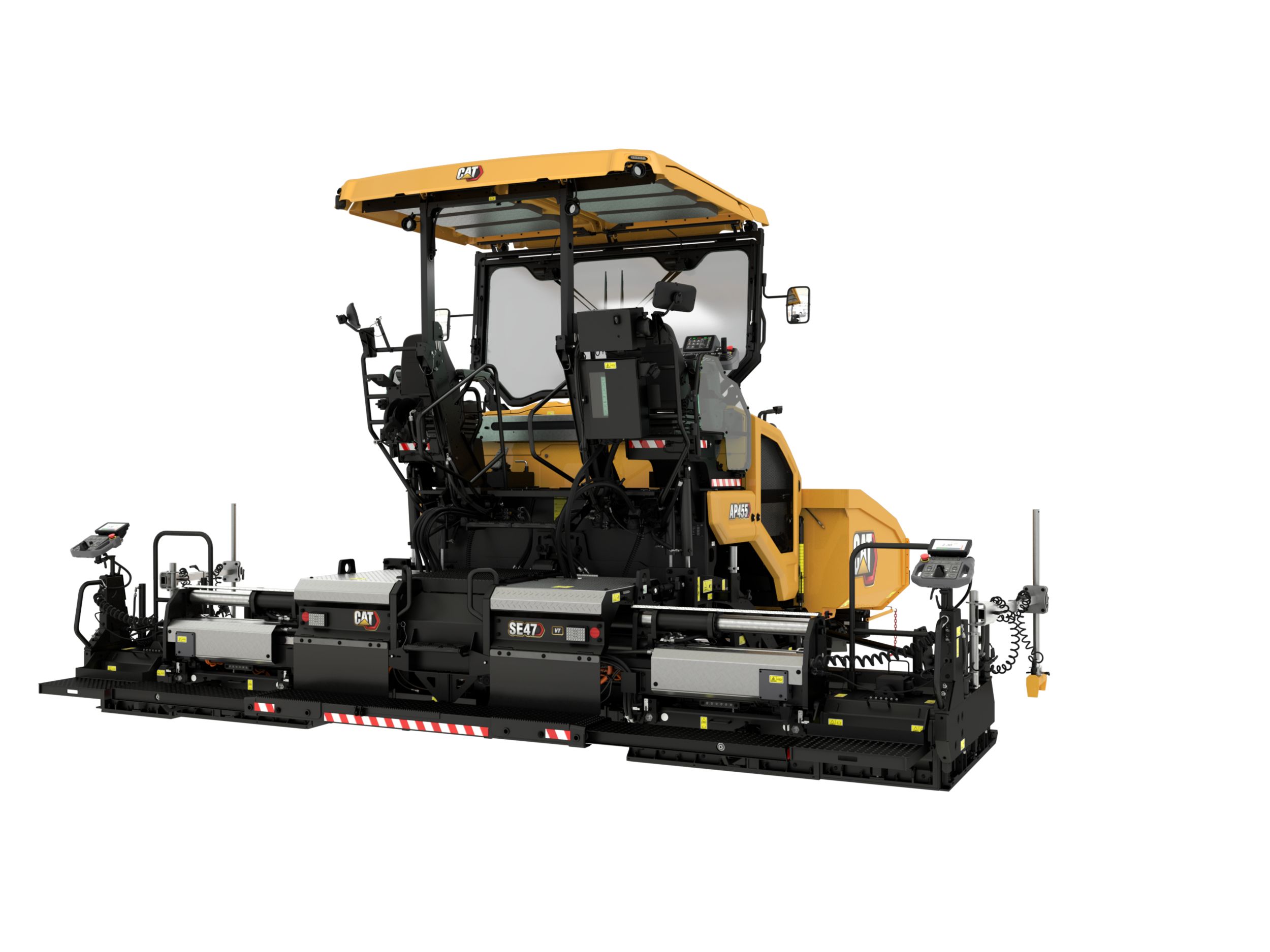

SE47 VT Tamper Bar Screed

Application Versatility

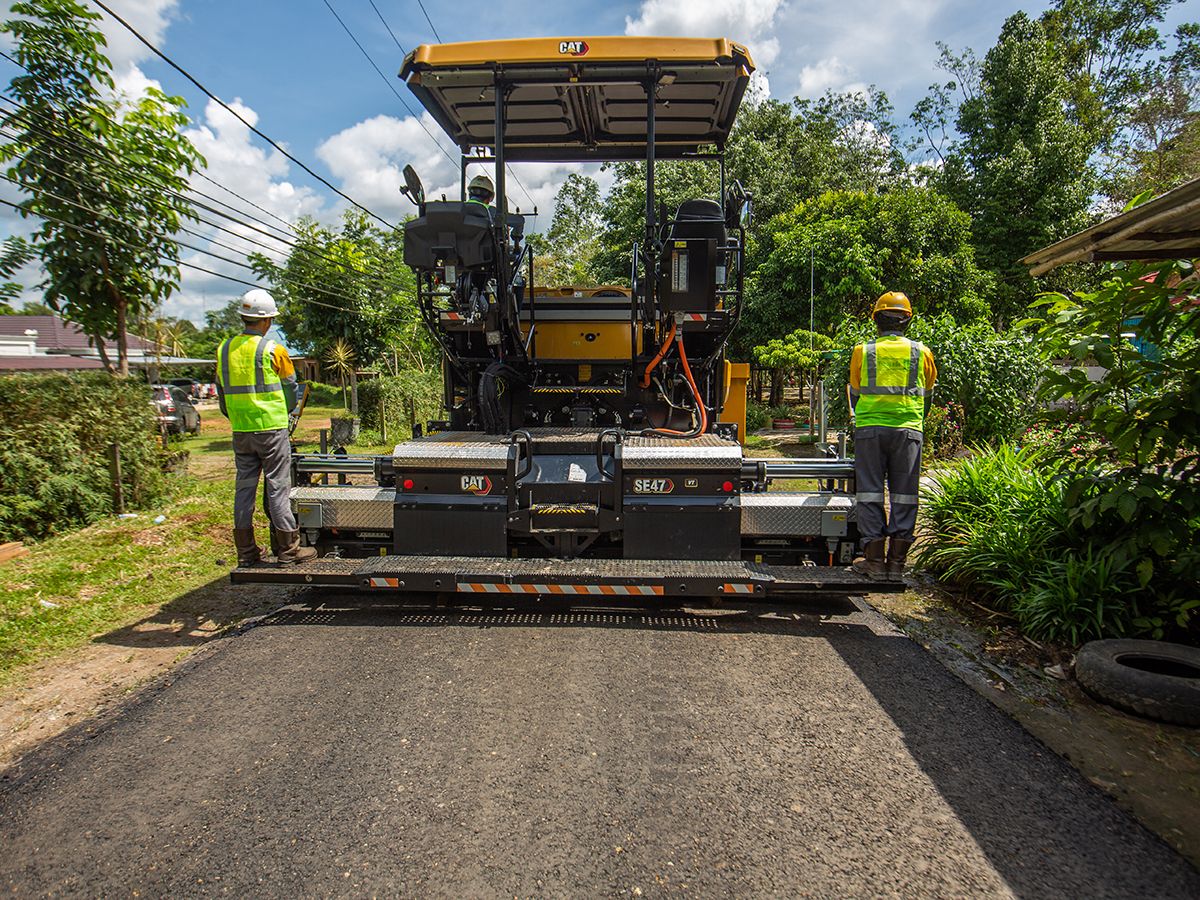

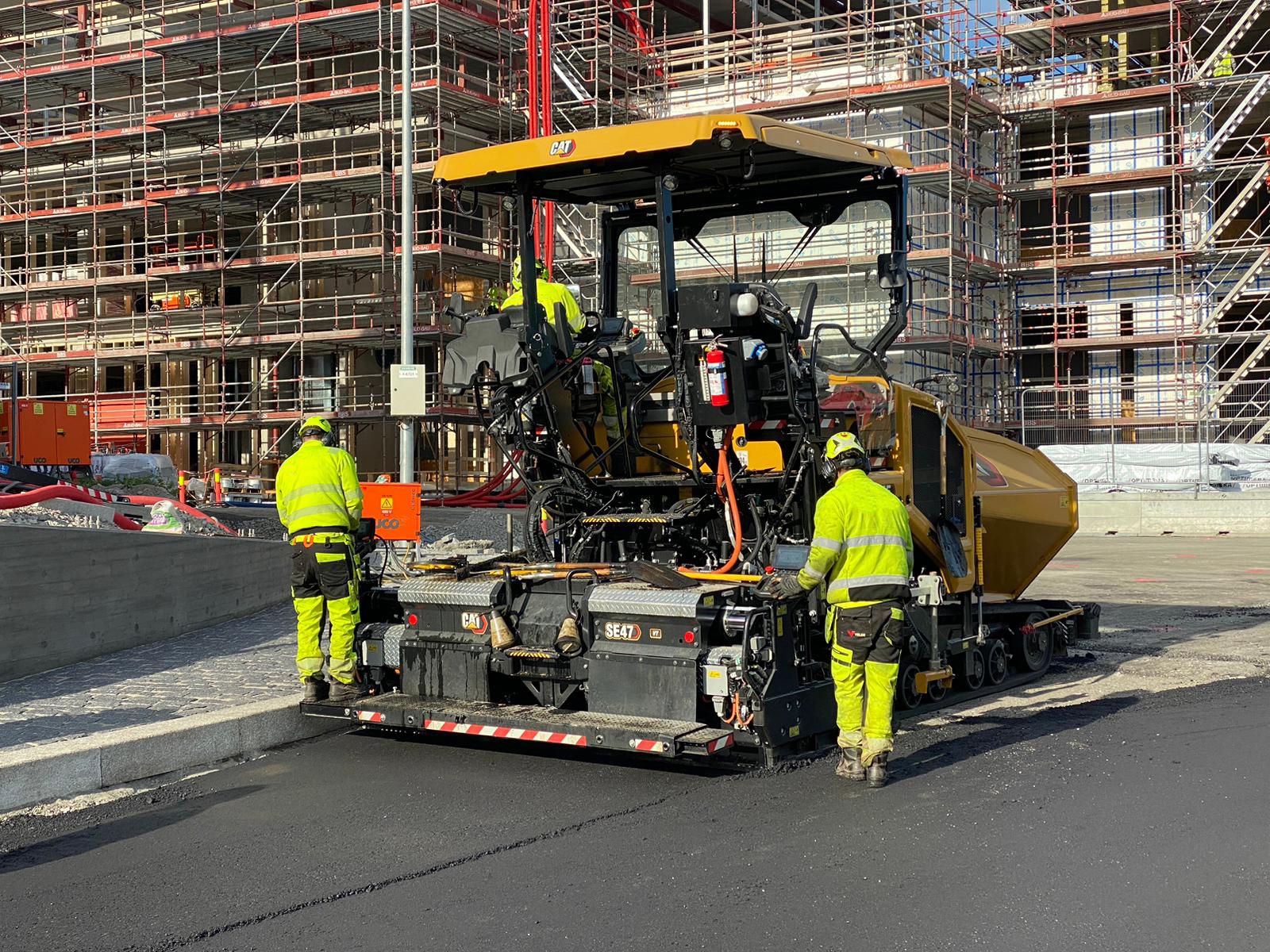

• Common applications include parking lots, urban and rural roads, streets, and highways



• The standard, extendable paving range of 2.4 m
   - 4.7 m (7′ 10″
   - 15′ 4″) provides versatility and good performance when changing paving widths.



• The transport width of 3.0 m (9.8′) is maintained when equipped with 225 mm (9″) extensions and  end gates on each side



• Simple, bolt-on extensions offer a maximum paving width of 6.0 m (19′ 8″)



• Walkway clearance height of 127 mm (5″) enables close starting capability next to curbs and other obstacles

Easy Adjustment

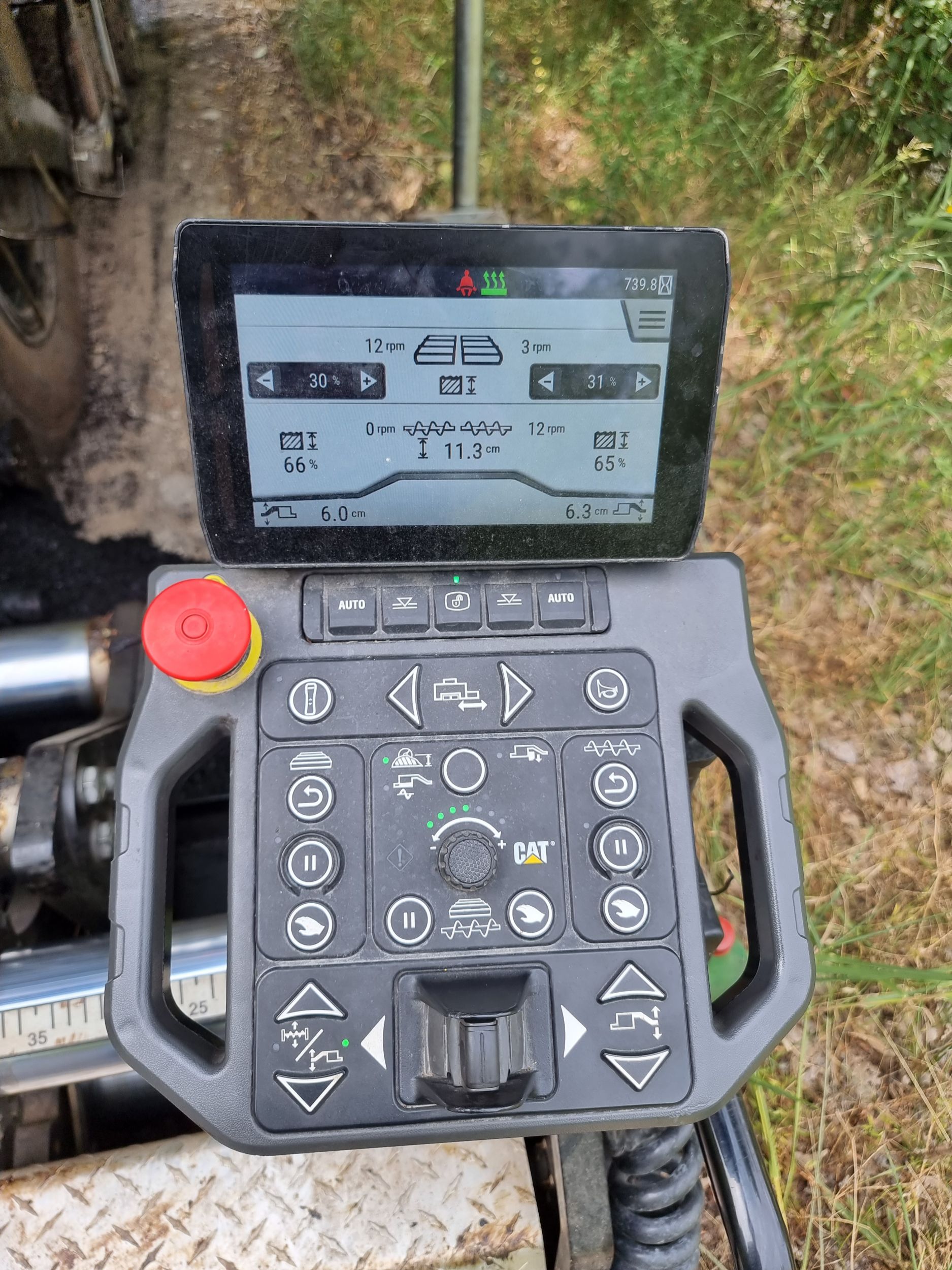

• Screed operating consoles are equipped with mix height adjustment for the augers that provide material flow modification. When equipped with Cat® Grade Control, conveyor ratio adjustment (conveyor material height) can be performed through the display



• Auger and tow-point height adjustments provide versatile setup options for the screed operator



• Optional power control for screed crown enables operators to quickly manage mat profiles



• Tamper speed adjustment is available with the multi purpose mix-height, tamper speed, and vibratory speed control dial; tamper speed adjustment helps modify angle of attack and eliminate transition lines between the main screed and extenders



• Optional power end gates easily accomodate paving depth changes

Smooth Material Flow


• Screed plate depths of 324 mm (12.8″) on the main and extenders are designed to provide stability and good mat textures



• The proportionally sized auger chamber and rear mounted extenders are designed to provide smooth material flow for consistent mat quality



• Proportional control extenders offer smooth adjustment when transitioning paving widths



• Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow



• The heated end gate option helps prevent material from sticking for better edge profiles and joint matching capability

Quick Heat, Even Distribution


• Belt-driven, tractor mounted generator delivers fast heating screed plates for quick starts



• The electric heating system with zone monitoring keeps the operator informed to enable even heat distribution and smooth asphalt textures while also allowing heating to continue in the event of a temperature sensor failure

Cat® Grade Control Option


• Cat Grade Control is a factory-integrated leveling system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability



• User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection



• Precise control is driven by the 10-point auto-calibration for true averaging with 5 transducers in each sonic sensor, and the cross coupling feature that maintains slope  requirements more consistently when changing elevation



• Text-based displays are available with multiple language options to serve regional markets

Service Repair Kits


• Paver and screed service and repair kits include all the parts necessary to complete specific repairs



• Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime



• Repair kits are identified by a single part number to make ordering easy



• Select kits are available to be packaged as a kit by the dealer for over-the-  counter purchases or through the dealer service shop
