Mobile Scrap & Demolition Shears

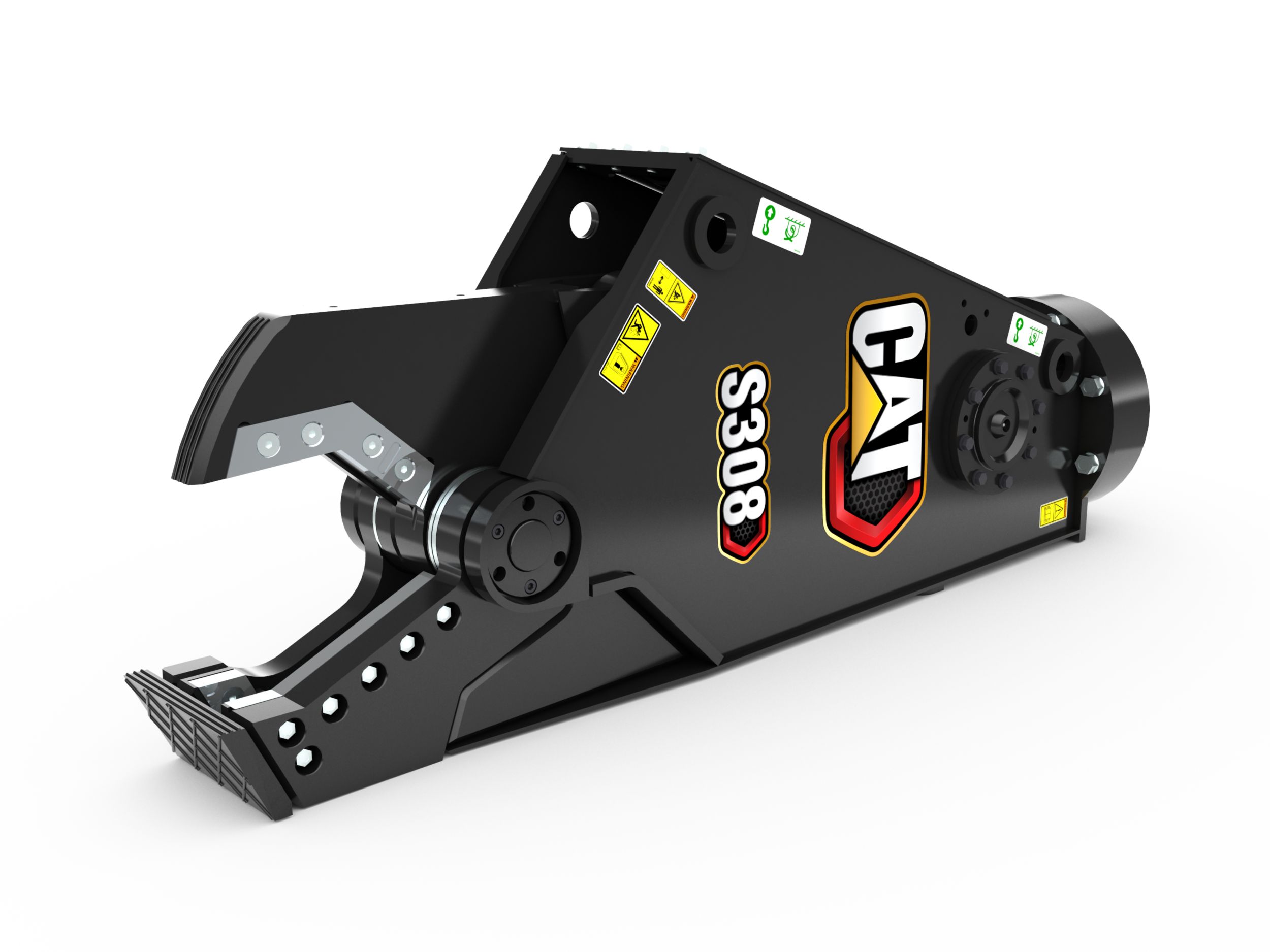

S308 Mobile Scrap and Demolition Shear
Jaw Design
Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.
360° Rotation
Operator can spin the shear 360 degrees in either direction to quickly position the jaws for a cut.
Reversible Knives
The five main, side and front knives are fully reversible with four effective cutting edges.
Easy Maintenance
Large access panels on the top and bottom of the shear housing make it easier to service inside components.
Protected Cylinder
Design of the shear housing and cylinder rod guarding provides full protection of the cylinder throughout the complete cutting cycle.
Jaw Lockout Pin
Included with every shear to provide confidence that working in the jaw area is safe.
Speed Valve
Provides optimum flow regeneration to improve cycle times and machine productivity.
Mounting Options
Mounting options for the S308 Shear include a skid steer loader mounting bracket, a 7/8/9 ton stick mount, and a 5/6 ton boom mount bracket.
Included Service Kit
Each shear comes included with a service kit and tool box.
| Product Specifications | |
|---|---|
| Tip Force | 385 kN (43.3 Sh Ton) |
| Rotation | 360 Degrees |
| Jaw Opening | 240 mm (9.4 in) |
| Jaw Depth | 290 mm (11.4 in) |
| Jaw Width - Moving | 60 mm (2.4 in) |
| Jaw Width - Fixed | 230 mm (9.1 in) |
| Cycle Time - Close | 2.5 Seconds |
| Cycle Time - Open | 3.5 Seconds |
| Rotation Circuit - Maximum Flow | 20 L/min (5.3 gpm) |
| Rotation Circuit - Maximum Relief Pressure | 20000 kPa (2900.8 psi) |
| Cutting Circuit - Maximum Flow | 60 L/min (15.9 gpm) |
| Cutting Circuit - Maximum Relief Pressure | 25000 kPa (3626 psi) |
| Throat Force | 1812 kN (203.7 Sh Ton) |
| Apex Force | 653 kN (73.4 Sh Ton) |
| Weight | 550 kg (1212.5 lb) |
| Height | 667 mm (26.3 in) |
| Length | 1709 mm (67.3 in) |
| Width | 390 mm (15.4 in) |
