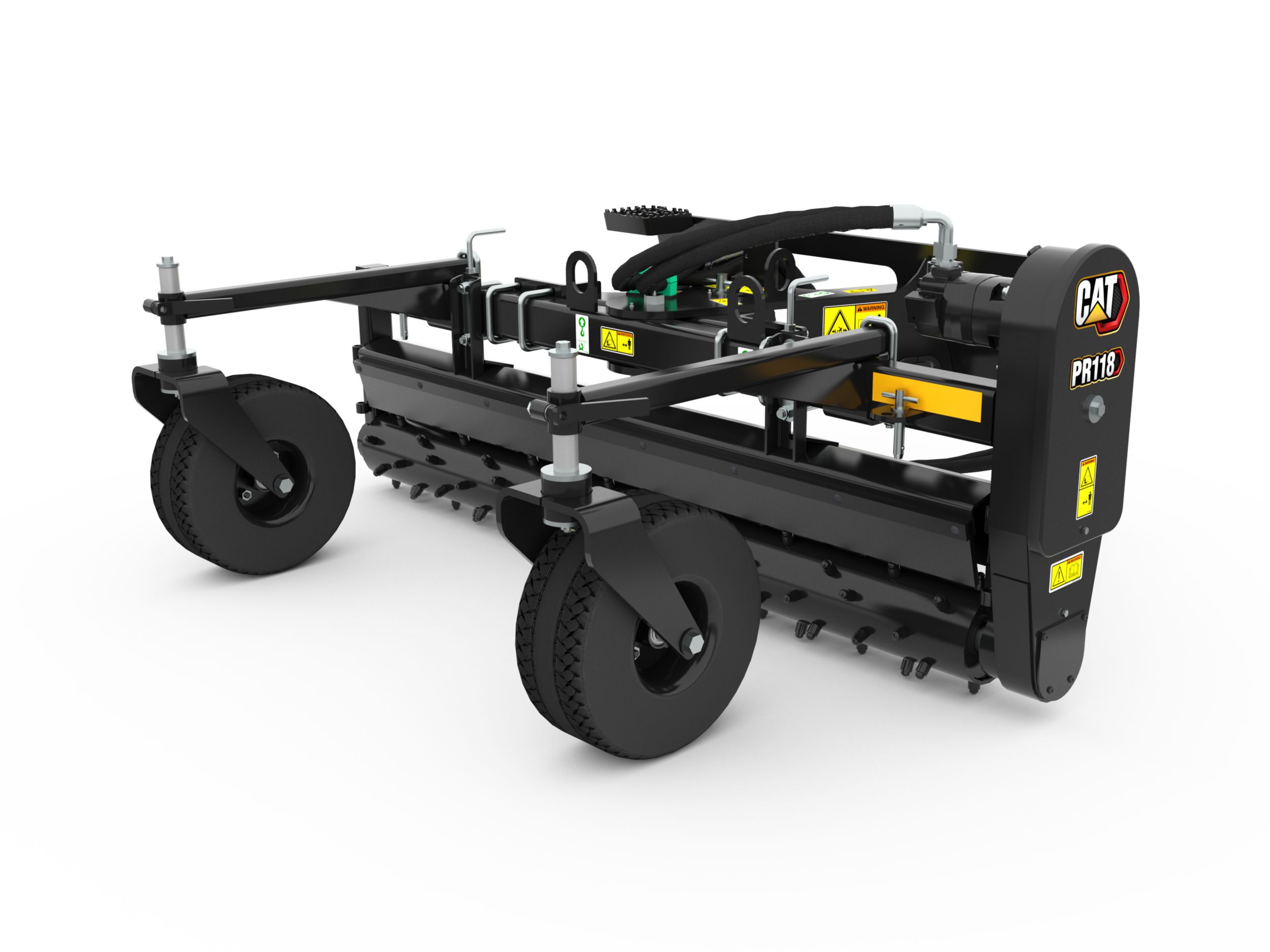

PR118 Manual Angle Power Box Rake
Application
Offers the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool.
Angling Ability
Angling ability allows the operator to windrow collected debris for easy pickup and removal.
Milling Action
Consistent milling action creates an ideal seedbed for great germination results, laying the groundwork for a perfect lawn.
Manual or Hydraulic Angling
Manual or hydraulic angling up to 20 degrees right or left of center. Hydraulic angling option allows the operator to control the power box rake angle from the operator compartment.
Adjustable Gauge Wheels
Dual independently adjustable gauge wheels allow for skim passes for over-seeding or adjust to cut drainage grades.
Two-Position Winged Endplates
Two-position winged endplates allow close raking to side walks or foundations. They can remain parallel, even during angling, for smoother plowing.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Efficient Performance
Wet, dry, weedy, hard and rocky soil can be dried, flattened, pulverized and conditioned for seed in one step.
Access Step
Wide step with grating and large profile serrations provide better traction for entering and exiting the cab.
| Product Specifications | |
|---|---|
| Roller Width | 1829 mm (72 in) |
| Overall Width | 2057 mm (81 in) |
| Maximum Angle - Right or Left | 20 degrees |
| Raking Width at Maximum Angle | 1727 mm (68 in) |
| Overall Length | 1540 mm (60.6 in) |
| Overall Height | 847 mm (33.3 in) |
| Weight | 408 kg (899.5 lb) |
| Required Hydraulics | Standard Flow w/o Electrical |
| Optimal Hydraulic Flow | 49-87 L/min (13-23 gpm) |
| Optimal Hydraulic Pressure | 170-241 bar (2500-3500 psi) |
