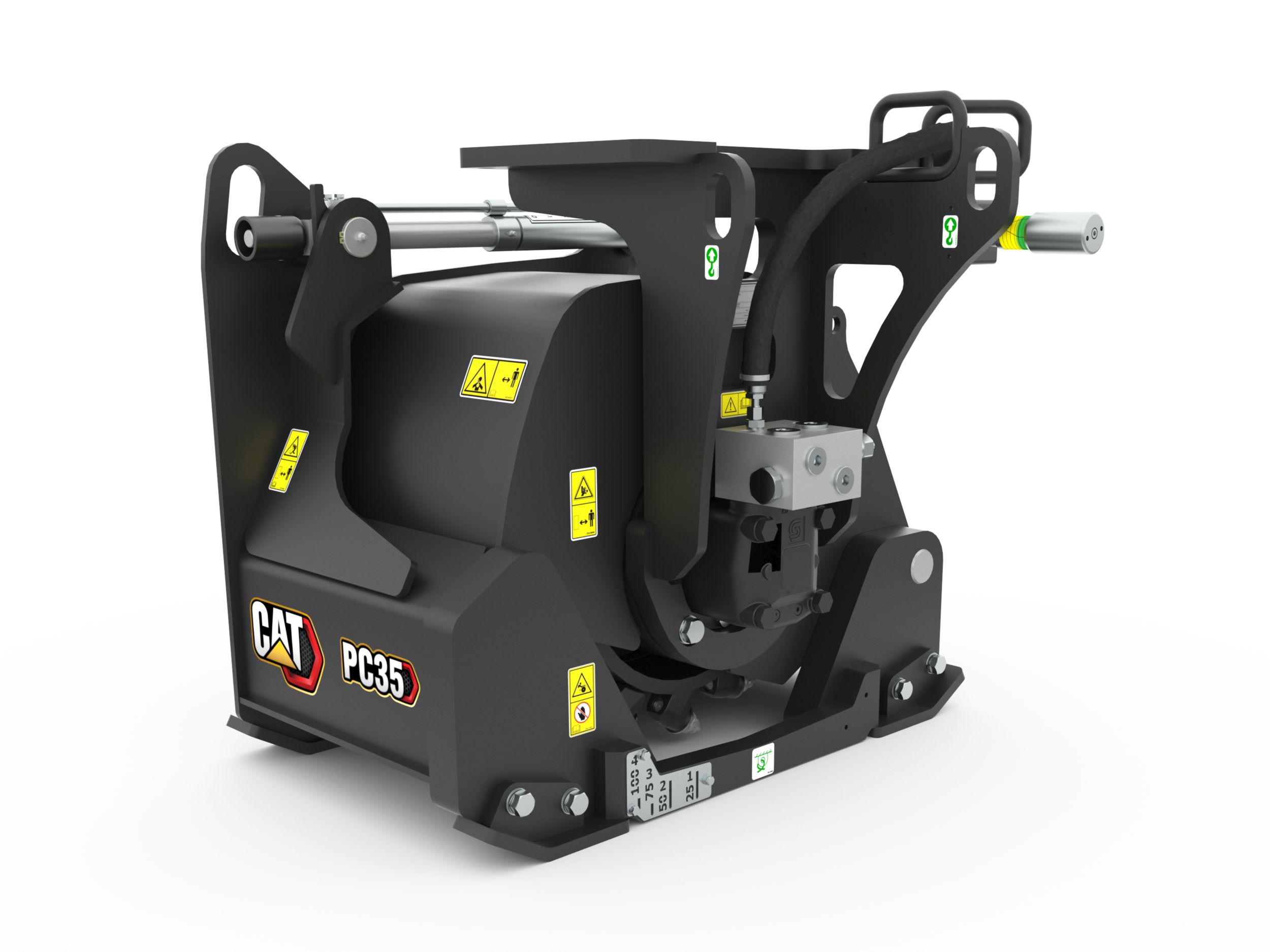

PC35 Cold Planer Attachment
Max Pro Pressure Gauge
Max Pro Pressure Gauge provides operator feedback to adjust ground speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.
Manually Adjustable Depth
Allows the operator to easily adjust the depth using the provided hand crank and indicator scale.
Cut Marks
Indicates contact point of drum with surface based on depth of cut, so an assistant can communicate with the operator when to start and stop the cut.
Drum Center Indicator
Indicates center of the drum on the side of the planer.
Cut Width Indicator
Indicates the width of the cut of the drum.
Long Life Motor
Gear motor provides optimal performance and efficiency.
Replaceable Skid Shoes
Easily replaceable, wear-resistant skid shoes remain parallel to the ground for optimum stability.
Efficient Hose Routing
Hose guides ensure hydraulic lines are out of the way during all operating orientations.
Mounting Bracket System
Common bolt pattern allows the work tool to be interchangeable with multiple compatible machines, utilizing Cat hammer brackets.

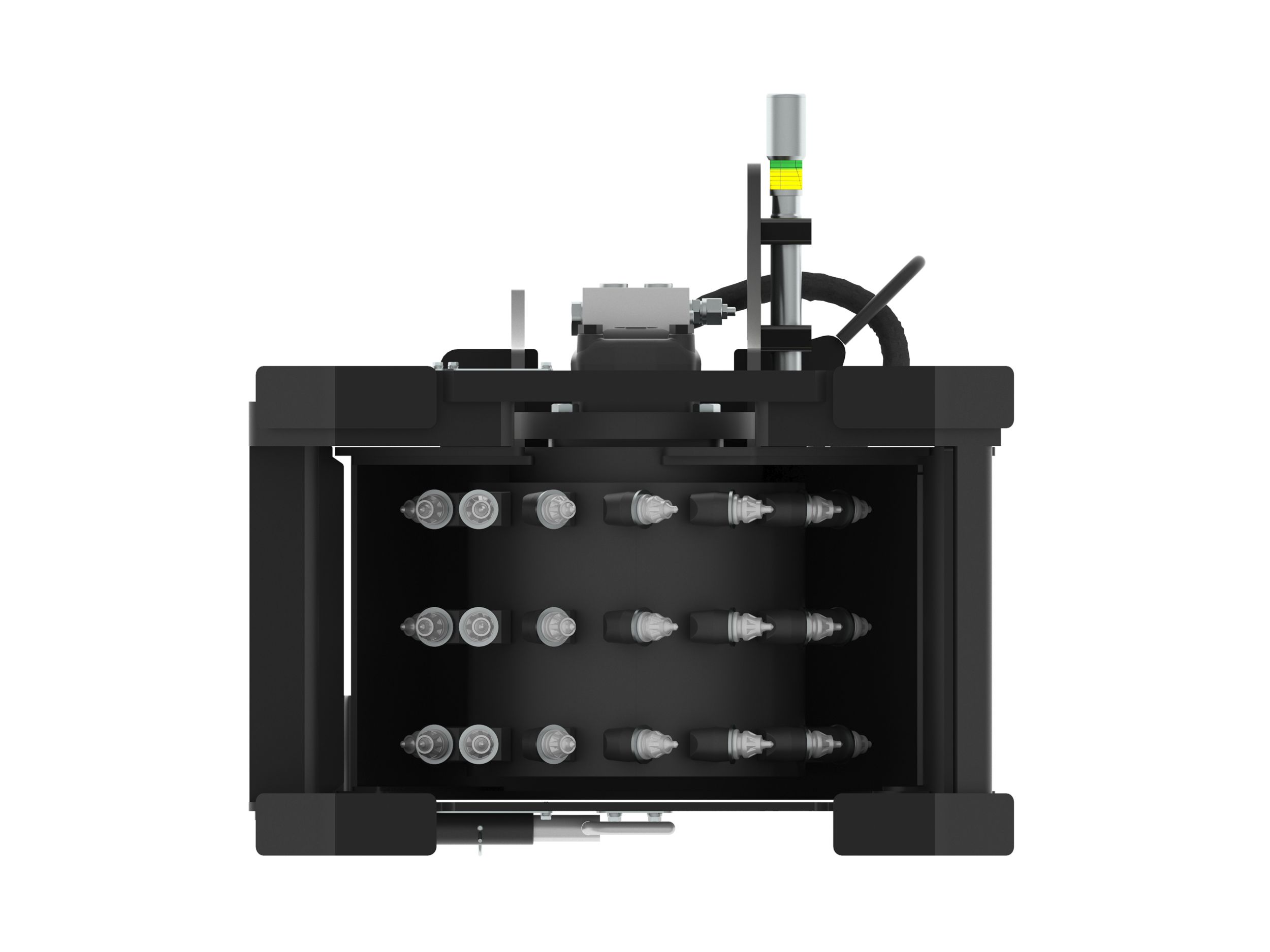

Bit Options
All purpose conical bits are standard. Optional concrete bits, heavy duty concrete bits, and heavy duty asphalt bits are also available. Tools to change out the bits are included.
| Product Specifications | |
|---|---|
| Working Width | 350 mm (13.8 in) |
| Maximum Cutting Depth | 120 mm (4.7 in) |
| Required Hydraulics | 1st Auxiliary |
| Overall Width | 856 mm (33.7 in) |
| Overall Length | 860 mm (33.9 in) |
| Overall Height | 808 mm (31.8 in) |
| Weight | 489 mm (19.3 in) |
| Optimal Hydraulic Flow | 45-80 L/min (12-21 gpm) |
| Optimal Hydraulic Pressure | 150-250 bar (2175-3625 psi) |
| Drum Speed | 255 RPM |
| Maximum Drum Width | 350 mm (13.8 in) |
| Conical Bits | 42 |
| Standard Bit Type | All Purpose |
