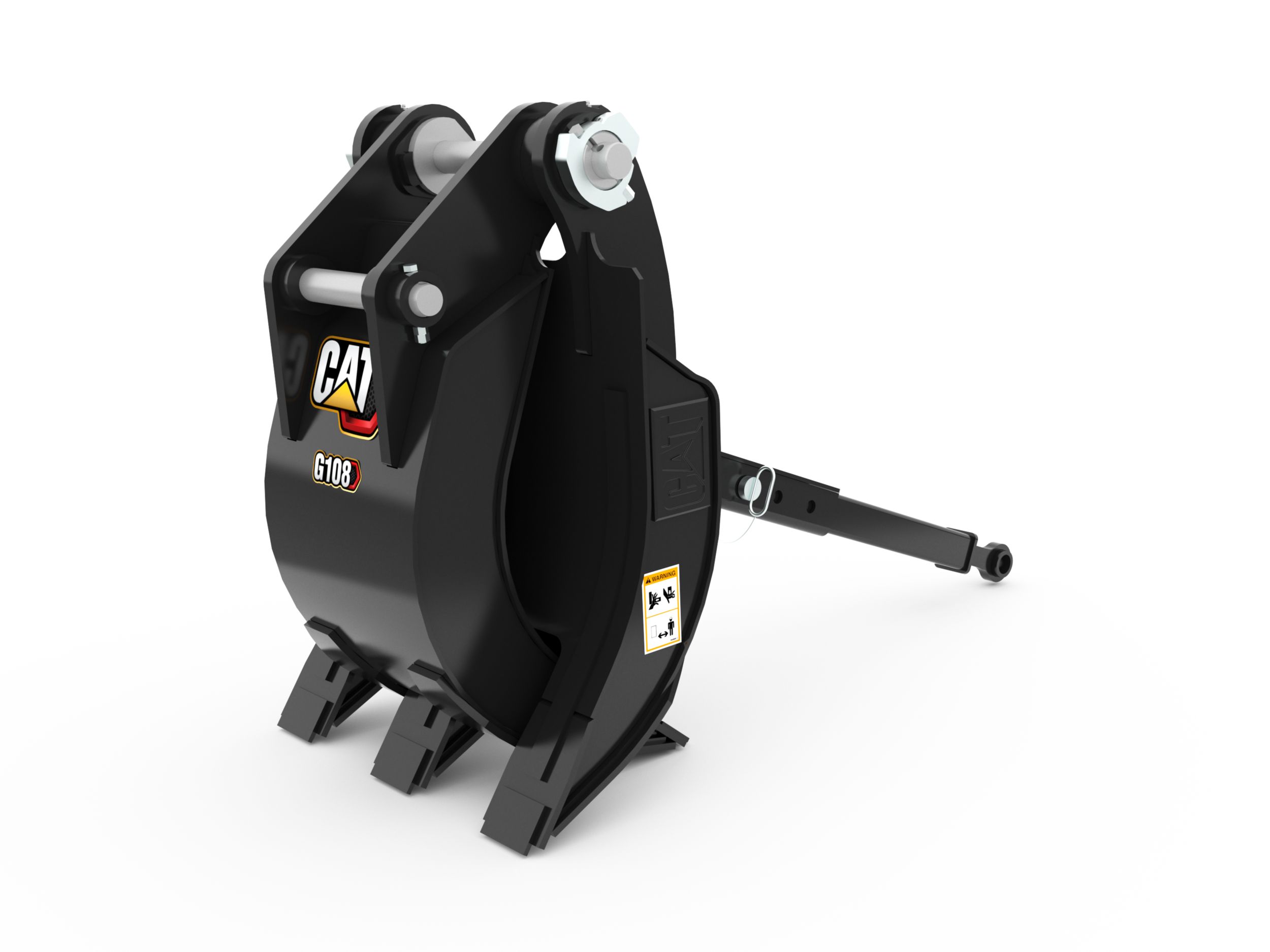

G108 Stiff link Contractors’ Grapple
Application
The Cat® Contractor Grapple is used in demolition at sites as well as waste and recycling industries for material handling in a more efficient way.
Easy to Install Stiff Link
Updated from the previous version, the G108 now uses the same fixing point as the current thumbs, so no more weld and paint job needed to install.
Adjustable Link Position
The stiff link can be manually adjusted in three different positions by repositioning the pin position. No special tools required.
Standard Wear Plates
Wear plates are now part of the standard G108, providing longer life and better grapple resistance against abrasive material. Standard wear plates have been added to both jaws.
| Product Specifications | |
|---|---|
| Machine Class | 7-9 Ton Mini Excavators |
| Jaw Opening | 1765 mm (69.5 in) |
| Weight | 370 kg (815.7 lb) |
| Overall Width | 735 mm (28.9 in) |
| Upper Jaw Width | 435 mm (17.1 in) |
| Wear Plate Thickness | 8 mm (0.3 in) |
| Number of Adjustments | 3 |
| Length Between Adjustments | 192 mm (7.6 in) |
| Interface Type | Pin On |
| Inner Wrapper Thickness | 8 mm (0.3 in) |
| Outer Wrapper Thickness | 8 mm (0.3 in) |
| Upper Jaw Tine Count | 2 |
| Lower Jaw Tine Count | 3 |
