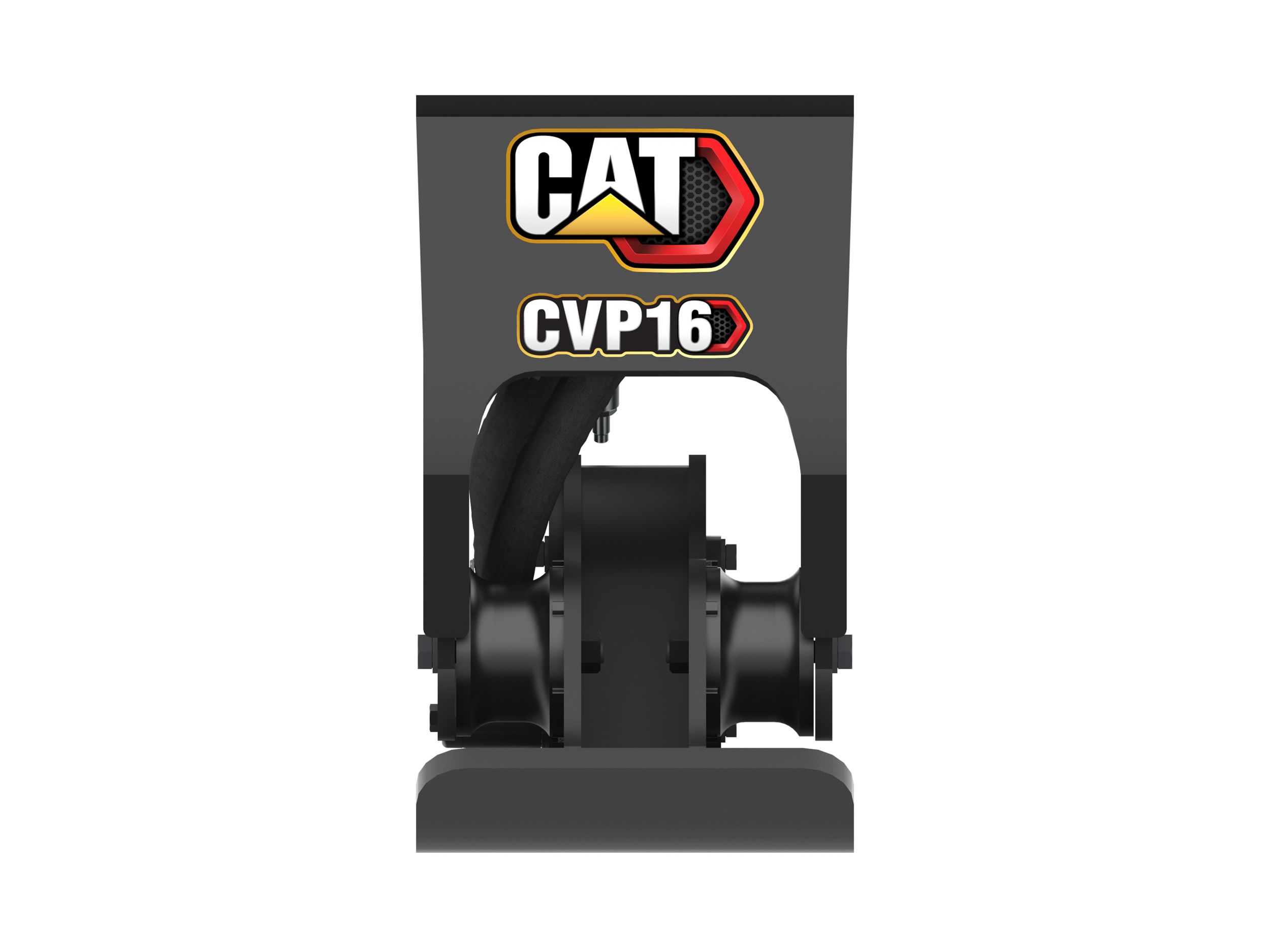

CVP16 Vibratory Plate Compactor
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Superior Compaction Force
These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.
Common Mounting Solutions
Cat vibratory plate compactors share the same mounting solutions as the Cat B and H model Hammers. Mounting brackets are available for pin on, pin grabber, pin lock, CW, and S type connections.
Protected Hydraulics

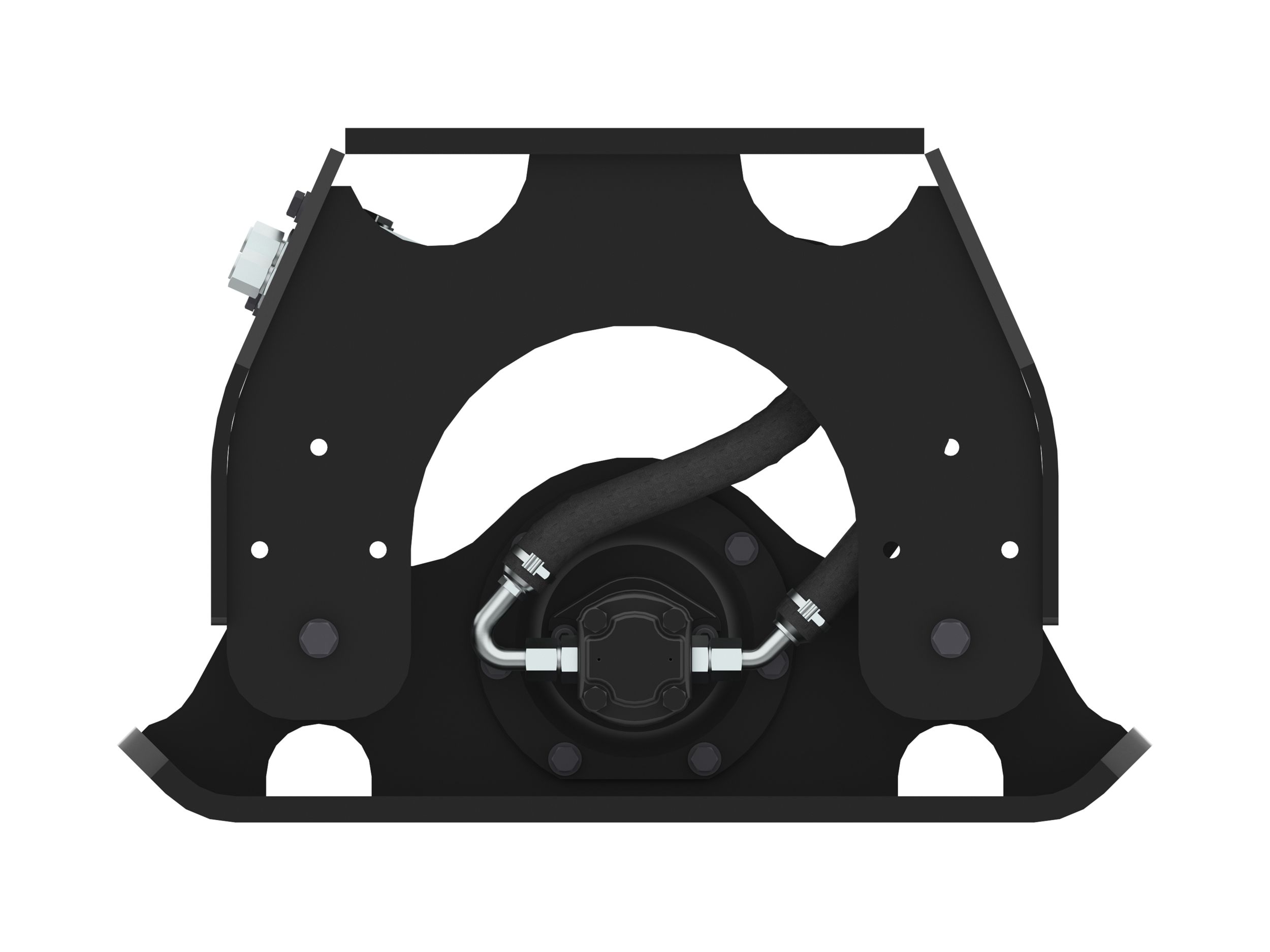

Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way
- even in tight trenches.
Easy Maintenance
Oil changes are simplified with the rear centerline plug. Oil can be changed while the compactor is installed.
Rubber Isolators
A heavy-duty steel frame and solid rubber isolator bushings deliver the maximum amount of power to the ground while minimizing machine impact.
Optional Backfill Blade
An optional bolt-on backfill blade can be mounted on both front and back of the compactor.
Optional Swivel Plate
An optional swivel plate that allows the operator to manually swivel the compactor, which allows for less repositioning while compacting.
| Product Specifications | |
|---|---|
| Impulse Force | 16 kN (3596.94 lb) |
| Impact Frequency | 2200 bpm |
| Base Plate Width | 305 mm (12 in) |
| Compaction Area | 0.19 mu00b2 (2 ftu00b2) |
| Base Plate Pressure | 86.5 kPa (12.5 psi) |
| Base Plate Length | 787 mm (31 in) |
| Optimal Hydraulic Flow | 38 L/min (10 gpm) |
| Optimal Hydraulic Flow | 40-50 lpm (11-13 gpm) |
| Minimum Operating Pressure | 11030 kPa (1599.8 psi) |
| Minimum Operating Pressure | 13000-17000 kPa (1900-2500 psi) |
| Weight | 150 kg (330.7 lb) |
