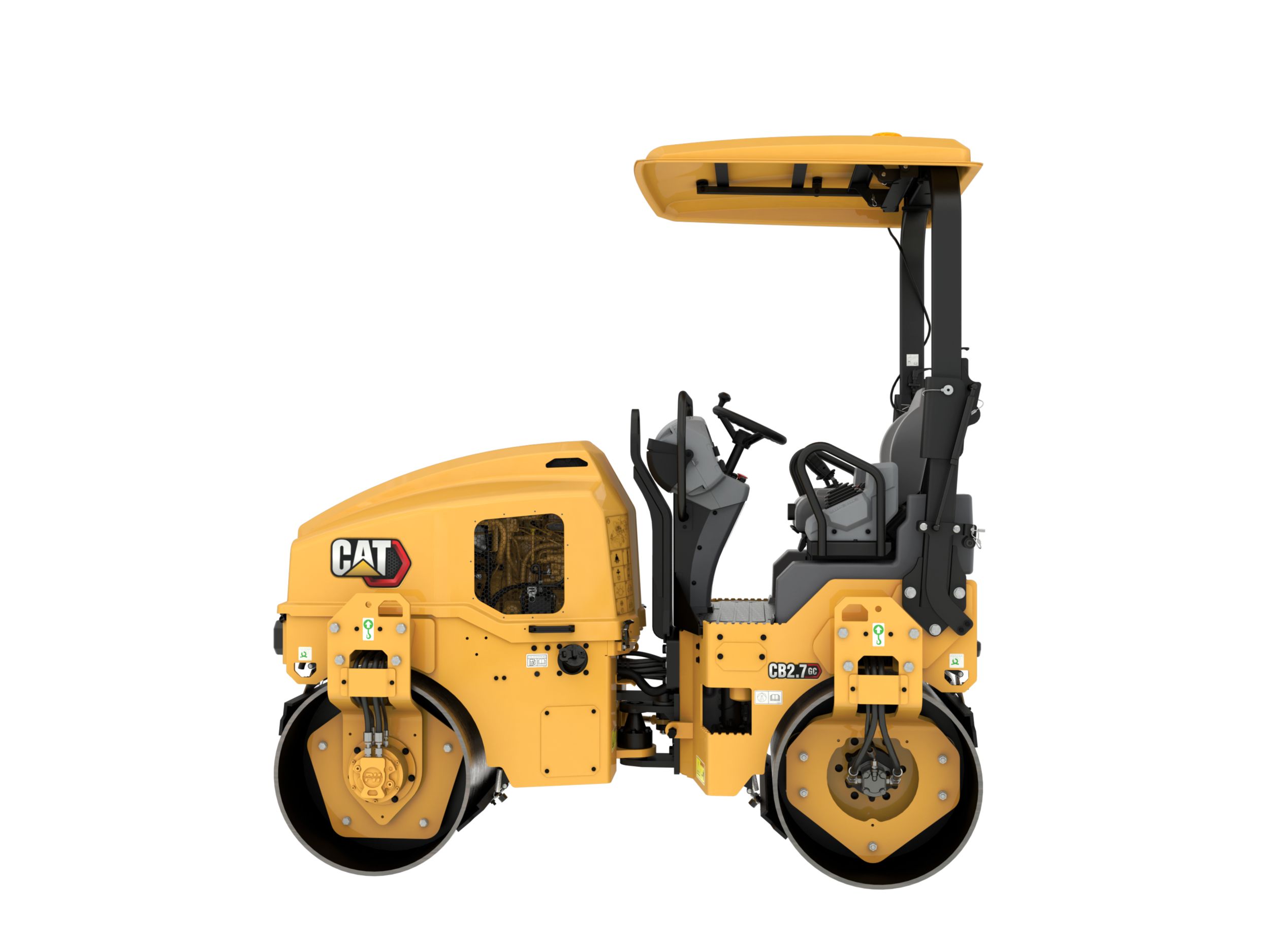

CB2.7 GC Utility Compactor
Simple to Operate
Proven Powertrain
Compaction Performance
Keep the Drums Clean
Service and Maintenance
Safety
Sustainability
| Weights | |
|---|---|
| Standard Operating Weight with ROPS | 2698 kg (5936 lb) |
| Maximum Operating Weight with ROPS | 3198 kg (7036 lb) |
| Maximum Weight at Rear Drum | 1398 kg (3075 lb) |
| Maximum Weight at Front Drum | 1301 kg (2861 lb) |
| Dimensions | |
|---|---|
| Compaction Width | 1200 mm (47.2 in) |
| Operating Specifications | |
|---|---|
| Curb Clearance | 453 mm (17.8 in) |
| Drum Offset | 50 mm (2 in) |
| Ground Clearance | 285 mm (11.2 in) |
| Static Linear Load | 11.85 kg/cm (66.2 lb/in) |
| Travel Speed - Maximum | 9.4 km/h (5.8 mile/h) |
| Turning Radius - Inside Drum Edge | 2540 mm (100 in) |
| Turning Radius - Outside Drum Edge | 3740 mm (147.2 in) |
| Engine | |
|---|---|
| Engine Power (1) | 18.4 kW (24.7 hp) |
| Engine Model | C1.7T |
| Dimensions | |
|---|---|
| Drum Diameter | 720 mm (28.3 in) |
| Drum Width | 1200 mm (47.2 in) |
| Height - ROPS | 2595 mm (102.2 in) |
| Overall Length | 2596 mm (102.2 in) |
| Overall Width | 1312 mm (51.7 in) |
| Wheel Base | 1800 mm (70.9 in) |
| Vibratory System | |
|---|---|
| Centrifugal Force - Maximum | 31 kN (6968.8 lb) |
| Nominal Amplitude - High | 0.52 mm (0.02 in) |
| Service Refill Capacities | |
|---|---|
| Water Spray Tank Capacity | 200 l (52.8 gal (US)) |
| Fuel Tank Capacity | 55 l (14.37 gal (US)) |
Standard Equipment
- OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt – 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
- COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection – front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
- POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
- TECHNOLOGY
- Telematics
- ELECTRICAL
- LED Working Lights
- OTHER
- Vandal Protection – lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
- OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat – Side Shift
- Dual Propel Levers
- COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit – 200 kg (440 lb)
- Ballast Kit – 400 kg (880 lb)
- POWERTRAIN
- Traction Control
- TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV – Compaction Measurement Value
- ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
- OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
