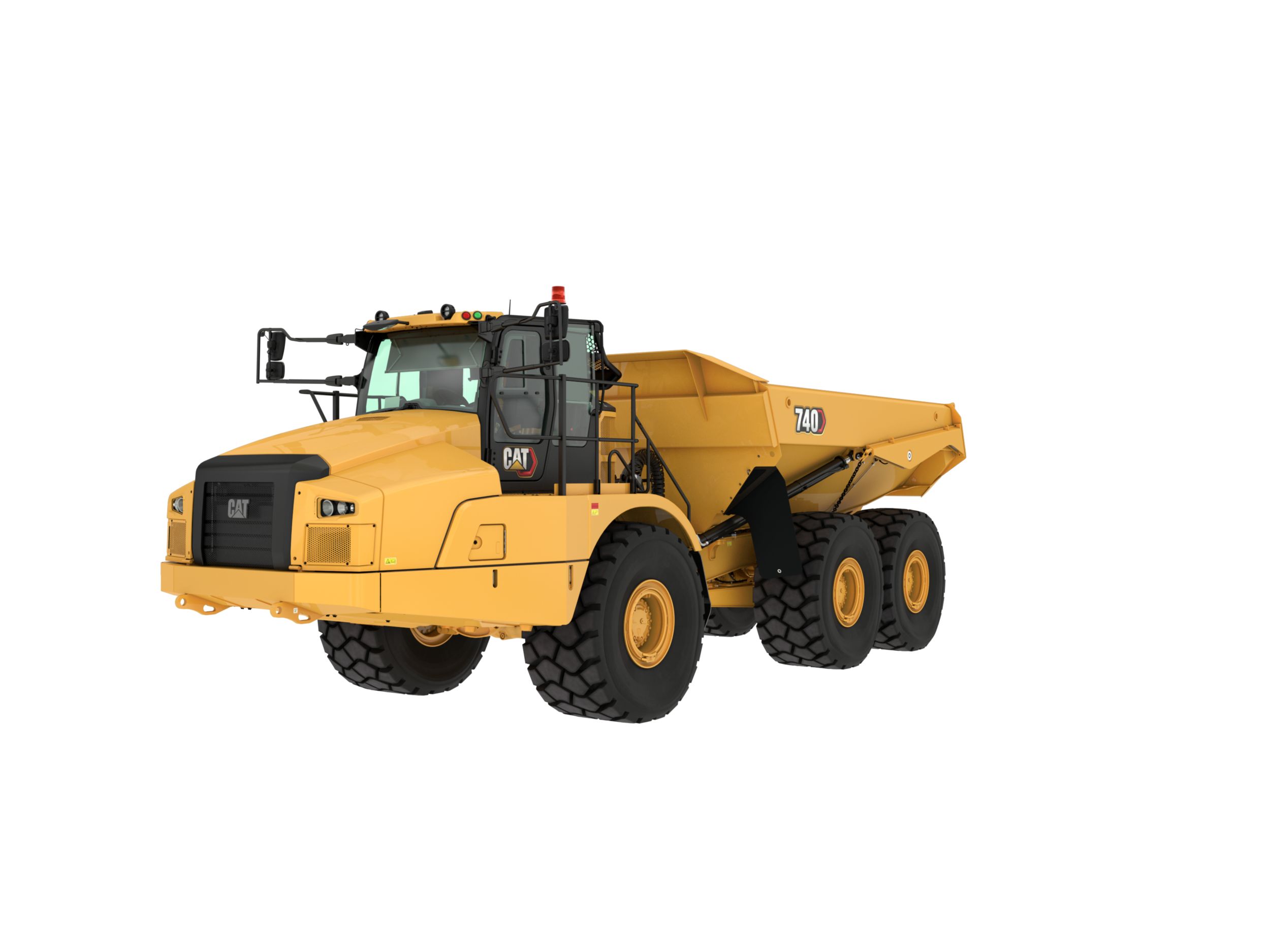

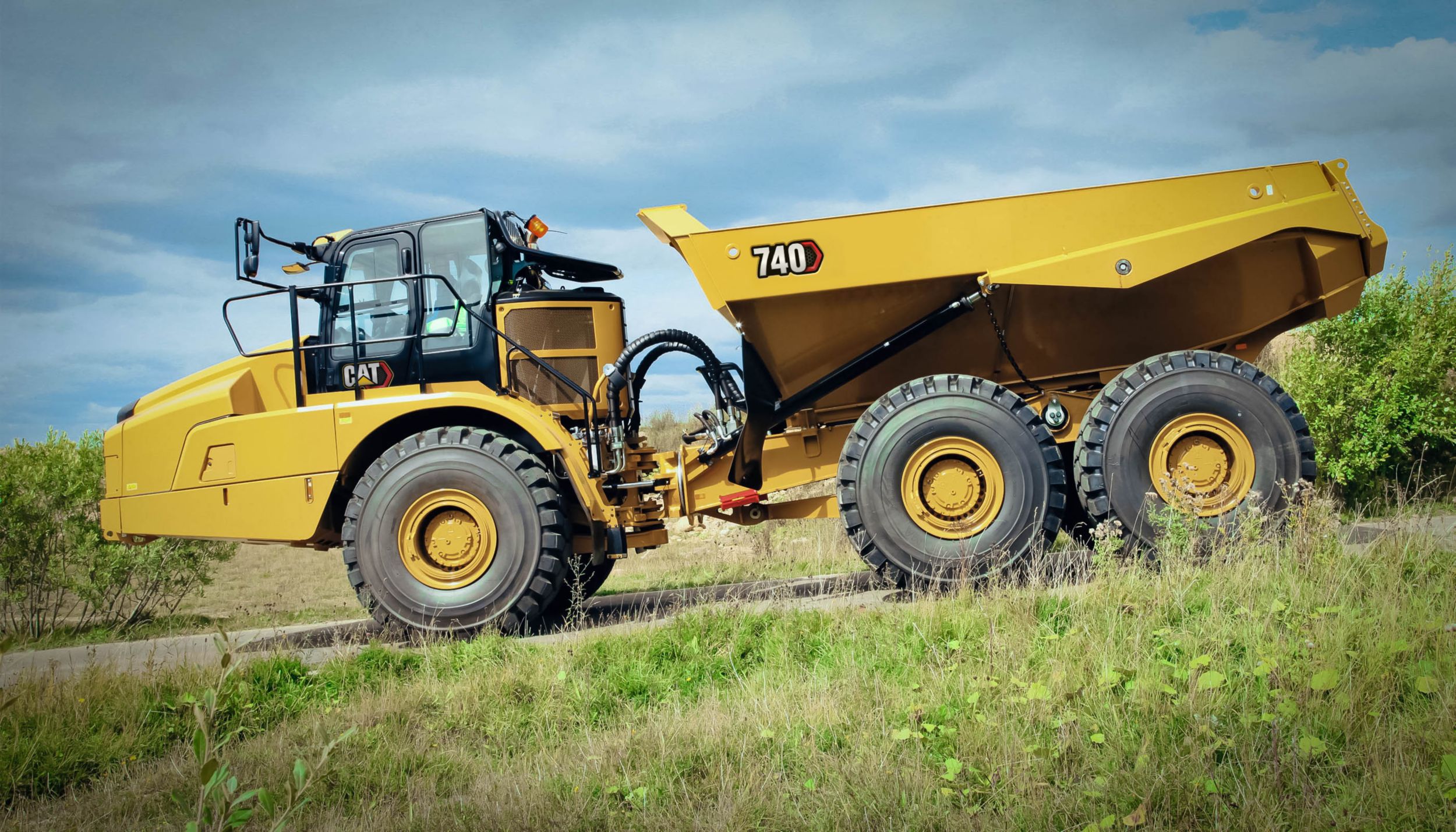

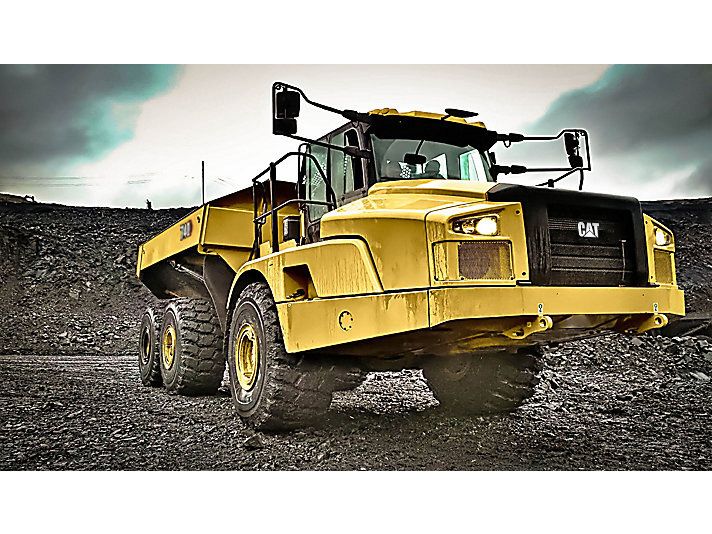

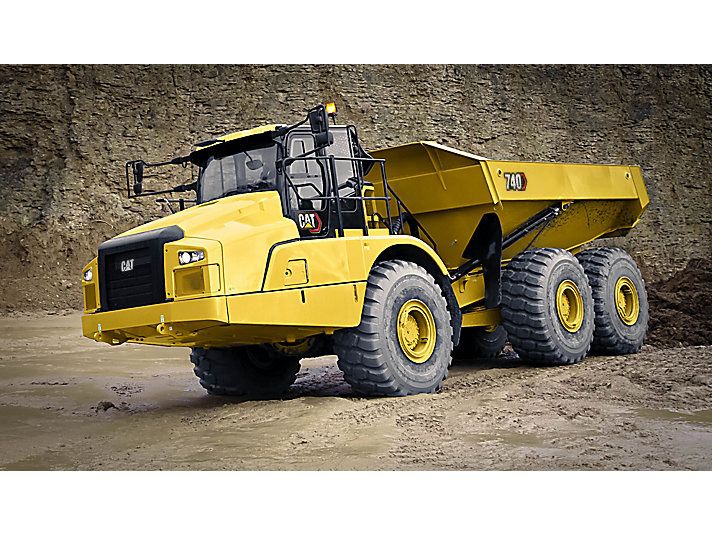

Cat 740 Articulated Truck
PROVEN RELIABILITY
DURABILITY
ACHIEVE GREATER PRODUCTIVITY
BOOST FUEL EFFICIENCY
EASY, COMFORTABLE OPERATOR ENVIRONMENT
BUILT-IN SAFETY FEATURES
TECHNOLOGY THAT GETS WORK DONE
REDUCED MAINTENANCE COSTS
| Engine | |
|---|---|
| Engine Model | Cat® C15 |
| Gross Power (SAE J1995) | 335 kW (449 hp) |
| Net Power (SAE J1349) | 324 kW (434 hp) |
| Engine Power (ISO 14396) | 330 kW (443 hp) |
| Bore | 137 mm (5.4 in) |
| Stroke | 171.5 mm (6.75 in) |
| Displacement | 15.2 l (926 inu00b3) |
| Note (1) | Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 324 kW (434 hp) per the SAE reference conditions. |
| Note (5) | Two engine emissions options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. |
| No Engine De-rating Below | 3050 m (10000 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2320 N·m (1711 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2264 N·m (1670 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 36.3 t (40 ton (US)) |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. u2022 If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 22.7 mu00b3 (29.7 ydu00b3) |
| Struck | 17.7 mu00b3 (23.2 ydu00b3) |
| Tailgate Heaped SAE 2:1 | 24.4 mu00b3 (31.9 ydu00b3) |
| Tailgate Struck | 17.9 mu00b3 (23.4 ydu00b3) |
| Transmission | |
|---|---|
| Forward - 1 | 6.4 km/h (4 mile/h) |
| Forward - 2 | 8.5 km/h (5.3 mile/h) |
| Forward - 3 | 11.5 km/h (7.3 mile/h) |
| Forward - 4 | 14.8 km/h (9.2 mile/h) |
| Forward - 5 | 19.7 km/h (12.2 mile/h) |
| Forward - 6 | 24 km/h (14.9 mile/h) |
| Forward - 7 | 33.1 km/h (20.6 mile/h) |
| Forward - 8 | 39.8 km/h (24.7 mile/h) |
| Forward - 9 | 57.5 km/h (35.7 mile/h) |
| Reverse - 1 | 6.8 km/h (4.2 mile/h) |
| Reverse - 2 | 15.7 km/h (9.8 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fanu2019s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 19095 kg (42097 lb) |
| Center Axle - Empty | 6785 kg (14958 lb) |
| Rear Axle - Empty | 6680 kg (14727 lb) |
| Total - Empty | 32560 kg (71782 lb) |
| Front Axle - Rated Load | 3176 kg (7002 lb) |
| Center Axle - Rated Load | 16562 kg (36513 lb) |
| Rear Axle - Rated Load | 16562 kg (36513 lb) |
| Total - Rated Load | 36300 kg (80028 lb) |
| Front Axle - Loaded | 22271 kg (49099 lb) |
| Center Axle - Loaded | 23347 kg (51471 lb) |
| Rear Axle - Loaded | 23242 kg (51240 lb) |
| Total - Loaded | 68860 kg (151810 lb) |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 7 mm (0.28 in) |
| Base Plate | 13 mm (0.51 in) |
| Side Plates | 11 mm (0.43 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 550 l (145.3 gal (US)) |
| Cooling System | 90 l (23.7 gal (US)) |
| Brake Cooling Tank | 67 l (17.7 gal (US)) |
| Steering/Hoist Hydraulic System | 140 l (36.9 gal (US)) |
| Engine Crankcase | 52 l (13.7 gal (US)) |
| Transmission - OTG | 75 l (19.8 gal (US)) |
| Final Drive - Each | 5 l (1.3 gal (US)) |
| Axles - Each | 60 l (15.8 gal (US)) |

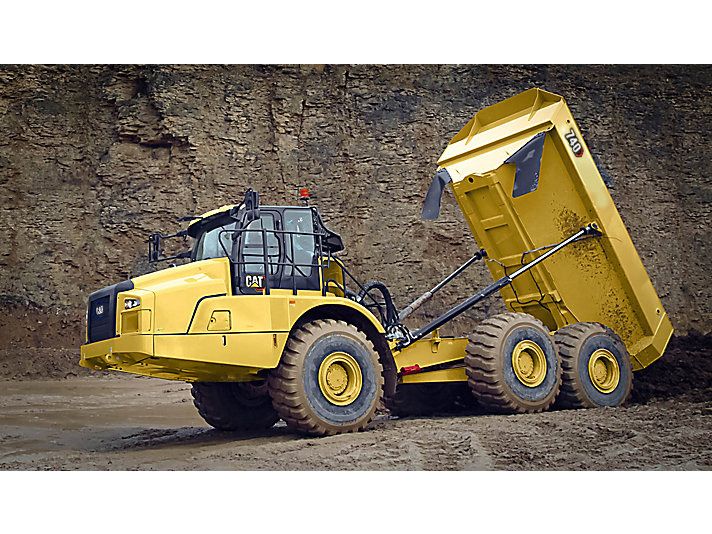

| Body Hoist | |
|---|---|
| Raise Time | 12 s (12 s) |
| Lower Time | 12 s (12 s) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 7698 mm (303 in) |
| Turning Dimensions - Clearance Radius | 8395 mm (330 in) |
| Turning Dimensions - Inside Radius | 3960 mm (156 in) |
| Turning Dimensions - Aisle Width | 5595 mm (220 in) |
| Note | Dimensions are for machines equipped with 29.5 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavator: 374 - Passes | 3-4 |
| Hydraulic Excavator: 352 - Passes | 5-6 |
| Wheel Loader: 972 - Passes | 3 |
| Wheel Loader: 966 - Passes | 4-5 |
| Wheel Loader: 962 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Windshield wiper and washer, two speed, intermittent (front)
- Heater and defroster with four-speed fan
- Mirrors: exterior
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Operation and Maintenance Manual (OMM)
– Primary steering failure (warning)
– Seat belt warning
– Secondary steering failure
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Sun visor
- Tilt and telescopic steering wheel
- Storage:
– Cup holder
– Flask receptacle (under the secondary seat)
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Air conditioning
- Adjustable air vents
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Secondary steering – electro hydraulic
- Touchscreen display incorporating the rearview camera video feed
- Windows (tinted) opening both sides
- Combined gear selection and hoist control lever
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Transmission fault
– Traction control system
– Check engine lamp
- Glass windows:
- TECHNOLOGY
- Cat Detect with Stability Assist
- Product Link Dual PLE683
- ELECTRICAL AND LIGHTING
- Horn
- Batteries (two) maintenance free
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Remote starting receptacle (cables not included)
- POWERTRAIN
- Automatic Retarder: engine compression brake and hydraulic
- Cat C15 engine
- Three axle, six-wheel drive
- CX38 transmission
- Auto shift nine-speed forward and two reverse transmission
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Dual circuit oil immersed, enclosed brakes – all wheels
- SAFETY
- Reverse alarm
- Rearview camera
- Rollover protective structure/falling objects protective structure ROPS/FOPS cab
- GUARDS
- Front dump body spill guard, integral part of fabricated body
- Rear window
- Crankcase
- Radiator
- OTHER STANDARD EQUIPMENT
- Vandalism protection: lockable caps
- Scheduled Oil Sampling (S·O·S) sampling valves
- Tires, six 29.5 R25
- Mud flaps: wheel arch and body mounted with transportation tiebacks
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Mirrors, heated motorized
- Infrared glass – high ambient cab
- Window blinds
- Windshield wiper and washer, two speed (rear)
- Operator seat belt, four-point
- Seat, heated/cooled
- Radio, Bluetooth® stereo system
- TECHNOLOGY
- Cat® Payload monitoring system
- Product Link Cellular PLE643
- Machine Security System (MSS)
- ELECTRICAL AND LIGHTING
- Engine block heater
- Roof mounted LED work lights
- Flashing LED beacon
- Ether start
- OPTIONAL EQUIPMENT
- Cold weather start attachment
- Scissor tailgate
- Fuel additive – anti-waxing
- Auto lube installation for automatic greasing of bearings
- Fast fuel fill
- Bare chassis (no body) standard wheel base
- Wheel chocks
- Body liners
- Exhaust heated body
- Bare chassis (no body) long wheel base
- Cold weather coolant –51° C (–60° F)
- Sound suppression
