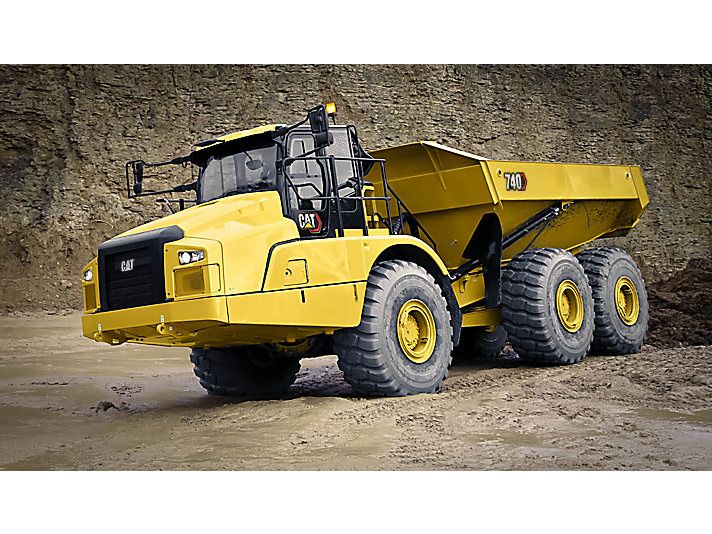

Cat 740 Articulated Truck
PROVEN RELIABILITY
DURABILITY
ACHIEVE GREATER PRODUCTIVITY
BOOST FUEL EFFICIENCY
EASY, COMFORTABLE OPERATOR ENVIRONMENT
BUILT-IN SAFETY FEATURES
TECHNOLOGY THAT GETS WORK DONE
REDUCED MAINTENANCE COSTS
| Engine | |
|---|---|
| Engine Model | Cat® C15 |
| Gross Power (SAE J1995) | 337 kW (452 hp) |
| Net Power (SAE J1349) | 327 kW (439 hp) |
| Engine Power (ISO 14396) | 333 kW (447 hp) |
| Bore | 137 mm (5.4 in) |
| Stroke | 171.5 mm (6.75 in) |
| Displacement | 15.2 l (926 inu00b3) |
| Note (1) | Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions. |
| Note (5) | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emissionu00a0standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or APIu00a0certifications. |
| No Engine De-rating Below | 3050 m (10000 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2320 N·m (1711 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2264 N·m (1670 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 36.3 t (40 ton (US)) |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 22.7 mu00b3 (29.7 ydu00b3) |
| Struck | 17.7 mu00b3 (23.2 ydu00b3) |
| Tailgate Heaped SAE 2:1 | 24.5 mu00b3 (32 ydu00b3) |
| Tailgate Struck | 18.7 mu00b3 (24.4 ydu00b3) |
| Transmission | |
|---|---|
| Forward - 1 | 6.4 km/h (4 mile/h) |
| Forward - 2 | 8.5 km/h (5.3 mile/h) |
| Forward - 3 | 11.5 km/h (7.3 mile/h) |
| Forward - 4 | 14.8 km/h (9.2 mile/h) |
| Forward - 5 | 19.7 km/h (12.2 mile/h) |
| Forward - 6 | 24 km/h (14.9 mile/h) |
| Forward - 7 | 33.1 km/h (20.6 mile/h) |
| Forward - 8 | 39.8 km/h (24.7 mile/h) |
| Forward - 9 | 57.5 km/h (35.7 mile/h) |
| Reverse - 1 | 6.8 km/h (4.2 mile/h) |
| Reverse - 2 | 15.7 km/h (9.8 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fanu2019s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 19595 kg (43200 lb) |
| Center Axle - Empty | 6715 kg (14804 lb) |
| Rear Axle - Empty | 6605 kg (14562 lb) |
| Total - Empty | 32915 kg (72565 lb) |
| Front Axle - Rated Load | 3176 kg (7002 lb) |
| Center Axle - Rated Load | 16562 kg (36513 lb) |
| Rear Axle - Rated Load | 16562 kg (36513 lb) |
| Total - Rated Load | 36300 kg (80027 lb) |
| Front Axle - Loaded | 22771 kg (50201 lb) |
| Center Axle - Loaded | 23277 kg (51317 lb) |
| Rear Axle - Loaded | 23167 kg (51074 lb) |
| Total - Loaded | 69215 kg (152593 lb) |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 7 mm (0.28 in) |
| Base Plate | 13 mm (0.51 in) |
| Side Plates | 11 mm (0.43 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 550 l (145.3 gal (US)) |
| Cooling System | 90 l (23.7 gal (US)) |
| Brake Cooling Tank | 67 l (17.7 gal (US)) |
| Steering/Hoist Hydraulic System | 140 l (36.9 gal (US)) |
| Engine Crankcase | 52 l (13.7 gal (US)) |
| Transmission - OTG | 75 l (19.8 gal (US)) |
| Final Drive - Each | 5 l (1.3 gal (US)) |
| Axles - Each | 60 l (15.8 gal (US)) |
| DEF Tank | 25 l (6.5 gal (US)) |
| Body Hoist | |
|---|---|
| Raise Time | 12 s (12 s) |
| Lower Time | 12 s (12 s) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 7698 mm (303 in) |
| Turning Dimensions - Clearance Radius | 8395 mm (330 in) |
| Turning Dimensions - Inside Radius | 3960 mm (156 in) |
| Turning Dimensions - Aisle Width | 5595 mm (220 in) |
| Note | Dimensions are for machines equipped with 29.5 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavator: 374 - Passes | 3-4 |
| Hydraulic Excavator: 352 - Passes | 5-6 |
| Wheel Loader: 972 - Passes | 3 |
| Wheel Loader: 966 - Passes | 4-5 |
| Wheel Loader: 962 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Air conditioning
- Secondary steering – electro hydraulic
- Windshield wiper and washer, two speed, intermittent (front)
- Seats:
– Operator: fully adjustable, air suspension, retractable lap belt
– Trainer: padded with retractable lap belt - Adjustable air vents
- Touchscreen display incorporating the rearview camera video feed
- Storage:
– Cup holder
– Flask receptacle (under the secondary seat)
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Combined gear selection and hoist control lever
- Heater and defroster with four-speed fan
- Sun visor
- Windows (tinted) opening both sides
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Operation and Maintenance Manual (OMM)
– Primary steering failure (warning)
– Seat belt warning
– Secondary steering failure
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Mirrors: exterior
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Tilt and telescopic steering wheel
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Transmission fault
– Traction control system
– Check engine lamp
- TECHNOLOGY
- Product Link Cellular PLE643
- Cat Detect with Stability Assist
- ELECTRICAL AND LIGHTING
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Horn
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
- Main disconnect switch
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators
- POWERTRAIN
- Automatic Retarder: engine compression brake
- Three axle, six-wheel drive
- Clean Emission Module (CEM) and exhaust aftertreatment package
- CX38 Transmission
- Auto shift nine-speed forward and two reverse transmission
- Cat C15 engine
- Dual circuit oil immersed, enclosed brakes – all wheels
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- SAFETY
- ROPS/FOPS cab
- Reverse alarm
- Rearview camera
- GUARDS
- Front dump body spill guard, integral part of fabricated body
- Radiator
- Crankcase
- Rear window
- OTHER STANDARD EQUIPMENT
- Vandalism protection: lockable caps
- S·O·S sampling valves
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Tires, six 875/65 R29 wide tires
- Sound suppression (standard in some countries*)
-*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Windshield wiper and washer, two speed (rear)
- Mirrors, heated motorized
- Operator seat belt, four-point
- Radio, Bluetooth® stereo system
- Infrared glass – high ambient cab
- Window blinds
- Seat, heated/cooled
- TECHNOLOGY
- Product Link Dual PLE683
- Cat® Payload monitoring system
- Machine Security System (MSS)
- ELECTRICAL AND LIGHTING
- Cold weather start attachment
- Flashing LED beacon
- Ether start
- Roof mounted LED work lights
- Engine block heater
- OPTIONAL EQUIPMENT
- Wheel chocks
- Exhaust heated body
- Bare chassis (no body) standard wheel base
- Scissor tailgate
- Body liners
- Fuel additive – anti-waxing
- Auto lube installation for automatic greasing of bearings
- Cold weather coolant –51° C (–60° F)
- Fast fuel fill
- Bare chassis (no body) long wheel base
