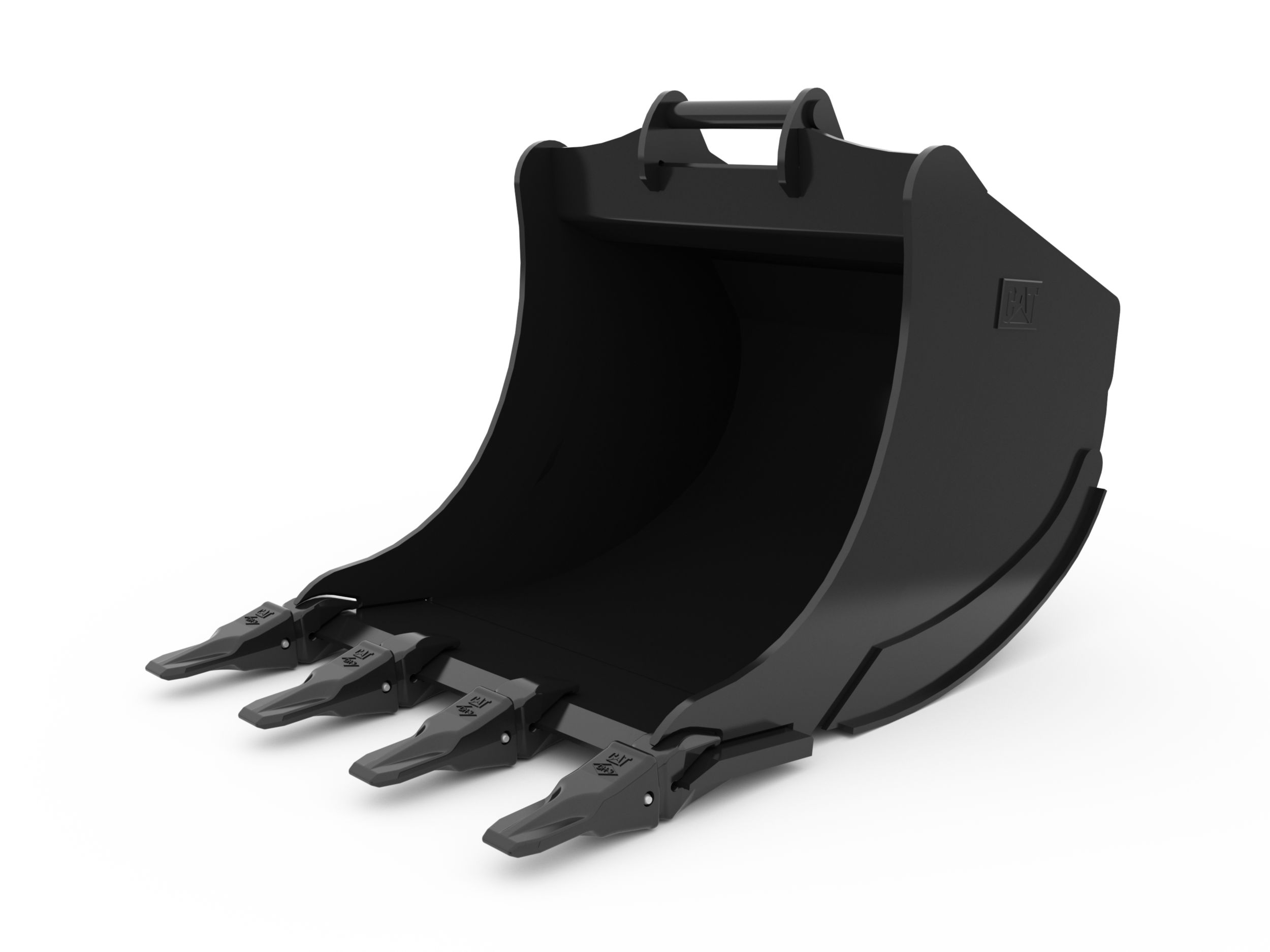

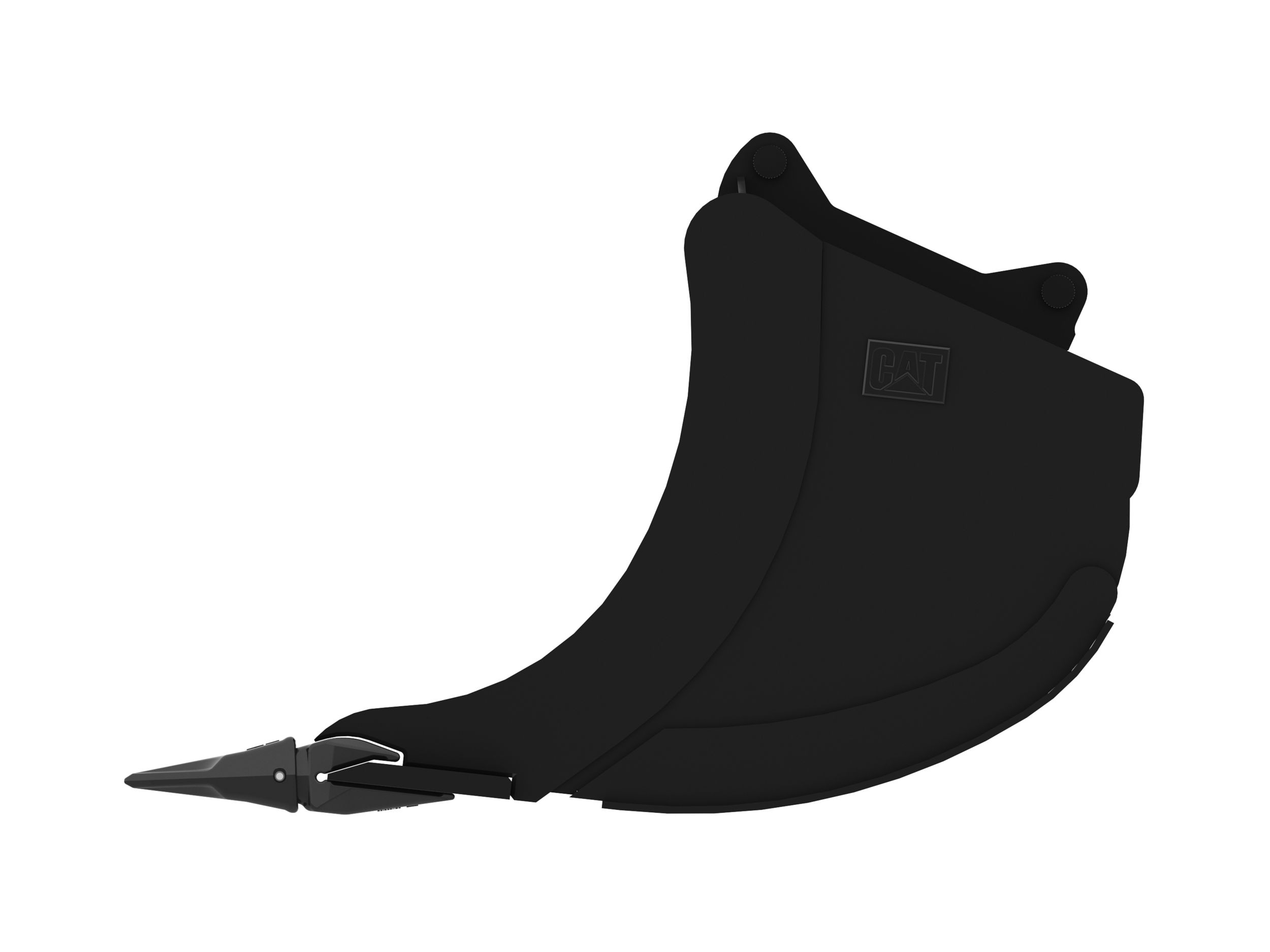

950 mm (37 in) Nordic Digging Bucket
Application
Designed to create maximum performance in combination with an S Type quick coupler and/or tiltrotator.
Short Tip Radius and Long Floor
With high breakout forces combined with tiltrotator usage, the bucket still produces acceptable bucket volumes.
Torque Tube
For low build bracket solution, close to zero offset and high bending resistance even during high stress work.
Wear Protected Side Plates
Specially designed side wear plates provide for optimal wear resistance in heavy duty applications.
Wear Strips
For high resistance against wear even during the most demanding work environments.
| Product Specifications | |
|---|---|
| Width | 950 mm (37.4 in) |
| Capacity | 500 l (17.7 ftu00b3) |
| Weight | 392 kg (864.2 lb) |
| Base Edge Thickness | 30 mm (1.2 in) |
| Tip Radius | 1214 mm (47.8 in) |
| Interface Type | S-45 Coupler |
