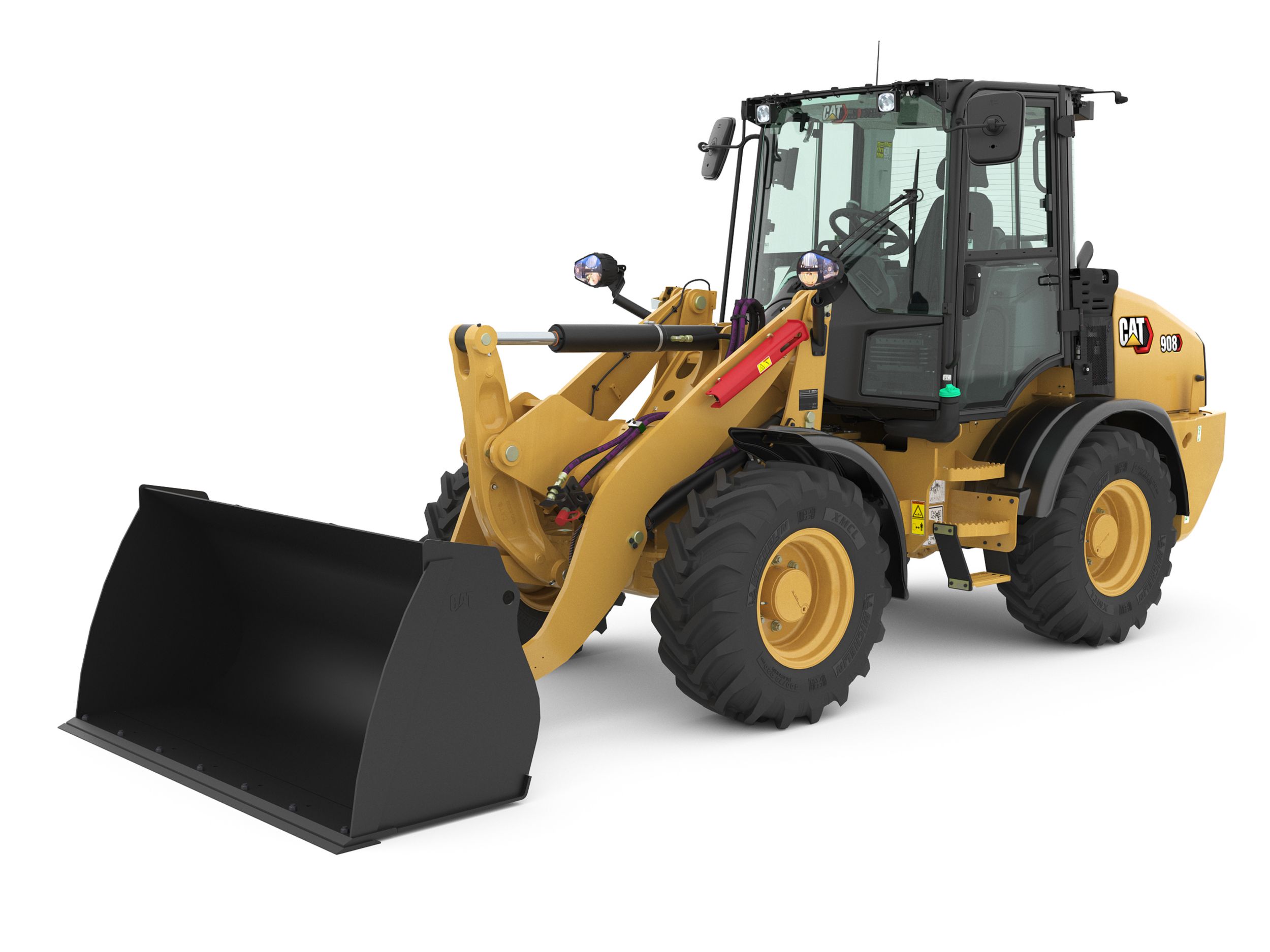

908 Compact Wheel Loader
CONFIGURED FOR SUCCESS
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines emit equivalent to EU Stage IIIA (U.S. EPA Tier 3) or meets EU Stage V (U.S. EPA Tier 4 Final) with a clean emission module designed to manage itself so you can concentrate on the task at hand.
ENJOY ALL DAY COMFORT
- All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
- Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.
EFFICIENTLY POWERFUL
- Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.
WORK MADE EASY
- All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.
CUSTOMIZE YOUR EXPERIENCE
- Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
- Machine security is enhanced with a standard keycode or optional Bluetooth® technology.
PURPOSE BUILT SPECIALTY MODELS
- Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
- The 908 is availble with the following specific handler arrangements: Ag Handler and Waste Handler
AFTERMARKET AND SERVICES
- Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
- Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
- Integrated Technology available to reduce service costs and maintenance.
| Engine | |
|---|---|
| Maximum Gross Power | 60 kW (75.1 hp) |
| Engine Model | Cat C2.8* |
| Maximum Engine Speed | 2550 rpm |
| Maximum Gross Power - Rated Engine Speed | 2400 r/min (2400 r/min) |
| Maximum Gross Power - SAE J1995 | 60 kW (75.1 hp) |
| Maximum Gross Power - ISO 14396 | 55.4 kW (74.3 hp) |
| Maximum Gross Power - ISO 14396 (metric) | 75.3 mhp (75.3 mhp) |
| Rated Net Power - Rated Engine Speed | 2400 r/min (2400 r/min) |
| Rated Net Power - SAE J1349 | 54.4 kW (73 hp) |
| Rated Net Power - ISO 9249 | 53.8 kW (72.1 hp) |
| Rated Net Power - 2,400 rpm - ISO 9249 (metric) | 73.1 mhp (73.1 mhp) |
| Maximum Gross Torque - SAE J1995 | 301 N·m (222 lb/ft) |
| Maximum Gross Torque - ISO 14396 | 300 N·m (221 lb/ft) |
| Maximum Net Torque - SAE J1349 | 296 N·m (218 lb/ft) |
| Maximum Net Torque - ISO 9249 | 295 N·m (217 lb/ft) |
| Displacement | 2.8 l (171 inu00b3) |
| Bore | 90 mm (3.54 in) |
| Stroke | 110 mm (4.33 in) |
| Note | *Equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Note (1) | Maximum gross and net torque measured at 1,600 rpm. |
| Note (2) | Net power ratings are tested at the reference conditions for the specified standard. |
| Note (3) | Net power advertised is the power available at the flywheel. |
| Weights | |
|---|---|
| Operating Weight | 6632 kg (14617 lb) |
| Buckets | |
|---|---|
| Bucket Capacities | 0.75-1.55 mu00b3 (1.0-2.0 ydu00b3) |
| Bucket Capacities - General Purpose | 0.80-1.35 mu00b3 (1.0-1.7 ydu00b3) |
| Bucket Capacities - Light Material | 1.25-1.55 mu00b3 (1.6-2.0 ydu00b3) |
| Multi-Purpose | 0.75-1.1 mu00b3 (1.0-1.4 ydu00b3) |
| Note | All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration. |
| Note (1) | Bucket capacities stated include BOCE, in line with ISO 7546. |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 90 l (24 Gal) |
| Cooling System | 12 l (3.2 Gal) |
| Engine Crankcase | 8.8 l (2.3 Gal) |
| Axles - Front Center Differential | 8.8 l (2.3 Gal) |
| Axles - Rear Center Differential | 8.8 l (2.3 Gal) |
| Hydraulic System - Including Tank | 70.5 l (18.6 Gal) |
| Hydraulic Tank | 44.6 l (11.8 Gal) |
| Transmission | 2.4 l (0.6 Gal) |
| Note | No Diesel Exhaust Fluid (DEF) fluid needed on this size engine. |
| Axles | |
|---|---|
| Front | Fixed (standard) |
| Rear | Fixed (standard) |
| Note | Oscillation of u00b111 degrees via hitch between front and rear frames. |
| Steering | |
|---|---|
| Steering Articulation Angle - Each Direction | 39 u00b0 (39 u00b0) |
| Maximum Flow - Steering Pump | 46.7 L/min (12.3 gpm) |
| Maximum Working Pressure - Steering Pump | 23000 kPa (3336 psi) |
| Steering Cycle Times u2013 (full left to full right) u2013 at High Idle | 2.8 s (2.8 s) |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.25 turns or 4.00 turns |
| Transmission | |
|---|---|
| Forward and Reverse - Speed Range Creep# | 10 km/h (6 mile/h) |
| Forward and Reverse - Speed Range 1* | 10 km/h (6 mile/h) |
| Forward and Reverse - Speed Range 2** - High Speed | 18 km/h (11 mile/h) |
| Forward and Reverse - Speed Range 2** - Standard | 20 km/h (12 mile/h) |
| Forward and Reverse - Speed Range 3*** | 40 km/h (25 mile/h) |
| Note | #Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph). |
| Note (1) | *Creep function not available in this gear or above. |
| Note (2) | **Max speed dependent on model and configuration (standard vs. high speed transmission). |
| Note (3) | ***Reverse is 30 km/h (19 mph). |
| Tires | |
|---|---|
| Tire Size - Standard | *405/70 R20 SPT9 |
| Tire Size - Optional | 405/70 R20 Powerloads |
| Tire Size - Optional (1) | 400/70 R20 XMCL/Bibload |
| Tire Size - Optional (2) | 360/80 R20 TRI 2 |
| Tire Size - Optional (3) | 40X14-20 TL, SM/TR |
| Note | *This tire has been used for all dimension, stability and performance data. |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
| Note (2) | In certain applications, the loaderu2019s productive capabilities may exceed the tireu2019s tonnes-km/h (ton-mph) capabilities. |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Cab | |
|---|---|
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level II |
| Note (1) | Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU. |
| Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A). |
| Note (3) | *Measurements were conducted with the cab doors and windows closed. |
| Note (4) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound u2013 Option available. |
| Loader Hydraulic System | |
|---|---|
| Main Relief - 1st Auxiliary (3rd slice) | 23500 kPa (3408 psi) |
| Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* | 90 L/min (24 gpm) |
| Main Relief - 1st Auxiliary (3rd slice) - High Flow* | 125 L/min (33 gpm) |
| Main Relief - 2nd Auxiliary (4th slice) | 23500 kPa (3408 psi) |
| Main Relief - 2nd Auxiliary (4th slice) - Flow | 45 L/min (12 gpm) |
| Hydraulic Cycle Time - Rackback | 2.5 s (2.5 s) |
| Hydraulic Cycle Time - Lift | 5.8 s (5.8 s) |
| Hydraulic Cycle Time - Dump | 1.8 s (1.8 s) |
| Hydraulic Cycle Time - Float Down | 3.6 s (3.6 s) |
| Note | * Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display. |
| Dimensions - With HPL-V Coupler - Approximate# | |
|---|---|
| Height: Ground to Cab** | 2670 mm (8.75 ft) |
| Height: Ground to Beacon** | 2853 mm (9.33 ft) |
| Height: Ground Axle Center** | 519 mm (1.67 ft) |
| Height: Ground Clearance** | 320 mm (1 ft) |
| Length: Overall* | 5549 mm (18.17 ft) |
| Length: Rear Axle to Bumper | 1391 mm (4.5 ft) |
| Length: Hitch to Front Axle | 1085 mm (3.5 ft) |
| Length: Wheel Base | 2170 mm (7.08 ft) |
| Clearance: Bucket at 45u00b0 * | 2615 mm (8.5 ft) |
| Clearance: Load over Height** | 2957 mm (9.67 ft) |
| Clearance: Level Bucket** | 3197 mm (10.42 ft) |
| Height: Bucket Pin** | 3404 mm (11.08 ft) |
| Height: Overall** | 4304 mm (14.08 ft) |
| Reach: Bucket at 45u00b0 * | 770 mm (2.5 ft) |
| Carry Height: Bucket Pin | 353 mm (1.08 ft) |
| Dig Depth** | 109 mm (0.42 ft) |
| Width: Bucket | 2080 mm (6.75 ft) |
| Width: Tread Center | 1570 mm (5.08 ft) |
| Turning Radius: Over Bucket | 4570 mm (14.92 ft) |
| Width: Over Tires | 1990 mm (6.5 ft) |
| Turning Radius: Outside of Tires | 4087 mm (13.33 ft) |
| Turning Radius: Inside of Tires | 2033 mm (6.67 ft) |
| Rack Angle at Full Lift | 53u00b0 |
| Dump Angle at Full Lift | 45u00b0 |
| Rack Angle at Carry | 51u00b0 |
| Departure Angle - Degrees | 30u00b0 |
| Articulation Angle - Degrees | 39u00b0 |
| Operating Weight: Bucketu200a^ | 6632 kg (14617 lb) |
| Tipping Load - Straight - ISO 14397-1u200au2020 | 4812 kg (10604 lb) |
| Tipping Load - Full Turn - ISO 14397-1u200au2020 | 4060 kg (8947 lb) |
| Operating Weight: Carriage and Tinesu200a^^ | 6467 kg (14252 lb) |
| Tipping Load - Straightu200au2020 | 3920 kg (8639 lb) |
| 80% of Tip: Firm and Level EN474-3u200au2020u2020 | 2638 kg (5813 lb) |
| Note (1) | *Vary with bucket |
| Note (2) | **Vary with tire |
| Note (3) | ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. |
| Note (4) | ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220u00a0mm (4 ft) tines (500 mm [20u00a0in] loadu00a0center). |
| Note (5) | u2020Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500u00a0mm [20u00a0in] load center), which requires 2% verification between calculation and testing. |
| Note (6) | u2020u2020Full compliance to EN474-3 and SAE J1197. |
| Note (7) | #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. |
| Note (8) | Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, fullu00a0fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). |
| Dimensions - With SSL Coupler - Approximate | |
|---|---|
| Height - Ground to Cab | 2670 mm (8.75 ft) |
| Height: Ground to Beacon** | 2853 mm (9.33 ft) |
| Height: Ground Axle Center** | 519 mm (1.67 ft) |
| Height - Ground Clearance | 320 mm (1 ft) |
| Length - Overall with Bucket | 5707 mm (18.67 ft) |
| Length: Rear Axle to Bumper | 1391 mm (4.5 ft) |
| Length: Hitch to Front Axle | 1085 mm (3.5 ft) |
| Length - Wheel Base | 2170 mm (7.08 ft) |
| Clearance - Bucket at 45u00b0 | 2502 mm (8.17 ft) |
| Clearance: Load over Height** | 2957 mm (9.67 ft) |
| Clearance - Level Bucket | 3189 mm (10.42 ft) |
| Height - Bucket Pin | 3404 mm (11.08 ft) |
| Height: Overall** | 4395 mm (14.42 ft) |
| Reach - Bucket at 45u00b0 | 872 mm (2.83 ft) |
| Carry Height: Bucket Pin | 374 mm (1.17 ft) |
| Dig Depth | 117 mm (0.45 ft) |
| Width - Bucket | 2080 mm (6.75 ft) |
| Width - Tread Center | 1570 mm (5.08 ft) |
| Turning Radius - Over Bucket | 4613 mm (15.08 ft) |
| Width - Over Tires | 1990 mm (6.5 ft) |
| Turning Radius: Outside of Tires | 4087 mm (13.33 ft) |
| Turning Radius - Inside Tire | 2033 mm (6.67 ft) |
| Rack Angle at Full Lift | 49u00b0 |
| Dump Angle at Full Lift | 45u00b0 |
| Rack Angle at Carry | 53u00b0 |
| Departure Angle - Degrees | 30u00b0 |
| Articulation Angle - Degrees | 39u00b0 |
| Operating Weight: Bucketu200a^ | 6718 kg (14806 lb) |
| Tipping Load u2013 Straight u2013 ISO 14397-1u200au2020 | 4347 kg (9581 lb) |
| Tipping Load u2013 Full Turn u2013 ISO 14397-1u200au2020 | 3623 kg (7985 lb) |
| Operating Weight: Carriage and Tinesu200a^^ | 6530 kg (14391 lb) |
| Tipping Load - Straightu200au2020 | 3649 kg (8043 lb) |
| 80% of Tip: Firm and Level EN474-3u200au2020u2020 | 2468 kg (5438 lb) |
| Note (1) | *Vary with bucket |
| Note (2) | **Vary with tire |
| Note (3) | ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. |
| Note (4) | ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220u00a0mm (4 ft) tines (500 mm [20u00a0in] loadu00a0center). |
| Note (5) | u2020Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500u00a0mm [20u00a0in] load center), which requires 2% verification between calculation and testing. |
| Note (6) | u2020u2020Full compliance to EN474-3 and SAE J1197. |
| Note (7) | #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. |
| Note (8) | Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, fullu00a0fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). |
| Dimensions - High Lift - With HPL-V Coupler - Approximate# | |
|---|---|
| Height: Ground to Cab** | 2670 mm (8.75 ft) |
| Height: Ground to Beacon** | 2853 mm (9.33 ft) |
| Height: Ground Axle Center** | 519 mm (1.67 ft) |
| Height: Ground Clearance** | 320 mm (1 ft) |
| Length: Overall* | 6163 mm (20.17 ft) |
| Length: Rear Axle to Bumper | 1391 mm (4.5 ft) |
| Length: Hitch to Front Axle | 1085 mm (3.5 ft) |
| Length: Wheel Base | 2170 mm (7.08 ft) |
| Clearance: Bucket at 45u00b0 * | 3294 mm (10.75 ft) |
| Clearance: Load over Height** | 4238 mm (14.08 ft) |
| Clearance: Level Bucket** | 3682 mm (12 ft) |
| Height: Bucket Pin** | 3889 mm (12.75 ft) |
| Height: Overall** | 4789 mm (15.67 ft) |
| Reach: Bucket at 45u00b0 * | 1042 mm (3.42 ft) |
| Carry Height: Bucket Pin | 508 mm (1.67 ft) |
| Dig Depth** | 109 mm (0.33 ft) |
| Width: Bucket | 2080 mm (6.75 ft) |
| Width: Tread Center | 1570 mm (5.08 ft) |
| Turning Radius: Over Bucket | 4869 mm (15.92 ft) |
| Width: Over Tires | 1990 mm (6.5 ft) |
| Turning Radius: Outside of Tires | 4087 mm (13.33 ft) |
| Turning Radius: Inside of Tires | 2033 mm (6.67 ft) |
| Rack Angle at Full Lift | 70u00b0 |
| Dump Angle at Full Lift | 40u00b0 |
| Rack Angle at Carry | 47u00b0 |
| Departure Angle - Degrees | 30u00b0 |
| Articulation Angle - Degrees | 39u00b0 |
| Operating Weight: Bucketu200a^ | 6762 kg (14902 lb) |
| Tipping Load - Straight - ISO 14397-1u200au2020 | 4113 kg (9064 lb) |
| Tipping Load - Full Turn - ISO 14397-1u200au2020 | 3446 kg (7595 lb) |
| Operating Weight: Carriage and Tinesu200a^^ | 6771 kg (14923 lb) |
| Tipping Load - Straightu200au2020 | 3194 kg (7039 lb) |
| 80% of Tip: Firm and Level EN474-3u200au2020u2020 | 2152 kg (4743 lb) |
| Note (1) | *Vary with bucket |
| Note (2) | **Vary with tire |
| Note (3) | ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. |
| Note (4) | ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220u00a0mm (4 ft) tines (500 mm [20u00a0in] loadu00a0center). |
| Note (5) | u2020Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500u00a0mm [20u00a0in] load center), which requires 2% verification between calculation and testing. |
| Note (6) | u2020u2020Full compliance to EN474-3 and SAE J1197. |
| Note (7) | #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. |
| Note (8) | Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, fullu00a0fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). |
| Dimensions - High Lift - With SSL Coupler - Approximate | |
|---|---|
| Height: Ground to Cab** | 2670 mm (8.75 ft) |
| Height: Ground to Beacon** | 2853 mm (9.33 ft) |
| Height: Ground Axle Center** | 519 mm (1.67 ft) |
| Height: Ground Clearance** | 320 mm (1 ft) |
| Length: Overall* | 6319 mm (20.67 ft) |
| Length: Rear Axle to Bumper | 1391 mm (4.5 ft) |
| Length: Hitch to Front Axle | 1085 mm (3.5 ft) |
| Length: Wheel Base | 2170 mm (7.08 ft) |
| Clearance: Bucket at 45u00b0 * | 3131 mm (10.25 ft) |
| Clearance: Load over Height** | 4238 mm (14.08 ft) |
| Clearance: Level Bucket** | 3675 mm (12 ft) |
| Height: Bucket Pin** | 3889 mm (12.75 ft) |
| Height: Overall** | 4880 mm (16 ft) |
| Reach: Bucket at 45u00b0 * | 1098 mm (3.58 ft) |
| Carry Height: Bucket Pin | 529 mm (1.67 ft) |
| Dig Depth** | 80 mm (0.25 ft) |
| Width: Bucket | 2080 mm (6.75 ft) |
| Width: Tread Center | 1570 mm (5.08 ft) |
| Turning Radius: Over Bucket | 4912 mm (16.08 ft) |
| Width: Over Tires | 1990 mm (6.5 ft) |
| Turning Radius: Outside of Tires | 4087 mm (13.33 ft) |
| Turning Radius: Inside of Tires | 2033 mm (6.67 ft) |
| Rack Angle at Full Lift | 66u00b0 |
| Dump Angle at Full Lift | 33u00b0 |
| Rack Angle at Carry | 41u00b0 |
| Departure Angle - Degrees | 30u00b0 |
| Articulation Angle - Degrees | 39u00b0 |
| Operating Weight: Bucketu200a^ | 6862 kg (15124 lb) |
| Tipping Load - Straight - ISO 14397-1u200au2020 | 3749 kg (8262 lb) |
| Tipping Load - Full Turn - ISO 14397-1u200au2020 | 3126 kg (6888 lb) |
| Operating Weight: Carriage and Tinesu200a^^ | 6834 kg (15062 lb) |
| Tipping Load - Straightu200au2020 | 2923 kg (6442 lb) |
| 80% of Tip: Firm and Level EN474-3u200au2020u2020 | 1982 kg (4368 lb) |
| Note (1) | *Vary with bucket |
| Note (2) | **Vary with tire |
| Note (3) | ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. |
| Note (4) | ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220u00a0mm (4 ft) tines (500 mm [20u00a0in] loadu00a0center). |
| Note (5) | u2020Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500u00a0mm [20u00a0in] load center), which requires 2% verification between calculation and testing. |
| Note (6) | u2020u2020Full compliance to EN474-3 and SAE J1197. |
| Note (7) | #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. |
| Note (8) | Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, fullu00a0fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). |
Standard Equipment
- POWER TRAIN
- Emissions compliant, two options (Dependent on regional regulations.)
– U.S. EPA Tier 4 Final and EU Stage V
– U.S. EPA Tier 3 and EU Stage IIIA equivalent - Cat C2.8 engine
– Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
– Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
– Hydrostatic transmission, two speed, with inching function, “shift on the go”
– Power train mode, hystat - Air cleaner, two stage filter, with in cab audio/visual indicator on display
- Axles, heavy duty, frame mounted with outboard planetary reduction
- Closed circuit breather
- Coolant, extended life, –36° C (–33° F)
- Drive shaft, sealed for life, universal joints
- Engine, auto idle shutdown, hibernation mode
- Engine oil, ECO drain tap and hose
- Fuel pump, priming (manual)/water separator/drain
- Emissions compliant, two options (Dependent on regional regulations.)
- HYDRAULICS
- Hystat displacement pump, infinitely variable
- Implement valve, pressure compensated
- Joystick, single lever, single auxiliary roller
- Multi-function lift and tilt with loader arm float
- Motor, single drive with dedicated implement and steering pumps
- ELECTRICAL
- Alternator, 100 amp sealed
- Battery, heavy duty, 12V, 90Ah and 1,000 CCA
- Battery disconnect switch
- Cab mounted fuse panel
- Lights, rear stop and turn, LED
- Lights, roading, front halogen
- Service (Electronic Technician™)
- Product Link™
- OPERATOR ENVIRONMENT
- ROPS/FOPS certified canopy/cab
– 12V power outlets, interior/exterior
– Pedals, raised, foot, brake/inching, accelerator
– Lever, parking brake
– Cup holders (2)
– CB radio clip, phone holder
– Door release, internal (left and right)
– Hook, large, coat and hard hat
– Floormat, heavy duty, easy clean
– Mirrors, (2) external breakaway, (1) internal
– Operator station on isolation mounts
– Steering wheel, spinner knob, horn in center
– Seat belt, orange, retractable, 51 mm (2 in)
– Storage, personal (trays [3], seat pocket)
– Steering column, tilt adjusted
– Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
– Quick coupler switch, in cab - Display, analog and digital
– Gauges (2), hydraulic oil, engine coolant
– Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages) - Joystick, seat mounted, standard multifunction
– FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
– Arm rest, padded right, multiple position vertical height - Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
- Cab
– Doors (2), fixed glass
– Wipers, front and rear, full front coverage
– Windshield, front single piece
– Window, rear heated
– Radio ready, speakers and wiring
– Air vents, (4) screen, (7) directional
– Heating, mechanical control unit
– Sun visor, solid, front full width
– Interior light (incandescent)
- ROPS/FOPS certified canopy/cab
- OTHER
- Fenders, front and rear
- Ground level easy access daily service points
- Loader arm safety brace
- Lockable main and side engine enclosures
- Lockable, fuel cap, HVAC filters, nose cone
- Machine lifting/tie down points
- Paint, Electro-Coat primer, gloss topcoat
- Recovery hitch with pin
- Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil
Optional Equipment
- POWER TRAIN
- Antifreeze, extended life coolant, –50° C (–58° F)
- Cold start – jacket water heater, bypass valve
- Creep and throttle lock function
- Fuel pump, priming, electric (Dependent on regional regulations.)
- 40 km/h (25 mph) hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
- Power train mode, utility (includes keypad)
- ELECTRICAL
- Lighting packages, multiple; front, rear, engine bay (LED or HAL)
- Push to start
- Work tool wiring harness, (3) in cab switches
- HYDRAULICS
- Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve
- Caterpillar Bio HYDO Advanced hydraulic oil
- Connect under pressure and case drain
- Ride Control or load check valves (Dependent on regional regulations.)
- Reversing fan
- Quick disconnect auxiliary hydraulics
- OPERATOR STATION
- Air Conditioning, automatic temperature control (ATC)
- Doors, sliding windows (left and right)
- Interior light, door activated
- Joystick, FNR, twin auxiliary roller, differential lock, horn
- Joystick, seat mounted, multifunction
- Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
- Phone holder, spring loaded
- Radio, FM or digital audio broadcast
- Seat belt options, multiple
- Seat packages; deluxe or premium
- Secondary display, front or rear view camera
- Soft touch keypad options, 8 or 16 button
- Storage, lockable box or lockable cooled box
- Sun visor, rear perforated
- USB ports (2), interior
- OTHER
- Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)
- Rotary sensors (snubbing, kickouts, parallel)
