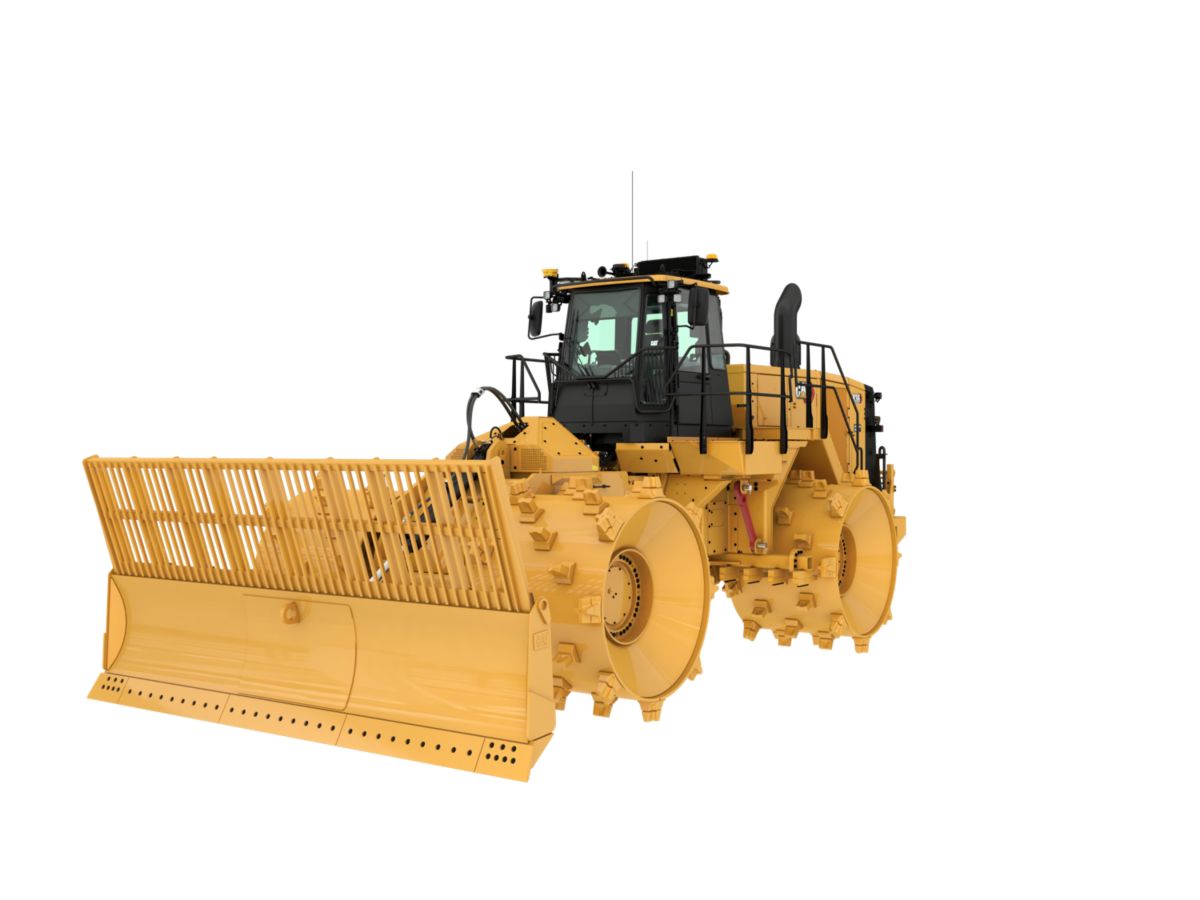

836 Landfill Compactor
OPERATOR COMFORT AND CONTROL
BECAUSE UPTIME COUNTS
POWERFUL EFFICIENCY
PRODUCTIVITY WITH TECHNOLOGY
LONG TERM VALUE AND DURABILITY
WHEEL TIPS BUILT TO PERFORM
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 419 kW (562 hp) |
| Net Power - SAE J1349:2011 | 370 kW (496 hp) |
| Net Power - ISO 9249:2007 | 374 kW (502 hp) |
| Engine Model | Cat® C18 |
| Emissions | Option 1 - U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 |
| Rated Speed | 1900 rpm |
| Engine Power - ISO 14396:2002 | 412 kW (553 hp) |
| Emissions | Option 2 - Brazil MAR-1, equivalent to U.S. EPA Tier 3/EU Stage IIIA |
| Rated Speed | 1900 rpm |
| Net Power - SAE J1349:2011 | 370 kW (496 hp) |
| Net Power - ISO 9249:2007 | 374 kW (502 hp) |
| Gross Power - SAE J1995:2014 | 419 kW (562 hp) |
| Engine Power - ISO 14396:2002 | 412 kW (553 hp) |
| Peak Torque ( 1,400 rpm ) | 3085 N·m (2275 lbf·ft) |
| Torque Rise | 52% |
| Bore | 145 mm (5.71 in) |
| Stroke | 183 mm (7.2 in) |
| Displacement | 18.1 l (1104.5 inu00b3) |
| High Idle Speed | 2120 r/min (2120 r/min) |
| Low Idle Speed | 750 r/min (750 r/min) |
| Maximum Altitude - Without Derating | 2286 m (7500 ft) |
| Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Operating Specifications | |
|---|---|
| Operating Weight (Tier 4 Final/Stage V) | 56275 kg (124063 lb) |
| Operating Weight (Tier 3/Stage IIIA equivalent) | 55939 kg (123321 lb) |
| Maximum Operating Weight (Tier 4 Final/Stage V) | 57318 kg (126364 lb) |
| Maximum Operating Weight (Tier 3/Stage IIIA equivalent) | 56982 kg (125622 lb) |
| Transmission | |
|---|---|
| Transmission Type | Planetary - Powershift - ECPC |
| Direct Drive - Forward 1 | 7 km/h (4.3 mile/h) |
| Direct Drive - Forward 2 | 12.6 km/h (7.8 mile/h) |
| Direct Drive - Reverse 1 | 7.4 km/h (4.6 mile/h) |
| Direct Drive - Reverse 2 | 13.2 km/h (8.2 mile/h) |
| Hydraulic System - Lift | |
|---|---|
| Lift System - Circuit | Flow Sharing Implement; Pilot Operated LS Valve w/EH |
| Lift System - Pump | Variable displacement piston |
| Max Flow @ 2000 rpm | 300 L/min (79 gpm) |
| Relief Valve Setting - Lift | 29000 kPa (4206 psi) |
| Cylinders, Double Acting: Lift, Bore, Stroke | 137.9 mm x 1021 mm (5.5 in x 40.2 in) |
| Pilot System | Variable displacement piston |
| Pilot Relief Valve Setting | 3800 kPa (551 psi) |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Flow Sharing Implement; Pilot, load sensing |
| Steering System - Pump | Piston u2013 Variable Displacement |
| Max Flow @ 2000 rpm | 300 L/min (79 gpm) |
| Relief Valve Setting - Steering | 24100 kPa (3495 lb/inu00b2) |
| Total Steering Angle | 86u00b0 |
| Steering Cycle Times - High Idle | 3.9 s (3.9 s) |
| Steering Cycle Times - Low Idle | 6.4 s (6.4 s) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 793 l (209 gal (US)) |
| Diesel Exhaust Fluid Tank | 32.8 l (9 gal (US)) |
| Cooling Systems - Tier 4 Final/EU Stage V | 151.5 l (40 gal (US)) |
| Cooling System - Tier 3/Stage IIIA Equivalent | 141.1 l (37.2 gal (US)) |
| Engine Crankcase | 60 l (16 gal (US)) |
| Transmission | 83 l (21.9 gal (US)) |
| Differential - Final Drives - Front | 186 l (49 gal (US)) |
| Differential - Final Drives - Rear | 190 l (50 gal (US)) |
| Hydraulic System - Implement/Steering | 175 l (46.2 gal (US)) |
| Hydraulic Tank Only | 103 l (27.2 gal (US)) |
| Note | Cat U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: u2022 20% biodiesel FAME (fatty acid methyl ester)*** u2022 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels u2022 Cat engines meeting Brazil MAR-1 emissions standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA, are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: u2022 100% biodiesel FAME (fatty acid methyl ester)*** u2022 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or u201cCaterpillar Machine Fluids Recommendationsu201d (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. u2022 If equipped with R134a (Global Warming Potential = 1430), the system contains 1.4 kg (3.1 lb) of refrigerant which has a CO2 equivalent of 2.002 metric tonnes (2.206 tons). |
| Axles | |
|---|---|
| Front | Planetary u2013 Fixed |
| Rear | Planetary u2013 Oscillating |
| Oscillation Angle | u00b16u00b0 |
| Braking System | |
|---|---|
| Service Brakes | Multi Disc Wet (Enclosed) 2 WHL |
| Parking Brake | Spring Applied, Hydraulic Released |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 112 dB(A) (112 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)* | 109 dB(A) (109 dB(A)) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 112 dB(A) (112 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) (110 dB(A)) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Dimensions (Approximate) | |
|---|---|
| Height to Top of Beacon | 4634 mm (15.2 ft) |
| Height to Top of Air Conditioning Condenser | 4626 mm (15.2 ft) |
| Height - Cab Roof | 4285 mm (14.1 ft) |
| Height - Top of Exhaust Pipe | 4606 mm (15.1 ft) |
| Height - Top of Hood | 3430 mm (11.3 ft) |
| Ground Clearance to Hitch | 639 mm (2.1 ft) |
| Ground Clearance to Transmission Guard | 634 mm (2.1 ft) |
| Ground Clearance to Bottom of Bumper | 965 mm (3.2 ft) |
| Centerline of Rear Axle to Rear Compactor Guard | 3454 mm (11.3 ft) |
| Hitch to Centerline of Front Axle | 2275 mm (7.5 ft) |
| Wheel Base | 4550 mm (14.9 ft) |
| Width over Front Striker Bars | 3930 mm (12.9 ft) |
| Width over Rear Striker Bars | 3933 mm (12.9 ft) |
| Width over Platform | 3196 mm (10.5 ft) |
| Width over Drums | 4280 mm (14 ft) |
| Overall Machine Length with Semi U-Blade | 10914 mm (35.8 ft) |
| Straight Blade | |
|---|---|
| Capacity | 19.8 mu00b3 (25.9 ydu00b3) |
| Overall Width | 5193 mm (17 ft) |
| Height | 2260 mm (7.4 ft) |
| Height of Cutting Edge | 1125 mm (3.7 ft) |
| Digging Depth | 364 mm (1.2 ft) |
| Ground Clearance | 1730 mm (5.7 ft) |
| Turning Radius u2013 Outside Corner of Blade | 8737 mm (28.7 ft) |
| Turning Radius - Inside of Wheels | 3635 mm (11.9 ft) |
| Weight | 3127 kg (6894 lb) |
| Total Operating Weight | 55931 kg (123000 lb) |
| Semi U-Blade | |
|---|---|
| Capacity | 22.4 mu00b3 (29.3 ydu00b3) |
| Overall Width | 5313 mm (17.4 ft) |
| Height | 2294 mm (7.5 ft) |
| Height of Cutting Edge | 1255 mm (4.1 ft) |
| Digging Depth | 362 mm (1.2 ft) |
| Ground Clearance | 1735 mm (5.7 ft) |
| Turning Radius u2013 Outside Corner of Blade | 8823 mm (28.9 ft) |
| Turning Radius u2013 Inside of Wheels | 3635 mm (11.9 ft) |
| Weight | 3612 kg (7963 lb) |
| Total Operating Weight | 56413 kg (124063 lb) |
| U-Blade | |
|---|---|
| Capacity | 25.7 mu00b3 (33.6 ydu00b3) |
| Overall Width | 5290 mm (17.4 ft) |
| Height | 2204 mm (7.2 ft) |
| Height of Cutting Edge | 1255 mm (4.1 ft) |
| Digging Depth | 934 mm (3.1 ft) |
| Ground Clearance | 1198 mm (3.9 ft) |
| Turning Radius u2013 Outside Corner of Blade | 8795 mm (28.8 ft) |
| Turning Radius u2013 Inside of Wheels | 3635 mm (11.9 ft) |
| Weight | 3491 kg (7696 lb) |
| Total Operating Weight | 56287 kg (123785 lb) |
| Wheels | |
|---|---|
| Combination Tips (Weight Group) | 12814 kg (28250 lb) |
| Plus Tips - Weight (Group) | 13510 kg (29784 lb) |
| Paddle Tips - Weight (Group) | 12350 kg (272227 lb) |
| Diamond Tips Weight (Group) | 14814 kg (32659 lb) |
| Outside Diameter | 2128 mm (83.8 in) |
| Outside Diameter - Diamond | 2140 mm (84.3 in) |
| Drum Diameter | 1770 mm (69.7 in) |
| Drum Width | 1400 mm (55.1 in) |
| Feet Per Row | 8 |
| Feet Per Wheel | 40 |
| Replaceable | Weld on |
| Width Over Drums | 168.5 in (4280 mm) |
| Tip Height | 7 in (179 mm) |
| Tip Height - Diamond | 184 mm (7.25 in) |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWERTRAIN
- Advanced Productivity Electronic Control System (APECS)
- Air-to-air aftercooler
- Brakes, fully hydraulic, enclosed, wet multiple disc brakes
- Cat Clean Emission Module (Tier 4 Final/Stage V only)
- Electro hydraulic parking brake
- Engine, Cat C18 configured for two emissions options: Tier 4 Final/Stage V, Korea Stage V, and Japan 2014 or Brazil MAR-1 (Tier 3/Stage IIIA equivalent)
- Fuel priming pump, electric
- Fuel-to-air cooler
- Ground level emergency engine shutdown switch
- Guard (3 piece) transmission
- Heat shield, turbo and exhaust manifold
- Hydraulically driven demand fan
- Integrated braking
- Radiator, Aluminum Modular Radiator (AMR)
- Separated cooling system
- Starting aid (ether)
- Throttle lock
- Torque converter with lockup clutch (LUC)
- Turbine precleaner, engine air intake
- Transmission, planetary, with 2F/2R speed range control
- Underhood ventilation system
- ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4-1,000 CCA)
- Converter, 10-15 amp, 24V to 12V
- Lighting system, LED (front and rear)
- Lighting, access stairway
- Starter, electric (heavy duty)
- Starter lockout (ground level)
- Auxiliary jump start receptacle
- Transmission lockout (ground level)
- OPERATOR ENVIRONMENT
- Air conditioner w/roof-mounted condenser
- Cab, sound-suppressed and pressurized
- Internal four-post rollover protective structure/falling objects protective structure (ROPS/FOPS)
- Radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp) 12V power port for mobile phone or laptop connection
- Camera, rear vision
- Coat and hard hat hooks
- Flip-up armrest
- Heater and defroster
- Horn group (trumpet)
- Hydraulic controls (floor mounted)
- Implement hydraulic lockout
- Light, (dome) cab
- Lunchbox and beverage holders
- Instrumentation, Gauges: – DEF fluid level (Tier 4 Final/Stage V) – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, Warning Indicators: – Action alert system, three category – Axle/brake oil temp, front – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp
- Mirrors, heated, rearview (externally mounted)
- Radio, CB (ready)
- Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
- Seat belt with minder, retractable, 76 mm (3″) wide
- Steering and Transmission Integrated Control (STIC™) system with lockout
- Glass (window) – rubber mounted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
- WHEELS AND CLEANER BARS
- Striker bars
- GUARDS
- Guards, axle (front and rear)
- Guards, cab window
- Guards, crankcase and powertrain, hydraulically powered
- Guard, driveshaft
- Guard, differential
- Guards, rear fan and grill
- BLADES
- Bulldozer arrangement is included in the standard equipment. Bulldozer blades are optional.
- FLUIDS
- Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
- OTHER STANDARD EQUIPMENT
- Auto Blade Positioner (ABP)
- Demand fan/swing out (hydraulic reversible)
- Doors, service access locking
- Ecology drains for engine, radiator, hydraulic tank
- Electronic clutch pressure control and remote mounted pressure taps
- Emergency righthand platform exit
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Fuel tank, 793 L (210 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Hydraulic, steering and brake filtration/screening system
- Oil sampling valves
- Product Link™ – Cellular
- Stairways, fixed-L/R (rear access)
- Steering, load sensing
- Vandalism protection caplocks
- Venturi stack
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- Various blades:
- Straight blade
- U-blade
- Semi U-blade
- Various tip and wheel arrangements:
- Paddle
- Plus
- Diamond
- WHEELS AND CLEANER BARS
- Wheels and tips: wheel arrangements – 7″ combination tips
