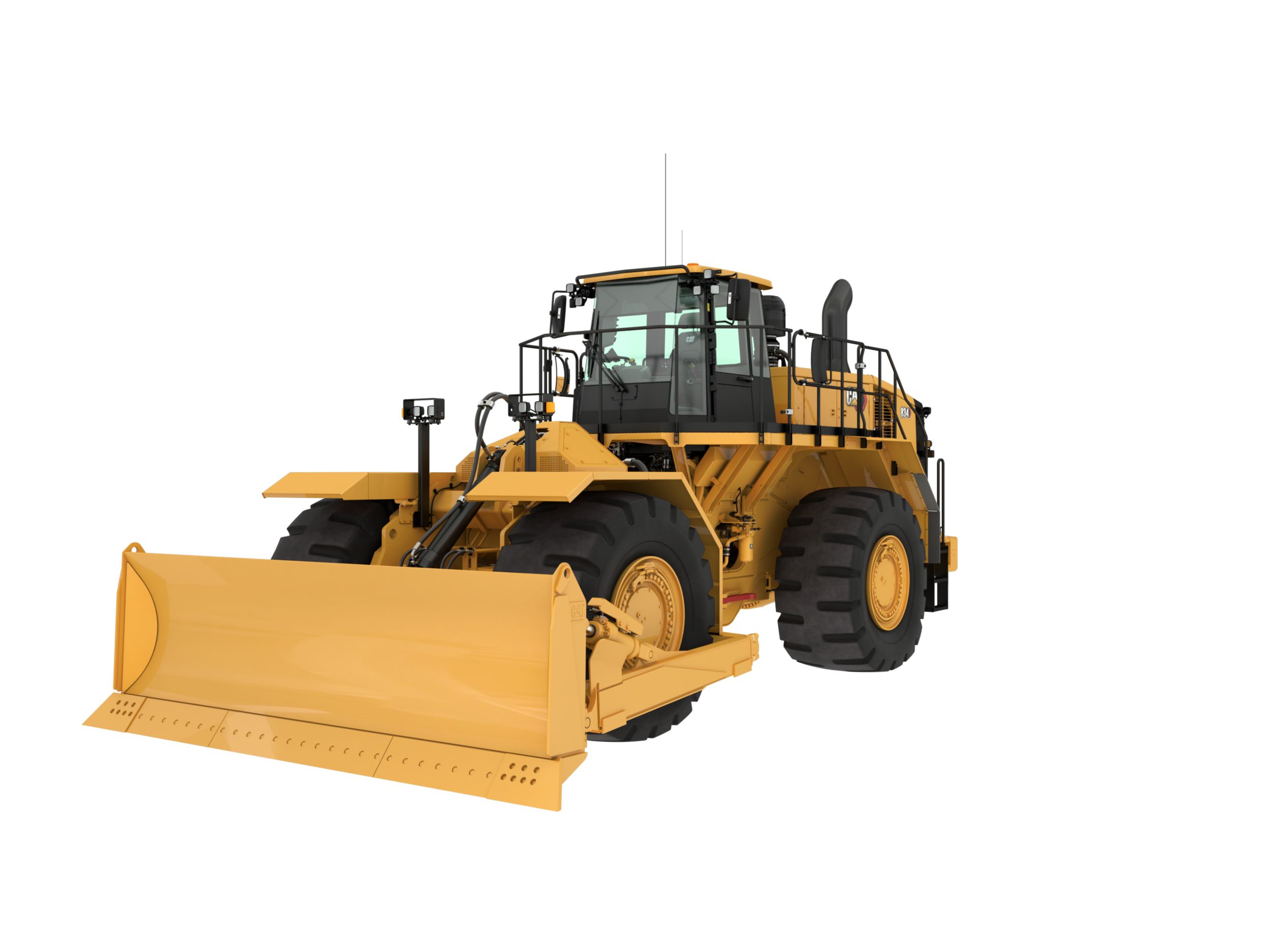

834 Wheel Dozer
BUILT TO PERFORM
MOVE MORE WITH LESS FUEL
SAFETY FIRST
TECHNOLOGY THAT GETS WORK DONE
WORK IN COMFORT
REDUCE ENVIRONMENTAL IMPACT
SAVE ON SERVICE AND MAINTENANCE
| Engine | |
|---|---|
| Engine Model | Cat® C18u00a0 |
| Net Power - SAE J1349:2011 | 370 kW (496 hp) |
| Rated Speed | 1900 r/min (1900 r/min) |
| Peak Power Speed | 1500 r/min (1500 r/min) |
| Gross Power - SAE J1995:2014 | 419 kW (562 hp) |
| Bore | 145 mm (5.7 in) |
| Stroke | 183 mm (7.2 in) |
| Displacement | 18.1 l (1105 inu00b3) |
| Peak Torque - 1,300 rpm | 2836 N·m (2092 lb/ft) |
| Torque Rise | 52 % (52 %) |
| Note (1) | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Note (2) | The following engine configurations are available: u2013 Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. u2013 Noncertified that emits equivalent to U.S. EPA Tier 3. |
| Operating Specifications | |
|---|---|
| Operating Weight | 47750 kg (105271 lb) |
| Blade Capacities | 7.9 u2013 22.2u00a0m3 (10.3 u2013 29.0u00a0yd3) |
| Transmission | |
|---|---|
| Transmission Type | Cat planetary power shift |
| Forward - 1 | 6.8 km/h (4.2 mile/h) |
| Forward - 2 | 11.6 km/h (7.2 mile/h) |
| Forward - 3 | 20.3 km/h (12.6 mile/h) |
| Forward - 4 | 35.4 km/h (22 mile/h) |
| Reverse - 1 | 6.8 km/h (4.2 mile/h) |
| Reverse - 2 | 12.2 km/h (7.6 mile/h) |
| Reverse - 3 | 21.4 km/h (13.3 mile/h) |
| Direct Drive - Forward 1 | Lock-up disabled |
| Direct Drive - Forward 2 | 12.4 km/h (7.7 mile/h) |
| Direct Drive - Forward 3 | 22.1 km/h (13.7 mile/h) |
| Direct Drive - Forward 4 | 38.5 km/h (23.9 mile/h) |
| Direct Drive - Reverse 1 | 7.2 km/h (4.5 mile/h) |
| Direct Drive - Reverse 2 | 13 km/h (8.1 mile/h) |
| Direct Drive - Reverse 3 | 23 km/h (14.3 mile/h) |
| Note | Travel speeds based on 35/65-R33 tire |
| Hydraulic System - Lift/Tilt | |
|---|---|
| Lift/Tilt System - Circuit | Pilot operated LS valve with EH |
| Lift/Tilt System | Variable displacement piston |
| Maximum Flow at 1,900 rpm | 582 L/min (153 gpm) |
| Relief Valve Setting - Lift/Tilt | 32000 kPa (4641 psi) |
| Cylinders, Double Acting - Lift, Bore and Stroke | 139.75 mm u00d7 1021 mm (5.5 in u00d7 40.2 in) |
| Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke | 140 mm u00d7 230 mm (5.5 in u00d7 9.1 in) |
| Pilot System | Variable displacement piston |
| Pilot Maximum Flow | 52 L/min (13.7 gpm) |
| Pilot Relief Valve Setting | 4000 kPa (580 psi) |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Pilot, load sensing |
| Steering System - Pump | Piston, variable displacement |
| Maximum Flow | 250 L/min (65.8 gpm) |
| Relief Valve Setting - Steering | 24100 kPa (3495 psi) |
| Total Steering Angle | 86 u00b0 (86 u00b0) |
| Steering Cycle Times - High Idle | 3.1 s (3.1 s) |
| Steering Cycle Times - Low Idle | 5.7 s (5.7 s) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 793 l (209.5 gal (US)) |
| Cooling System | 120 l (31.7 gal (US)) |
| Crankcase | 60 l (15.9 gal (US)) |
| Diesel Exhaust Fluid Tank | 33 l (8.7 gal (US)) |
| Transmission | 120 l (31.7 gal (US)) |
| Hydraulic System Factory Fill | 240 l (63.4 gal (US)) |
| Differential - Final Drives - Front | 186 l (49.1 gal (US)) |
| Differential - Final Drives - Rear | 186 l (49.1 gal (US)) |
| Hydraulic System - Tank Only | 140 l (37 gal (US)) |
| Note (1) | All non-road Tier 4 Final/Stage V diesel engines are required to use: u2013 ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: u2022 20% biodiesel FAME (fatty acid methyl ester)* u2022 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or u201cCaterpillar Machine Fluids Recommendationsu201d (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. u2022 For pre-Tier 4 engines: Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: u2022 100% biodiesel FAME (fatty acid methyl ester)* u2022 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or u201cCaterpillar Machine Fluids Recommendationsu201d (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). |
| Axles | |
|---|---|
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | u00b113u00b0 |
| Brakes | |
|---|---|
| Brakes | ISO 3450: 2011 |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) (113 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)** | 109 dB(A) (109 dB(A)) |
| Note (1) | * For machines in European Union countries and in countries that adopt the u201cEU Directivesu201d and u201cUK Directivesu201d |
| Note (2) | ** European Union Directive u201c2000/14/ECu201d as amended by u201c2005/88/ECu201d and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) (113 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) (110 dB(A)) |
| Note (1) | * For machines in European Union countries and in countries that adopt the u201cEU Directivesu201d and u201cUK Directivesu201d |
| Note (2) | ** European Union Directive u201c2000/14/ECu201d as amended by u201c2005/88/ECu201d and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Dimensions | |
|---|---|
| Height - Top of Exhaust Stack | 4835 mm (15.9 ft) |
| Height - Top of Air Cleaner | 3895 mm (12.8 ft) |
| Height - Top of Hood | 3334 mm (10.9 ft) |
| Ground Clearance - Bumper | 933 mm (3.1 ft) |
| Centerline of Rear Axle to Edge of Bumper | 3187 mm (10.5 ft) |
| Wheel Base | 4550 mm (14.9 ft) |
| Length - Front of Tire | 8715 mm (28.4 ft) |
| Length - Straight Blade on Ground | 9927 mm (32.6 ft) |
| Length - Universal Blade on Ground | 10470 mm (34.4 ft) |
| Centerline of Front Axle to Hitch | 2275 mm (7.5 ft) |
| Ground Clearance | 531 mm (1.7 ft) |
| Height - Top of Cab | 4184 mm (13.7 ft) |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- ELECTRICAL
- Alarm, back-up
- Alternator, single (100 amp)
- Batteries, dry
- Hazardous voltage lamp
- Converter, 10/15 amp, 24V to 12V
- Lighting system, (LED work lights, access and service platform lighting)
- Starting and charging system, 24V
- Auxiliary jump start receptacle
- OPERATOR ENVIRONMENT
- Air conditioner
- Starter lockout in bumper
- Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port
- Cat Vision, rear-vision camera system
- Graphical information display, displays real time operating information, performs calibrations and customizes operator settings
- CB radio ready
- Tilt, tip controls
- Heater and defroster
- Horn, electric
- Light, cab (dome)
- Lights, directional
- Lunchbox and beverage holders
- Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles, cycle timer, integrated payload control system
- Radio, AM/FM/CD/MP3 Bluetooth®
- Instrumentation, gauges: – coolant temperature, engine hour meter, hydraulic oil temperature, powertrain oil temperature
- Mirrors, rearview (externally mounted)
- Rimpull control system (RCS)
- Seat, deluxe
- Seat belt, retractable, 76 mm (3 in) wide
- Steering and transmission integrated control (STIC™) system
- UV glass
- Operator presence
- Wet-arm wipers/washers (front and rear)
- Intermittent front and rear wipers
- POWERTRAIN
- Brakes, oil-cooled, multi-disc, service/secondary
- Automatic retarding controls
- Case drain screens
- Engine, Cat C18 MEUI™, diesel, turbocharged/aftercooled
- Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to -34°C (-29°F)
- Electro hydraulic parking brake
- Turbine precleaner, engine air intake
- Radiator, Aluminum Modular Radiator (AMR)
- Manual switch and automatic fuel priming
- Starting aid (ether) automatic
- Throttle lock, electronic
- Torque converter, impeller clutch (ICTC) with lock-up clutch (LUC) and rimpull control system (switch and dial in cab)
- Transmission, planetary, power shift (4F/3R) electronic control
- ADDITIONAL EQUIPMENT
- Doors, service access (locking)
- Hitch, drawbar with pin
- Oil sampling valves
- Rear access to cab and service platform
- Steering, load sensing
- Vandalism protection caplocks
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWERTRAIN
- -50° C (-58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine brake
- High ambient cooling-software
- Turbine precleaner, engine air intake dual stage
- Axle oil cooler
- Crankcase guards
- OPERATOR ENVIRONMENT
- Cab precleaner
- Radio, AM/FM/CD/MP3 Bluetooth with Satellite SiriusXM
- Seat, Premium Plus containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness, dynamic end dampening and leather finish
- LED warning strobe
- Window pull down visor
- Cat Detect (object detection system)
- ADDITIONAL EQUIPMENT
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
