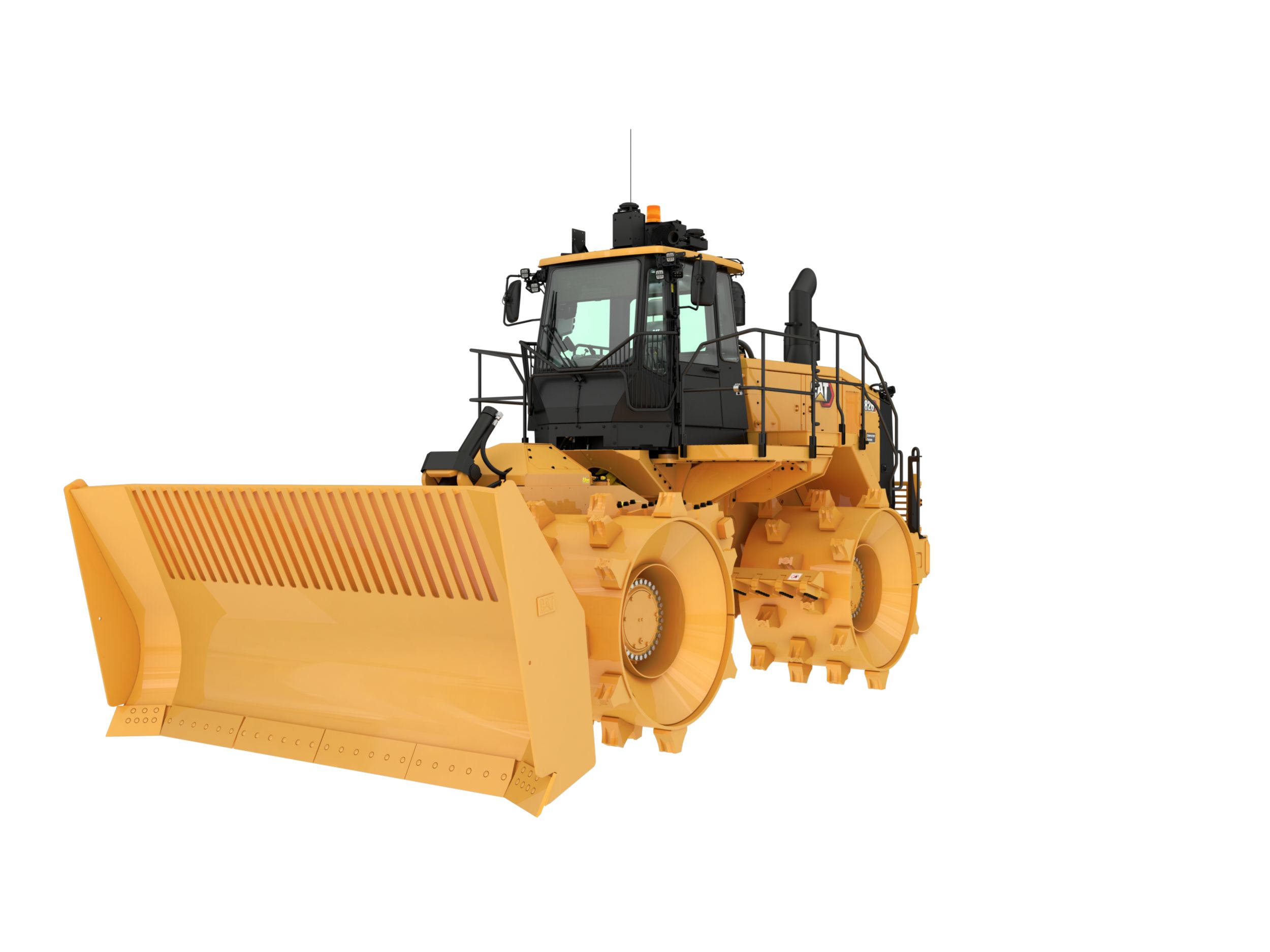

826 Landfill Compactor
OPERATOR COMFORT AND CONTROL
TOP-TIER SERVICE AND SUPPORT
EFFICIENCY AND PRODUCTIVITY
PRODUCTIVITY WITH TECHNOLOGY
LONG-TERM VALUE AND DURABILITY
WHEEL TIPS BUILT TO PERFORM
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 324 kW (435 hp) |
| Net Power - SAE J1349:2011 | 302 kW (405 hp) |
| Net Power - ISO 9249:2007 | 302 kW (405 hp) |
| Engine Power - ISO 14396:2002 | 318 kW (426 hp) |
| Engine Model | C15 Cat® |
| Emissions | U.S. EPA Tier 4 Final/ EU Stage V/Korea Stage V and Japan 2014 or Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA |
| Rated Speed | 1800 |
| Torque Rise | 33% |
| Bore | 137.2 mm (5.4 in) |
| Stroke | 171.4 mm (6.7 in) |
| Displacement | 15.2 l (927.6 inu00b3) |
| High Idle Speed | 2300 r/min (2300 r/min) |
| Low Idle Speed | 800 r/min (800 r/min) |
| Maximum Altitude u2013 Without Derating (Tier 4 Final/Stage V) | 2834 m (9298 ft) |
| Maximum Altitude - Without Derating (Tier 3/Stage IIIA) | 2773 m (9098 ft) |
| Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Operating Specifications | |
|---|---|
| Operating Weight (Tier 4 Final/Stage V) | 40917 kg (90207 lb) |
| Operating Weight (Tier 3/Stage IIIA equivalent) | 40454 kg (89186 lb) |
| Maximum Operating Weight (Tier 4 Final/Stage V) | 41988 kg (92568 lb) |
| Maximum Operating Weight (Tier 3/Stage IIIA equivalent) | 41526 kg (91549 lb) |
| Transmission | |
|---|---|
| Transmission Type | Planetary - Powershift - ECPC |
| Direct Drive - Forward 1 | 6.8 km/h (4.2 mile/h) |
| Direct Drive - Forward 2 | 12.1 km/h (7.5 mile/h) |
| Direct Drive - Reverse 1 | 7.8 km/h (4.3 mile/h) |
| Direct Drive - Reverse 2 | 13.8 km/h (8.6 mile/h) |
| Hydraulic System | |
|---|---|
| Pump Flow at 1800 rpm | 117 L/min (30.9 gpm) |
| Main Relief Pressure | 26000 kPa (3771 psi) |
| Maximum Supply Pressure | 24100 kPa (3495 psi) |
| Lift System | Double Acting Cylinder |
| Bore | 120 mm (4.7 in) |
| Stroke | 1070 mm (42.1 in) |
| Service Refill Capacities | |
|---|---|
| Cooling System | 116 l (30.6 gal (US)) |
| Engine Crankcase | 34 l (9 gal (US)) |
| Transmission | 66 l (17.4 gal (US)) |
| Fuel Tank | 782 l (206.6 gal (US)) |
| Diesel Exhaust Fluid Tank (Tier 4 Final/Stage V) | 32 l (8.5 gal (US)) |
| Differential - Final Drives - Front | 100 l (26.4 gal (US)) |
| Differential - Final Drives - Rear | 110 l (29.1 gal (US)) |
| Hydraulic Tank Only | 134 l (35.4 gal (US)) |
| Note | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: u2022 20% biodiesel FAME (fatty acid methyl ester) * u2022 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or u201cCaterpillar Machine Fluids Recommendationsu201d (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels u2013 Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. u2013 Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. |
| Axles | |
|---|---|
| Front | Planetary - Fixed |
| Rear | Planetary - Oscillating |
| Oscillation Angle | u00b15u00b0 |
| Braking System | |
|---|---|
| Service Brakes | Multi Disc Wet (Enclosed) 2 WHL |
| Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) (73 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) (113 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) (110 dB(A)) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) (73 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) (113 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) (110 dB(A)) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Pilot operated, load sensing |
| Bore | 114.3 mm (4.5 in) |
| Stroke | 576 mm (22.7 in) |
| Steering System - Pump | Piston - Variable Displacement |
| Maximum System Flow | 170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm) |
| Steering Pressure Limited | 24000 kPa (3481 psi) |
| Vehicle Articulation Angle | 86 u00b0 (86 u00b0) |
| Dimensions (Approximate) | |
|---|---|
| Height to Top of Air Conditioning Condenser | 4568 mm (14.99 ft) |
| Height - Cab Roof | 4193 mm (13.75 ft) |
| Height - Top of Beacon | 4765 mm (15.63 ft) |
| Height - Top of Exhaust Pipe | 4439 mm (14.56 ft) |
| Height - Top of Hood | 3312 mm (10.87 ft) |
| Ground Clearance - Bumper | 960 mm (3.15 ft) |
| Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard | 2860 mm (9.38 ft) |
| Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard | 3096 mm (10.16 ft) |
| Hitch to Centerline of Front Axle | 1850 mm (6.07 ft) |
| Wheel Base | 3700 mm (12.14 ft) |
| Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard | 8715 mm (28.59 ft) |
| Ground Clearance | 642 mm (2.11 ft) |
| Width - Over Wheels | 3800 mm (12.47 ft) |
| Turning Radius - Inside of Wheels | 2797 mm (9.18 ft) |
| Straight Blade | |
|---|---|
| Width u2013 Moldboard Length | 4311 mm (14.16 ft) |
| Width - Over End Bits | 4502 mm (14.75 ft) |
| Height with Cutting Edge and Screen | 1900 mm (6.23 ft) |
| Maximum Depth of Cut | 461 mm (1.5 ft) |
| Maximum Lift above Ground | 1277 mm (4.19 ft) |
| Capacity, Rated | 12.3 mu00b3 (16.1 ydu00b3) |
| Overall Machine Length (includes rear radiator guard, measured to cutting edge) | 8715 mm (28.59 ft) |
| Semi U-Blade | |
|---|---|
| Width u2013 Moldboard Length | 4462 mm (14.66 ft) |
| Width - Over End Bits | 4522 mm (14.83 ft) |
| Height with Cutting Edge and Screen | 2022 mm (6.63 ft) |
| Maximum Depth of Cut | 619 mm (2.03 ft) |
| Maximum Lift above Ground | 1165 mm (3.825 ft) |
| Capacity, Rated | 16 mu00b3 (20.9 ydu00b3) |
| Overall Machine Length (includes rear radiator guard, measured to cutting edge) | 9005 mm (29.54 ft) |
| U-Blade | |
|---|---|
| Width u2013 Moldboard Length | 4331 mm (14.25 ft) |
| Width - Over End Bits | 4398 mm (14.41 ft) |
| Height with Cutting Edge and Screen | 2019 mm (6.62 ft) |
| Maximum Depth of Cut | 619 mm (2.03 mm) |
| Maximum Lift above Ground | 1156 mm (3.79 ft) |
| Capacity, Rated | 17.5 mu00b3 (22.9 ydu00b3) |
| Overall Machine Length (includes rear radiator guard, measured to cutting edge) | 9357 mm (30.7 ft) |
| Wheels | |
|---|---|
| Combination Tips (Weight Group) | 9582 kg (21125 lb) |
| Plus Tips - Weight (Group) | 9980 kg (22002 lb) |
| Paddle Tips - Weight (Group) | 9317 kg (20540 lb) |
| Diamond Tips Weight (Group) | 10885 kg (23997 lb) |
| Outside Diameter | 1971 mm (77.6 in) |
| Outside Diameter - Diamond | 1983 mm (78.1 in) |
| Drum Diameter | 1610 mm (63.4 in) |
| Drum Width | 1200 mm (47.2 in) |
| Feet Per Row | 6 |
| Feet Per Wheel | 30 |
| Replaceable | Weld On |
| Width Over Drums | 149.6 in (3800 mm) |
| Tip Height | 7 in (179 mm) |
| Tip Height - Diamond | 179 mm (7.25 in) |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWERTRAIN
- Single Clutch Speed Shifting (SCSS)
- Electronic Clutch Pressure Control (ECPC)
- Air-to-air aftercooler
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat Clean Emission Module (U.S. EPA Tier 4 Final/ EU Stage V only)
- Muffler (under hood) (U.S. EPA Tier 3/EU Stage IIIA equivalent)
- Electro-hydraulic parking brake
- Engine, Cat C15 configured for two emissions options: Tier 4 Final/Stage V, or emitting equivalent to Tier 3/Stage IIIA
- Fuel priming pump (electric)
- Fuel-to-air cooler
- Ground level engine shutdown
- Heat shield, turbo and exhaust manifold
- Hydraulically driven demand fan
- Integrated braking system
- Radiator, Aluminum Modular (AMR)
- Separated cooling system
- Starting aid (ether)
- Throttle lock
- Torque converter with Lock Up Clutch (LUC)
- Eco Mode
- Transmission, planetary, with 2F/2R speed range control
- Under hood ventilation system
- ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4 – 1,000 CCA)
- Electrical system, 24V
- Light, warning unswitched (LED strobe)
- Lighting system, halogen (front and rear)
- Lighting, access stairway
- Lighting, underhood
- Starter, electric (heavy duty)
- Ground level lockable master disconnect switch
- Auxiliary jump start receptacle
- OPERATOR ENVIRONMENT
- Camera, rear vision
- Air conditioner with roof-mounted condenser
- Cab, sound-suppressed pressurized
- Internal four-post rollover protective structure (ROPS/FOPS)
- Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
- 12V power port for mobile phone or laptop connection
- Radio, CB ready
- Coat and hard hat hooks
- Fingertip shifting controls
- Flip-up armrest
- Heater and defroster
- Implement hydraulic lockout
- Glass (window) – rubber mounted glass
- Light, (dome) cab
- Lunch box and beverage holders
- Instrumentation, gauges: – Diesel exhaust fluid (DEF) level (U.S. EPA Tier 4 Final/ EU Stage V) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
- Mirror, internal (panoramic)
- Mirrors, heated, rearview (externally mounted)
- Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
- Seat belt with minder, retractable, 76 mm (3 in) wide
- Steering and Transmission Integrated Control (STIC™) system with lockout
- Sun visor, front
- Tinted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS™): – Graphical information display – External data port – Customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
- Precleaner, cab powered
- Horn group (trumpet)
- GUARDS
- Guards, axle (front and rear)
- Guard, cab window
- Guard, driveshaft
- Guards, crankcase and powertrain, hydraulically powered
- Guard, differential (front and rear)
- FLUIDS
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
- OTHER STANDARD EQUIPMENT
- Demand fan/swing out (hydraulic reversible)
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Emergency platform exit
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown
- Fire suppression ready
- Fuel tank, 782 L (207 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Total hydraulic filtration system
- Oil sampling valves
- Oil change system, high speed
- Steering, load sensing
- Stairway, left and right rear access
- Vandalism protection caplocks
- Venturi stack
- Fold-down exhaust stack for shipping
- TECHNOLOGY PRODUCTS
- Product Link™ – Cellular, Satellite
- SPECIAL ARRANGEMENTS
- Engine: – Sound suppression
- Engine precleaners – single stage
- BLADES
- Dozer arrangement (no blade)
- WHEELS AND CLEANER BARS
- Striker bars
- Wheels and tips: wheel arrangements – 7″ combination tips
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Radio, AM/FM/Aux/USB/Bluetooth®
- Cat Compact SBAS Mapping (available through SITECH only)
- Cat Compact RTK Mapping (available through SITECH only)
- GUARDS
- Guard – rear fan and grill
- POWERTRAIN
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
- SPECIAL ARRANGEMENTS
- Engine precleaners – dual stage
- MISCELLANEOUS
- Plate – year of manufacture (Tier 3/Stage IIIA equivalent only)
- WHEELS AND CLEANER BARS
- Striker bars with cleaner fingers
- OTHER STANDARD EQUIPMENT
- Stairway, swingout (LH & RH)
