Off-Highway Trucks Bare Chassis

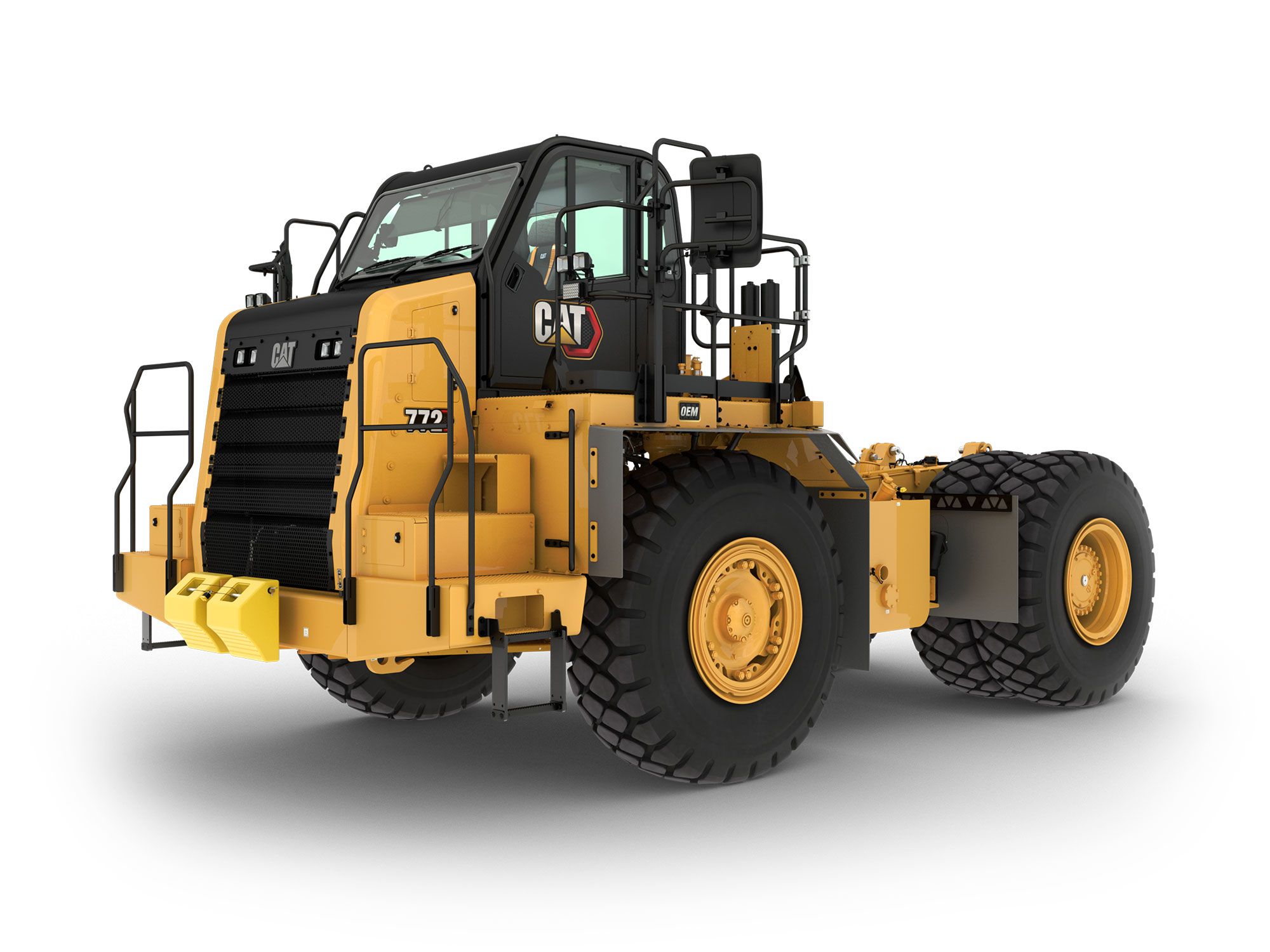

772 Off-Highway Truck Bare Chassis
Tractor ROPS Rating
- Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.
Water Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.
Service Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site’s machine fleet.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.
Tow Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
- Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.
| Engine | |
|---|---|
| Engine Model | Cat® C18 |
| Rated Engine Speed | 1700 r/min (1700 r/min) |
| Gross Power - SAE J1995 | 451 kW (605 hp) |
| Rated Net Power - SAE J1349 | 410 kW (550 hp) |
| Number of Cylinders | 6 |
| Bore | 145 mm (5.7 in) |
| Stroke | 183 mm (7.2 in) |
| Displacement | 18.1 l (1105 inu00b3) |
| Note | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. |
| Weights | |
|---|---|
| LRC Bare Chassis Weight without Hoist | 26496 kg (58414 lb) |
| LRC Bare Chassis Weight with Hoist | 26863 kg (59223 lb) |
| LRC Gross Vehicle Weight (Target) with Hoist | 82100 kg (180999 lb) |
| LRC Gross Vehicle Weight (Target) without Hoist | 82100 kg (180999 lb) |
| HRC Bare Chassis Weight without Hoist | 27019 kg (59567 lb) |
| HRC Bare Chassis Weight with Hoist | 27386 kg (60376 lb) |
| HRC Gross Vehicle Weight (Target) with Hoist | 82100 kg (180999 lb) |
| HRC Gross Vehicle Weight (Target) without Hoist | 82100 kg (180999 lb) |
| Note | LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Operating Specifications | |
|---|---|
| Nominal Water Tank Capacity | 41500 l (11000 gal (US)) |
| ROPS | |
|---|---|
| Tractor ROPS | 35122 kg (77430 lb) |
| Transmission | |
|---|---|
| Forward - 1 | 12.9 km/h (8 mile/h) |
| Forward - 2 | 17.5 km/h (10.9 mile/h) |
| Forward - 3 | 23.8 km/h (14.8 mile/h) |
| Forward - 4 | 31.9 km/h (19.8 mile/h) |
| Forward - 5 | 43.3 km/h (26.9 mile/h) |
| Forward - 6 | 58.3 km/h (36.2 mile/h) |
| Forward - 7 | 79.2 km/h (49.2 mile/h) |
| Reverse | 16.7 km/h (10.4 mile/h) |
| Note | Maximum travel speeds with standard 21.00R33 (E4) tires. |
| Brakes | |
|---|---|
| Brake Surface - Front | 1395 cmu00b2 (216 inu00b2) |
| Brake Surface - Rear | 50281 cmu00b2 (7794 inu00b2) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 530 l (140 gal (US)) |
| Cooling System | 125 l (33 gal (US)) |
| Crankcase | 64 l (17 gal (US)) |
| Brake/Hoist Hydraulic Tank | 145 l (38 gal (US)) |
| Brake Hoist System | 227 l (60 gal (US)) |
| Differential - Final Drives | 180 l (47 gal (US)) |
| Steering System - Including Tank | 227 l (60 gal (US)) |
| Torque Converter - Transmission System | 64 l (17 gal (US)) |
| Steering | |
|---|---|
| Steering Standards | ISO 5010:2007 |
| Steer Angle | 31 u00b0 (31 u00b0) |
| Turning Diameter | 17.6 m (57.7 ft) |
| Turning Circle - Clearance Diameter | 20.3 m (66.6 ft) |
Standard Equipment
- For more information on 772 Bare Chassis options, please contact Caterpillar OEM Solutions at oem_solutions@cat.com.
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWERTRAIN
- Air-To-Air Aftercooler (ATAAC)
- Air cleaner with precleaner (1)
- Automatic cold mode idle control
- Electric start
- Engine idle shutdown
- Ether started aided
- Exhaust muffler
- Global off-highway aluminium radiator
- Braking System: Manual retarder (utilizes rear oil-cooled,
multiple disc brakes), Brake release motor (towing), Dry disc brakes (front), Front brake disconnect switch (front), Oil-cooled, multiple disc (rear), Brake wear indicator, Parking, secondary, service brake - Transmission: 7 speed automatic powershift with electronic clutch pressure control, Advanced productivity electronic control strategy (APECS), Automatic neutral idle, Autostall, Second gear start
- ELECTRICAL
- Alarm backup
- Alternator, 120 amp
- Auxiliary jump start receptable
- Batteries, maintenance-free, 12V, 1400 CCA combined
- Electrical system, 25 amp, 24V to 12V converter
- Lighting System: Backup light (halogen), Directional signals/hazard warning (front and
rear LED), Engine compartment light, Headlights with dimmer, Side profile lights, Operator access courtesy lights, Stop/tail lights (LED) - Battery jump start
- Breakers, electrical
- Lockout switch
- Ports, ET and VIMS
- Service lockout switch (power without engine start)
- OPERATOR ENVIRONMENT
- Air conditioning/heat
- Ashtray and cigarette lighter
- Automatic tempature control
- Coat hook
- Cup holders (4)
- Diagnostic connection port, 24V
- Entertainment radio ready: 5 amp converter, Speakers, Antenna, Wiring harness
- Gauges and indicators panel: Air cleaner service indicator – electronic, Brake oil temperature gauge, Coolant temperature gauge, Hour meter, Tachometer, Engine overspeed indicator, Fuel level, Speedometer with odometer, Transmission gear indicator
- Hoist lever
- Horn
- Light – dome
- Light – courtesy
- Messenger, display unit
- Mirrors (heated)
- Power port, 24V and 12V
- ROPS cab, insulated/sound suppressed
- Cat Deluxe Seat: full air suspension, heated/ventilated, retractable 4 point seat belt with shoulder
harness - Seat (training) with lap belt
- Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor, tinted glass
- Throttle lock
- Window, sliding, right side (Emergency exit)
- Window, powered, left side
- Windshield wiper (intermittent) and washer
- OTHER EQUIPMENT
- Guards: Driveline, Engine crankcase, Fan
- Body down indicator
- Center mounted rims
- Ground level battery disconnect
- Ground level engine shutdown
- Ground level grease fittings
- Rims 13 x 33
- Secondary steering (electric)
- Tie down eyes
- Tow hooks, front/tow pin, rear
- Vandalism protection locks
- CAT TECHNOLOGY PRODUCTS
- Product Link Ready
- Economy Modes (standard and adaptive)
- Payload System
- Vital Info Management System (VIMS)
- Tire monitoring system (TKPH/TMPH)
- FLUIDS & FILTERS
- Extended life coolant, -35° C (-30° F)
- Grouped ground-level filters
Optional Equipment
- OTHER EQUIPMENT
- Auto Lube
- Rear vision camera (WAVS)
- Wheel chocks
- Payload readout
- Payload indicator (display)
- CAT TECHNOLOGY PRODUCTS
- Product Link
- Traction Control System
