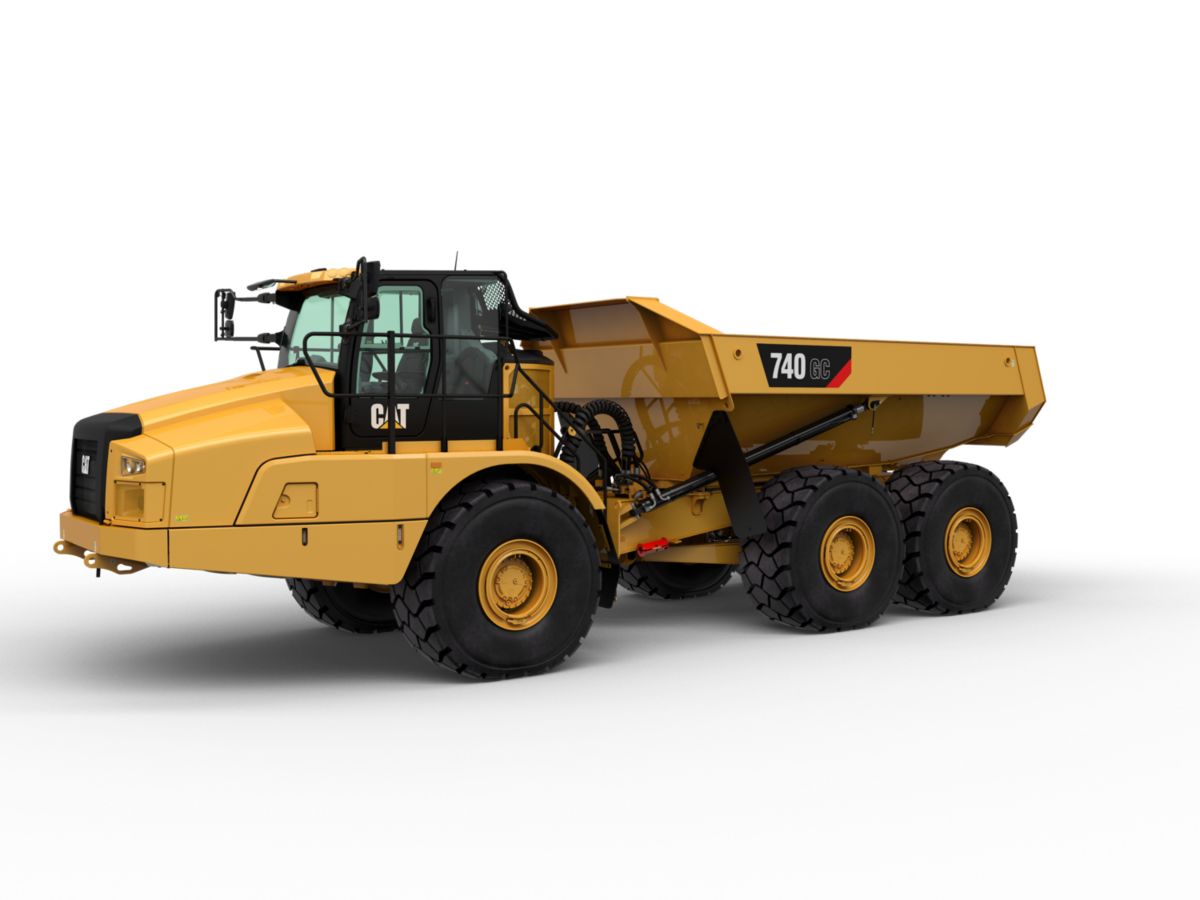

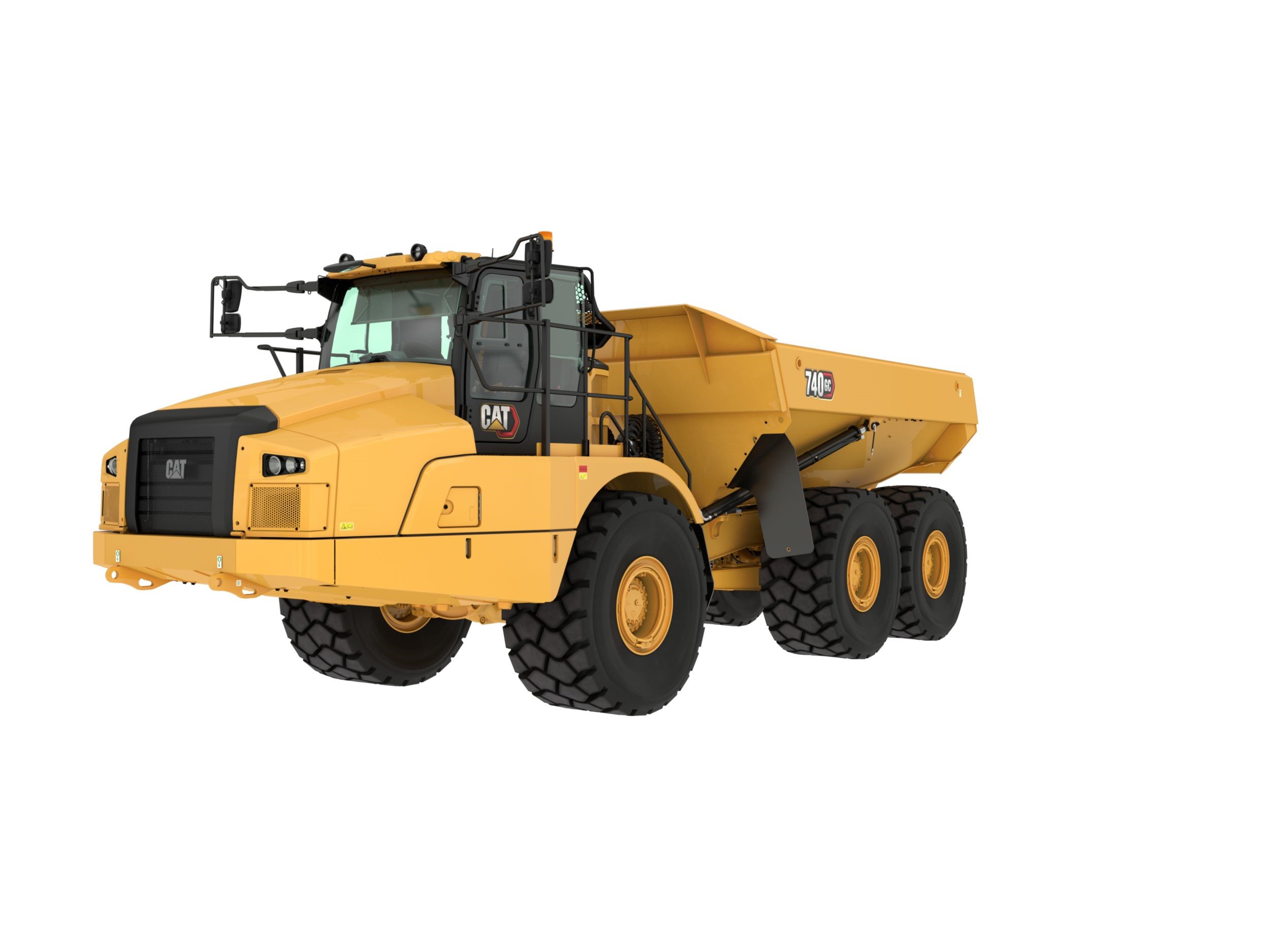

740 GC Articulated Truck
MAXIMIZE PERFORMANCE
AUTOMATIC CONTROLS
HEAVY DUTY CONSTRUCTION
OPERATOR COMFORT AND CONTROL
BUILT TO PERFORM
TECHNOLOGY THAT GETS WORK DONE
BECAUSE UPTIME COUNTS
MORE SUSTAINABLE FUTURE
BUILT-IN SAFETY FEATURES
| Engine | |
|---|---|
| Engine Model | Cat® C15 |
| Gross Power (SAE J1995) | 337 kW (452 hp) |
| Net Power (SAE J1349) | 327 kW (439 hp) |
| Engine Power (ISO 14396) | 333 kW (447 hp) |
| Bore | 137 mm (5.4 in) |
| Stroke | 171.5 mm (6.75 in) |
| Displacement | 15.2 l (926 inu00b3) |
| Note (1) | Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions. |
| Note (5) | The C15 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emissionu00a0standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or APIu00a0certifications. |
| No Engine De-rating Below | 3050 m (10000 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2320 N·m (1711 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2264 N·m (1670 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 36.3 t (40 ton (US)) |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. u2022 If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 22.7 mu00b3 (29.7 ydu00b3) |
| Struck | 17.7 mu00b3 (23.2 ydu00b3) |
| Tailgate Heaped SAE 2:1 | 24.5 mu00b3 (32 ydu00b3) |
| Tailgate Struck | 18.7 mu00b3 (24.4 ydu00b3) |
| Transmission | |
|---|---|
| Forward - 1 | 6.4 km/h (4 mile/h) |
| Forward - 2 | 8.5 km/h (5.3 mile/h) |
| Forward - 3 | 11.5 km/h (7.3 mile/h) |
| Forward - 4 | 14.8 km/h (9.2 mile/h) |
| Forward - 5 | 19.7 km/h (12.2 mile/h) |
| Forward - 6 | 24 km/h (14.9 mile/h) |
| Forward - 7 | 33.1 km/h (20.6 mile/h) |
| Forward - 8 | 39.8 km/h (24.7 mile/h) |
| Forward - 9 | 57.5 km/h (35.7 mile/h) |
| Reverse - 1 | 6.8 km/h (4.2 mile/h) |
| Reverse - 2 | 15.7 km/h (9.8 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fanu2019s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 19595 kg (43200 lb) |
| Center Axle - Empty | 6715 kg (14804 lb) |
| Rear Axle - Empty | 6605 kg (14562 lb) |
| Total - Empty | 32915 kg (72565 lb) |
| Front Axle - Rated Load | 3176 kg (7002 lb) |
| Center Axle - Rated Load | 16562 kg (36513 lb) |
| Rear Axle - Rated Load | 16562 kg (36513 lb) |
| Total - Rated Load | 36300 kg (80027 lb) |
| Front Axle - Loaded | 22771 kg (50201 lb) |
| Center Axle - Loaded | 23277 kg (51317 lb) |
| Rear Axle - Loaded | 23167 kg (51074 lb) |
| Total - Loaded | 69215 kg (152593 lb) |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 7 mm (0.28 in) |
| Base Plate | 13 mm (0.51 in) |
| Side Plates | 11 mm (0.43 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 550 l (145.3 gal (US)) |
| Cooling System | 90 l (23.7 gal (US)) |
| Brake Cooling Tank | 67 l (17.7 gal (US)) |
| Steering/Hoist Hydraulic System | 140 l (36.9 gal (US)) |
| Engine Crankcase | 52 l (13.7 gal (US)) |
| Transmission - OTG | 75 l (19.8 gal (US)) |
| Final Drive - Each | 5 l (1.3 gal (US)) |
| Axles - Each | 60 l (15.8 gal (US)) |
| DEF Tank | 25 l (6.5 gal (US)) |
| Body Hoist | |
|---|---|
| Raise Time | 12 s (12 s) |
| Lower Time | 12 s (12 s) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 7698 mm (303 in) |
| Turning Dimensions - Clearance Radius | 8395 mm (330 in) |
| Turning Dimensions - Inside Radius | 3960 mm (156 in) |
| Turning Dimensions - Aisle Width | 5595 mm (220 in) |
| Note | Dimensions are for machines equipped with 29.5 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavator: 374 - Passes | 3-4 |
| Hydraulic Excavator: 352 - Passes | 5-6 |
| Wheel Loader: 972 - Passes | 3 |
| Wheel Loader: 966 - Passes | 4-5 |
| Wheel Loader: 962 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Heater and defroster with four-speed fan
- Mirrors: exterior
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Operation and Maintenance Manual (OMM)
– Primary steering failure (warning)
– Seat belt warning
– Secondary steering failure
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Adjustable air vents
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Transmission fault
– Traction control system
– Check engine lamp - Storage:
– Cup holder
– Flask receptacle (under the secondary seat)
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Windows (tinted) opening both sides
- Seats:
– Operator: fully adjustable, air suspension, retractable lap belt
– Trainer: padded with retractable lap belt - Combined gear selection and hoist control lever
- Sun visor
- Tilt and telescopic steering wheel
- Secondary steering – electro hydraulic
- Touchscreen display incorporating the rearview camera video feed
- Air conditioning
- Windshield wiper and washer, two speed, intermittent (front)
- TECHNOLOGY
- Cat Detect with Stability Assist
- Product Link Cellular PLE643
- ELECTRICAL AND LIGHTING
- Batteries (two) maintenance free
- Main disconnect switch
- Remote starting receptacle (cables not included)
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Horn
- POWERTRAIN
- Dual circuit oil immersed, enclosed brakes – all wheels
- Clean Emission Module (CEM) and exhaust aftertreatment package
- CX38 Transmission
- Auto shift nine-speed forward and two reverse transmission
- Three axle, six-wheel drive
- Cat C15 engine
- Retarder: engine compression brake and hydraulic
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- SAFETY
- Rearview camera
- ROPS/FOPS cab
- Reverse alarm
- GUARDS
- Crankcase
- Front dump body spill guard, integral part of fabricated body
- Rear window
- Radiator
- OTHER STANDARD EQUIPMENT
- S·O·S sampling valves
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Tires, six 29.5 R25
- Sound suppression (standard in some countries*)
-*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Operator seat belt, four-point
- Window blinds
- Mirrors, heated motorized
- Windshield wiper and washer, two speed (rear)
- Radio, Bluetooth® stereo system
- Seat, heated/cooled
- Infrared glass – high ambient cab
- TECHNOLOGY
- Machine Security System (MSS)
- Product Link Dual PLE683
- Cat® Payload monitoring system
- ELECTRICAL AND LIGHTING
- Ether start
- Flashing LED beacon
- Cold weather start attachment
- Engine block heater
- Roof mounted LED work lights
- OPTIONAL EQUIPMENT
- Body liners
- Cold weather coolant –51° C (–60° F)
- Scissor tailgate
- Bare chassis (no body) standard wheel base
- Wheel chocks
- Fast fuel fill
- Exhaust heated body
- Fuel additive – anti-waxing
- Bare chassis (no body) long wheel base
- Auto lube installation for automatic greasing of bearings
