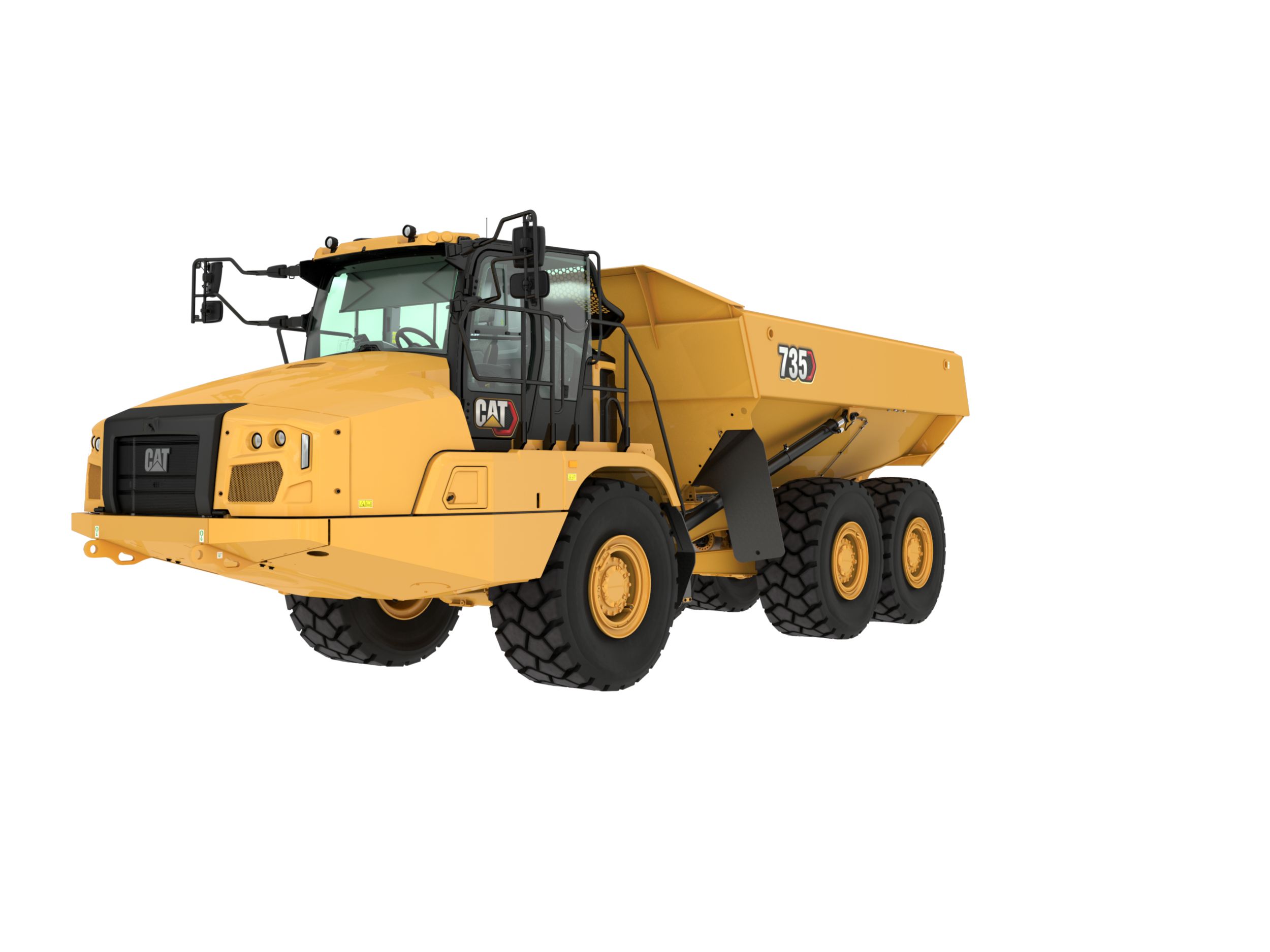

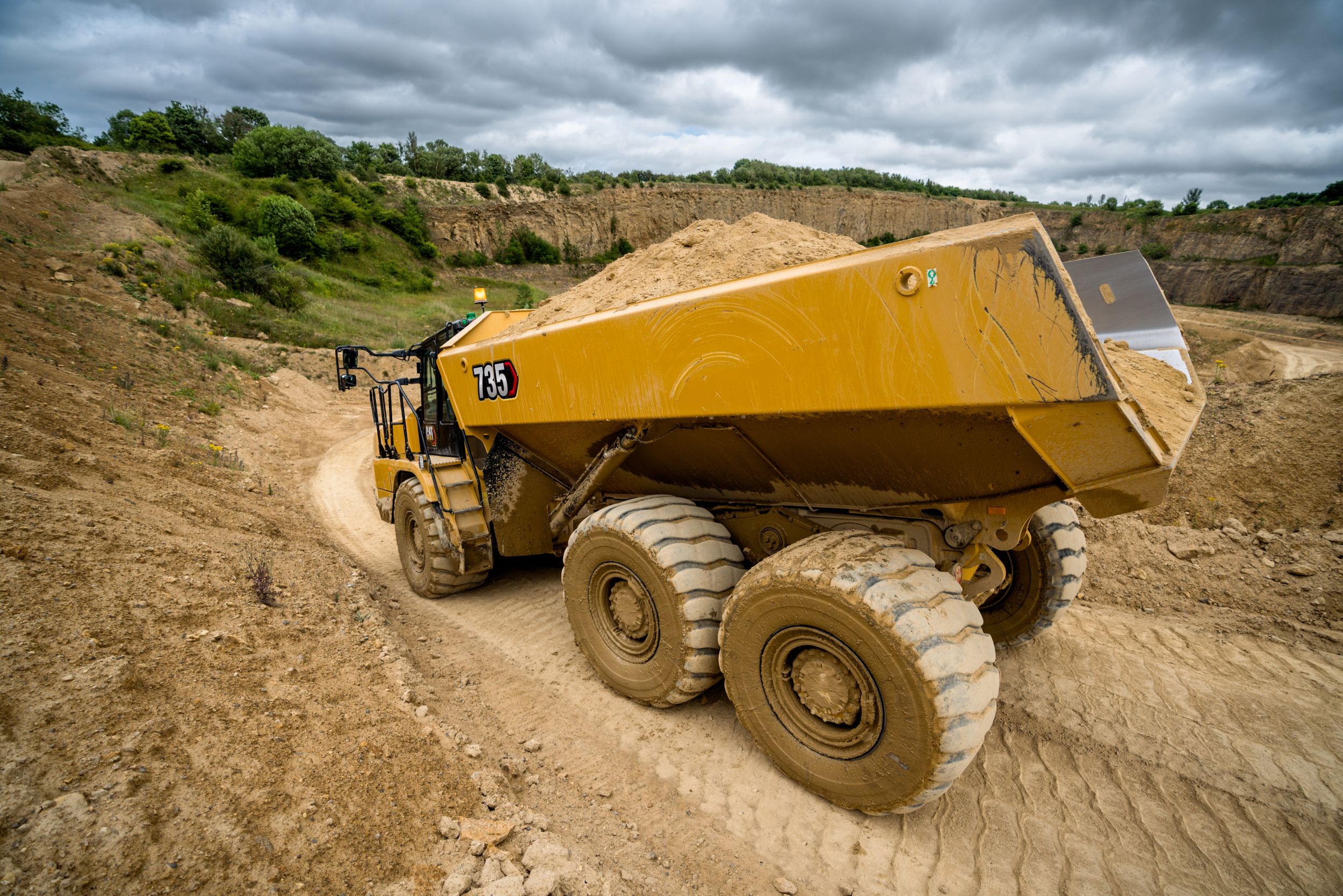

735 Articulated Truck
PROVEN RELIABILITY
LONG TERM VALUE AND DURABILITY
ACHIEVE GREATER PRODUCTIVITY
POWERFUL EFFICIENCY
WORK IN COMFORT
TECHNOLOGY THAT GETS WORK DONE
BUILT-IN SAFETY FEATURES

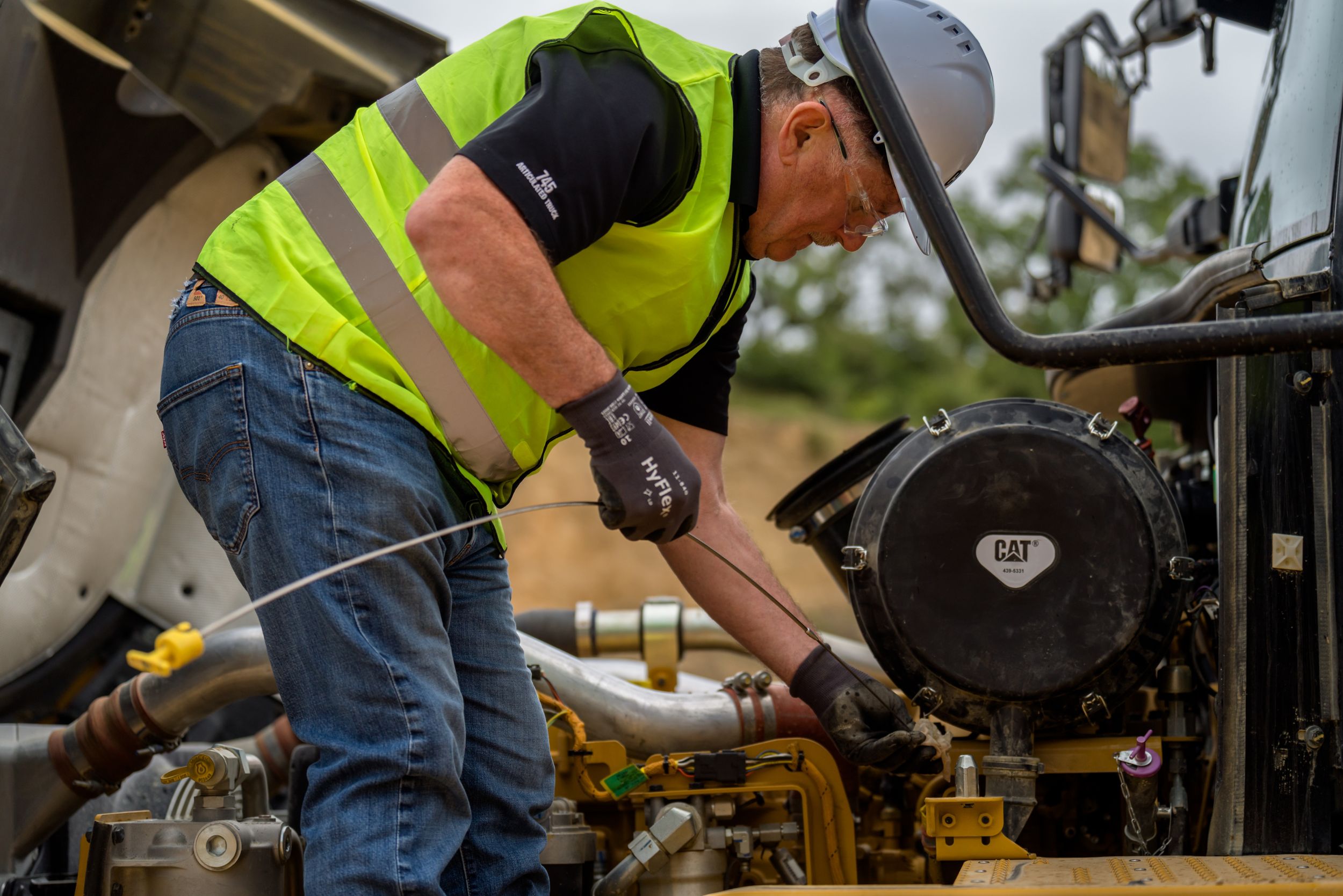

LOWER MAINTENANCE COSTS
| Engine | |
|---|---|
| Engine Model | Cat® C13A |
| Gross Power (SAE J1995) | 306 kW (410 hp) |
| Net Power (SAE J1349) | 298 kW (400 hp) |
| Engine Power (ISO 14396) | 301 kW (404 hp) |
| Bore | 130 mm (5.1 in) |
| Stroke | 157 mm (6.2 in) |
| Displacement | 12.5 l (736 inu00b3) |
| Note (1) | Advertised power is tested at 1,800 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 298 kW (400 hp) per the SAE reference conditions. |
| Note (5) | Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. |
| No Engine De-rating Below | 3810 m (12500 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2192 N·m (1627 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2155 N·m (1612 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 32 t (35.3 ton (US)) |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 20 mu00b3 (26.2 ydu00b3) |
| Struck | 16 mu00b3 (20.9 ydu00b3) |
| Tailgate Heaped SAE 2:1 | 21.7 mu00b3 (28.4 ydu00b3) |
| Tailgate Struck | 17 mu00b3 (22.2 ydu00b3) |
| Transmission | |
|---|---|
| Forward - 1 | 8 km/h (5 mile/h) |
| Forward - 2 | 15 km/h (9 mile/h) |
| Forward - 3 | 23 km/h (14 mile/h) |
| Forward - 4 | 35 km/h (22 mile/h) |
| Forward - 5 | 48 km/h (30 mile/h) |
| Forward - 6 | 57 km/h (35 mile/h) |
| Reverse - 1 | 9 km/h (6 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fanu2019s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 14580 kg (32143 lb) |
| Center Axle - Empty | 5110 kg (11266 lb) |
| Rear Axle - Empty | 4890 kg (10781 lb) |
| Total - Empty | 24580 kg (54190 lb) |
| Front Axle - Rated Load | 4054 kg (8938 lb) |
| Center Axle - Rated Load | 13973 kg (30805 lb) |
| Rear Axle - Rated Load | 13973 kg (30805 lb) |
| Total - Rated Load | 32000 kg (70548 lb) |
| Front Axle - Loaded | 18634 kg (41081 lb) |
| Center Axle - Loaded | 19083 kg (42071 lb) |
| Rear Axle - Loaded | 18863 kg (41586 lb) |
| Total - Loaded | 56580 kg (124737 lb) |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 7 mm (0.28 in) |
| Base Plate | 13 mm (0.51 in) |
| Side Plates | 11 mm (0.43 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 400 l (105.7 gal (US)) |
| Cooling System | 83 l (21.9 gal (US)) |
| Hydraulic System | 110 l (29.1 gal (US)) |
| Engine Crankcase | 38 l (10 gal (US)) |
| Transmission | 56 l (12.3 gal (US)) |
| Final Drives/Differential | 125 l (33 gal (US)) |
| Output Transfer Gear Box | 25 l (5.5 gal (US)) |
| Body Hoist | |
|---|---|
| Raise Time | 12 s (12 s) |
| Lower Time | 11 s (11 s) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 7470 mm (294 in) |
| Turning Dimensions - Clearance Radius | 8075 mm (318 in) |
| Turning Dimensions - Inside Radius | 3793 mm (149 in) |
| Turning Dimensions - Aisle Width | 5393 mm (212 in) |
| Note | Dimensions are for machines equipped with 750/65 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavators: 350/352 - Passes | 4-5 |
| Hydraulic Excavators: 336 - Passes | 5-6 |
| Wheel Loaders: 972/972 XE - Passes | 3-4 |
| Wheel Loaders: 966/966 XE - Passes | 4 |
| Wheel Loader: 962 - Passes | 4-5 |
| Wheel Loader: 950 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Retractable belt: Operator seat and second seat
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Windshield wiper and washer, two speed, intermittent (front)
- Air conditioning
- Tilt and telescopic steering wheel
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Mirrors: exterior
- Sun visor
- Touchscreen display incorporating the rearview camera video feed
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Heater and defroster with four-speed fan
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Secondary steering – electro hydraulic
- Combined gear selection and hoist control lever
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Adjustable air vents
- Windows opening side, tinted
- TECHNOLOGY
- Product Link™ Cellular PLE643
- Cat® Detect with Stability Assist
- ELECTRICAL AND LIGHTING
- Remote starting receptacle (cables not included)
- Main disconnect switch
- Horn
- Batteries (x2) maintenance free
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators
- POWERTRAIN
- Auto shift six-speed forward and single-speed reverse transmission
- Retarder: engine compression brake and hydraulic
- Three axle, six-wheel drive
- Cat C13A engine
- Dual circuit oil immersed, enclosed brakes – all wheels
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- SAFETY
- Rearview camera
- Reverse alarm
- Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab
- GUARDS
- Rear window
- Radiator
- Crankcase
- Front dump body spill guard, integral part of fabricated body
- OTHER STANDARD EQUIPMENT
- Tires, six 750/65 R25
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Scheduled Oil Sampling (S·O·S) sampling valves
- Sound suppression (standard in some countries*)
*Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Window blinds
- Mirrors, heated motorized
- Operator seat belt, four-point
- Seat, heated/cooled
- Windshield wiper and washer, two speed (rear)
- Infrared glass – high ambient cab
- Radio, Bluetooth® stereo system
- TECHNOLOGY
- Operator Coaching
- Product Link Dual PLE683
- Cat® Payload monitoring system
- ELECTRICAL AND LIGHTING
- Cold weather start attachment (2 additional batteries)
- Engine block heater
- Roof mounted LED work lights
- Ether start
- Flashing LED beacon
- OPTIONAL EQUIPMENT
- Cold weather coolant –51° C (–60° F)
- Fast fuel fill
- Scissor tailgate
- Body liners
- Exhaust heated body
- Bare chassis (no body) long wheel base
- Bare chassis (no body) standard wheel base
- Fuel additive – anti-waxing
- Auto lube installation for automatic greasing of bearings
- Wheel chocks
