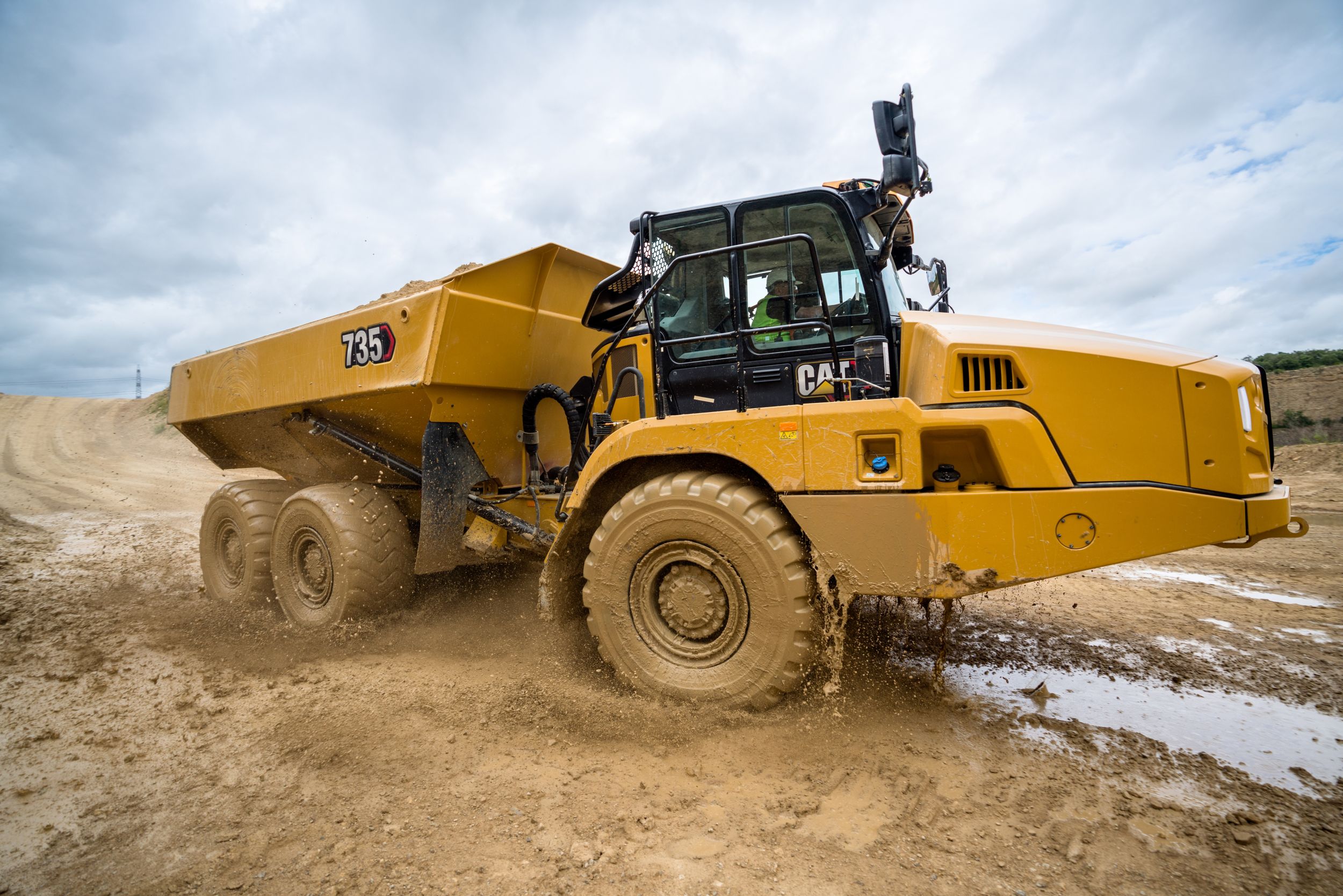

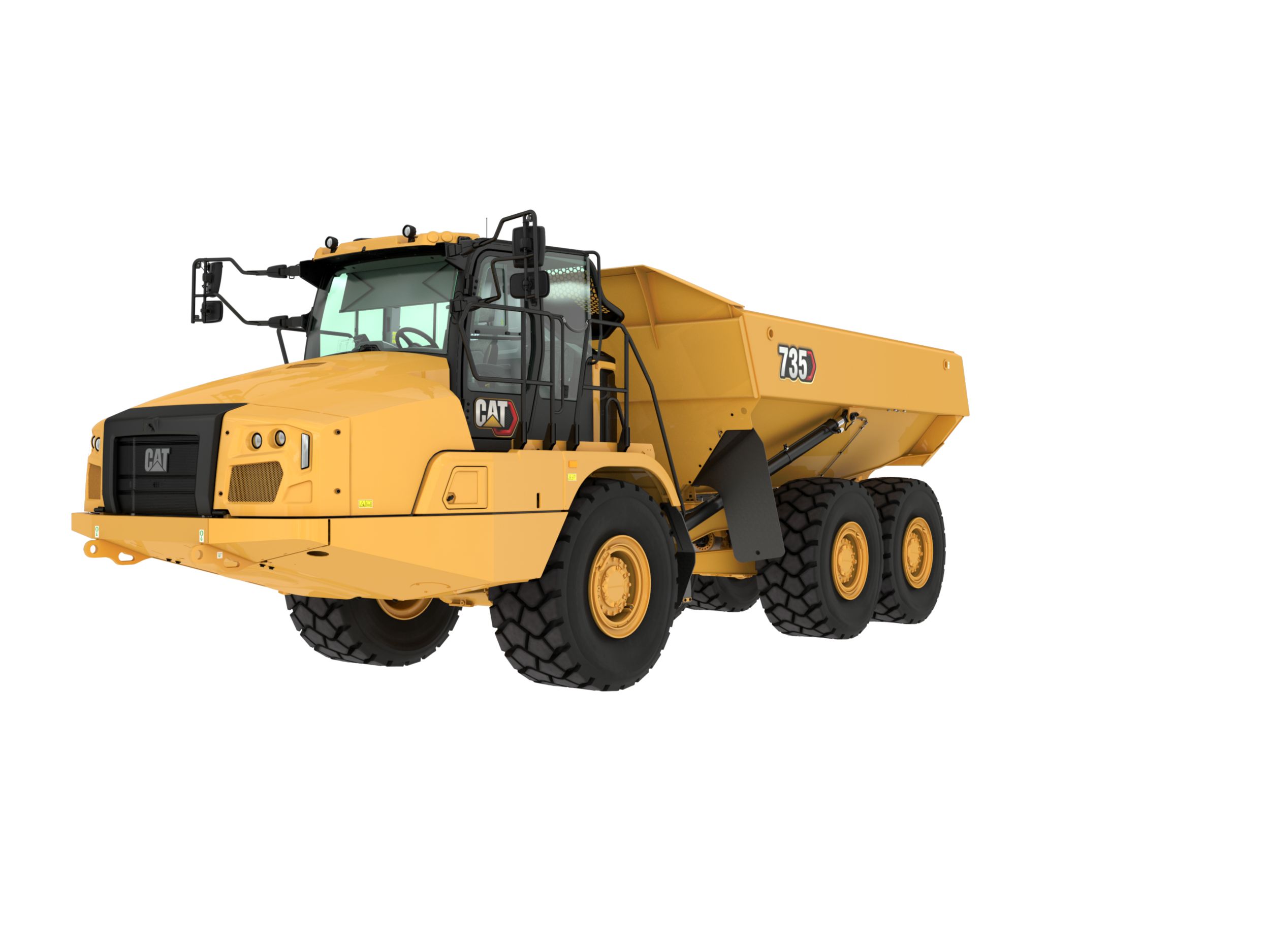

735 Articulated Truck
PROVEN RELIABILITY
LONG TERM VALUE AND DURABILITY
ACHIEVE GREATER PRODUCTIVITY
POWERFUL EFFICIENCY
WORK IN COMFORT
TECHNOLOGY THAT GETS WORK DONE
BUILT-IN SAFETY FEATURES
LOWER MAINTENANCE COSTS
SUSTAINABILITY
- The Cat® C13B engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Don’t waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- Cat® Stability Assist for Articulated Trucks helps improve machine safety and uptime by increasing awareness of machine stability during operation.
- Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
| Engine | |
|---|---|
| Engine Model | Cat® C13B |
| Gross Power (SAE J1995) | 325 kW (436 hp) |
| Net Power (SAE J1349) | 319 kW (427 hp) |
| Engine Power (ISO 14396) | 322 kW (431 hp) |
| Bore | 130 mm (5.1 in) |
| Stroke | 157 mm (6.2 in) |
| Displacement | 12.5 l (763 inu00b3) |
| Note (1) | Advertised power is tested at 1,800 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 319 kW (427 hp) per the SAE reference conditions. |
| Note (5) | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
| No Engine De-rating Below | 3810 m (12500 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2206 N·m (1627 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2185 N·m (1612 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 32 t (35.3 ton (US)) |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 20 mu00b3 (26.2 ydu00b3) |
| Struck | 16 mu00b3 (20.9 ydu00b3) |
| Tailgate Heaped SAE 2:1 | 21.7 mu00b3 (28.4 ydu00b3) |
| Tailgate Struck | 17 mu00b3 (22.2 ydu00b3) |
| Transmission | |
|---|---|
| Forward - 1 | 8 km/h (5 mile/h) |
| Forward - 2 | 15 km/h (9 mile/h) |
| Forward - 3 | 23 km/h (14 mile/h) |
| Forward - 4 | 35 km/h (22 mile/h) |
| Forward - 5 | 48 km/h (30 mile/h) |
| Forward - 6 | 57 km/h (35 mile/h) |
| Reverse - 1 | 9 km/h (6 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fanu2019s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 14780 kg (32584 lb) |
| Center Axle - Empty | 5080 kg (11199 lb) |
| Rear Axle - Empty | 4850 kg (10692 lb) |
| Total - Empty | 24710 kg (54476 lb) |
| Front Axle - Rated Load | 4054 kg (8938 lb) |
| Center Axle - Rated Load | 13973 kg (30805 lb) |
| Rear Axle - Rated Load | 13973 kg (30805 lb) |
| Total - Rated Load | 32000 kg (70548 lb) |
| Front Axle - Loaded | 18834 kg (41522 lb) |
| Center Axle - Loaded | 19053 kg (42005 lb) |
| Rear Axle - Loaded | 18823 kg (41498 lb) |
| Total - Loaded | 56710 kg (125024 lb) |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 7 mm (0.28 in) |
| Base Plate | 13 mm (0.51 in) |
| Side Plates | 11 mm (0.43 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 400 l (105.7 gal (US)) |
| DEF Tank | 34 l (9 gal (US)) |
| Cooling System | 83 l (21.9 gal (US)) |
| Hydraulic System | 123 l (32.5 gal (US)) |
| Engine Crankcase | 43 l (11.4 gal (US)) |
| Transmission | 47 l (12.4 gal (US)) |
| Final Drives/Differential | 125 l (33 gal (US)) |
| Output Transfer Gear Box | 25 l (6.6 gal (US)) |
| Body Hoist | |
|---|---|
| Raise Time | 12 s (12 s) |
| Lower Time | 11 s (11 s) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 7470 mm (294 in) |
| Turning Dimensions - Clearance Radius | 8075 mm (318 in) |
| Turning Dimensions - Inside Radius | 3879 mm (153 in) |
| Turning Dimensions - Aisle Width | 5332 mm (210 in) |
| Note | Dimensions are for machines equipped with 750/65 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavators: 350/352 - Passes | 4-5 |
| Hydraulic Excavators: 336 - Passes | 5-6 |
| Wheel Loaders: 972/972 XE - Passes | 3-4 |
| Wheel Loaders: 966/966 XE - Passes | 4 |
| Wheel Loader: 962 - Passes | 4-5 |
| Wheel Loader: 950 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Retractable belt: Operator seat and second seat
- Touchscreen display incorporating the rearview camera video feed
- Windshield wiper and washer, two speed, intermittent (front)
- Mirrors: exterior
- Windows opening side, tinted
- Heater and defroster with four-speed fan
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Sun visor
- Secondary steering – electro hydraulic
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Air conditioning
- Combined gear selection and hoist control lever
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Tilt and telescopic steering wheel
- Adjustable air vents
- TECHNOLOGY
- Product Link Cellular PLE643
- Cat® Detect with Stability Assist
- ELECTRICAL AND LIGHTING
- Remote starting receptacle (cables not included)
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Horn
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Batteries (x2) maintenance free
- POWERTRAIN
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Three axle, six-wheel drive
- Auto shift six-speed forward and single-speed reverse transmission
- Retarder: engine compression brake and hydraulic
- Dual circuit oil immersed, enclosed brakes – all wheels
- Cat C13B engine
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- SAFETY
- Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab
- Rearview camera
- Reverse alarm
- GUARDS
- Crankcase
- Front dump body spill guard, integral part of fabricated body
- Rear window
- Radiator
- OTHER STANDARD EQUIPMENT
- Vandalism protection: lockable caps
- Tires, six 750/65 R25
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Scheduled Oil Sampling (S•O•S) sampling valves
- Sound suppression (standard in some countries*)
*Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Seat, heated/cooled
- Mirrors, heated motorized
- Infrared glass – high ambient cab
- Window blinds
- Radio, Bluetooth® stereo system
- Operator seat belt, four-point
- Windshield wiper and washer, two speed (rear)
- TECHNOLOGY
- Cat® Payload monitoring system
- Product Link Dual PLE683
- Operator Coaching
- ELECTRICAL AND LIGHTING
- Cold weather start attachment (2 additional batteries)
- Engine block heater
- Ether start
- Flashing LED beacon
- Roof mounted LED work lights
- OPTIONAL EQUIPMENT
- Fuel additive – anti-waxing
- Scissor tailgate
- Exhaust heated body
- Cold weather coolant –51° C (–60° F)
- Auto lube installation for automatic greasing of bearings
- Bare chassis (no body) standard wheel base
- Bare chassis (no body) long wheel base
- Wheel chocks
- Body liners
- Fast fuel fill
