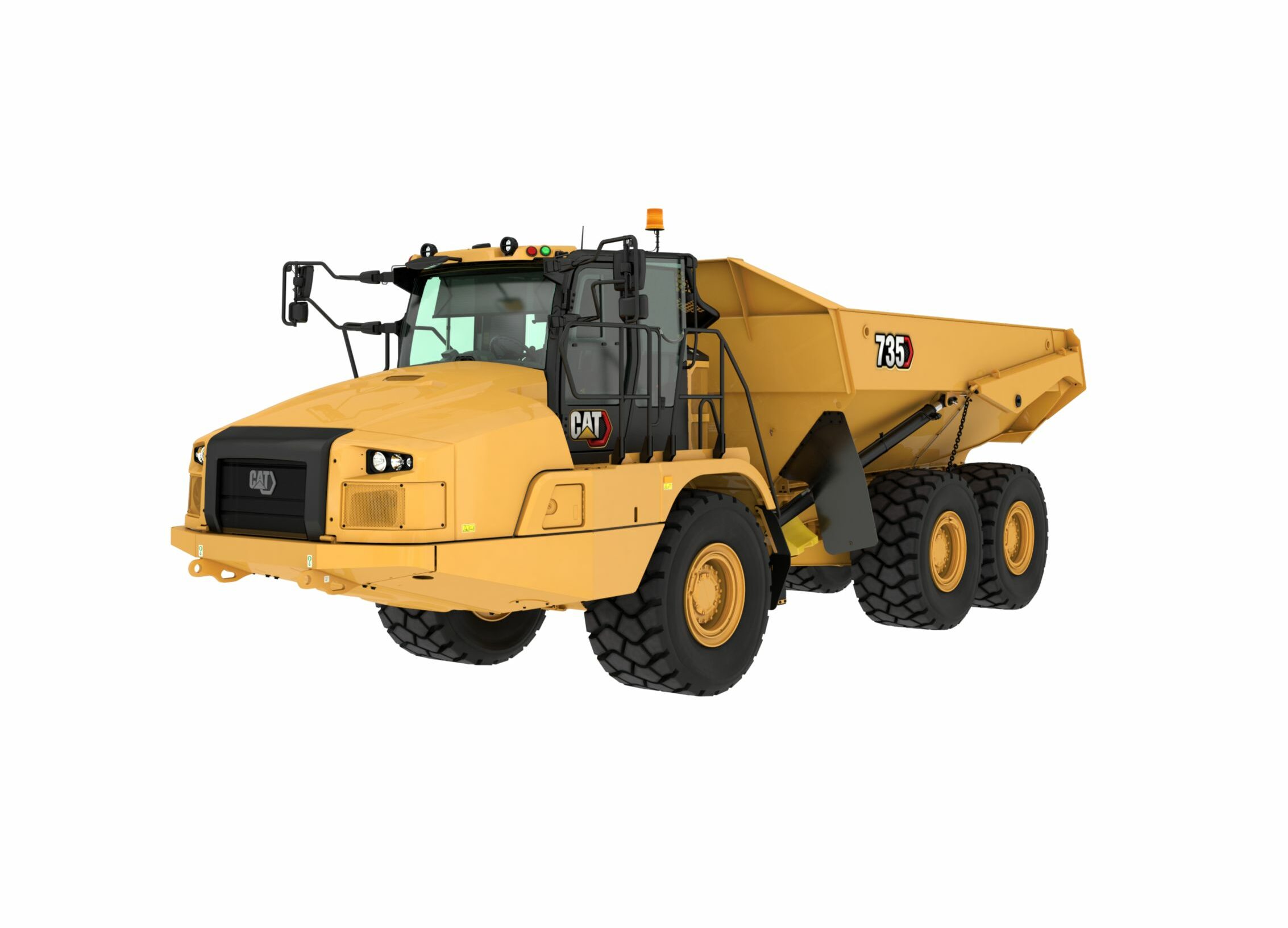

735 Articulated Truck
MAXIMIZE PERFORMANCE
AUTOMATIC CONTROLS
HEAVY DUTY CONSTRUCTION
OPERATOR COMFORT AND CONTROL
BUILT TO PERFORM
TECHNOLOGY THAT GETS WORK DONE
BECAUSE UPTIME COUNTS
MORE SUSTAINABLE FUTURE
BUILT-IN SAFETY FEATURES
| Engine | |
|---|---|
| Engine Model | Cat® C13 |
| Gross Power (SAE J1995) | 306 kW (410 hp) |
| Net Power (SAE J1349) | 298 kW (400 hp) |
| Engine Power (ISO 14396) | 301 kW (404 hp) |
| Bore | 130 mm (5.1 in) |
| Stroke | 157 mm (6.2 in) |
| Displacement | 12.5 l (736 inu00b3) |
| Note (1) | Advertised power is tested at 1,800 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 298 kW (400 hp) per the SAE reference conditions. |
| Note (5) | Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. |
| No Engine De-rating Below | 3810 m (12500 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2192 N·m (1617 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2155 N·m (1589 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 32 t (35.3 ton (US)) |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. u2022 If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 20 mu00b3 (26.2 ydu00b3) |
| Struck | 15.5 mu00b3 (20.3 ydu00b3) |
| Tailgate Heaped SAE 2:1 | 21.3 mu00b3 (27.9 ydu00b3) |
| Tailgate Struck | 16.3 mu00b3 (21.3 ydu00b3) |
| Transmission | |
|---|---|
| Forward - 1 | 8 km/h (5 mile/h) |
| Forward - 2 | 15 km/h (9 mile/h) |
| Forward - 3 | 23 km/h (14 mile/h) |
| Forward - 4 | 35 km/h (22 mile/h) |
| Forward - 5 | 48 km/h (30 mile/h) |
| Forward - 6 | 57 km/h (35 mile/h) |
| Reverse - 1 | 9 km/h (6 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fanu2019s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 14960 kg (32981 lb) |
| Center Axle - Empty | 5070 kg (11177 lb) |
| Rear Axle - Empty | 4850 kg (10692 lb) |
| Total - Empty | 24880 kg (54851 lb) |
| Front Axle - Rated Load | 4100 kg (9039 lb) |
| Center Axle - Rated Load | 13950 kg (30754 lb) |
| Rear Axle - Rated Load | 13950 kg (30754 lb) |
| Total - Rated Load | 32000 kg (70548 lb) |
| Front Axle - Loaded | 19060 kg (42020 lb) |
| Center Axle - Loaded | 19020 kg (41932 lb) |
| Rear Axle - Loaded | 18800 kg (41447 lb) |
| Total - Loaded | 56880 kg (125399 lb) |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 7 mm (0.28 in) |
| Base Plate | 13 mm (0.51 in) |
| Side Plates | 11 mm (0.43 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 412 l (108.8 gal (US)) |
| Cooling System | 83 l (21.9 gal (US)) |
| Hydraulic System | 110 l (29.1 gal (US)) |
| Engine Crankcase | 38 l (10 gal (US)) |
| Transmission | 56 l (12.3 gal (US)) |
| Final Drives/Differential | 125 l (33 gal (US)) |
| Output Transfer Gear Box | 25 l (5.5 gal (US)) |
| Body Hoist | |
|---|---|
| Raise Time | 12 s (12 s) |
| Lower Time | 11 s (11 s) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 7470 mm (294 in) |
| Turning Dimensions - Clearance Radius | 8075 mm (318 in) |
| Turning Dimensions - Inside Radius | 3793 mm (149 in) |
| Turning Dimensions - Aisle Width | 5393 mm (212 in) |
| Note | Dimensions are for machines equipped with 750/65 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavators: 349/352 - Passes | 4-5 |
| Hydraulic Excavators: 336 - Passes | 5-6 |
| Wheel Loaders: 972/972 XE - Passes | 3-4 |
| Wheel Loaders: 966/966 XE - Passes | 4 |
| Wheel Loader: 962 - Passes | 4-5 |
| Wheel Loader: 950 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Secondary steering – electro hydraulic
- Heater and defroster with four-speed fan
- Combined gear selection and hoist control lever
- Touchscreen display incorporating the rearview camera video feed
- Tilt and telescopic steering wheel
- Mirrors: exterior
- Air conditioning
- Windshield wiper and washer, two speed, intermittent (front)
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Adjustable air vents
- Retractable belt: Operator seat and second seat
- Windows opening side, tinted
- Sun visor
- Machine operation monitoring system includes:
- TECHNOLOGY
- Product Link Cellular PLE643
- Cat® Detect with Stability Assist
- ELECTRICAL AND LIGHTING
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Horn
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Remote starting receptacle (cables not included)
- Batteries (two) maintenance free
- Lighting systems:
- POWERTRAIN
- Dual circuit oil immersed, enclosed brakes – all wheels
- Three axle, six-wheel drive
- Auto shift six-speed forward and single-speed reverse transmission
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat C13 engine
- Retarder: engine compression brake and hydraulic
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- SAFETY
- Reverse alarm
- Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab
- Rearview camera
- GUARDS
- Crankcase
- Radiator
- Front dump body spill guard, integral part of fabricated body
- Rear window
- OTHER STANDARD EQUIPMENT
- S·O·S sampling valves
- Tires, six 750/65 R25
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Sound suppression (standard in some countries*)
*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
