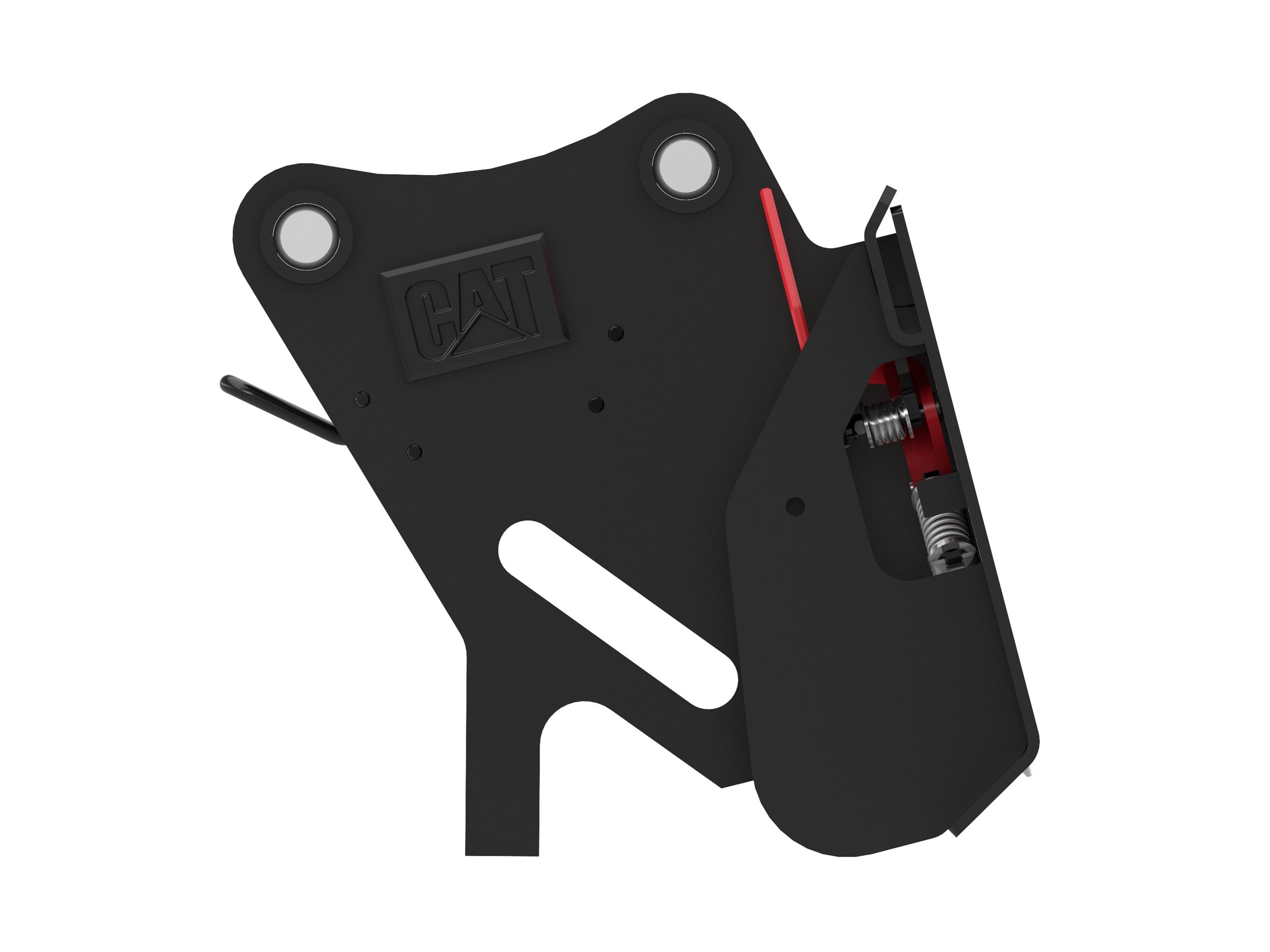

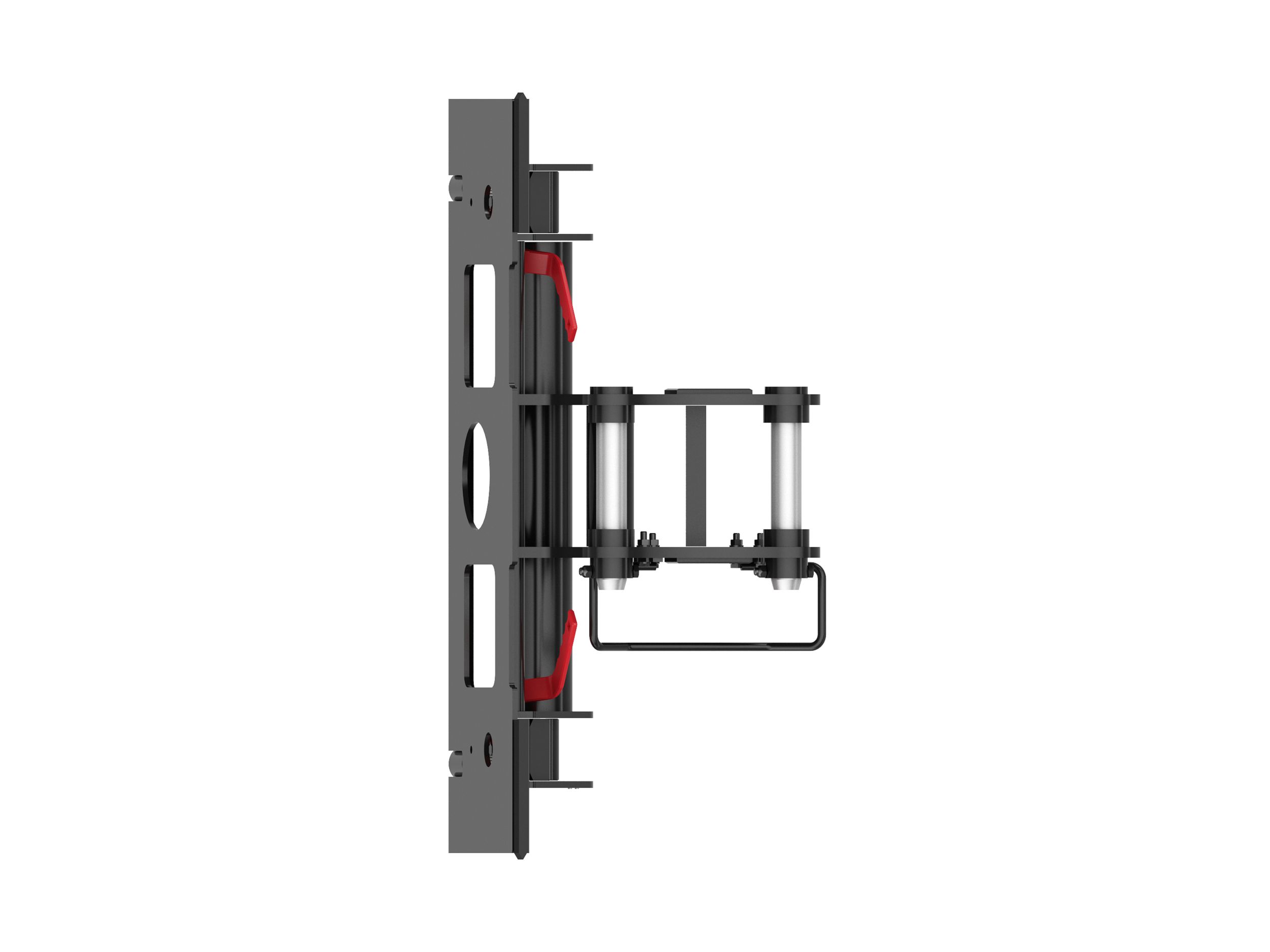

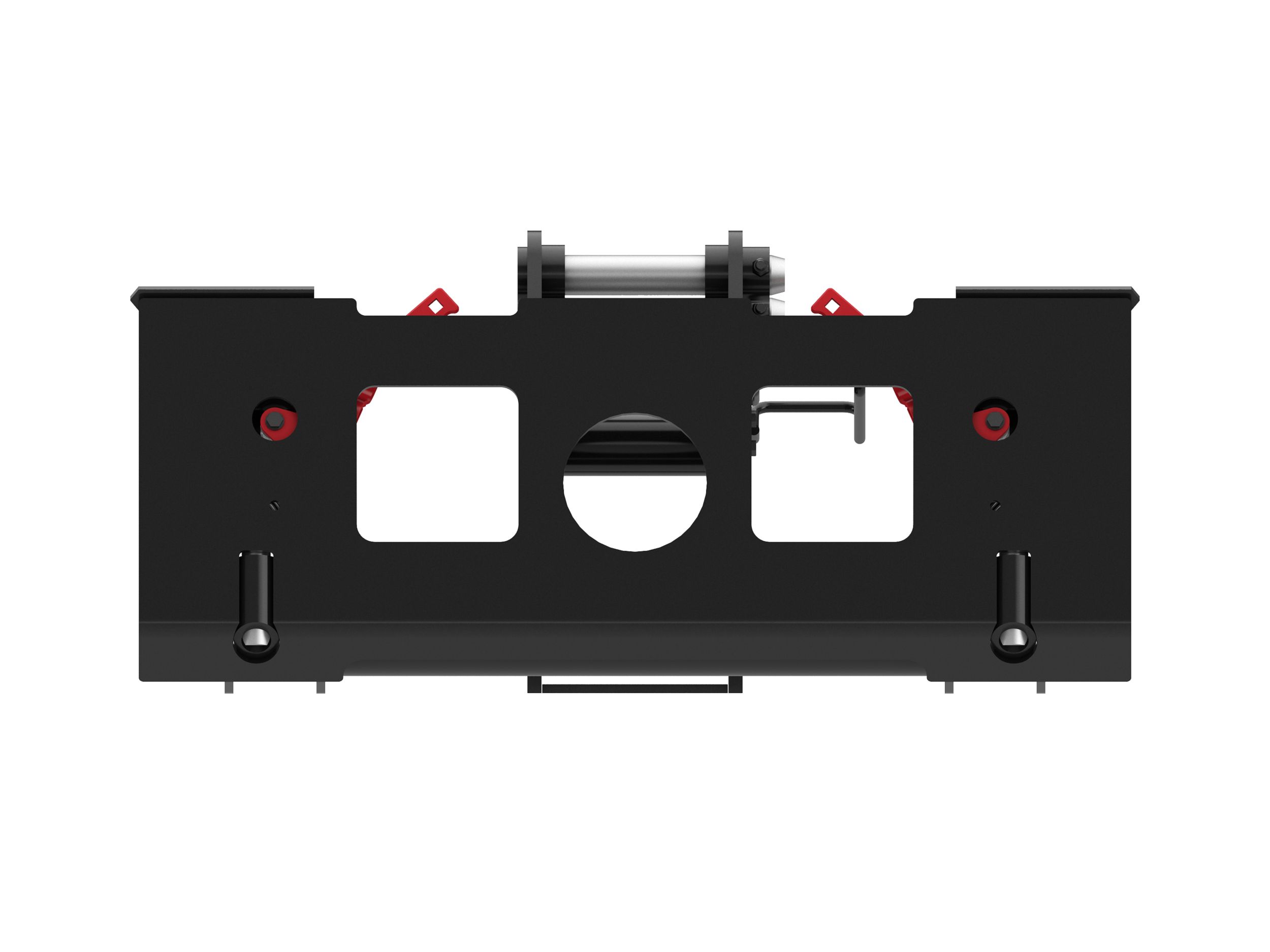

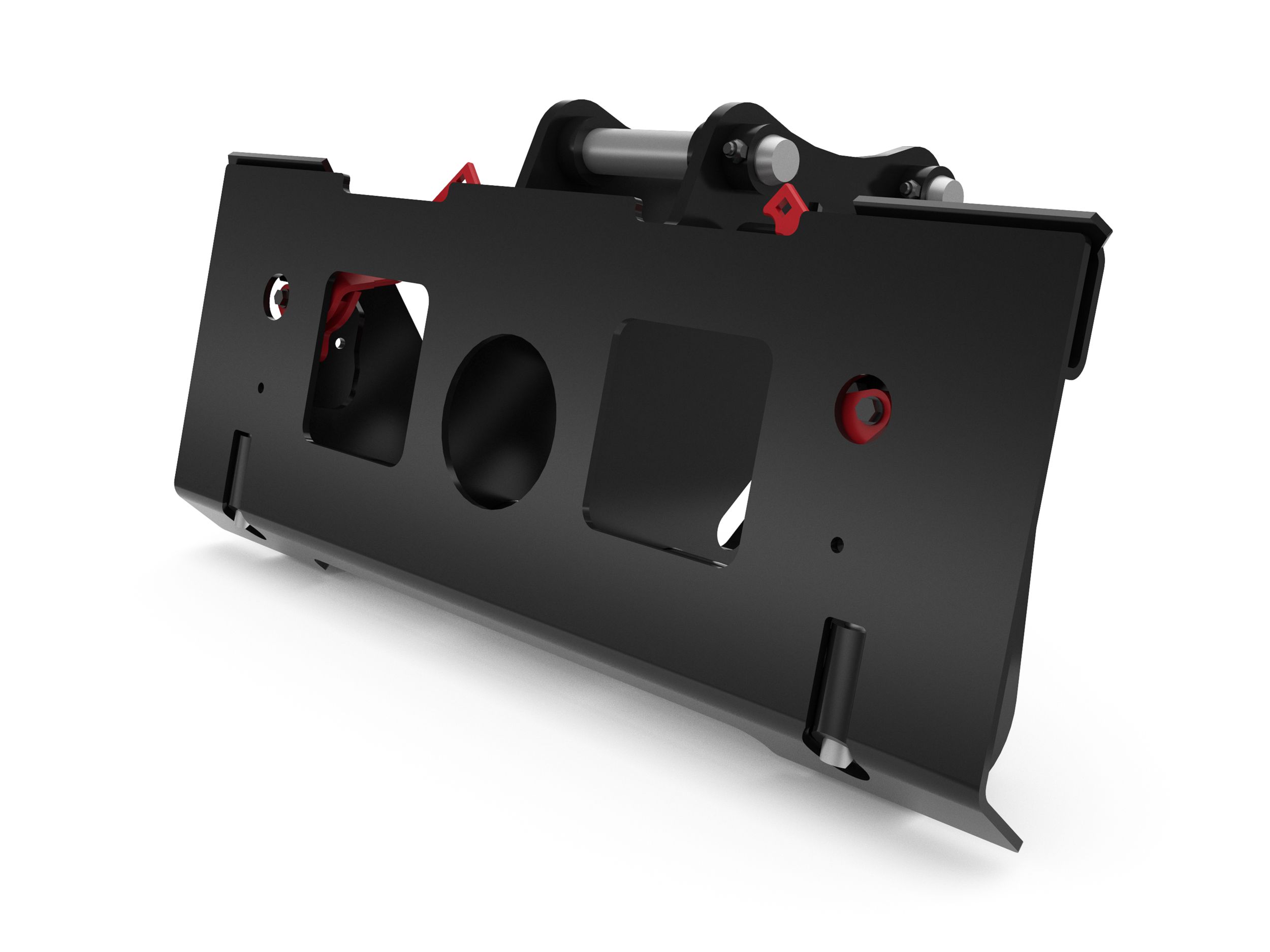

5-7 Tonne Excavator Class Skid Steer Coupler Adapter
Application
Designed to allow the use of approved Skid Steer Loader attachments on Mini Hydraulic Excavators.
Bolt-On Hose Guide
Provided to help guide hydraulic hoses when using approved hydro-mechanical attachments with the coupler. Can be mounted on either side of the adapter to accommodate your specific tools and needs.
Cross Tube Reinforced Design
Reinforced cross tube design provides the needed stability to operate a wide range of approved attachments.
Open Frame
The open frame design provides visibility to attachments to aid in safer and easier coupling operation of attachments.
Integrated Stand
When not in use, the integrated stand keeps the adapter in an upright position. This helps maintain keeping it in the correct position for attachment to your machine either by pinning on, or by quick coupler.
Pins Included
All Mini Hydraulic Excavator to Skid Steer Loader adapters come complete with a set of pins.
Compatible Attachments
5 Ton version approved attachments: General Purpose Buckets, Bale Spears, and Class II Forks.
| Product Specifications | |
|---|---|
| Weight | 119 kg (262.3 lb) |
| Width | 1125 mm (44.3 in) |
| Overall Length | 476 mm (18.7 in) |
| Overall Height | 557 mm (21.9 in) |
| Pin Diameter | 45 mm (1.8 in) |
| Excavator Class | 5 Ton - 7 Ton |
| Interface Type | Pin On |
| Coupler Type | Adapts to Skid Steer Coupler |
| Required Hydraulics | None |
