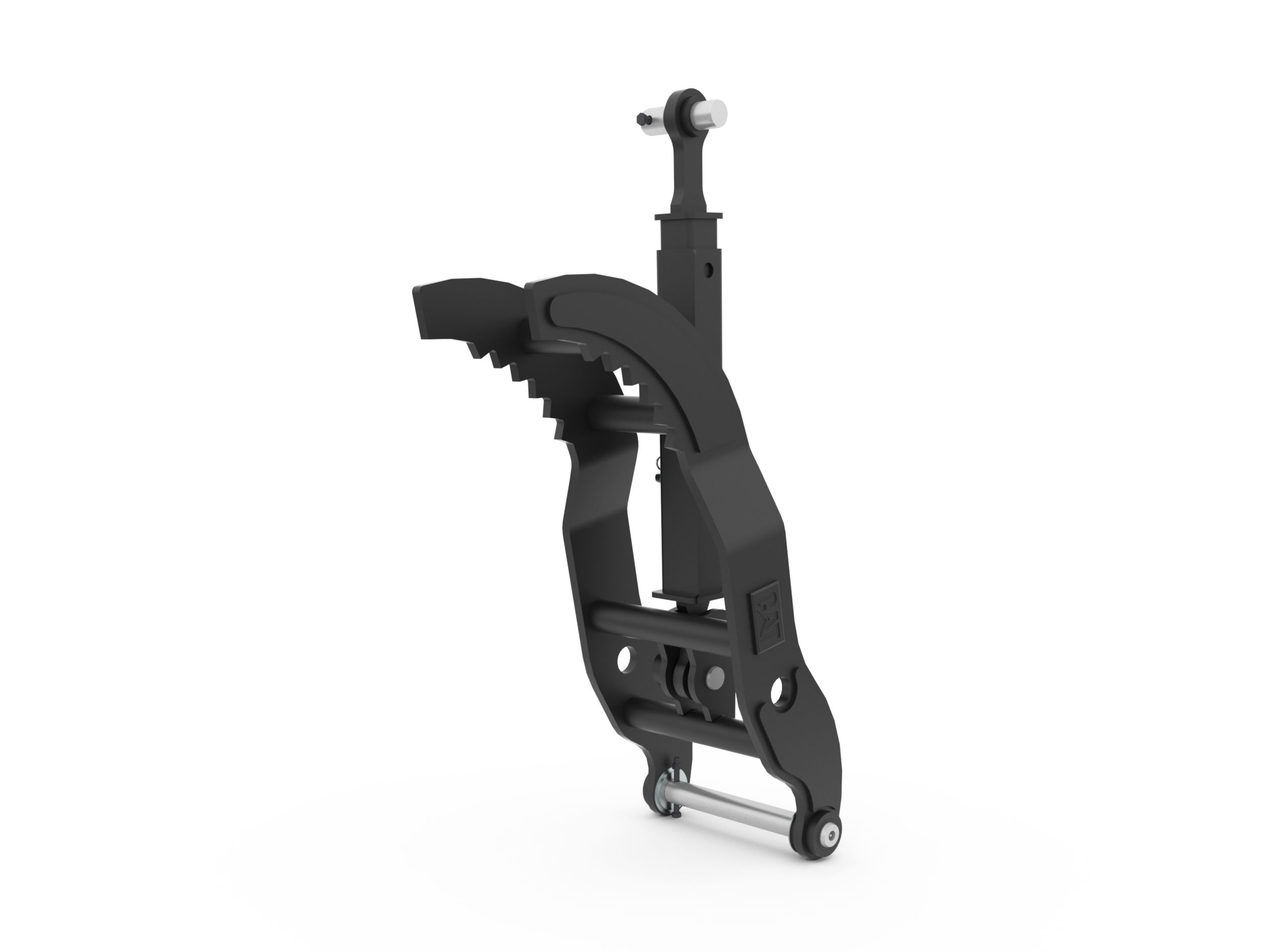

432 mm 4 Teeth/2 Tine Stiff Link Thumb for 7-9 Tonne Excavators
Application
Cat® Stiff Link Thumbs are designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.
Adjustable Link
Three position link that allows the thumb to be used with a wide range of varying sized objects.
Durable Tines
Tines made of T1 steel resist bending and abrasion against some of the hardest materials, like rocks or concrete.
Retractable Thumb
Retractable thumb allows normal bucket loading when not in use.
Cross-Tube Design
Maintains rigidity while offering optimized visibility for better site into bucket when lifting irregular loads.
Thumb Tine Spacing
Optimized tine and bucket tooth spacing allows thumb and bucket to mesh together without interference. Different width buckets can be used with the same thumb for maximum flexibility.
| Product Specifications | |
|---|---|
| Number of Teeth/Tines | 4/2 |
| Overall Width | 432 mm (17 in) |
| Length | 1189 mm (46.8 in) |
| Stored Height | 578 mm (22.8 in) |
| Weight | 141.8 kg (312.6 lb) |
| Rotation | 78 Degrees |
| Tine Spacing | 254 mm (10 in) |
| Tine Thickness | 20 mm (0.8 in) |
| Tines Included | Yes |
| Machine Class | 7-9 Ton Mini Hydraulic Excavators |
| Interface Type | Pin On (Pin Grabber) |
