Enquire about "415-444 Backhoe Loaders Hydraulic Dual Lock™ Pin Grabber Coupler" Now
Dual Lock™ Pin Grabber Couplers

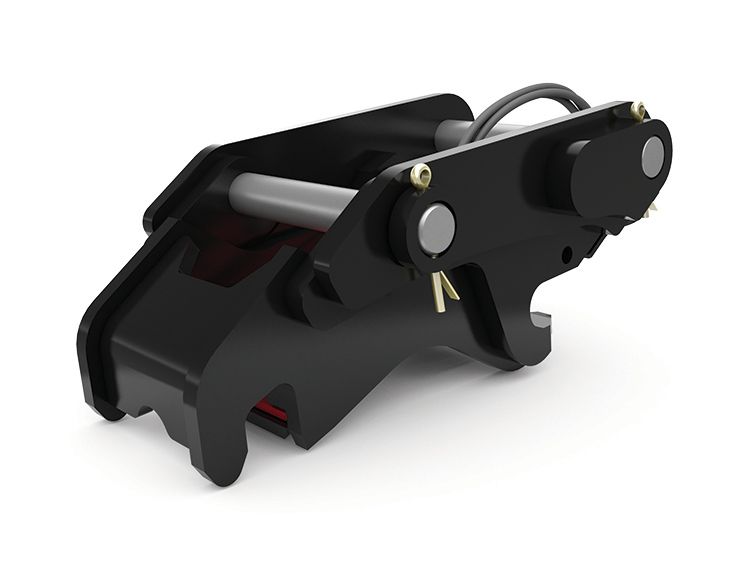

415-444 Backhoe Loaders Hydraulic Dual Lock™ Pin Grabber Coupler
Hydraulic Cylinder Lock
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Secondary Lock
The secondary lock is independent of the cylinder and ensures the connection of the attachment to the machine.
Visual Verification Tab
The visual verification tab allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
| Product Specifications | |
|---|---|
| Weight | 91 kg (200.6 lb) |
| Width | 359 mm (14.1 in) |
| Length | 615 mm (24.2 in) |
| Overall Height | 276 mm (10.9 in) |
| Pin Diameter | 45 mm/50 mm (1.8 in/2 in) |
| Machine Class | 415-444 Backhoe Loaders |
| Interface Type | Pin On |
| Required Hydraulics | Dedicated Factory Installed |
