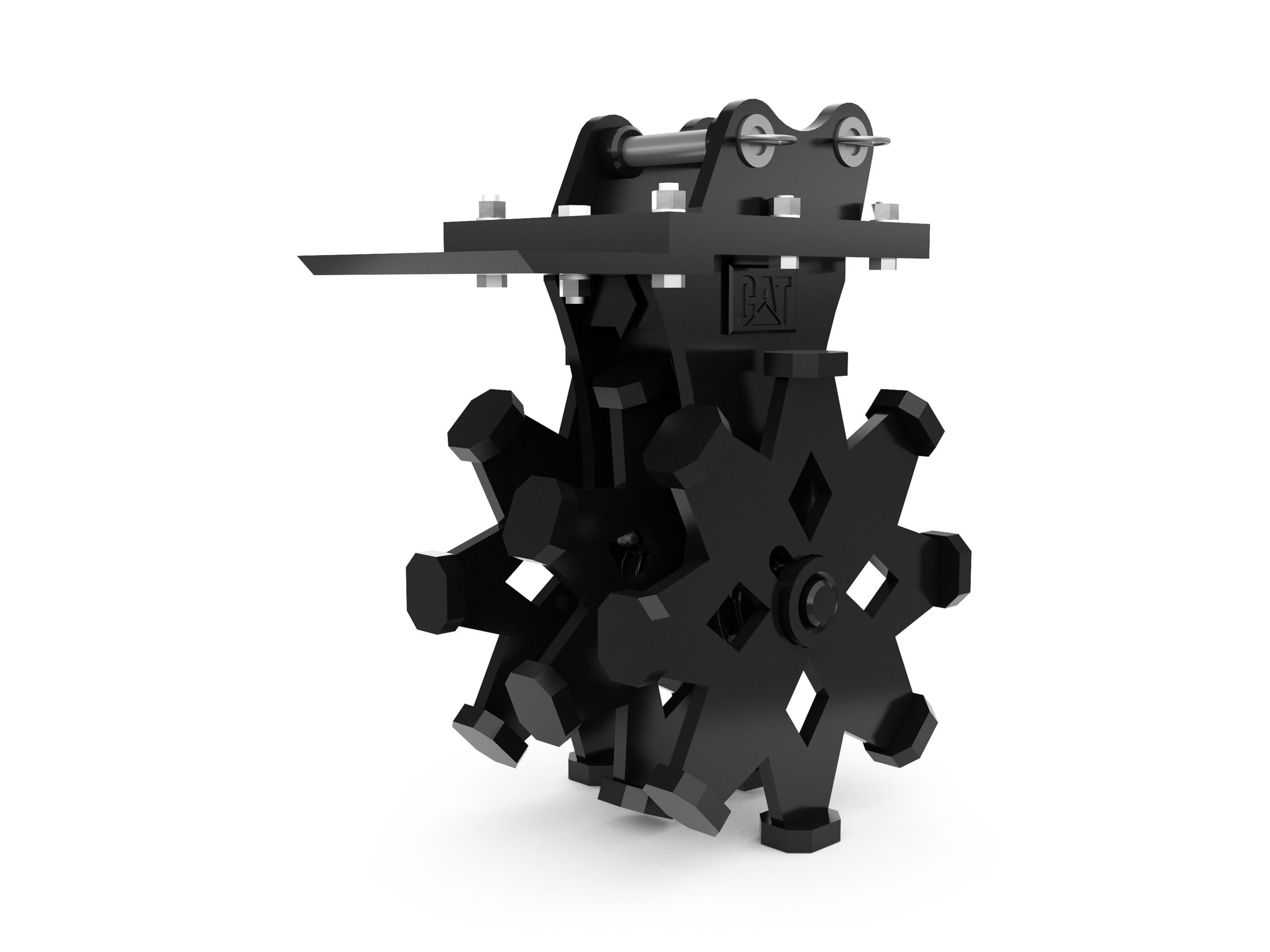

406 mm (16 in) Pin On Compaction Wheel For 2 Tonne Excavators
Application
Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
| Product Specifications | |
|---|---|
| Compaction Width | 399 mm (15.7 in) |
| Number of Wheels | 3 |
| Machine Class | 2 Ton Mini Excavators |
| Number of Pads | 24 |
| Weight | 222 kg (489.4 lb) |
| Overall Length | 693 mm (27.3 in) |
| Overall Height | 827 mm (32.6 in) |
| Overall Width | 399 mm (15.7 in) |
| Interface Type | Pin On |
