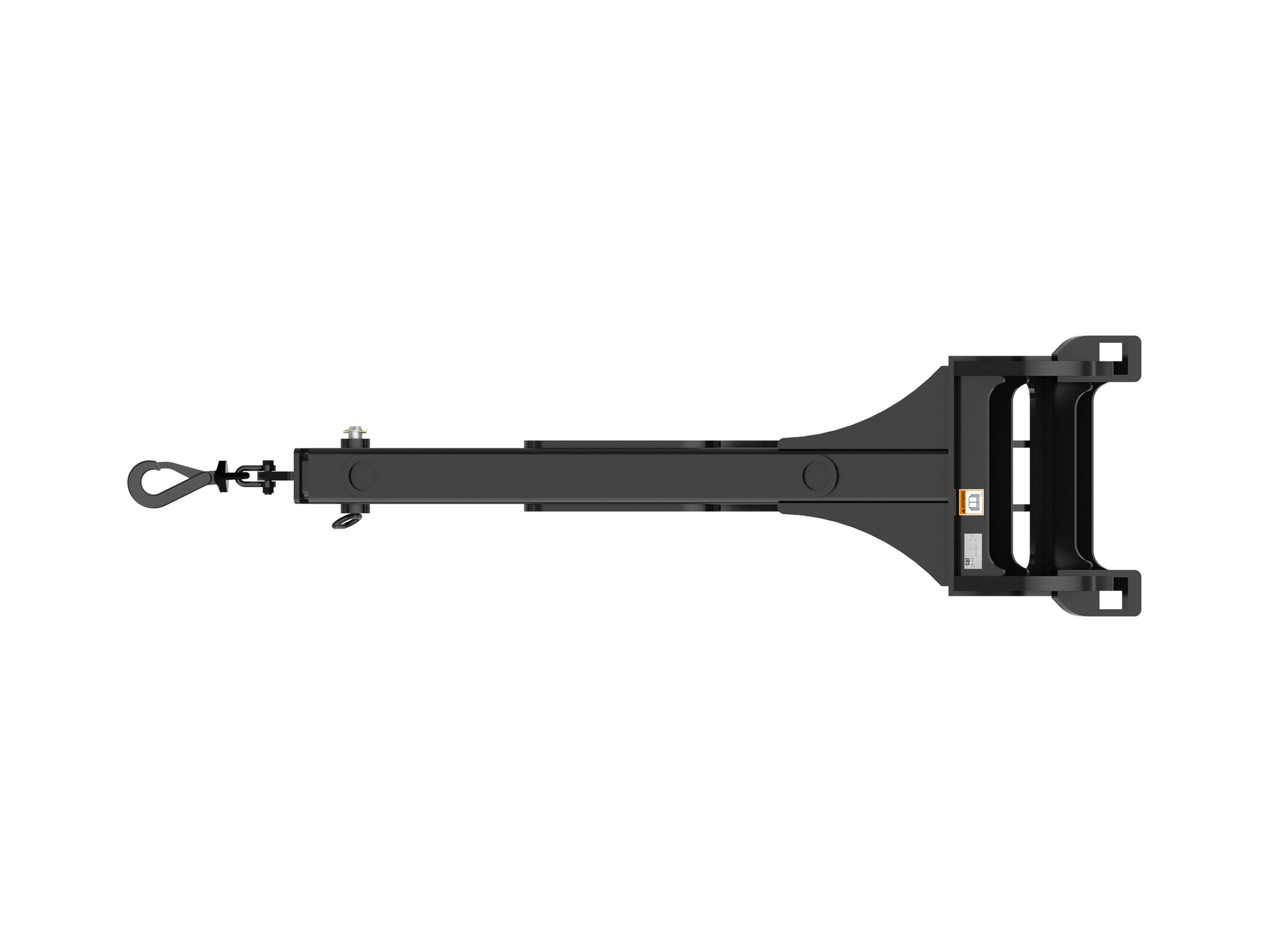

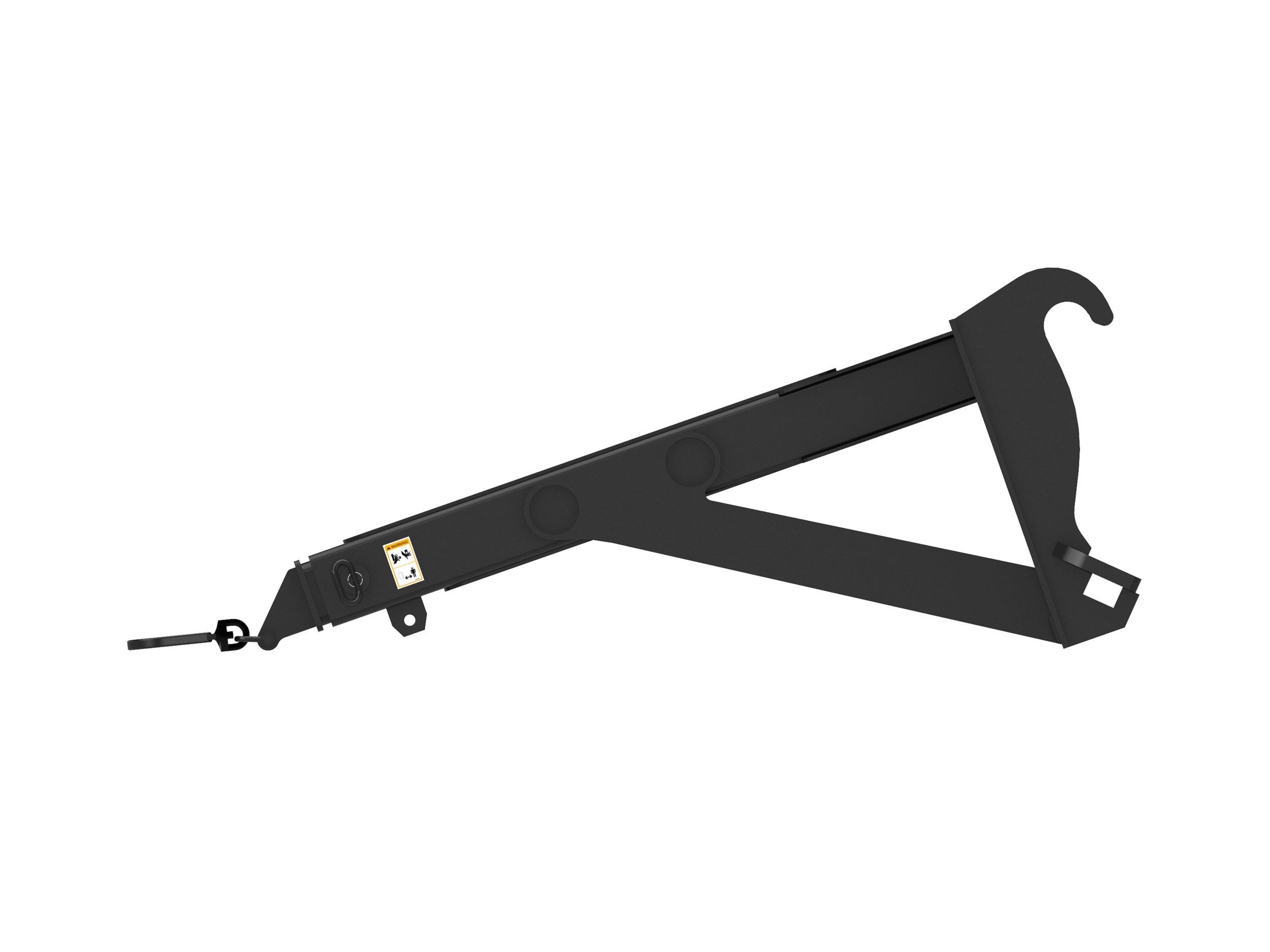

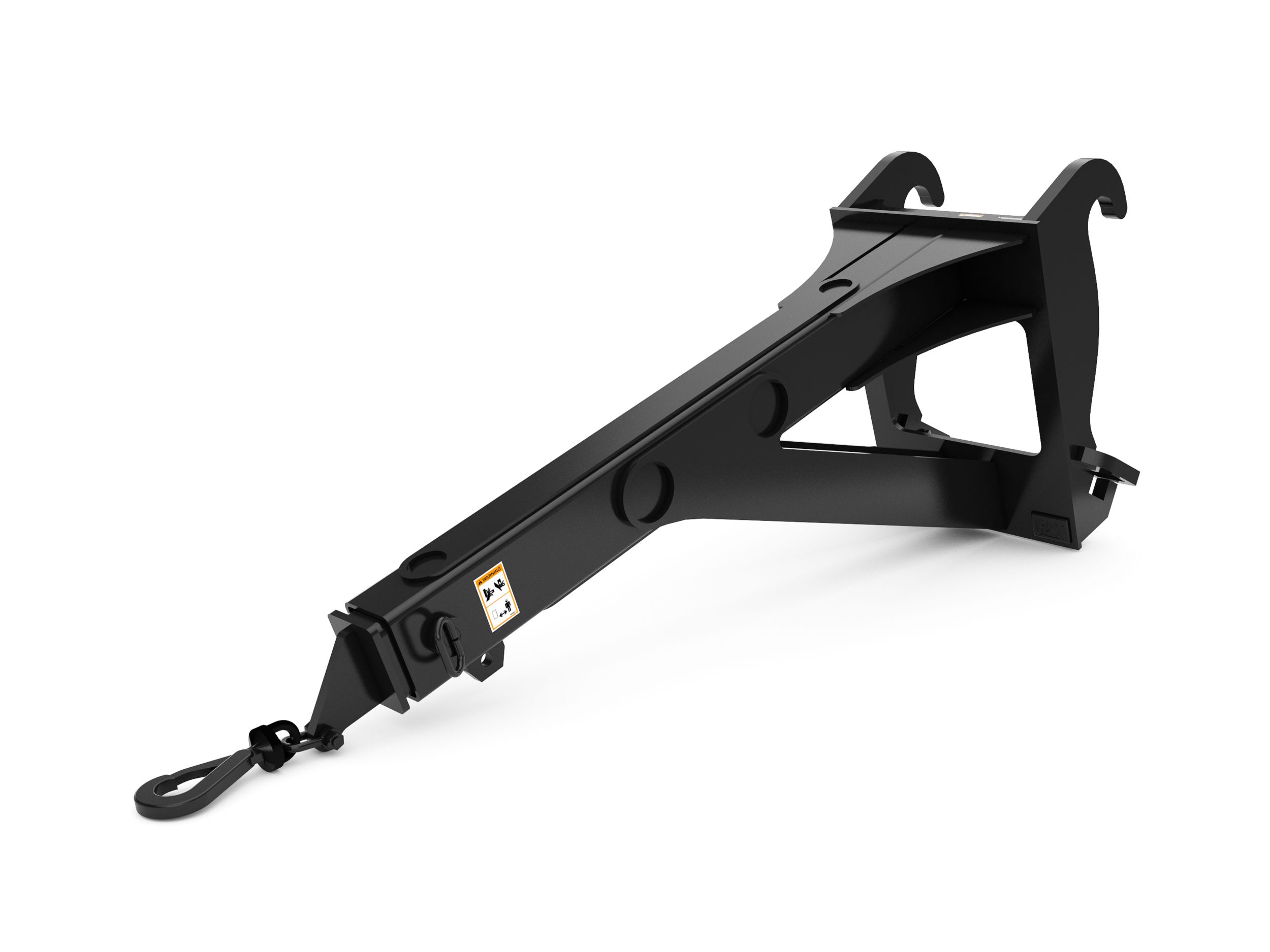

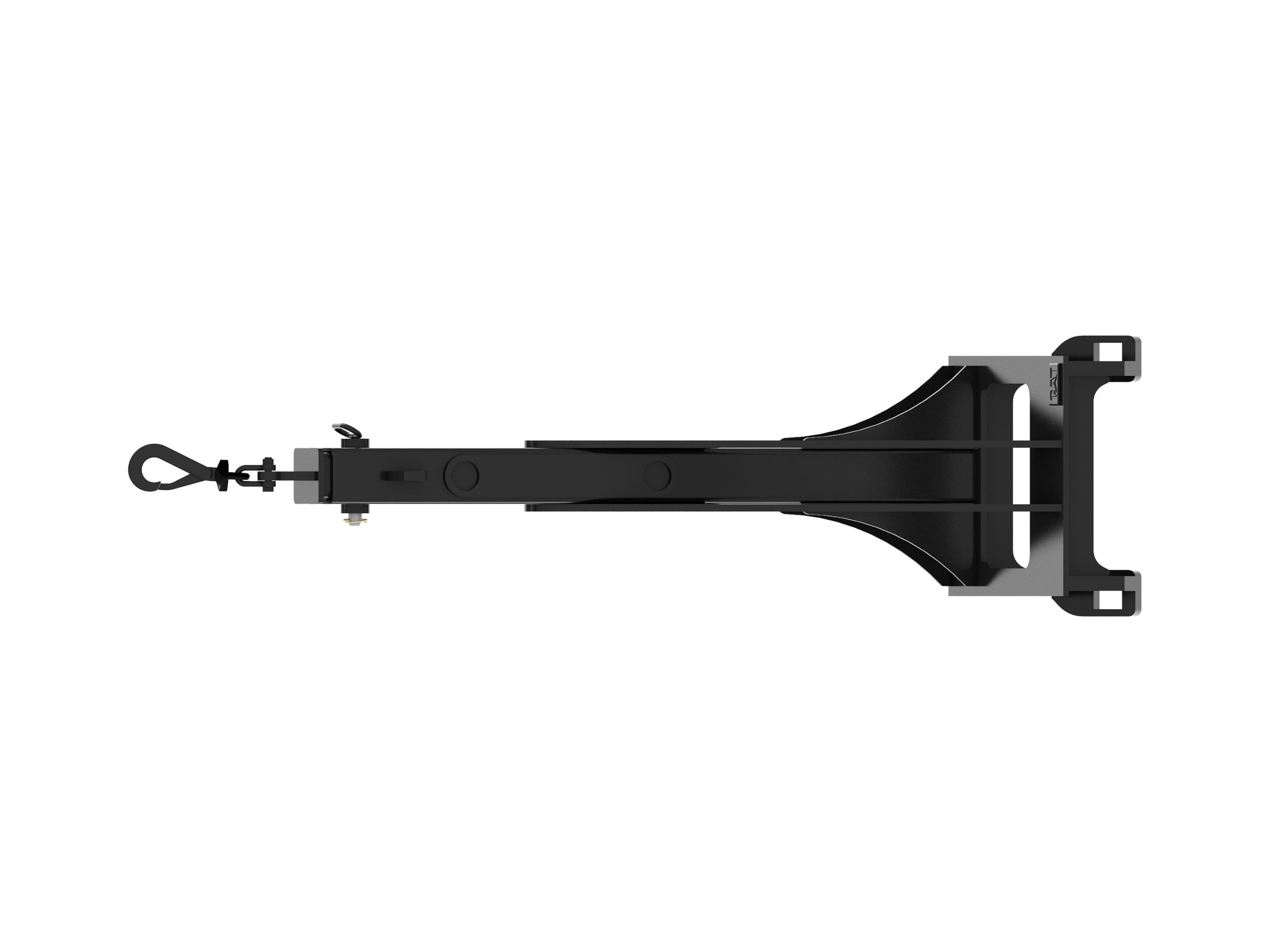

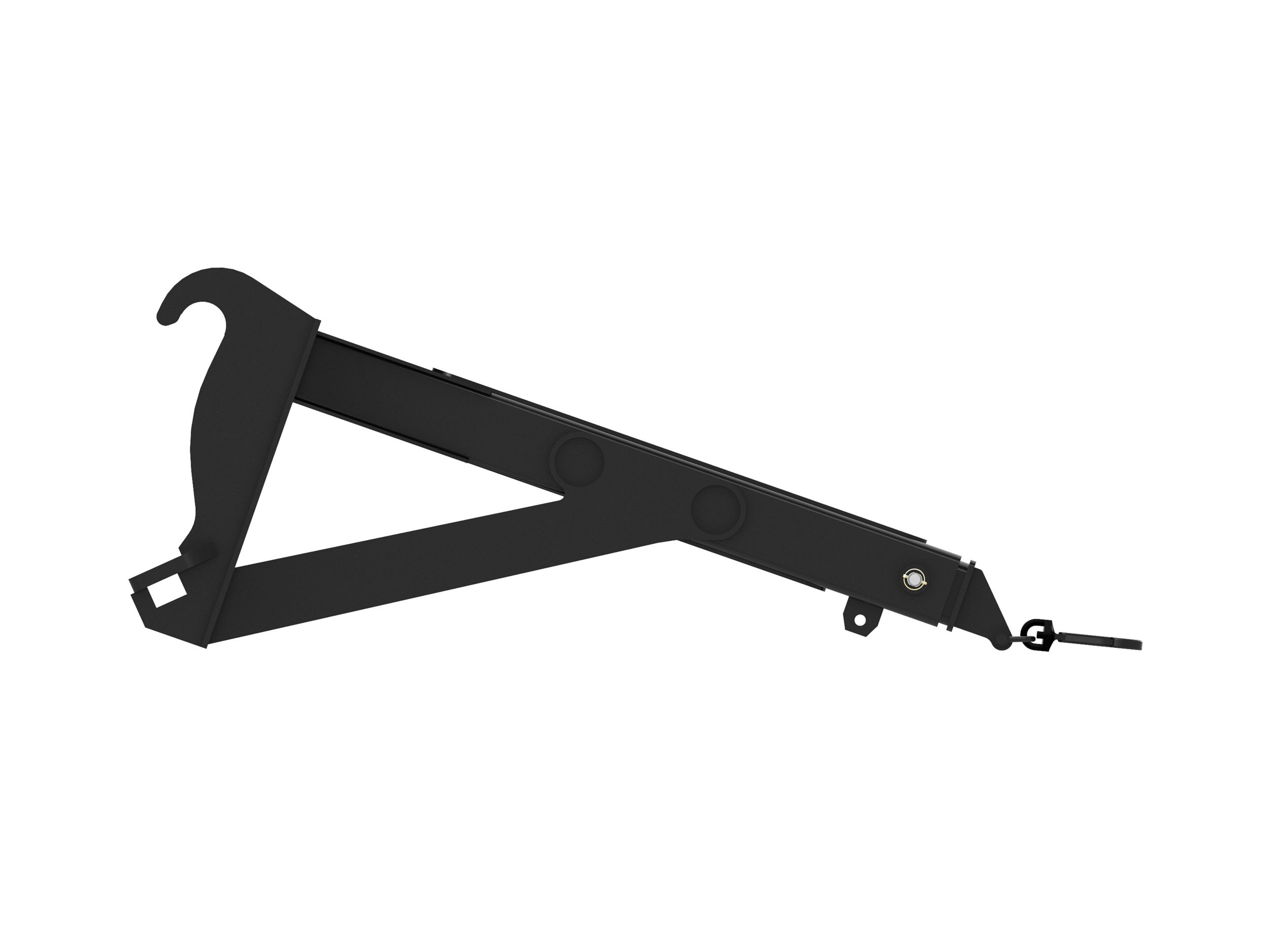

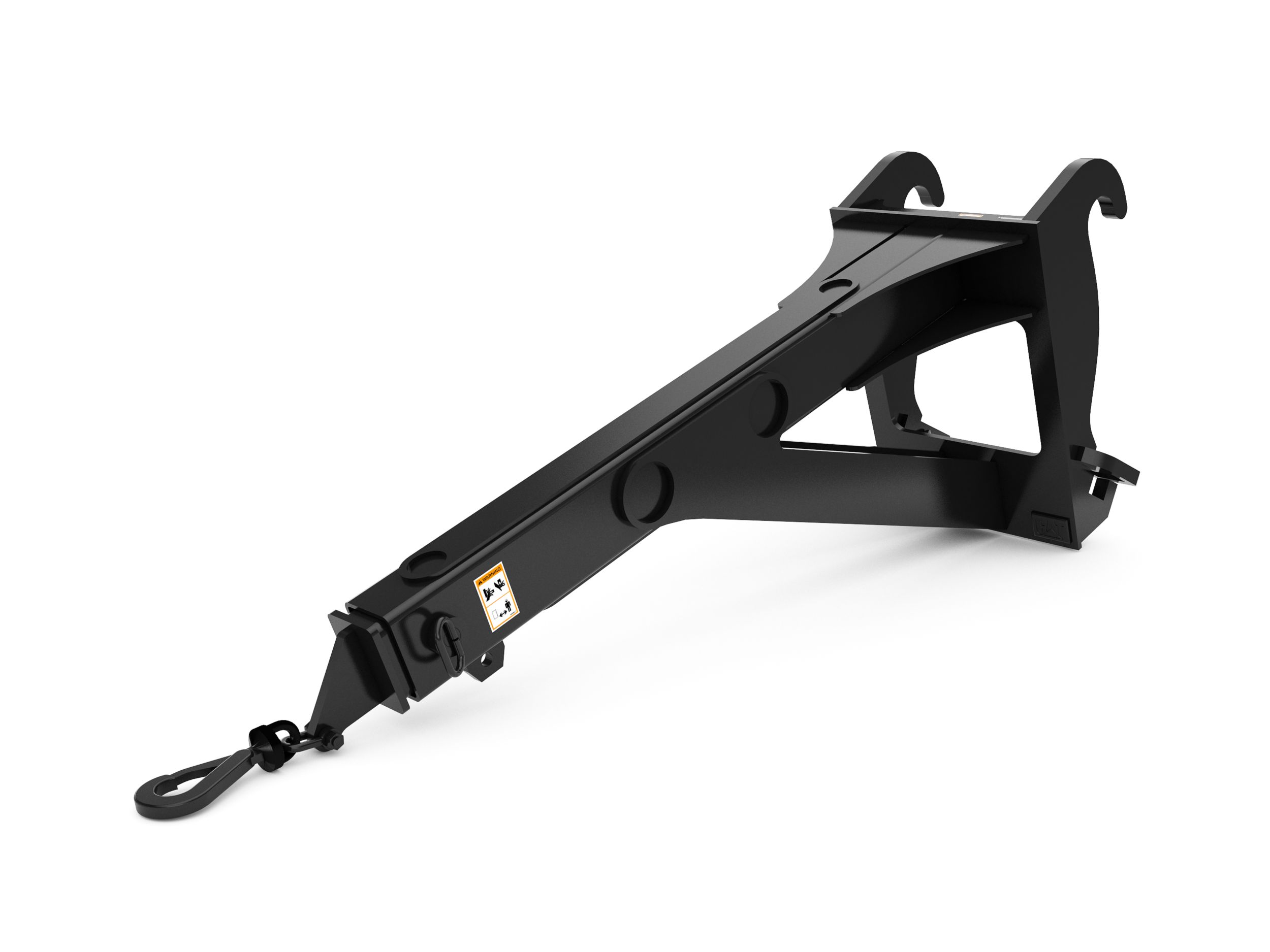

3941 mm (155 in) Fusion™ Coupler Material Handling Arms – Loader
Application
Designed to pick up, carry and load a variety of materials and equipment. Also well suited for loading, carrying and setting trees and large shrubs in landscaping applications.
Heavy Duty Design
Heavy duty design provides extra rigidity and strength.
Telescoping Inner Boom
Telescoping inner boom is pre-drilled for easy positioning. Arm length can easily be manually adjusted with a locking pin to match job and loading conditions.
Heavy Duty Locking Clasp
Heavy duty locking clasp swivels full 360 degrees.
Extendable to Three Lengths
Extendable from face of coupler to three lengths
- All with the ease of pulling a single pin.
| Product Specifications | |
|---|---|
| Overall Width | 646 mm (25.4 in) |
| Maximum Load Rating | 2095 kg (4618.7 lb) |
| Weight | 408 kg (899.5 lb) |
| Overall Height | 829.3 mm (32.6 in) |
| Extended Length | 3941 mm (155.2 in) |
| Retracted Length | 2007 mm (79 in) |
| Number of Adjustments | 3 |
| Length Between Adjustments | 967 mm (38.1 in) |
| Interface Type | Fusion™ Coupler |
| Maximum Horizontal Reach | 3941 mm (155.2 in) |
