Digging Buckets - Mini Excavator

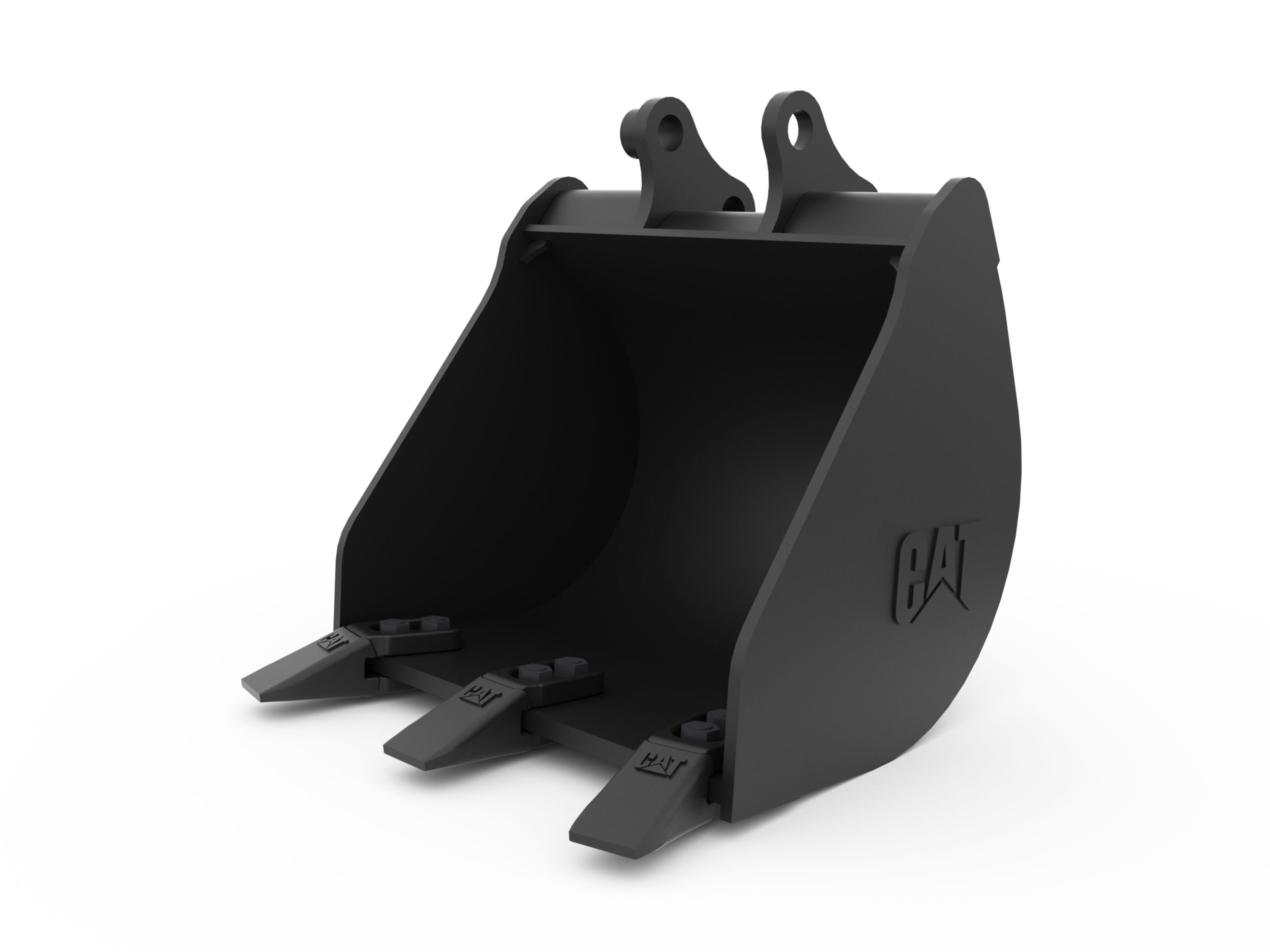

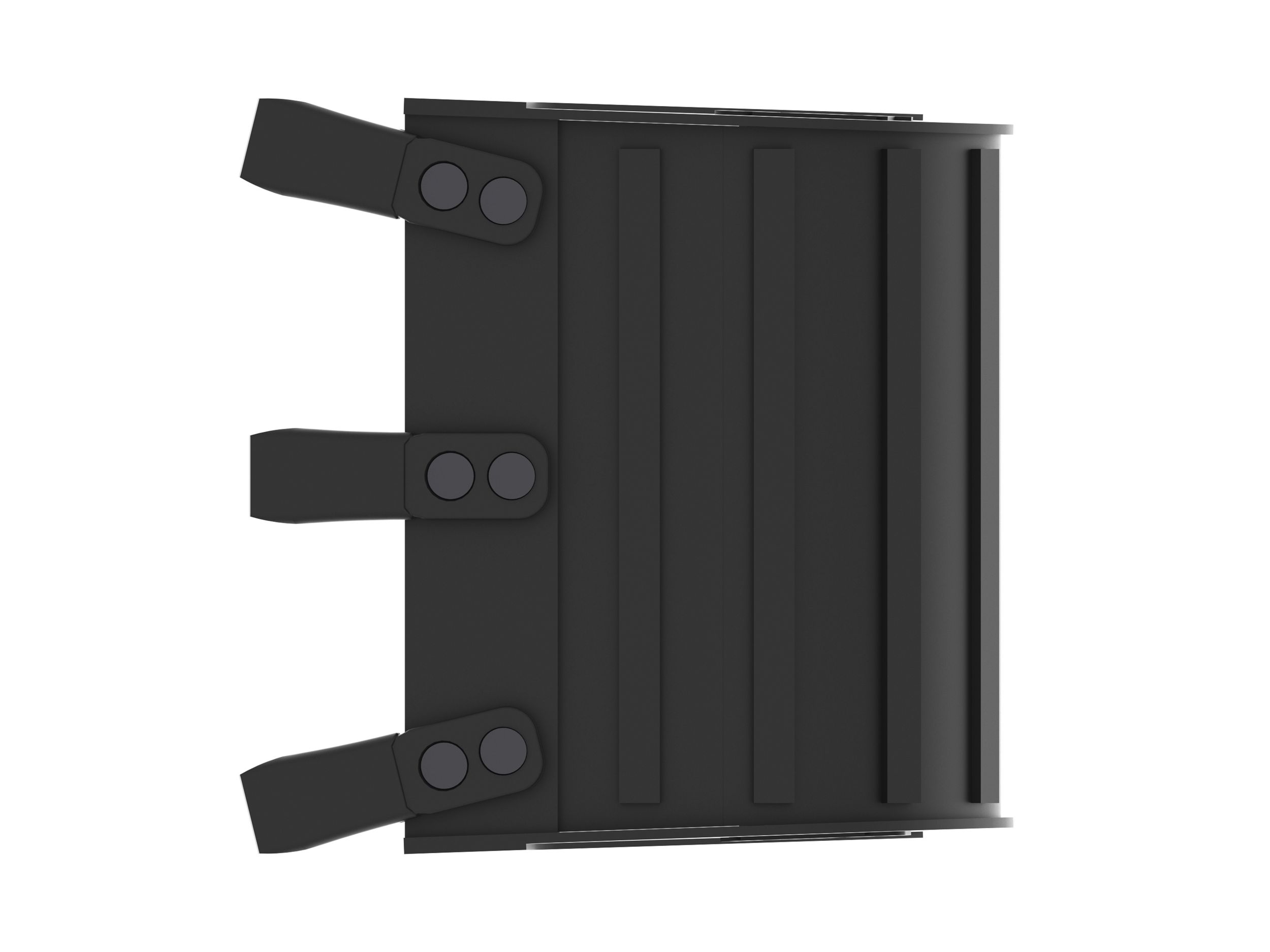

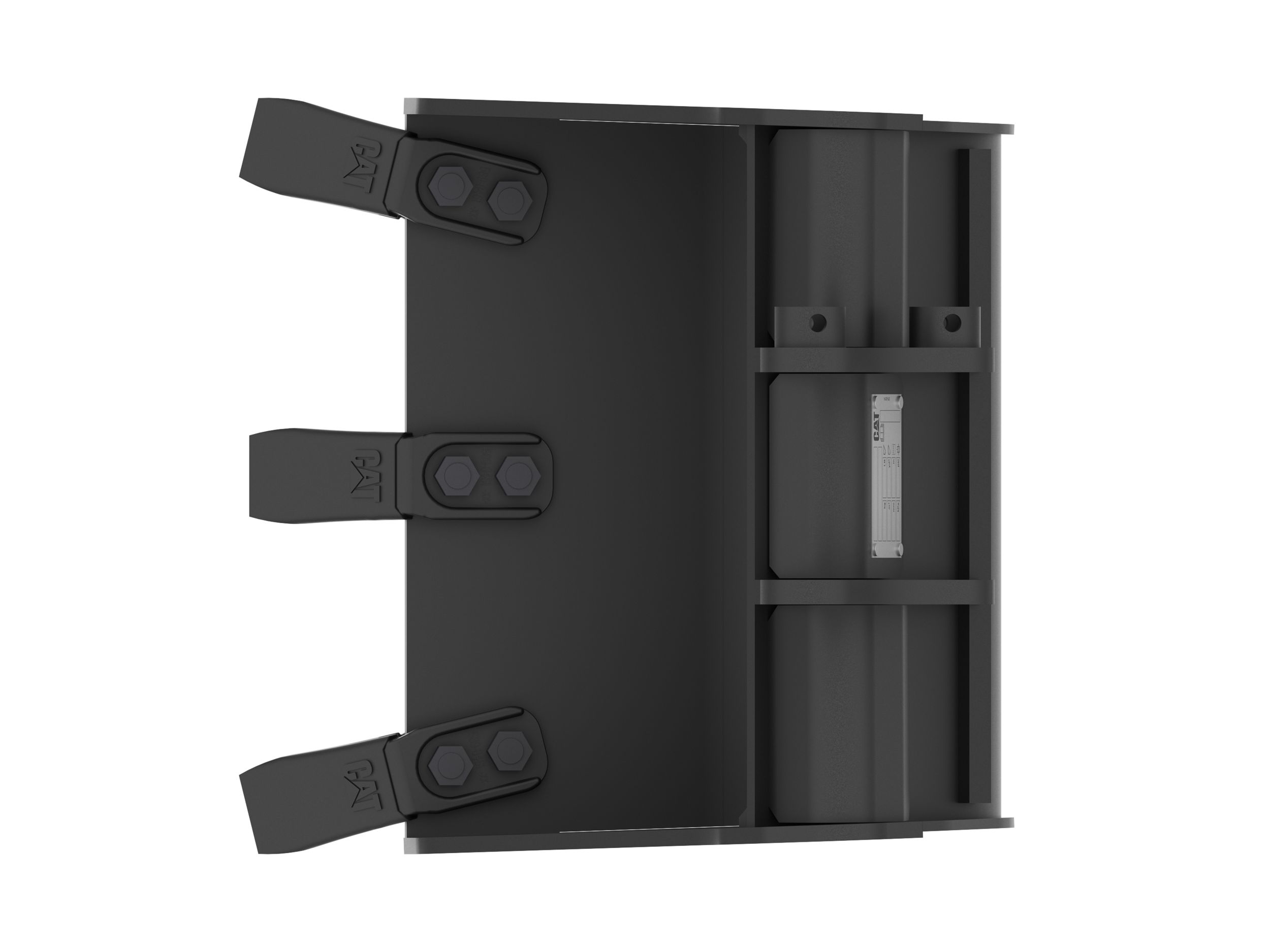

370 mm (15 in), 23 L (0.8 ft3) Pin On Digging Bucket With Bolt-On Teeth
Optimized Design
Optimized design provides for maximum breakout force realization along with the desired width and capacity.
Rear Wear Strips
Rear wear strips help increase the life of the bucket by protecting the bucket wrapper and providing more wear material.
Optimal Tooth Layout
Optimal positioning of the newly designed teeth provides protection of the base edge, the side cutter corner, as well as the side plate.
Newly Designed Bolt-On Teeth
Two bolts per tooth for optimal positioning and installation on the base edge. Two stiffeners on the top strap resists bending while receiving breakout forces and protects the locking bolts from wear and shearing off.
| Product Specifications | |
|---|---|
| Width | 370 mm (14.6 in) |
| Capacity | 23 l (0.8 ftu00b3) |
| Weight | 26 kg (57.3 lb) |
| Base Edge Thickness | 10 mm (0.4 in) |
| Tip Radius | 453 mm (17.8 in) |
| Interface Type | Pin On |
