Light Material Buckets - Performance Series

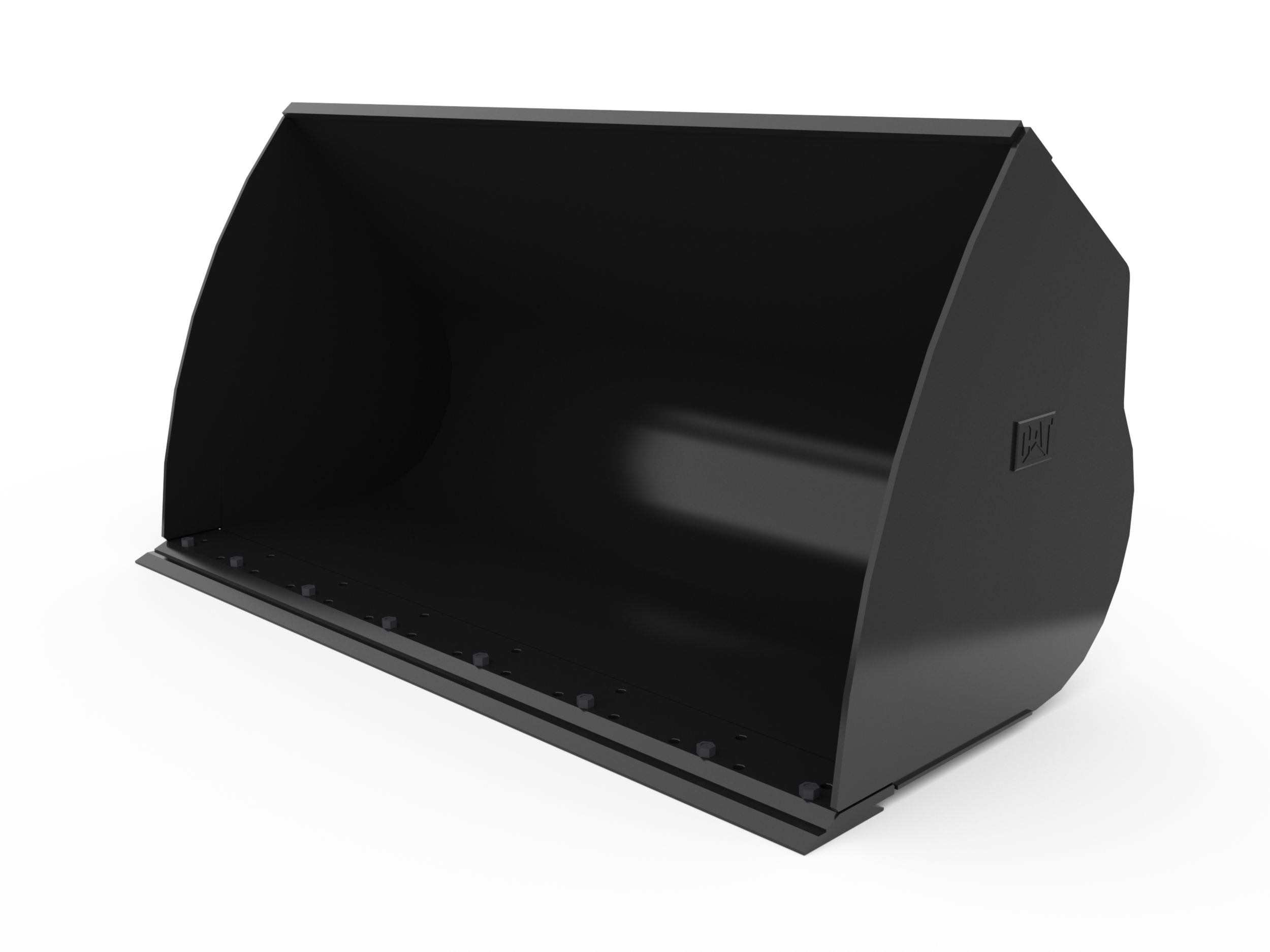

3.5 m3 (4.6 yd3) HPL-ISO Coupler Light Material – Performance Series Bucket with Bolt-On Cutting Edge
Application
Designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow. Performance Series Light Material Buckets are designed with larger capacity for light density material applications in Agriculture, Waste and other segments. These applications generally require moderate to light breakout forces. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
High Capacity
High capacity increases productivity in handling light materials. Optimal bucket shape for loading light materials up to 1150 kg/ltr (1600 lb/yd3).
Superior Loading
Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.
Integrated Visibility Slots
Integrated visibility to the cutting edge while operating.
Rugged Design
Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
| Product Specifications | |
|---|---|
| Width | 2727 mm (107.4 in) |
| Height | 1449 mm (57 in) |
| Weight | 1246 kg (2747 lb) |
| Length | 1511 mm (59.5 in) |
| Capacity | 3.5 mu00b3 (4.6 ydu00b3) |
| Base Edge Thickness | 25 mm (1 in) |
| Cutting Edge Thickness | 25 mm (1 in) |
| Interface Type | HPL-ISO Coupler |
