Enquire about "28 m³ (36.6 yd³) Heavy Rock bucket for 6060" Now

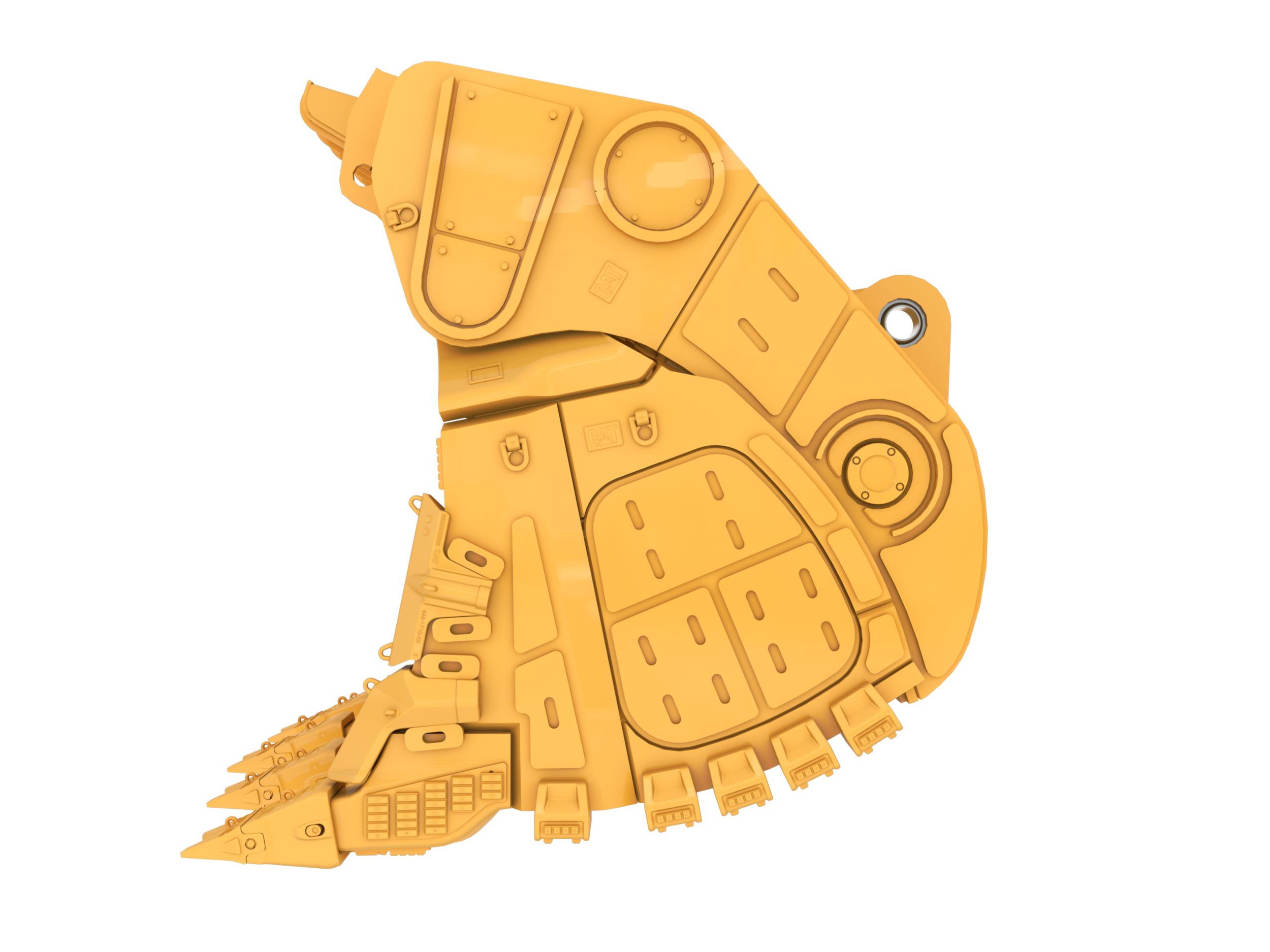

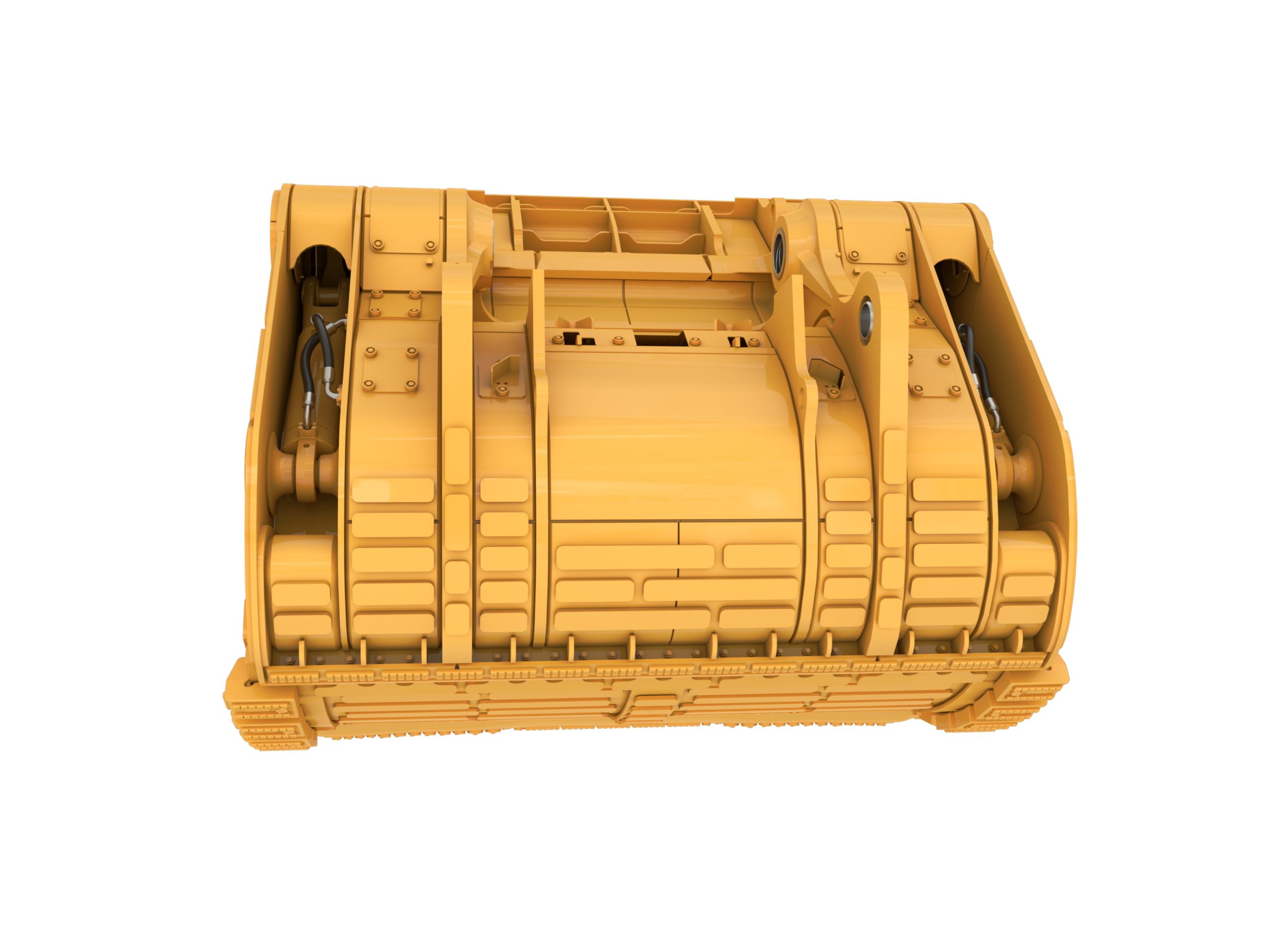

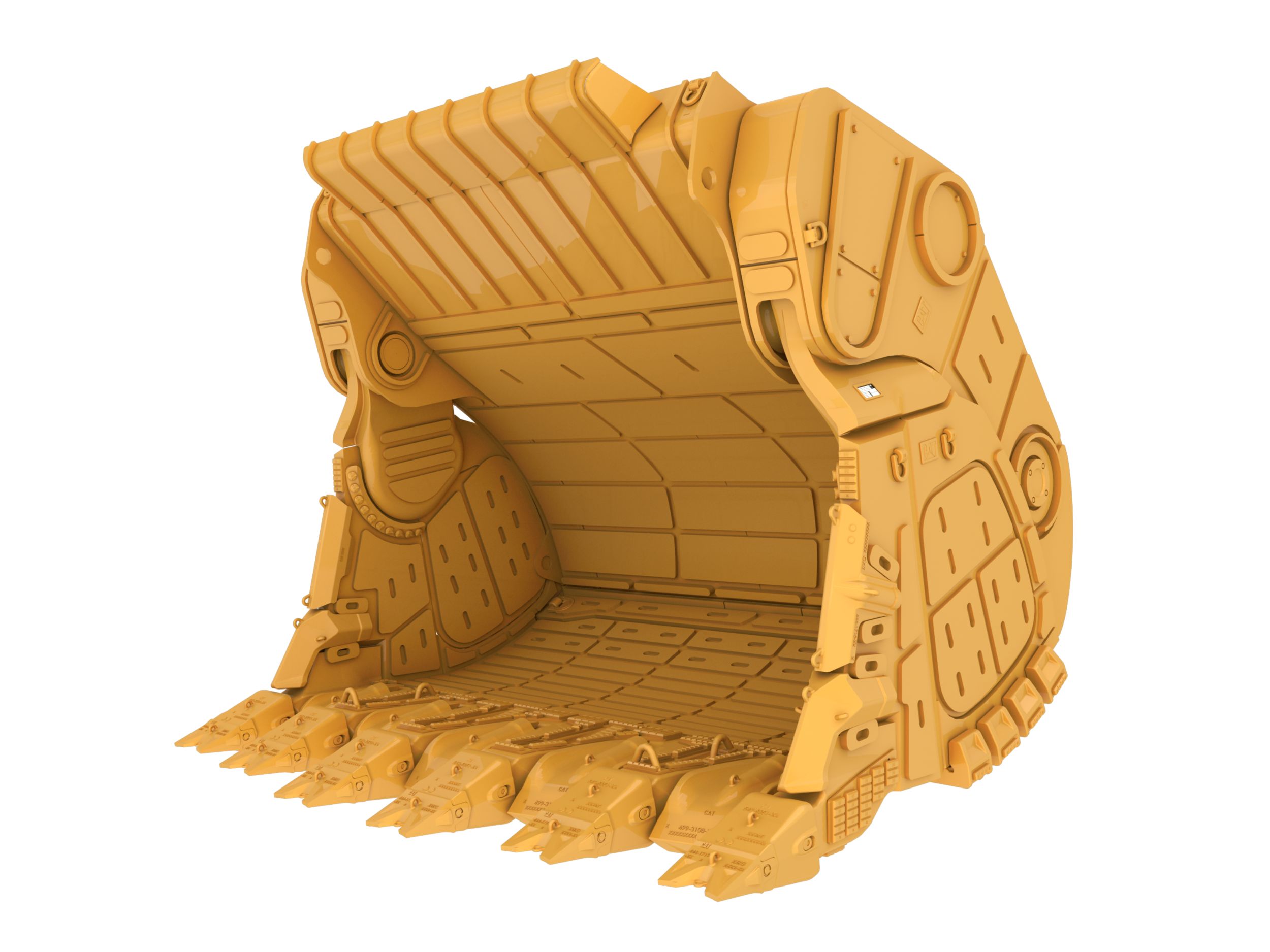

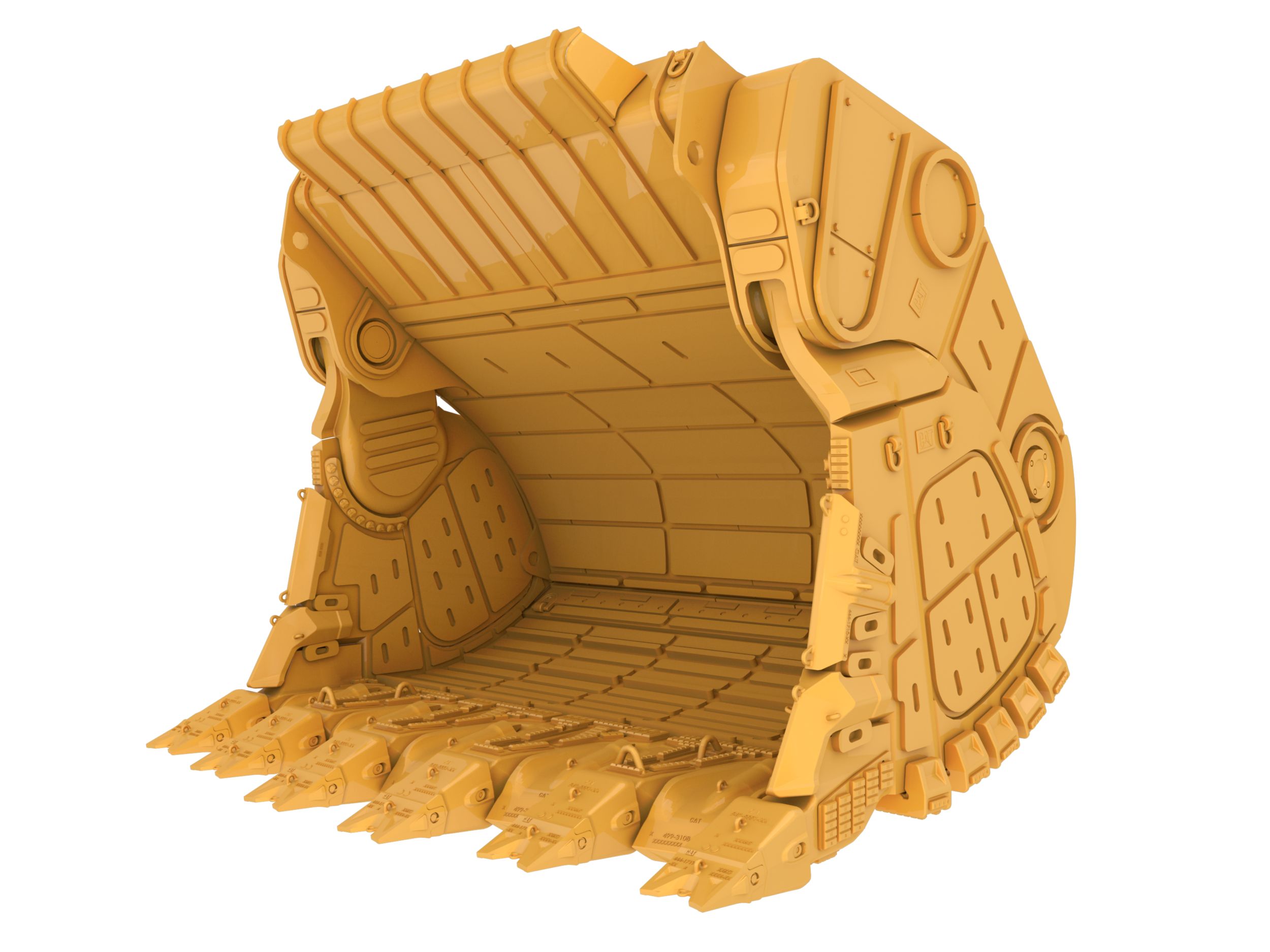

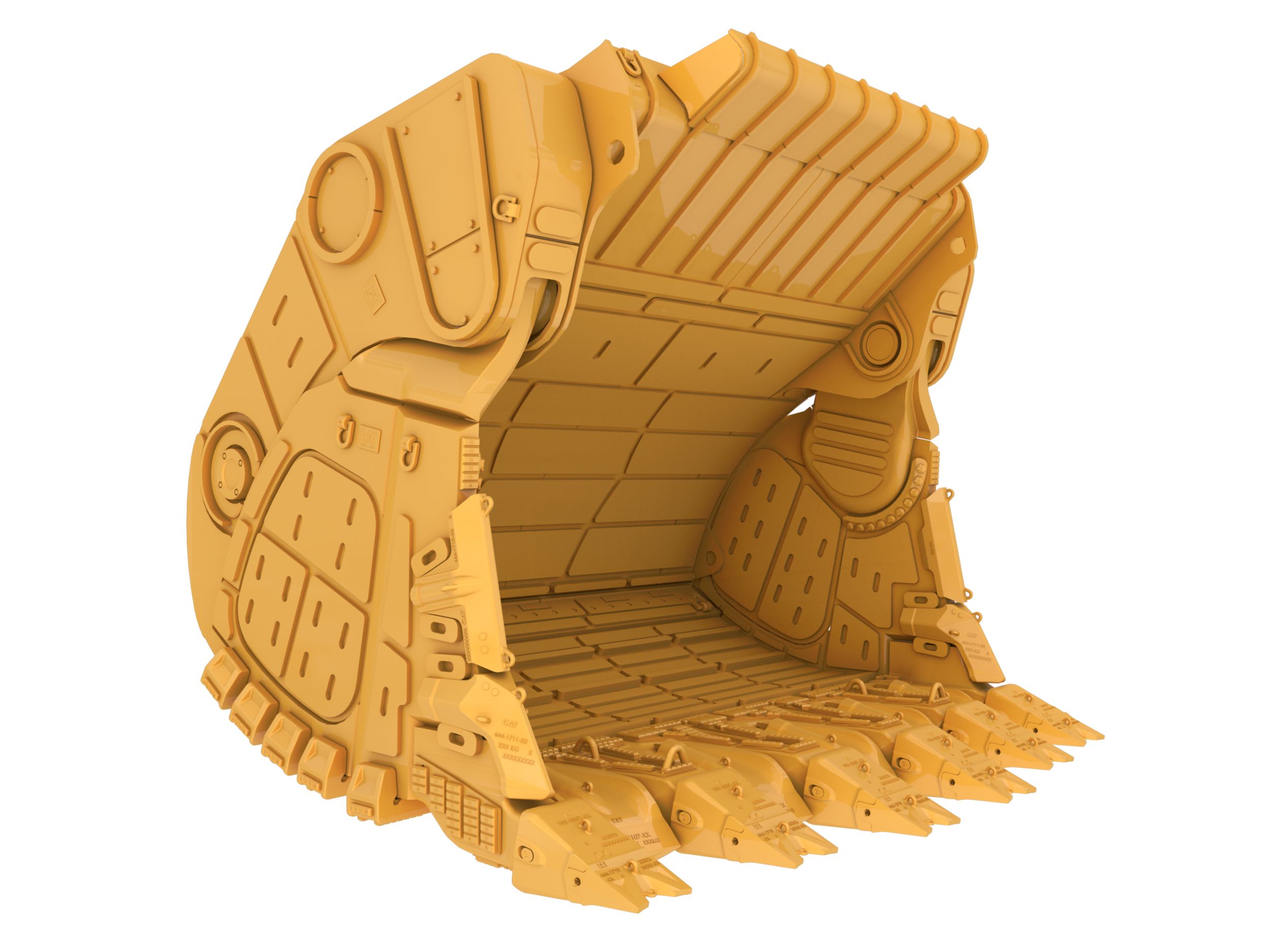

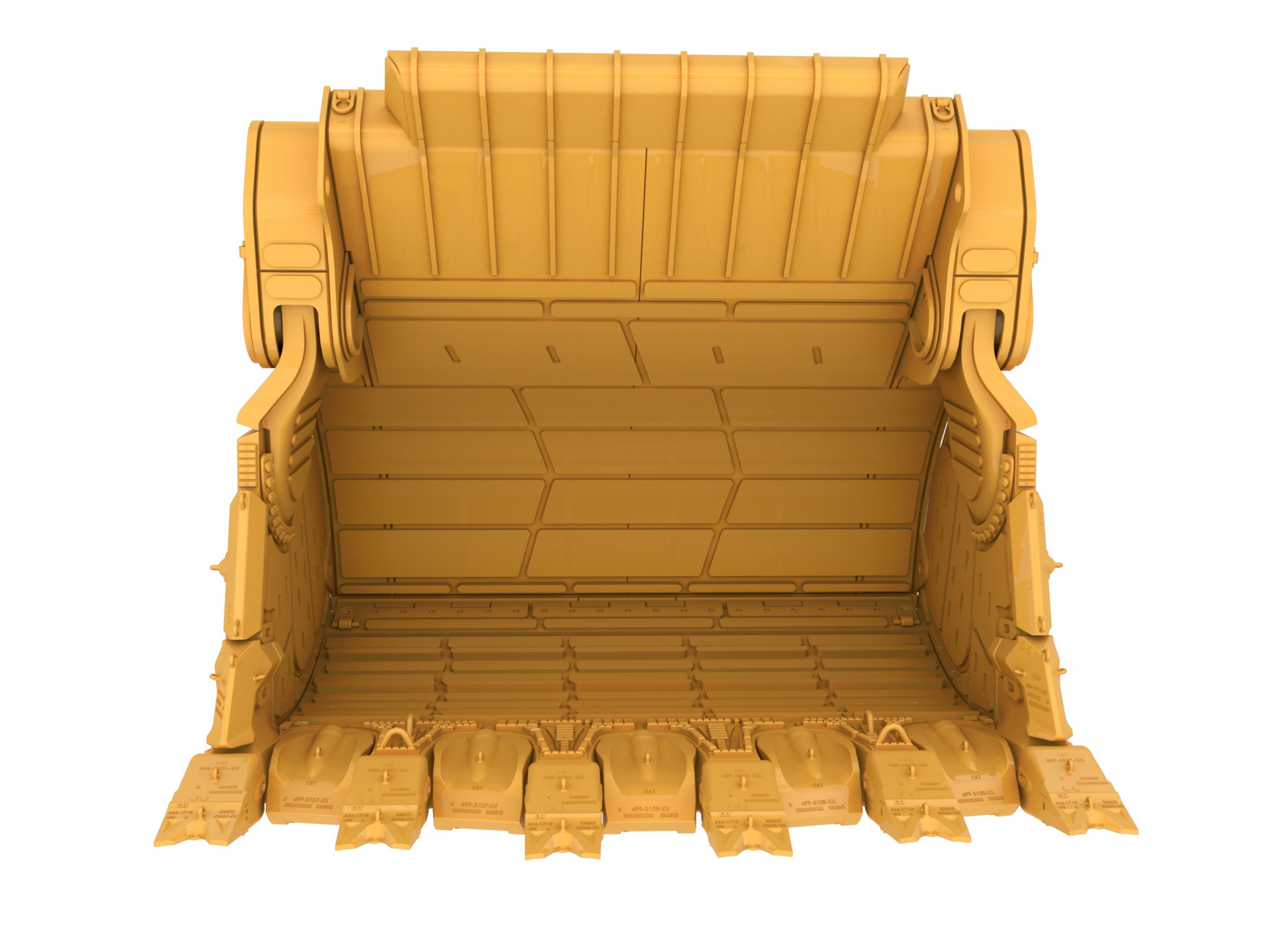

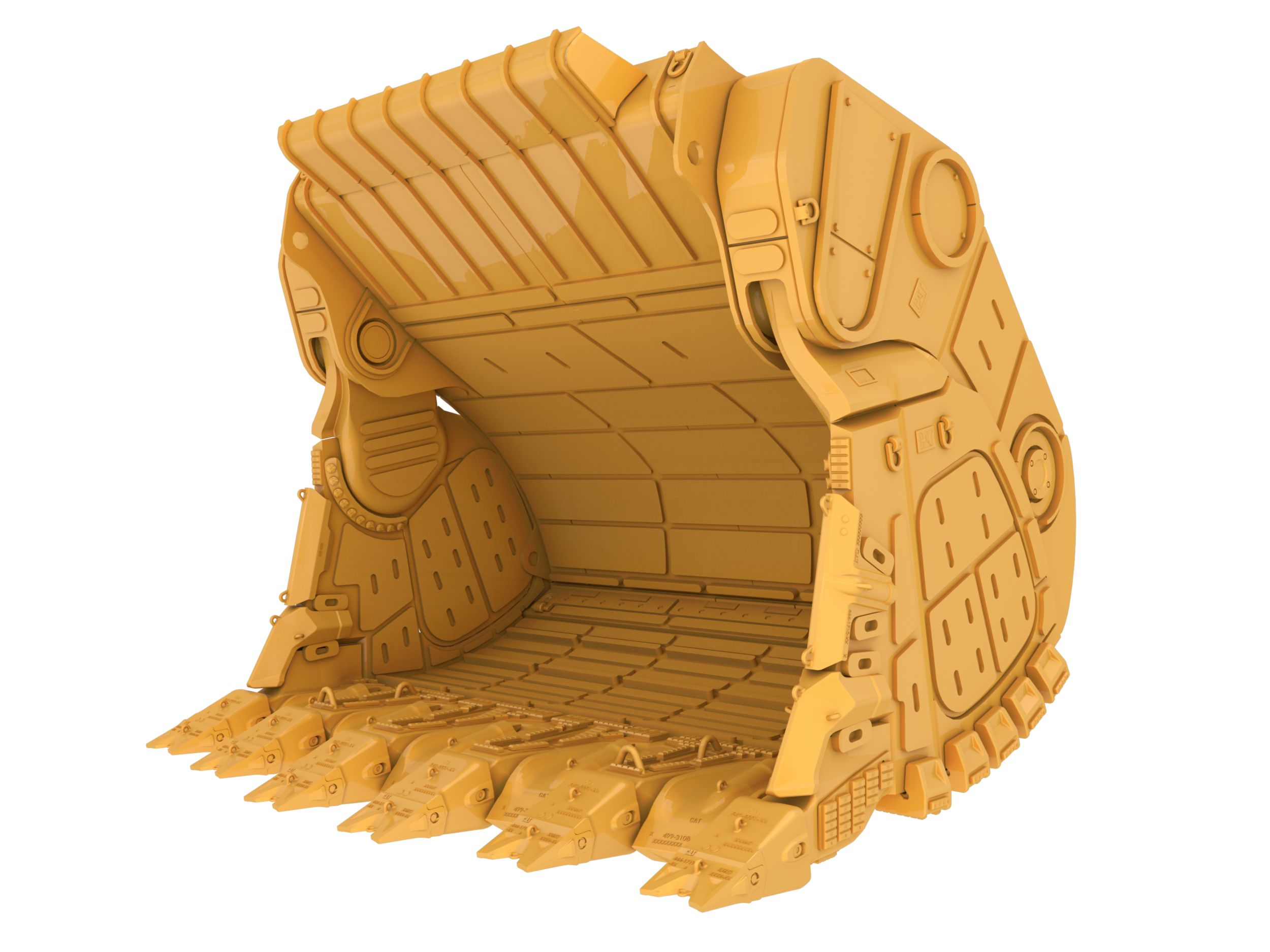

28 m³ (36.6 yd³) Heavy Rock bucket for 6060
Optimum Productivity
A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.
Efficient
Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.
Max Payload
Rated with ISO 7451 payload standards with a 1:1 heap ratio
The Support You Need
Cat buckets are fully covered by the Cat dealer network for round the clock support.
| Product Specifications | |
|---|---|
| Material Density | 2.2 t/mu00b3 (3708 lb/ydu00b3) |
| Wear Package | Extreme Duty - Abrasion |
| Ground Engaging Tool (GET) System | Cat W950R |
| Machine Model | 6060 |
| Capacity | 28 mu00b3 (36.6 ydu00b3) |
| Weight | 50937 kg (112297 lb) |
| Outer Width | 4773 mm (187.9 in) |
| Inner Width | 4300 mm (169.3 in) |
