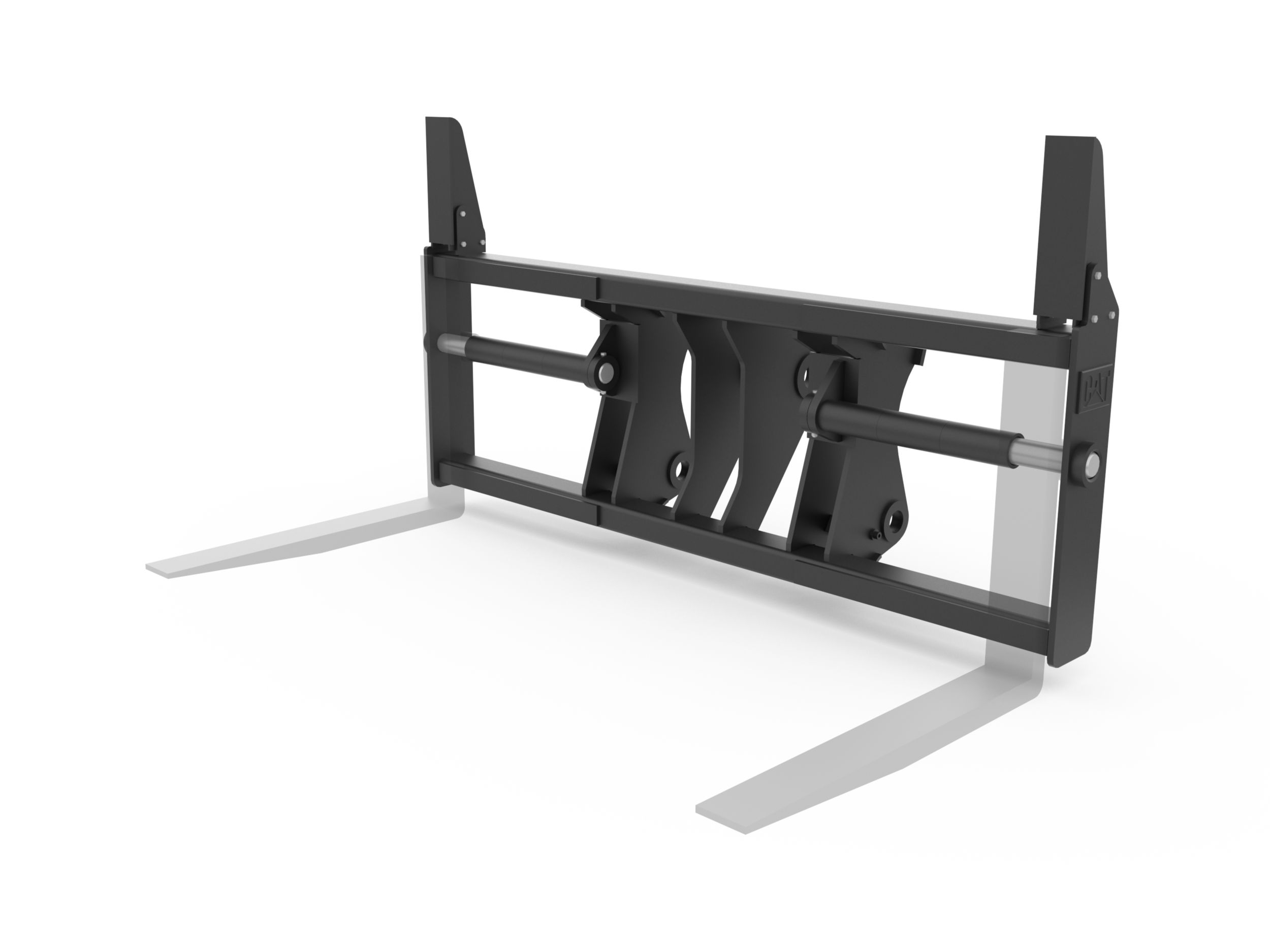

2743 mm (108 in) Pin On Log and Lumber Fork Carriage
Application
Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Risers / Log Guards
Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.
Wider Carriages
Wider carriages increase stability when handling longer poles/loads.
Wider Tine Widths
Wider tine widths provide a larger surface area for stability when transporting larger materials.
| Product Specifications | |
|---|---|
| Interface Type | Pin On |
| Tine Configuration | Non-Swinging, Non-Floating |
| Height | 1442 mm (56.8 in) |
| Weight | 799 kg (1761.5 lb) |
| Width | 2812 mm (110.7 in) |
| Length | 593 mm (23.3 in) |
| Tine Spacing | 1391-2703 mm (55-107 in) |
