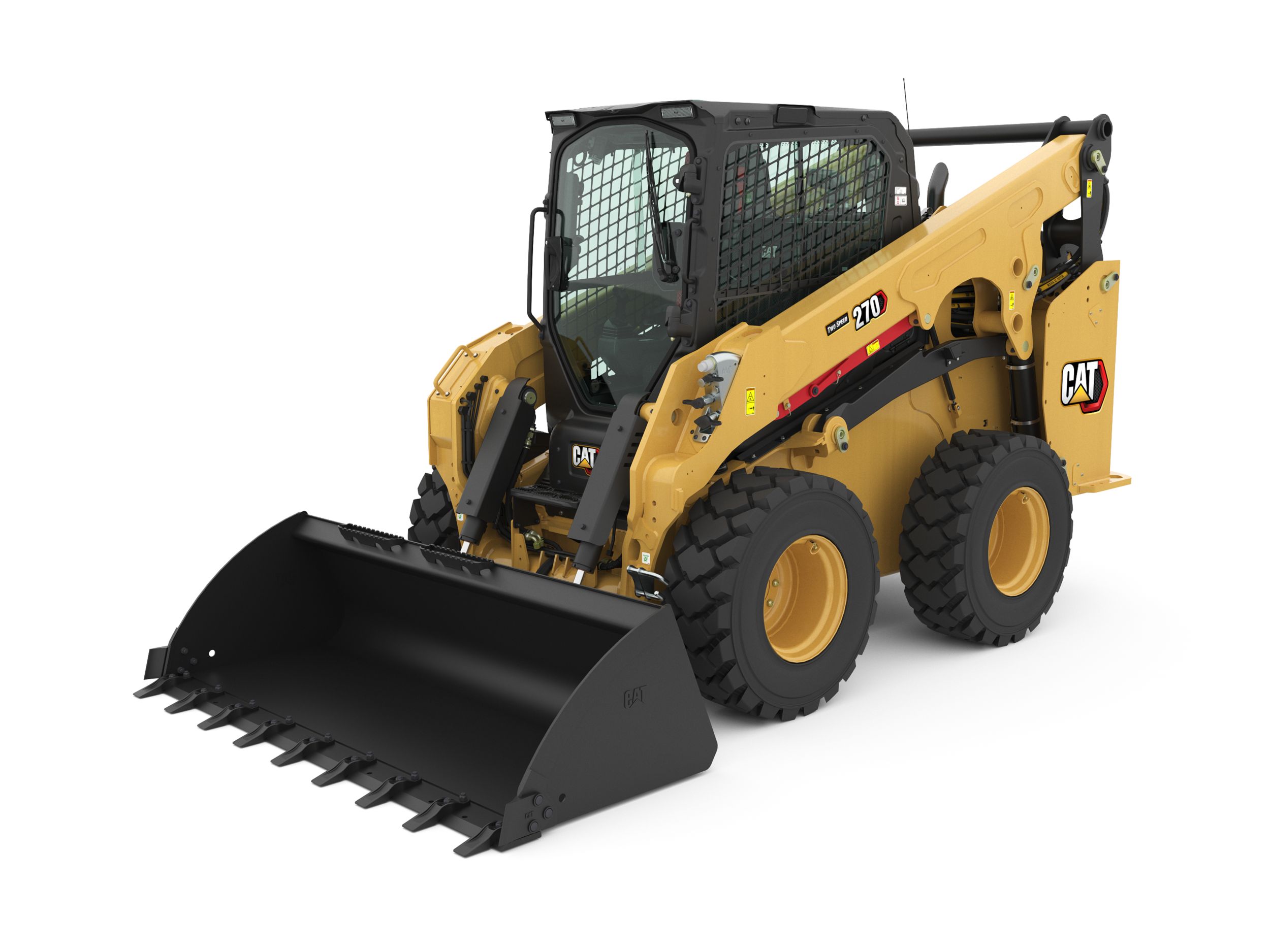

270 Skid Steer Loader
High Performance Power Train
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an electronic hand/foot throttle with decel pedal capability.
Redesigned Operator Station
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 270 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.
Ventilated and Heated High-Back Air Ride Seat
Available ventilated and heated high-back air ride seat and seat-mounted adjustable joystick controls deliver superior operator comfort.
High Flow XPS Auxiliary Hydraulic System
High Flow XPS auxiliary hydraulic system, delivering high flow and high pressure, is available for applications that demand maximum hydraulic work tool performance.
High Horsepower, High Torque Engine
Electronically controlled Cat C3.6TA (Turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range and provides high torque for increased working performance, no matter the application. The engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA standards.
Ride Control
Speed sensitive ride control option improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.
Advanced Touchscreen Monitor
The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.
Advanced Joysticks
The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.
Ground-Level Access
Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Cat Attachments
The broad range of performance matched Cat Attachments makes the Cat Skid Steer Loader the most versatile machine on the job site.
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 75 kW (100 hp) |
| Operating Specifications | |
|---|---|
| Rated Operating Capacity | 1614 kg (3557 lb) |
| Weights | |
|---|---|
| Operating Weight | 4736 kg (10441 lb) |
| Dimensions | |
|---|---|
| Wheel Base | 1386 mm (54.6 in) |
| Height - Top of Cab | 2189 mm (86.2 in) |
| Vehicle Width over Tires | 1830 mm (72 in) |
| Ground Clearance | 202 mm (8 in) |
| Departure Angle | 23.6u00b0 |
| Maximum Dump Angle | 43.5u00b0 |
| Turning Radius from Center - Bucket | 2228 mm (87.7 in) |
| Bucket Pin Reach - Maximum Lift | 320 mm (12.6 in) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 u00d7 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Length - With Bucket on Ground | 3908 mm (153.9 in) |
| Maximum Overall Height | 4174 mm (164.3 in) |
| Bucket Pin Height - Carry Position | 220 mm (8.7 in) |
| Maximum Reach - With Arms Parallel to Ground | 1220 mm (48 in) |
| Roll Back Angle | 28u00b0 |
| Reach - Maximum Lift/Dump | 786 mm (30.9 in) |
| Turning Radius from Center - Coupler | 1471 mm (57.9 in) |
| Length - Without Bucket | 3270 mm (128.7 in) |
| Bucket Pin Height - Maximum Lift | 3391 mm (133.5 in) |
| Turning Radius from Center - Machine Rear | 1897 mm (74.7 in) |
| Clearance at Maximum Lift and Dump | 2676 mm (105.4 in) |
| Rack Back Angle - Maximum Height | 88u00b0 |
| Hydraulic System | |
|---|---|
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 28000 kPa (4061 psi) |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 34.6 kW (46.4 hp) |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 24130 kPa (3500 psi) |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure | 24130 kPa (3500 psi) |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 60.2 kW (80.7 hp) |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 86 L/min (23 gpm) |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow | 129 L/min (34 gpm) |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 51.9 kW (69.6 hp) |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 129 L/min (34 gpm) |
| Cab | |
|---|---|
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| FOPS Level II | ISO 3449:2005 (Optional) |
| Power Train | |
|---|---|
| Travel Speed - Forward or Reverse - One Speed | 10.6 km/h (6.6 mile/h) |
| Travel Speed - Forward or Reverse - Two Speed Option | 15.4 km/h (9.6 mile/h) |
| Service Refill Capacities | |
|---|---|
| Cooling System | 17.5 l (4.6 gal (US)) |
| Engine Crankcase | 9 l (2.4 gal (US)) |
| Fuel Tank | 130.7 l (34.5 gal (US)) |
| Hydraulic System | 41 l (10.8 gal (US)) |
| Hydraulic Tank | 26 l (6.9 gal (US)) |
| Engine | |
|---|---|
| Net Power - SAE 1349 | 74 kW (100 hp) |
| Displacement | 3.6 l (221 inu00b3) |
| Stroke | 120 mm (4.7 in) |
| Bore | 98 mm (3.9 in) |
| Peak Torque - 1,500 rpm - SAE J1995 | 430 N·m (317 ft·lbf) |
| Net Power - ISO 9249 | 74 kW (99 hp) |
| Note | Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. |
| Engine Model | Cat C3.6TA (turbocharged, aftercooled) |
| Operating Specifications | |
|---|---|
| Tipping Load | 3227 kg (7114 lb) |
| Breakout Force - Tilt Cylinder | 3750 kg (8267 lb) |
| Breakout Force - Lift Cylinder | 2880 kg (6349 lb) |
| Rated Operating Capacity with Optional Counterweight | 1776 kg (3914 lb) |
| Noise Level | |
|---|---|
| Note (3) | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Air Conditioning System (if equipped) | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. |
| Noise Level | |
|---|---|
| Note (2) | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Weights | |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 u00d7 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Operating Specifications | |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 u00d7 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Sustainability | |
|---|---|
| Recyclability | 93% |
| Noise Level | |
|---|---|
| Inside Cab* | 83 dB(A) |
| Outside Cab** | 101 dB(A) |
Standard Equipment
- ELECTRICAL
- Battery disconnect with lockout feature
- Work Tool Electrical Harness
- Heavy duty battery
- 12-volt Electrical System
- 85 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting
- Automatic Work light notification flash when parking brake is released
- OPERATOR ENVIRONMENT
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
- HYDRAULICS
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever
- Hydraulic oil level sight gauge
- POWER TRAIN
- Cat C3.6TA turbocharged diesel engine, meeting Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA
- Glow plugs starting aid
- Liquid cooled, direct injection
- Extended life antifreeze (–37°C, –34°F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
- Radiator coolant level sight gauge Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Radiator/hydraulic oil cooler (side-by-side)
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
- OTHER
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuard™ hose
- MANDATORY EQUIPMENT
- Auxiliary Hydraulics: Standard or High Flow XPS
- Quick Coupler: Mechanical or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Tires: 12 x 16.5 or 14 x 17.5
- PERFORMANCE PACKAGES
- Performance Package HP1: Standard Flow Hydraulics
- Performance Package H3: High Flow XPS Hydraulics
- COMFORT PACKAGES
- Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl seat (Mechanical Suspension, High Back/Heated/Air Ride Seat
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
- TECHNOLOGY PACKAGES
- T2 – Standard Joysticks, Standard Monitor, Key Start, Rear-view camera.
- T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
- RADIO
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
- PRODUCT LINK™
- Product Link Basic series PL243
- Product Link Elite series PLE643
- COOLING FAN
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
- GUARDING AND SEALING PACKAGES
- HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
- HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
- HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region
Optional Equipment
- OPTIONAL EQUIPMENT
- External Counterweights
- Beacon, LED
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- 4-point machine lifting eyes
- Paint, Custom
- Speed Sensitive Ride Control
- Bluetooth Key Security
- Attachment Hose Guide
- Corrosion Inhibitor Coating
