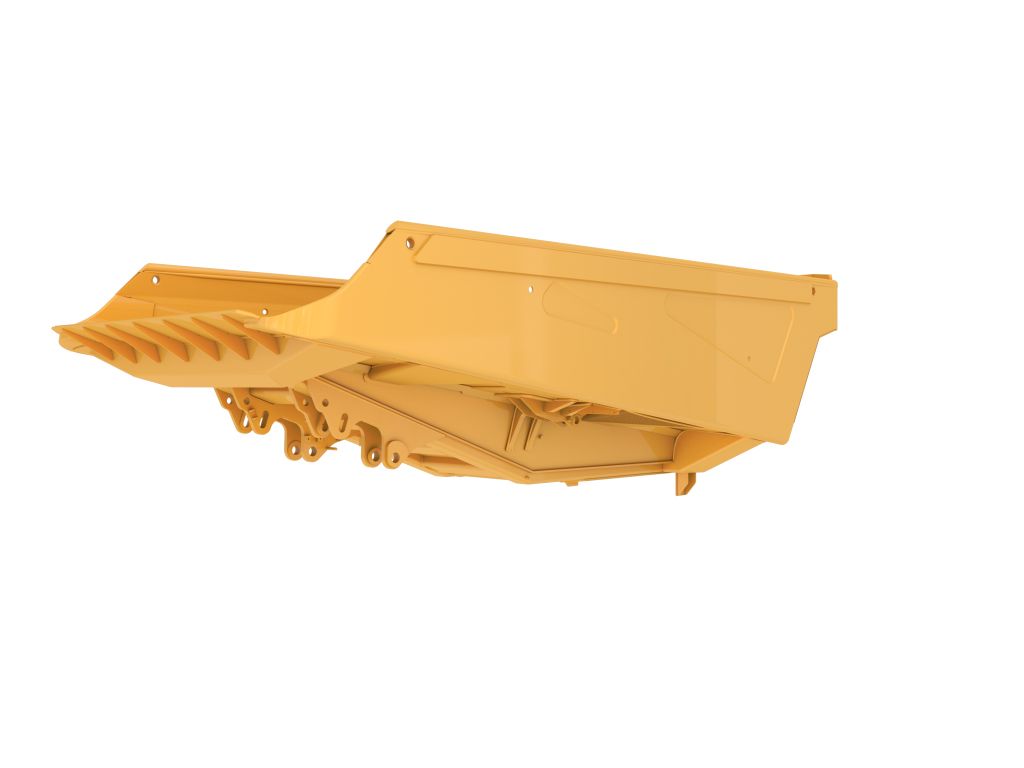

Enquire about "26.9m3 (35.2yds3) for AD63" Now
- Cat underground truck bodies have the same strength and toughness you would expect of any Cat product.
- Body materials, design and fabrication are specially made for the demanding underground environment and abrasive materials to be moved.
- Cat truck bodies are ideally sized and designed to work as part of a complete hauling system, helping you achieve high productivity and the lowest cost per ton.
- Two-stage hoist cylinders
provide fast dump cycle
times of 13 seconds for raise and 24 seconds for lower with snubbing function enabled to protect frame and components at the end of the lowering cycle. - The optional Truck Payload Management System (TPMS) allows a mining operation to manage payloads and ensure that trucks are not under
- or overloaded.
A simple display in the cab gives operators accurate payload information, allowing them to help make sure
their trucks are getting the correct amount of material every time. Payload scoreboards offer an external display that gives loader operators a clear understanding of the bucket’s contents for more efficient passes. Displays on both sides give loader operators clear visibility, with autodimming capacity and improved display accuracy.
- Cat branded bodies are built in the same factory as our machines and go through the same strict quality controls.
- Best suit Cat machine balance, support better machine performance.
- Multiple offerings to suit your unique mining application.
- Cat truck bodies are supported by Cat Global dealer network.
| Product Specifications | |
|---|---|
| Part Number | 592-0787 |
| Machine Model | AD63 |
| Payload Capacity | 63000 kg (138891 lb) |
| Body Capacity | 26.9 mu00b3 (35.2 ydu00b3) |
| Base Body Height | 3040 mm (119.9 in) |
| Base Body Width | 3290 mm (129.5 in) |
| Truck Height u2013 Top of Empty Body | 3202 mm (126 in) |
| Truck Height u2013 Body Loading | 3045 mm (120 in) |
| Truck Height u2013 Top of Raised Body | 6969 mm (274 in) |
| Truck Height u2013 Dump Clearance | 514 mm (20 in) |
| Truck Length u2013 Overall Body Down | 12040 mm (474 in) |
| Truck Width u2013 Machine with Body | 3346 mm (132 in) |
| Truck Width u2013 Machine without Body | 3323 mm (131 in) |
| Liner Options | Body liners, impact and/or wear; Body Wear Plate, external; Body Wear Protection Option |
