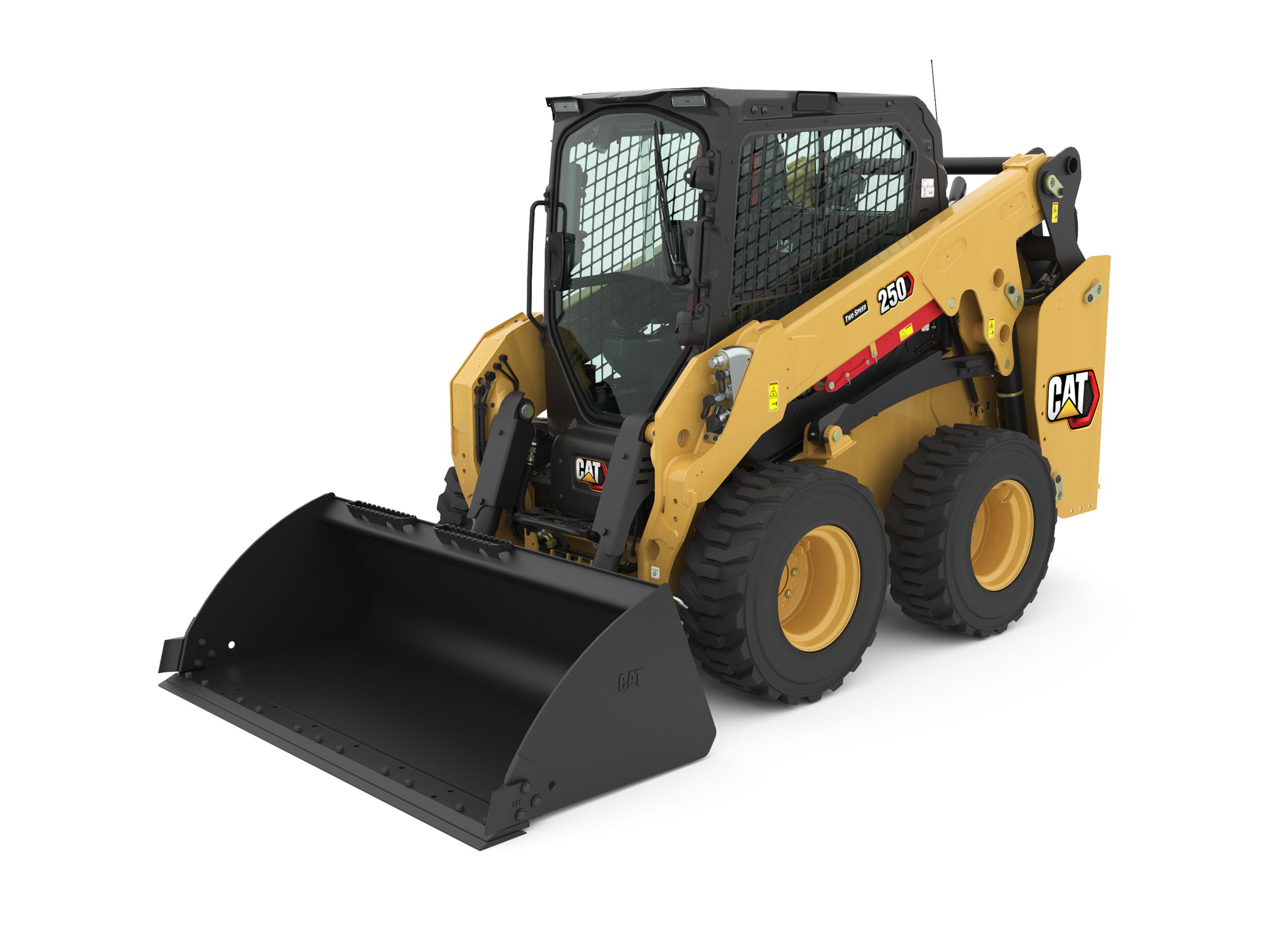

250 Skid Steer Loader
High Performance Power Train
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an electronic hand/foot throttle with decel pedal capability.
Redesigned Operator Station
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 250 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.
Ventilated and Heated High-Back Air Ride Seat
Available ventilated and heated high-back air ride seat and seat-mounted adjustable joystick controls deliver superior operator comfort.
Three Levels of Auxiliary Hydraulic Performance
Three levels of auxiliary hydraulic performance available, Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications.
Electronically Controlled Cat C2.8T Engine
Electronically controlled Cat C2.8T engine delivers maximum horsepower across a wide RPM range and provides high torque for increased working performance, no matter the application. The engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA standards.
Ride Control
Speed sensitive ride control option improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.
Advanced Touchscreen Monitor
The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.
Advanced Joysticks
The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.
Ground-Level Access
Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Cat Attachments
The broad range of performance matched Cat Attachments makes the Cat Skid Steer Loader the most versatile machine on the job site.
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 55 kW (74 hp) |
| Weights | |
|---|---|
| Operating Weight | 3551 kg (7829 lb) |
| Dimensions | |
|---|---|
| Wheel Base | 1094 mm (43.1 in) |
| Height - Top of Cab | 2080 mm (81.9 in) |
| Vehicle Width over Tires | 1677 mm (66 in) |
| Ground Clearance | 195 mm (7.7 in) |
| Departure Angle | 23u00b0 |
| Maximum Dump Angle | 46u00b0 |
| Maximum Overall Height | 3957 mm (155.8 in) |
| Bucket Pin Height - Maximum Lift | 3150 mm (124 in) |
| Clearance at Maximum Lift and Dump | 2443 mm (96.2 in) |
| Turning Radius from Center - Coupler | 1296 mm (51 in) |
| Bucket Pin Height - Carry Position | 200 mm (7.9 in) |
| Bucket Pin Reach - Maximum Lift | 75 mm (3 in) |
| Roll Back Angle | 28u00b0 |
| Maximum Reach - With Arms Parallel to Ground | 833 mm (32.8 in) |
| Length - Without Bucket | 2800 mm (110.2 in) |
| Length - With Bucket on Ground | 3430 mm (135 in) |
| Reach - Maximum Lift/Dump | 448 mm (17.6 in) |
| Rack Back Angle - Maximum Height | 97u00b0 |
| Turning Radius from Center - Bucket | 2024 mm (79.7 in) |
| Turning Radius from Center - Machine Rear | 1649 mm (64.9 in) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 u00d7 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Hydraulic System | |
|---|---|
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 28000 kPa (4061 psi) |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 113 L/min (30 gpm) |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 45.4 kW (70.7 hp) |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 86 L/min (23 gpm) |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 43 kW (58 hp) |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 34.6 kW (46.4 hp) |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 24130 kPa (3335 psi) |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow | 113 L/min (30 gpm) |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure | 24130 kPa (3500 psi) |
| Cab | |
|---|---|
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| FOPS Level II | ISO 3449:2005 (Optional) |
| Power Train | |
|---|---|
| Travel Speed - Forward or Reverse - Two Speed Option | 16.9 km/h (10.5 mile/h) |
| Travel Speed - Forward or Reverse - One Speed | 12.9 km/h (8 mile/h) |
| Service Refill Capacities | |
|---|---|
| Chain Box - Each Side | 8.3 l (2.2 gal (US)) |
| Cooling System | 11.5 l (3 gal (US)) |
| Engine Crankcase | 8 l (2.1 gal (US)) |
| Fuel Tank | 94.4 l (24.9 gal (US)) |
| Hydraulic System | 36.8 l (9.7 gal (US)) |
| Hydraulic Tank | 26 l (6.9 gal (US)) |
| Engine | |
|---|---|
| Net Power - SAE 1349 | 55 kW (73 hp) |
| Displacement | 2.8 l (171 inu00b3) |
| Stroke | 110 mm (4.3 in) |
| Bore | 90 mm (3.5 in) |
| Engine Model | Cat C2.8T (turbo) |
| Peak Torque - 1,600 rpm - SAE J1995 | 300 N·m (221 lb/ft) |
| Net Power - ISO 9249 | 55 kW (73 hp) |
| Note | Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. |
| Operating Specifications | |
|---|---|
| Rated Operating Capacity | 1220 kg (2689 lb) |
| Tipping Load | 2440 kg (5378 lb) |
| Breakout Force - Tilt Cylinder | 3077 kg (6784 lb) |
| Rated Operating Capacity with Optional Counterweight | 1325 kg (2916 lb) |
| Breakout Force - Lift Cylinder | 2698 kg (5948 lb) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 u00d7 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Air Conditioning System (if equipped) | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. |
| Noise Level | |
|---|---|
| Outside Cab** | 101 dB(A) |
| Note (3) | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Sustainability | |
|---|---|
| Recyclability | 94% |
| Noise Level | |
|---|---|
| Inside Cab* | 83 dB(A) |
| Note (2) | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Weights | |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 u00d7 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
Standard Equipment
- ELECTRICAL
- Work Tool Electrical Harness
- Heavy duty battery
- 12-volt Electrical System
- 85 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting
- Automatic Work light notification flash when parking brake is released
- OPERATOR ENVIRONMENT
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
- HYDRAULICS
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever
- Hydraulic oil level sight gauge
- POWER TRAIN
- Cat C2.8T turbocharged diesel engine, meeting Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA
- Glow plugs starting aid
- Liquid cooled, direct injection
- Extended life antifreeze (–37°C, –34°F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
- Radiator coolant level sight gauge Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
- OTHER
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuard™ hose
- MANDATORY EQUIPMENT
- Auxiliary Hydraulics: Standard or High Flow XPS
- Quick Coupler: Mechanical or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Tires: 10 x 16.5 or 12 x 16.5
- Axles: Standard or Special Application
- PERFORMANCE PACKAGES
- Performance Package HP1: Standard Flow Hydraulics
- Performance Package HP3: High Flow XPS Hydraulics
- COMFORT PACKAGES
- Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl seat (Mechanical Suspension, High Back/Heated/Air Ride Seat
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
- TECHNOLOGY PACKAGES
- T2 – Standard 12.7 cm (5 in) LCD Monitor, Standard Joysticks and Rear-view camera.
- T4 – 20.3 cm (8 in) Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
- RADIO
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
- PRODUCT LINK™
- Product Link Basic series PL243
- Product Link Elite series PLE643
- COOLING FAN
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
- GUARDING AND SEALING PACKAGES
- HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
- HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
- HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region
Optional Equipment
- OPTIONAL EQUIPMENT
- External Counterweights
- Beacon, LED
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- 4-point machine lifting eyes
- Paint, Custom
- Speed Sensitive Ride Control
- Bluetooth Key Security
- Attachment Hose Guide
- Corrosion Inhibitor Coating
