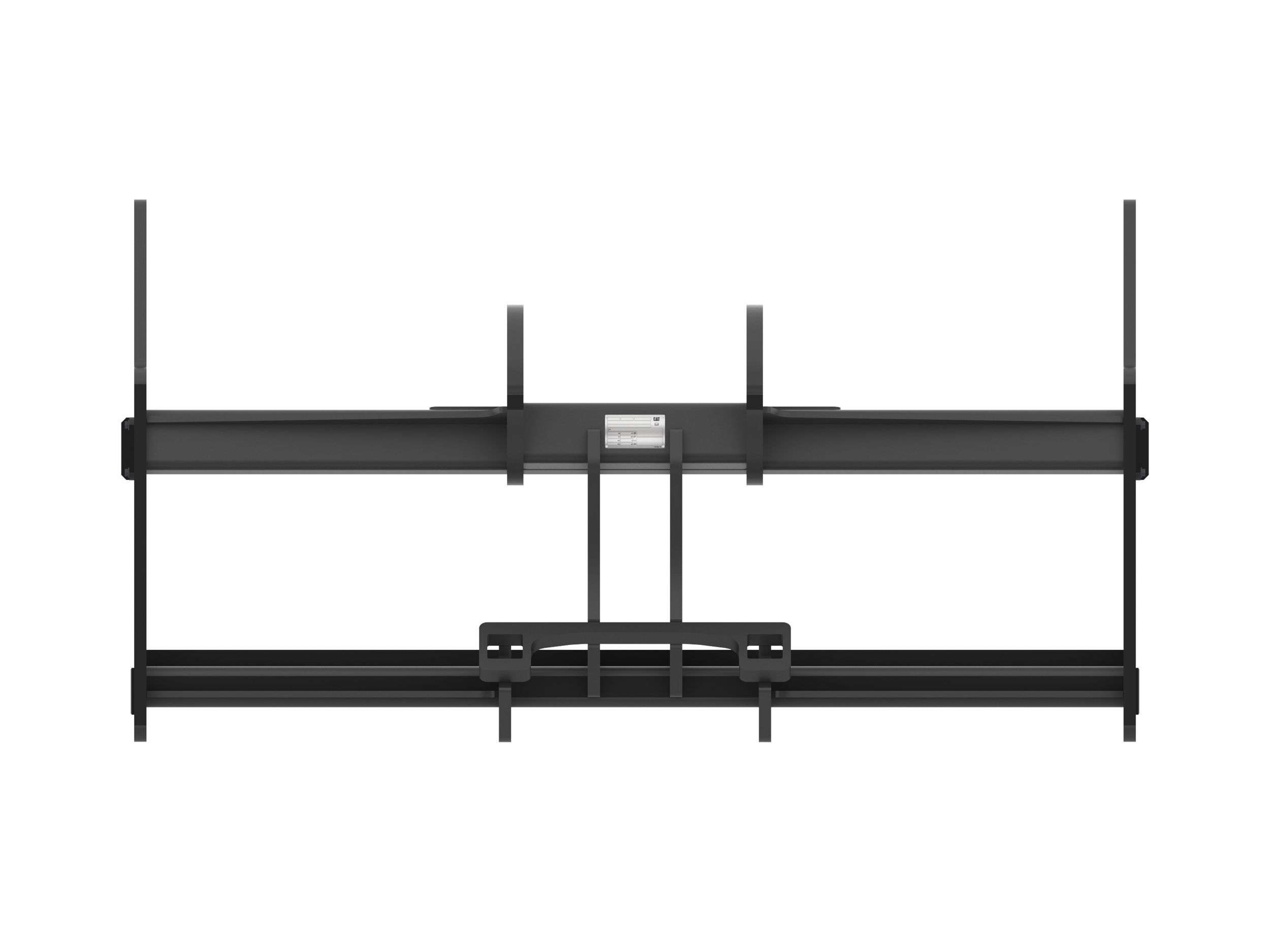

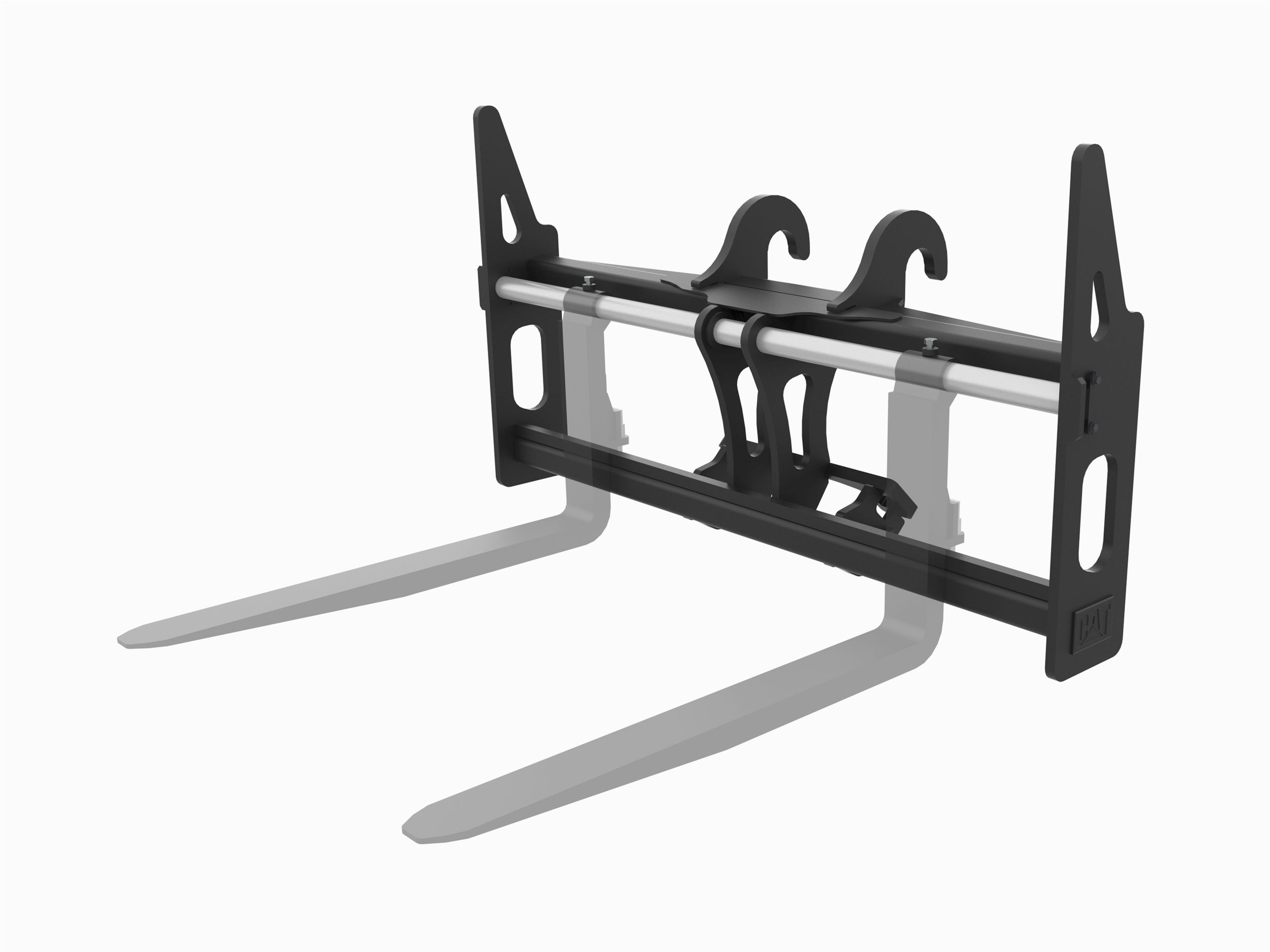

2498 mm (98 in) Construction Fork Carriage
Robust Design and High Backs
The robust design provides durability as well as exceptional visibility. The high backs prevent material from shifting towards the machine.
Swinging Forks Capability
In some operations, swinging forks helps to pick materials out of the ground. This carriage offers this option by just changing the configuration of the retention plate located on the forks.
Adjustable Fork Positions
Adjust the fork position a total of 855 mm (33.7 in) from one side to the other with increments of 55 mm (2.2 in) and lock them to prevent non-expected movements.
Quick Change Fork Tines
By removing two bolts on either side of the carriage, the fork tines can be easily changed to different sizes as needed.
| Product Specifications | |
|---|---|
| Height | 1320 mm (52 in) |
| Width | 2498 mm (98 in) |
| Tine Spacing | 380-2225 mm (15-87.6 in) centerline to centerline |
| Weight | 639 kg (1408.8 lb) |
| Length | 633 mm (24.9 in) |
| Interface Type | Fusion™ Coupler |
