Enquire about "2204 mm (86 in) Root Rake" Now

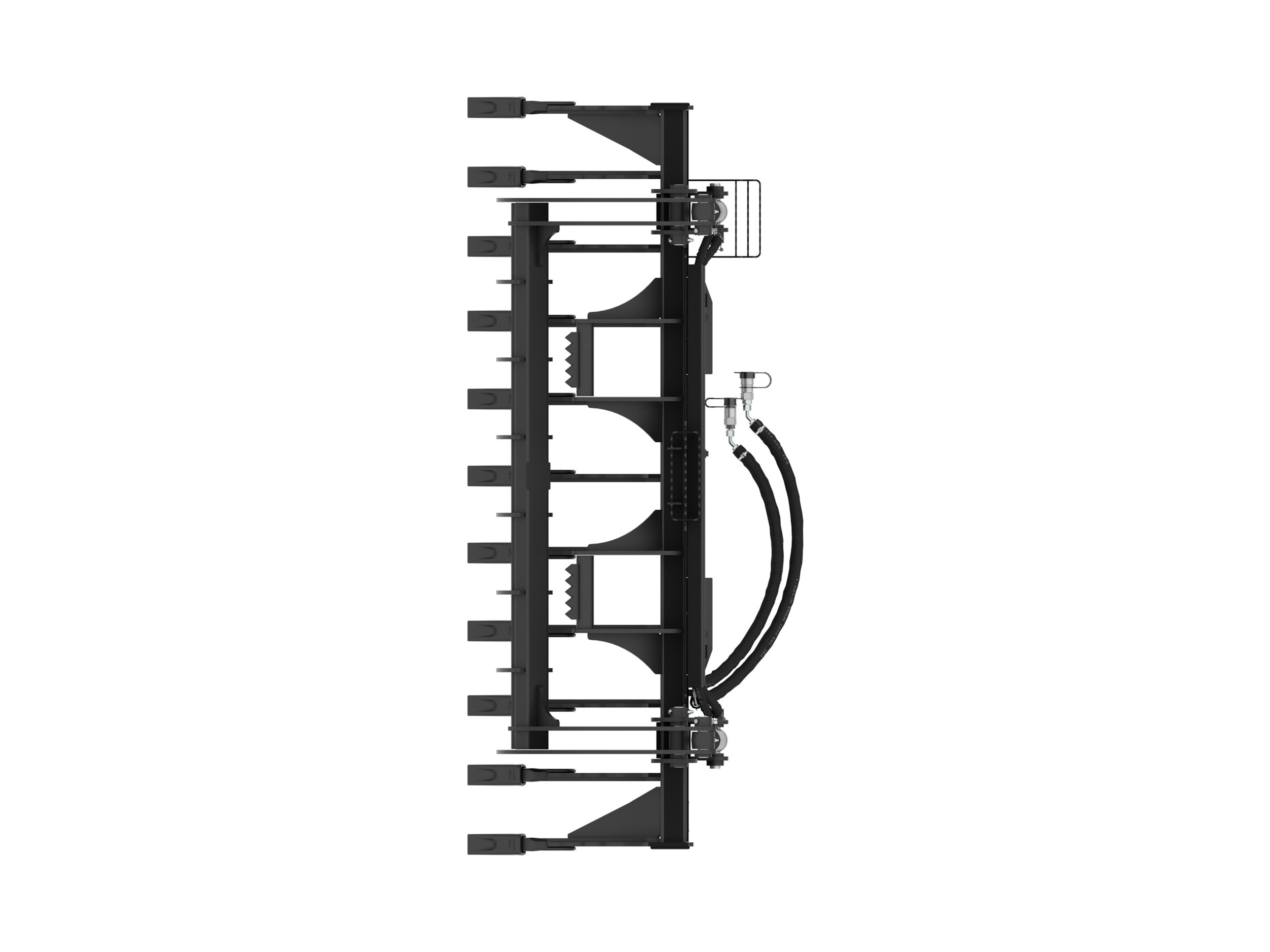

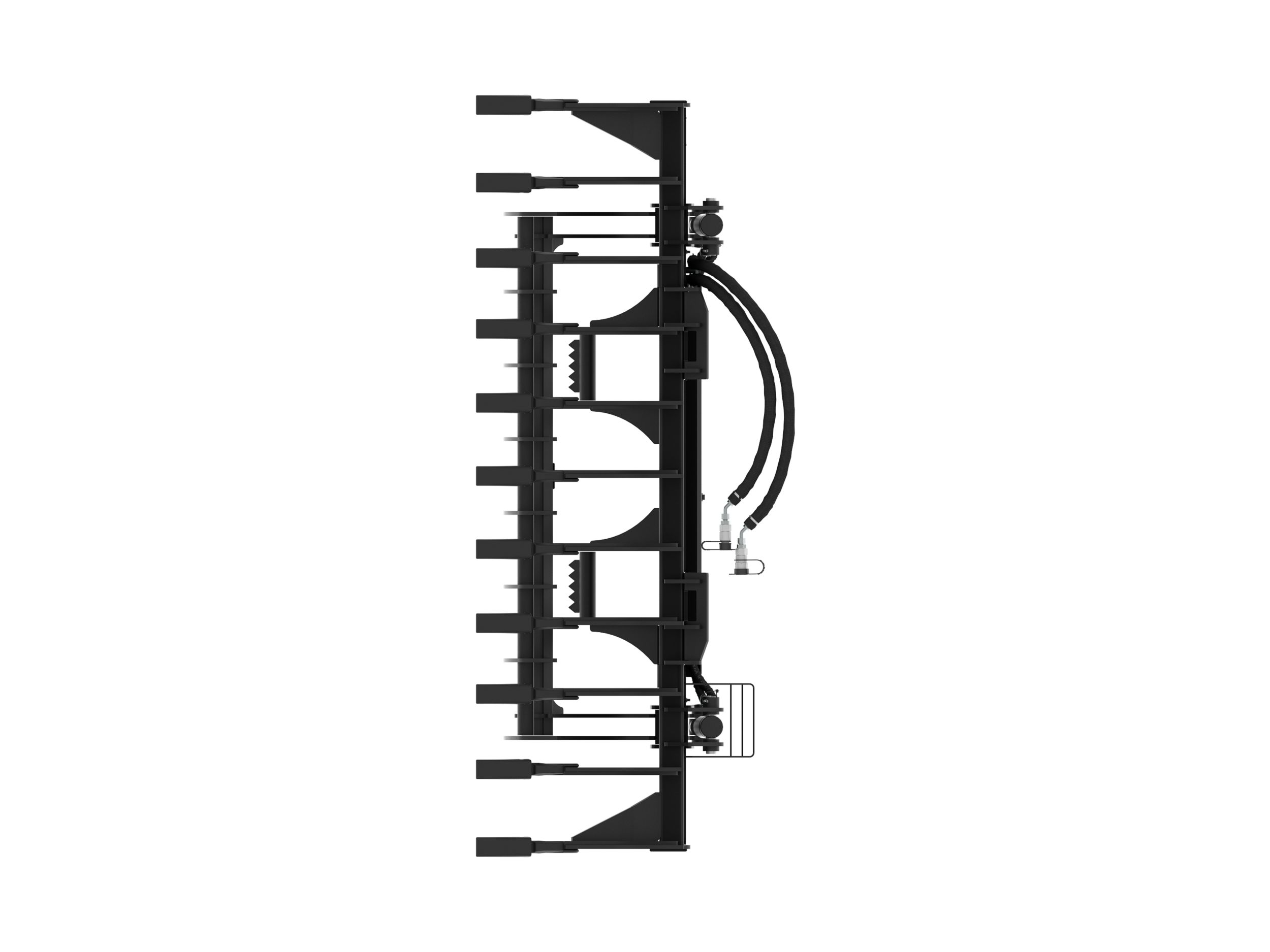

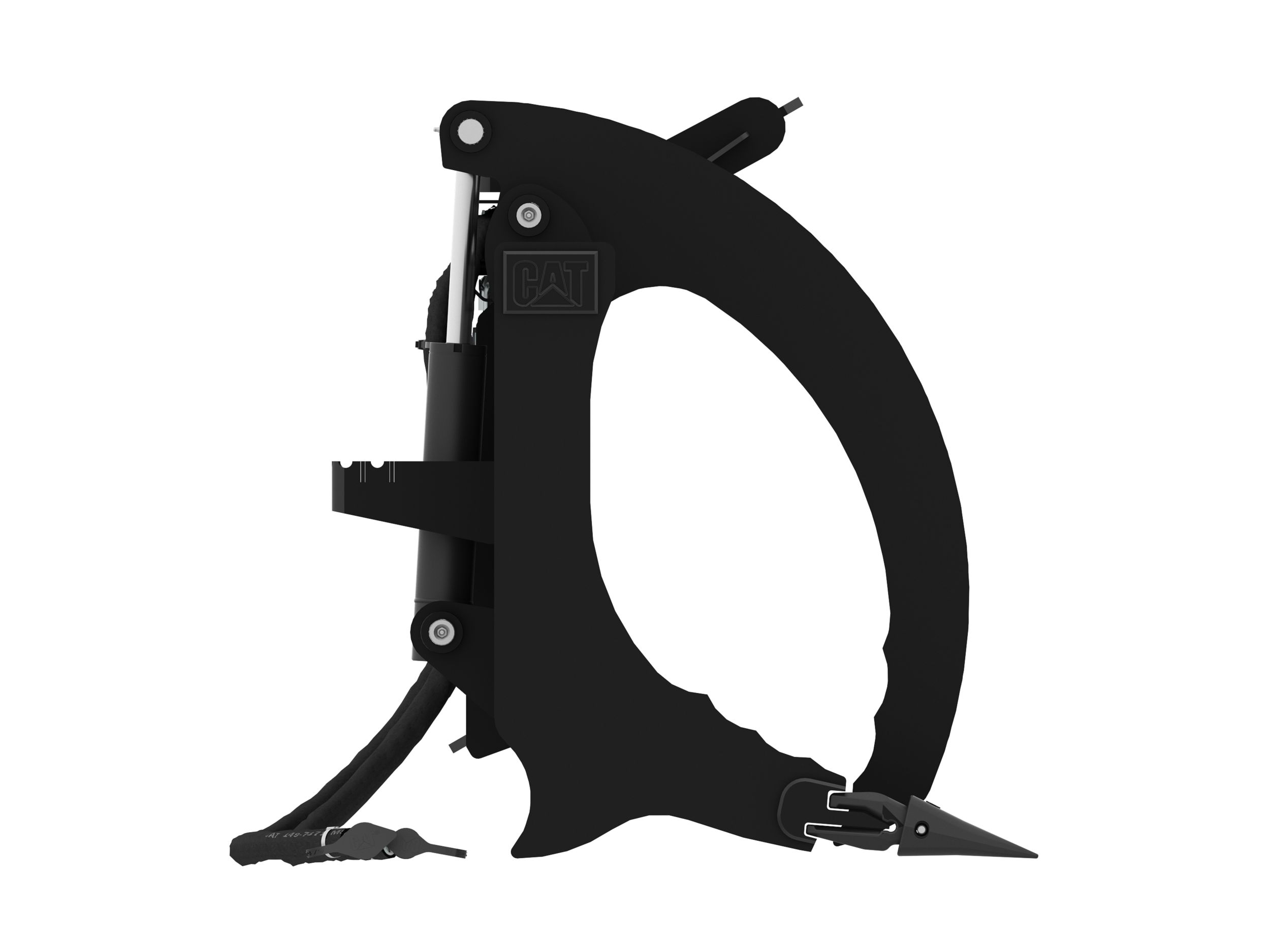

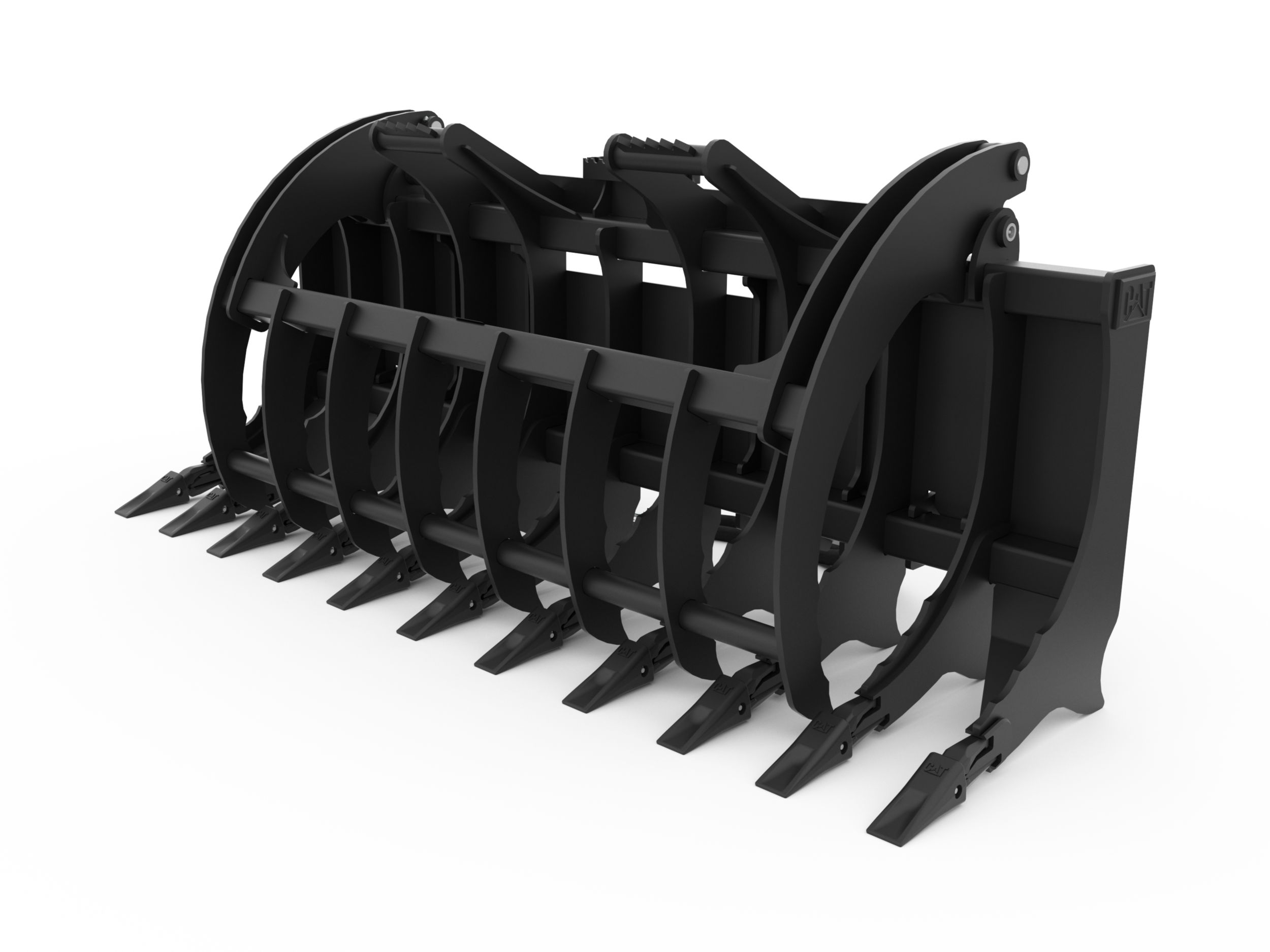

2204 mm (86 in) Root Rake
Serrated Grapples and Tines
Serrations on the grapple and the tines help to ensure retention of larger objects and debris.
Push Bars
Heavy duty serrated push bars can be used to tip or push debris.
Hose Guarding
Hose sleeves and guarding help to protect the hoses from damage.
Built in Scarifier
Allows the rake to be used to scarify in a reverse direction. Also provides for a stable base when the tool is being stored.
Hardened Grapple Tips
Robust grapple tips are hardened to be more durable and allow for better performance.
Large Grapple Opening
Large grapple opening allows the ability to secure a wide range of debris.
Replaceable Teeth
Replaceable J200 style teeth help to prolong the life of the tool and provide better performance.
Serrated Steps
Serrated steps provide the operator with a safer ingress and egress from the machine.
| Product Specifications | |
|---|---|
| Width | 2204 mm (86 in) |
| Weight | 503 kg (1108.9 lb) |
| Overall Height | 920 mm (36.2 in) |
| Overall Length | 853 mm (33.6 in) |
| Tine Spacing | 212 mm (8.3 in) |
| Tine Thickness | 12 mm (0.5 in) |
| Number of Tines | 11 |
| Interface Type | Skid Steer Coupler |
| Top Clamp Width | 1618 mm (63.7 in) |
| Required Hydraulics | Standard Flow w/o Electrical |
| Maximum Clamp Opening | 1297 mm (51.1 in) |
| Minimum Clamp Opening | 335 mm (13.2 in) |
