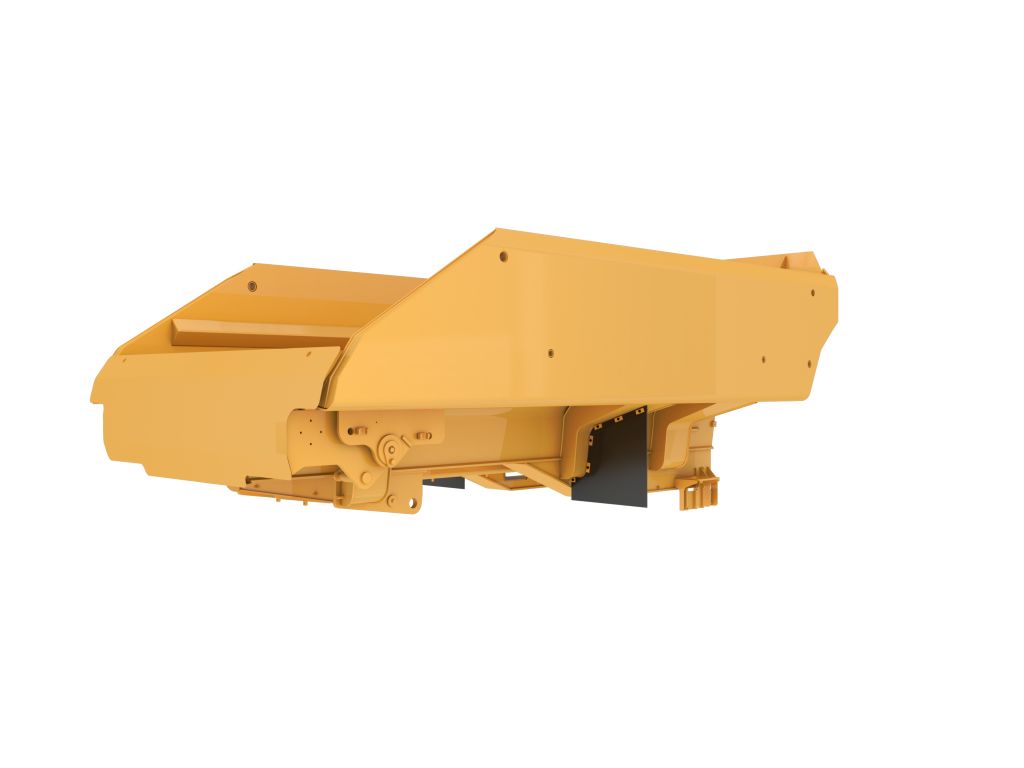

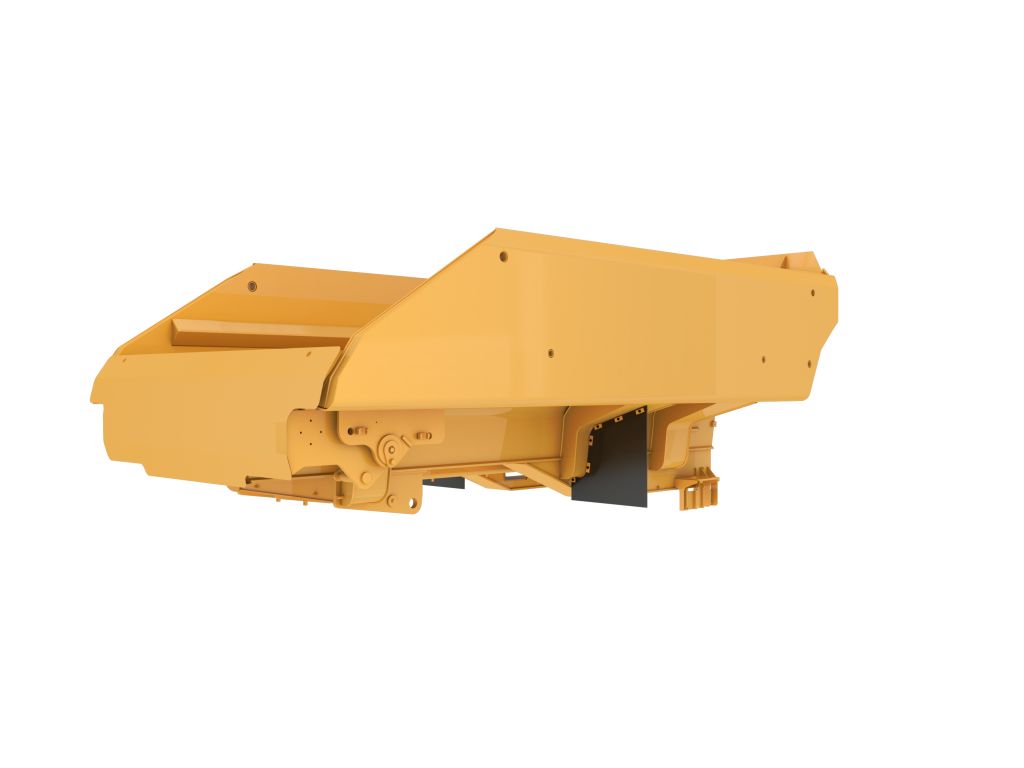

22.9m3 (29.9yds3) for AD45
- The Cat underground truck bodies have the same strength and toughness you would expect of any Cat product.
- Body materials, design and fabrication are specially made for the demanding underground environment and abrasive materials to be moved.
- Cat truck bodies are ideally sized and designed to work as part of a complete hauling system, helping you achieve high productivity and the lowest cost per ton.
- The Cat ejector bodies are designed to be able to discharge the full load without having to raise the body, therefore ideally for operations in areas with limited overhead clearance.
- The optional Truck Payload Management System (TPMS) calculates the payload the truck is carrying and determines truck cycle times.
- Cat branded bodies are built in the same factory as our machines and go through the same strict quality controls.
- Best suit Cat machine balance, support better machine performance.
- Multiple offerings to suit your unique mining application.
- Cat truck bodies are supported by Cat Global dealer network.
| Product Specifications | |
|---|---|
| Part Number | 568-7265 (Intl) / 568-7266 (US) |
| Machine Model | AD45 |
| Payload Capacity | 40000 kg (88185 lb) |
| Body Capacity | 22.9 mu00b3 (29.9 ydu00b3) |
| Base Body Width | 3200 mm (126 in) |
| Truck Height u2013 Top of Empty Body | 3464 mm (136.4 in) |
| Truck Height u2013 Body Loading | 3177 mm (125.1 in) |
| Truck Height u2013 Dump Clearance* | 961 mm (37.8 in) |
| Truck Length u2013 Overall Body Down | 11325 mm (445.9 in) |
| Truck Width u2013 Machine with Body | 3200 mm (126 in) |
| Truck Width u2013 Machine without Body | 3020 mm (118.9 in) |
| Liner Options | Body liners, impact and/or wear; Body Wear Plate, external |
| Note | *Measurement taken with tailgate down for ejector body. |
