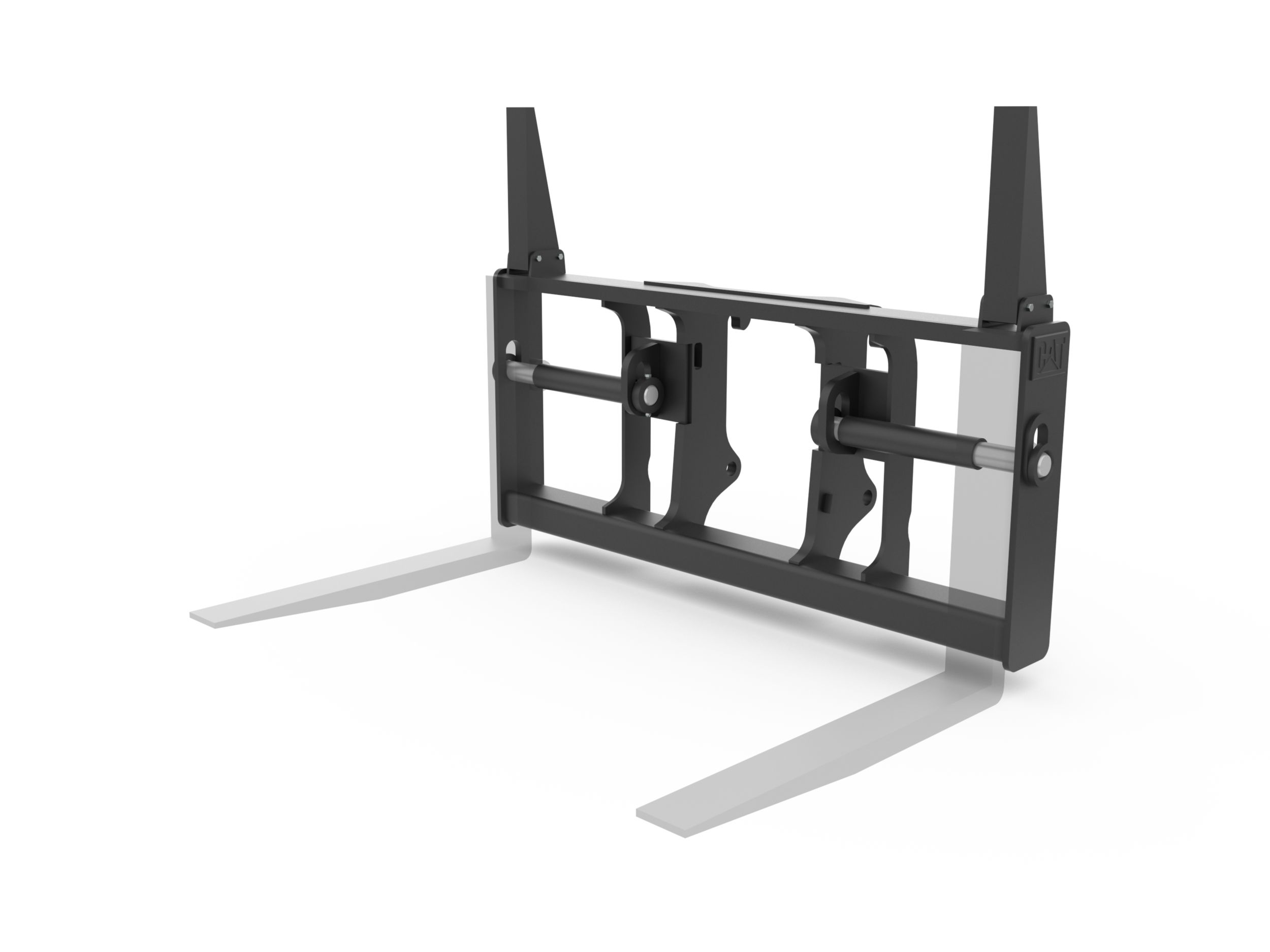

2134 mm (84 in) IT Coupler Log and Lumber Fork Carriage
Bolt On High Backs
High backs are useful to support the load when the carriage is fully racked back. Important feature to have when loading high volume pallets or irregular loads. Easy to service by removing four bolts.
Reinforced Structure
Gussets and plates specially positioned to ensure reinforced structure and long life to the carriage.
Floating Tines
Floating tines are a great solution to load and carry irregular materials having the ability to move fork tines up and down at the same carriage level. Also, they are helpful to reduce the offset between the tines heel and the bottom of the carriage.
Heavy Duty Frame
Heavy duty design with strategically located gussets, cross members and reinforced frame elements allows this fork to work longer on heavy applications.
| Product Specifications | |
|---|---|
| Interface Type | IT Coupler |
| Tine Configuration | Floating, Swinging |
| Height | 1505 mm (59.3 in) |
| Weight | 867 kg (1911.4 lb) |
| Width | 2196 mm (86.5 in) |
| Length | 469 mm (18.5 in) |
| Tine Spacing | 848-2094 mm (33-82 in) |
