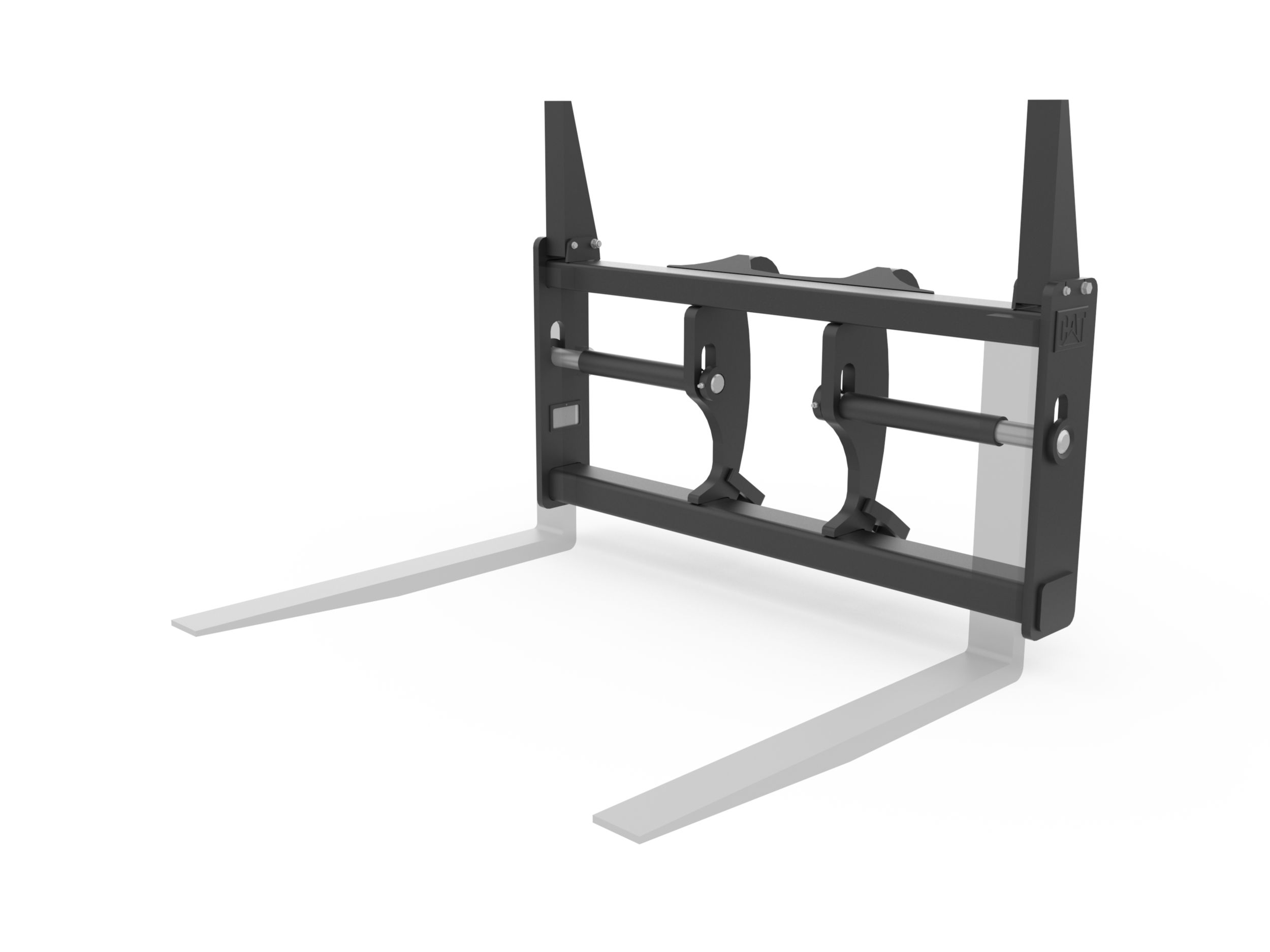

2134 mm (84 in) Fusion™ Coupler Log and Lumber Fork Carriage
Application
Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Risers / Log Guards
Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.
Wider Carriages
Wider carriages increase stability when handling longer poles/loads.
Wider Tine Widths
Wider tine widths provide a larger surface area for stability when transporting larger materials.
Floating / Non-floating Tine Configuration
Easily interchange floating and non floating tine configurations by adding/removing a single bolt.
| Product Specifications | |
|---|---|
| Interface Type | Fusion™ Coupler |
| Tine Configuration | Non-Swinging, Floating |
| Height | 1520 mm (59.8 in) |
| Weight | 563 kg (1241.2 lb) |
| Width | 2174 mm (85.6 in) |
| Length | 485 mm (19.1 in) |
| Tine Spacing | 942-2074 mm (37-82 in) |
