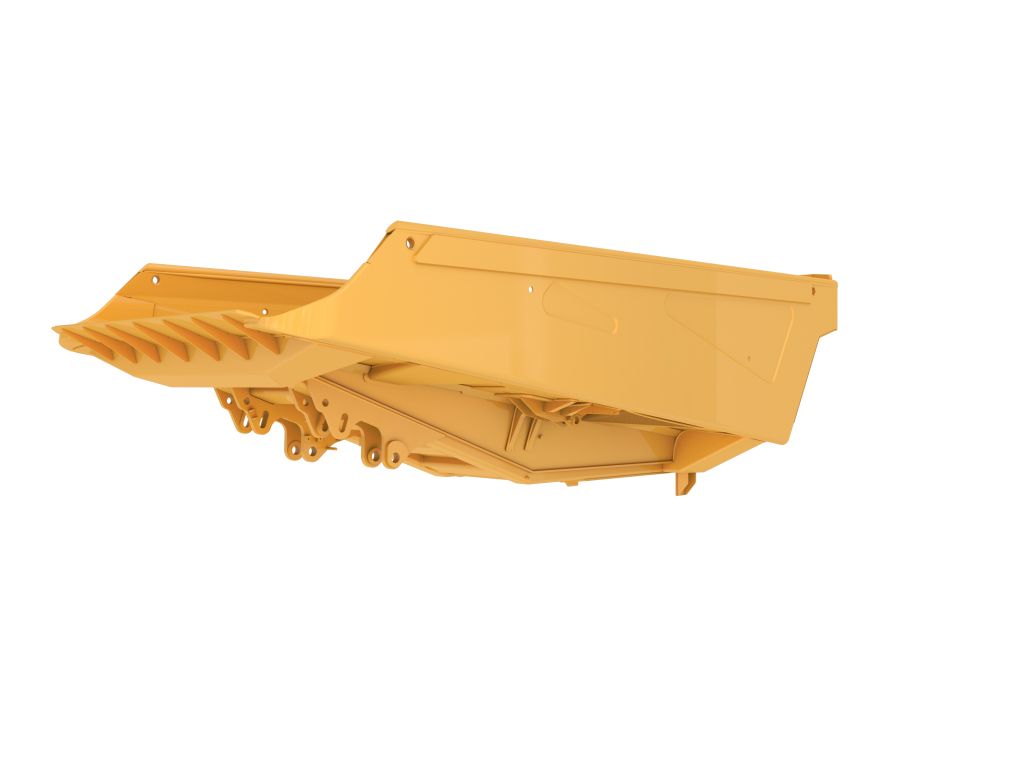

Enquire about "21.3m3 (27.9yds3) for AD45" Now
- Cat underground truck bodies have the same strength and toughness you would expect of any Cat product.
- Body materials, design and fabrication are specially made for the demanding underground environment and abrasive materials to be moved.
- Cat truck bodies are ideally sized and designed to work as part of a complete hauling system, helping you achieve high productivity and the lowest cost per ton.
- Two-stage hoist cylinders
provide fast dump cycle times of 14 seconds for raise and 21 seconds for lower with snubbing function enabled to protect the frame and components at the end of the lowering cycle. - The optional Truck Payload Management System (TPMS) allows a mining operation to manage payloads and ensure that trucks are not under
- or overloaded. A simple display in the cab gives operators accurate payload information, allowing
them to help make sure their trucks are getting the correct amount of
material every time.
- Cat branded bodies are built in the same factory as our machines and go through the same strict quality controls.
- Best suit Cat machine balance, support better machine performance.
- Multiple offerings to suit your unique mining application.
- Cat truck bodies are supported by Cat Global dealer network.
| Product Specifications | |
|---|---|
| Part Number | 568-7256 |
| Machine Model | AD45 |
| Payload Capacity | 45000 kg (99208 lb) |
| Body Capacity | 21.3 mu00b3 (27.9 ydu00b3) |
| Base Body Height | 2925 mm (115.2 in) |
| Base Body Width | 3000 mm (118.1 in) |
| Truck Height u2013 Top of Empty Body | 2830 mm (111.4 in) |
| Truck Height u2013 Body Loading | 2924 mm (115.1 in) |
| Truck Height u2013 Top of Raised Body | 6361 mm (250.4 in) |
| Truck Height u2013 Dump Clearance | 659 mm (25.9 in) |
| Truck Length u2013 Overall Body Down | 11196 mm (440.8 in) |
| Truck Width u2013 Machine with Body | 3020 mm (118.9 in) |
| Truck Width u2013 Machine without Body | 3020 mm (118.9 in) |
| Liner Options | Body liners, impact and/or wear; Body Wear Plate, external |
