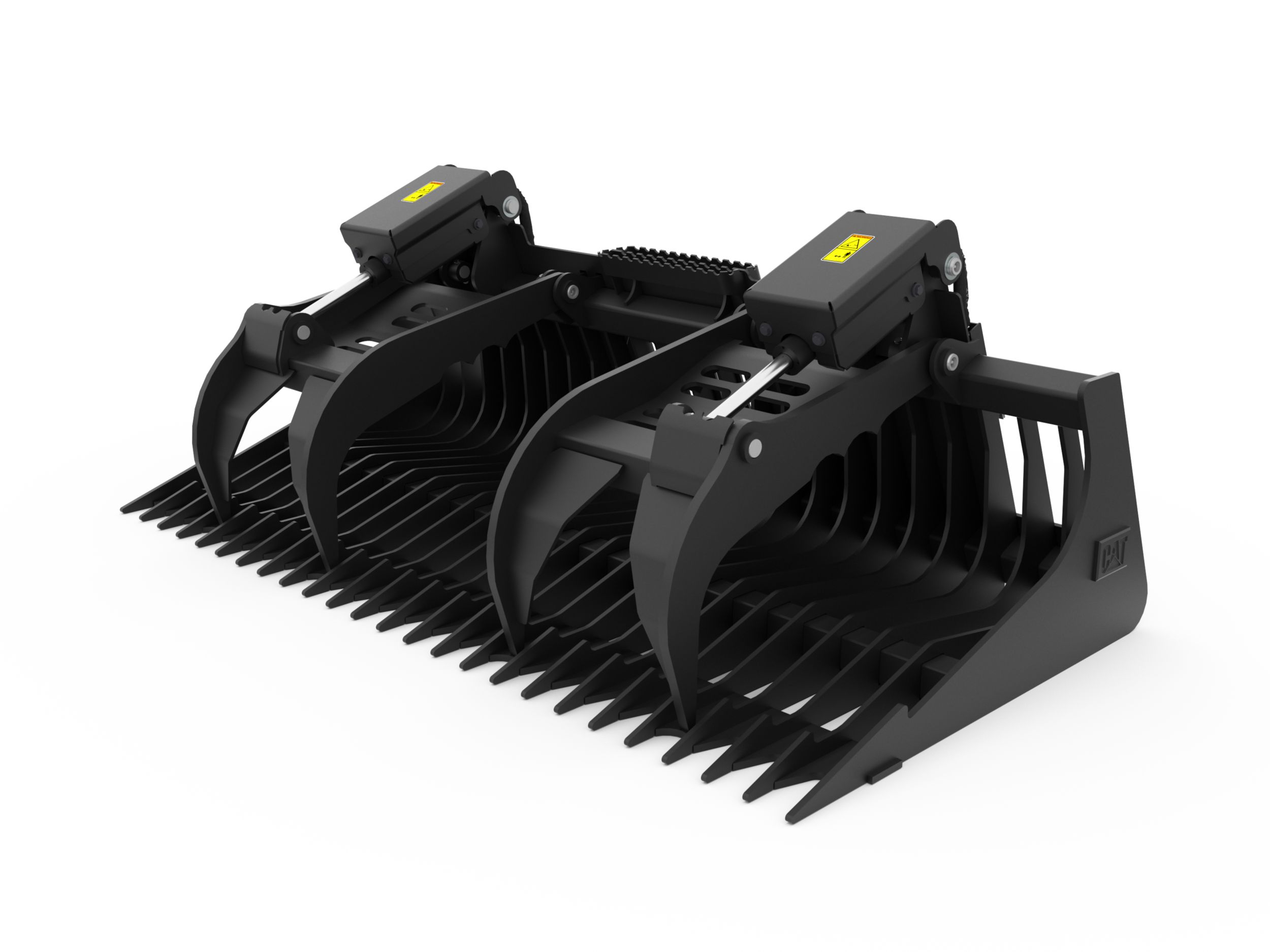

2036 mm (80 in) Plate Tine Style Skeleton Grapple Bucket
Application
These buckets are ideal for sifting rock, limbs, and other unwanted debris for the worksite. The spacing between tines allows clean material to sift through, leaving a more immaculate finish. The addition of the grapples enables the ability to secure a variety of larger items.
Serrated Grapples
Helps to ensure retention of larger objects.
Cylinder and Tube Guarding
Heavy duty guarding over the hydraulic cylinders, hoses, and tubes for better protection.
Abrasion Resistant Hose Guarding
Added abrasion protection on exposed hoses for longer life.
Visibility
Optimized tine spacing provides best working visibility across the tool. Visibility slots on the rear of the bucket also helps to increase the operators view of the working area of the clamps.
Hardened Grapple Tips
More robust and durable grapple tips for better performance and longer life.
Large Grapple Openings
Provides the ability to secure a wide range of objects of various sizes.
Hooked Tines
The hooked tines help retain the material and keep it from rolling out.
| Product Specifications | |
|---|---|
| Width | 2036 mm (80.2 in) |
| Weight | 566 kg (1247.8 lb) |
| Overall Height | 776 mm (30.6 in) |
| Overall Length | 1115 mm (43.9 in) |
| Sidewall Thickness | 12 mm (0.5 in) |
| Tine Spacing | 73 mm (2.9 in) |
| Tine Thickness | 10 mm (0.4 in) |
| Number of Tines | 25 |
| Interface Type | Skid Steer Coupler |
| Required Hydraulics | Standard Flow w/o Electrical |
| Jaw Opening | 976 mm (38.4 in) |
