Flat Floor Buckets - Performance Series

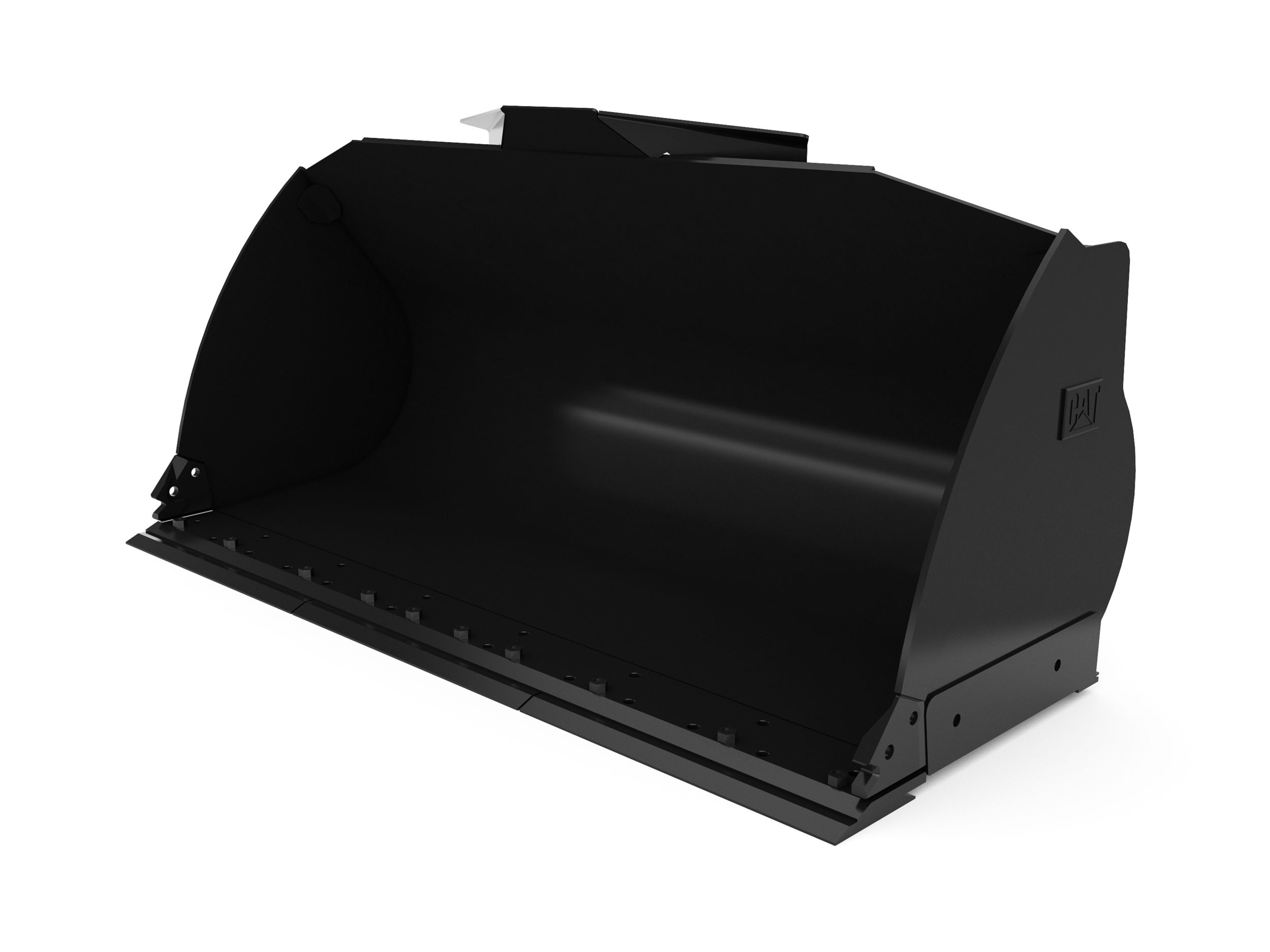

2.5 m3 (3.2 yd3) HPL-ISO Coupler Flat Floor Bucket – Performance Series With Bolt-On Cutting Edge
Application
Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Rugged Design
Additional wear plates on bottom surface of bucket improves bucket life in coarse aggregate applications.
Performance Series Technology
Performance Series Technology
- Innovations in bucket design that improve load-ability of buckets, increasing productivity and decreasing fuel costs.
Maximum Machine Usage
Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.
| Product Specifications | |
|---|---|
| Width | 2727 mm (107.4 in) |
| Height | 1358 mm (53.5 in) |
| Weight | 1153 kg (2541.9 lb) |
| Length | 1331 mm (52.4 in) |
| Capacity | 2.5 mu00b3 (3.2 ydu00b3) |
| Base Edge Thickness | 25 mm (1 in) |
| Cutting Edge Thickness | 25 mm (1 in) |
| Interface Type | HPL-ISO Coupler |
