Enquire about "1883 mm (74 in), 0.37 m3 (0.5 yd3) Low Profile Bucket With Bolt-On Cutting Edge" Now

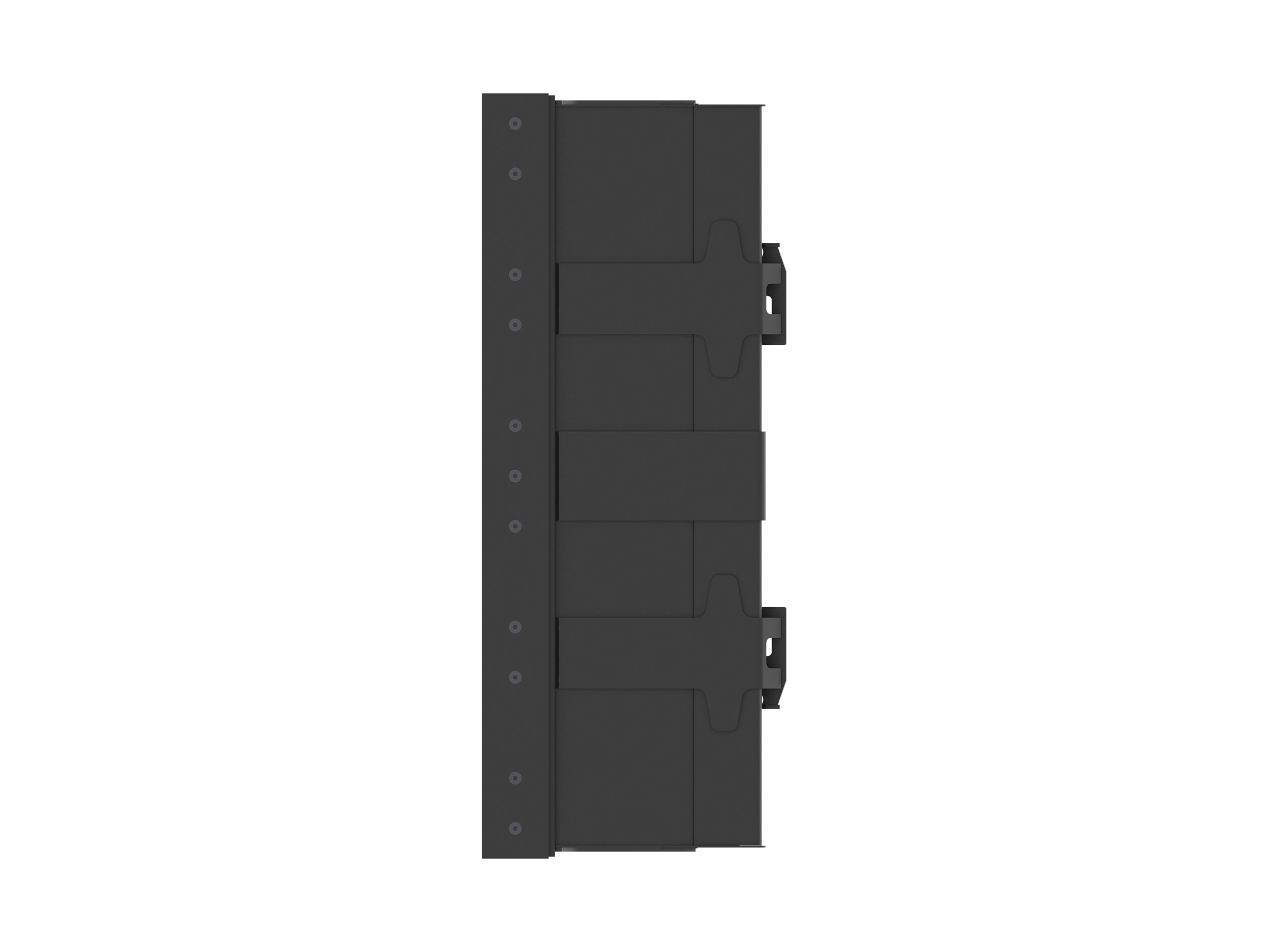

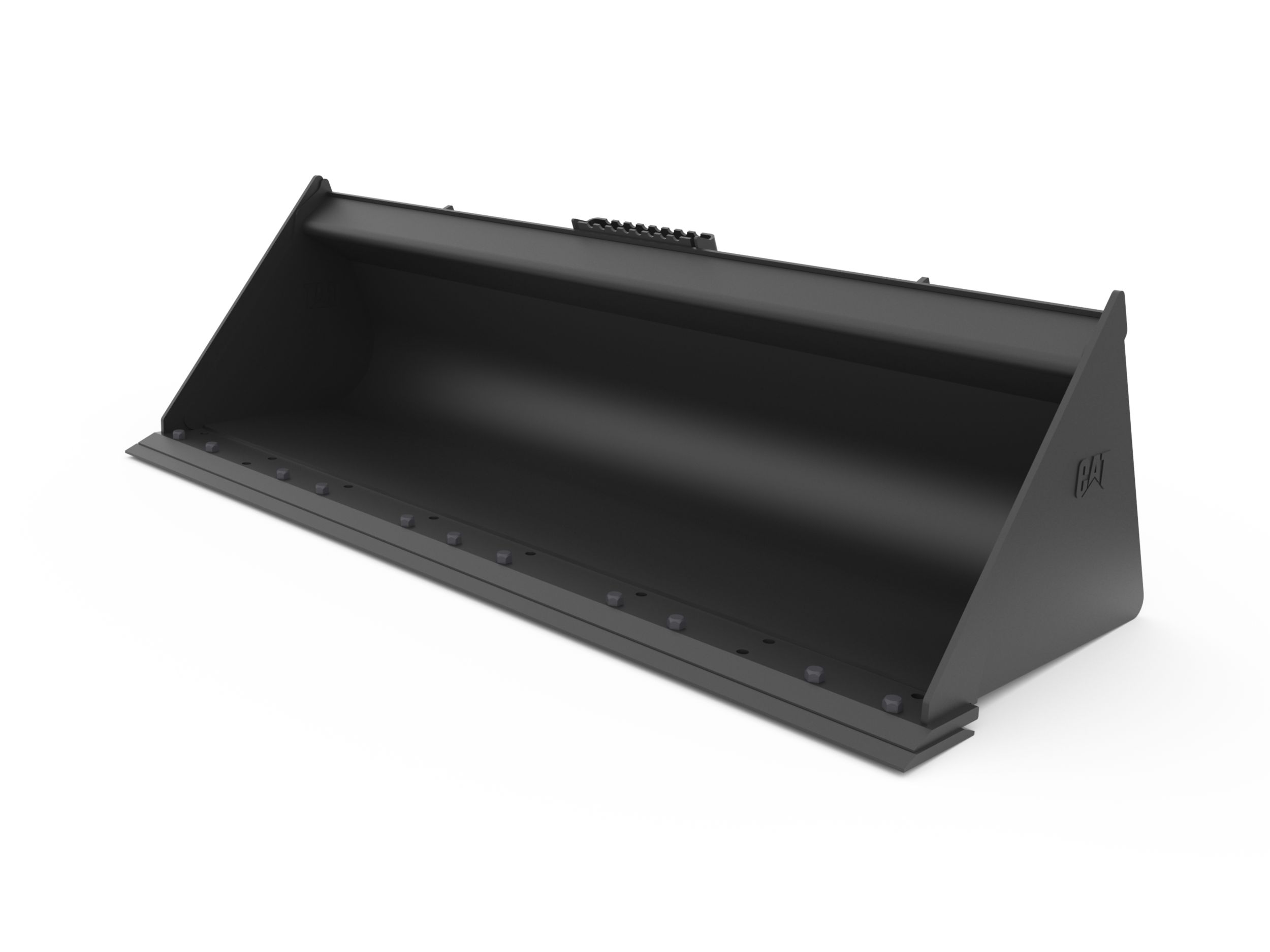

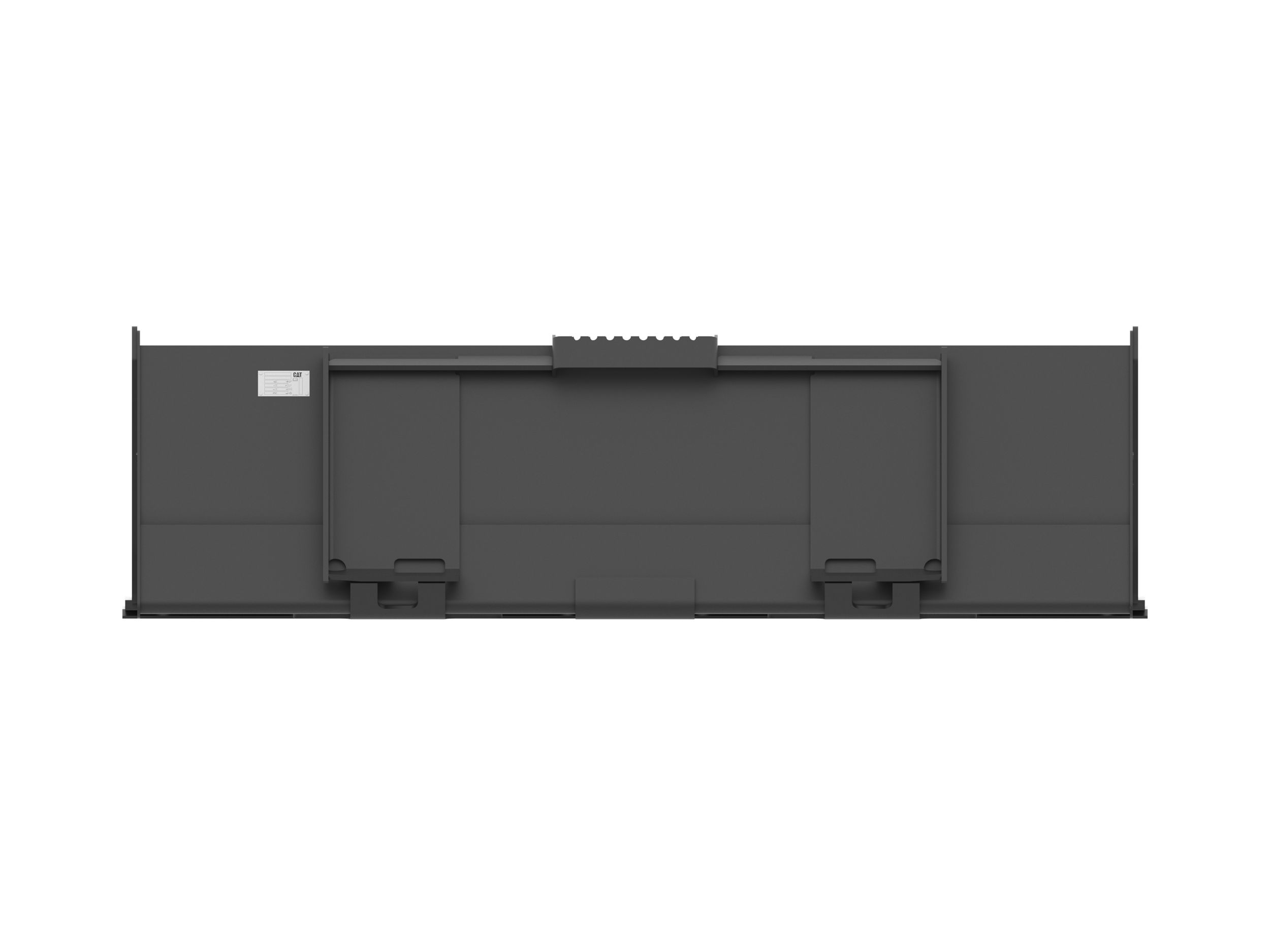

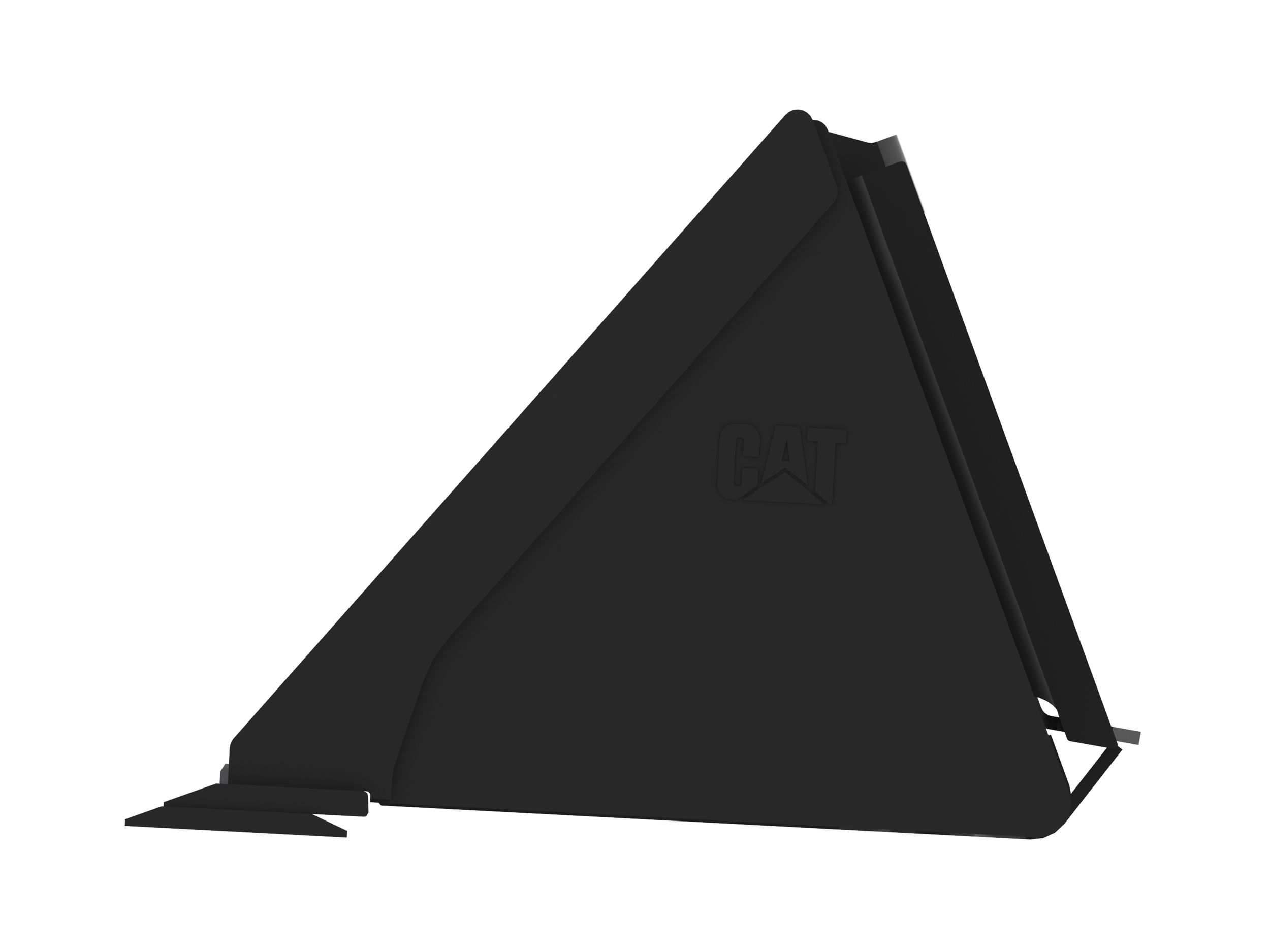

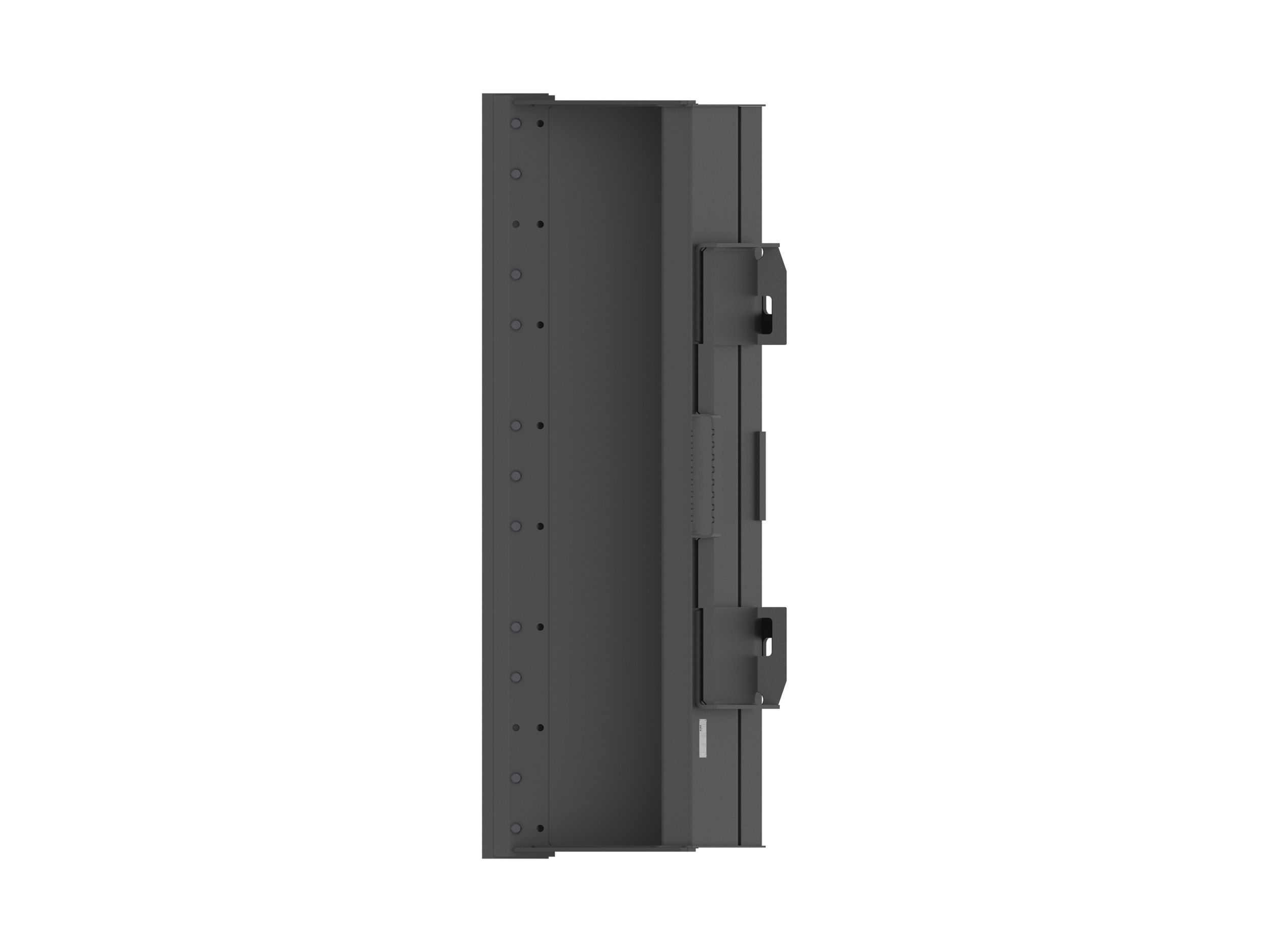

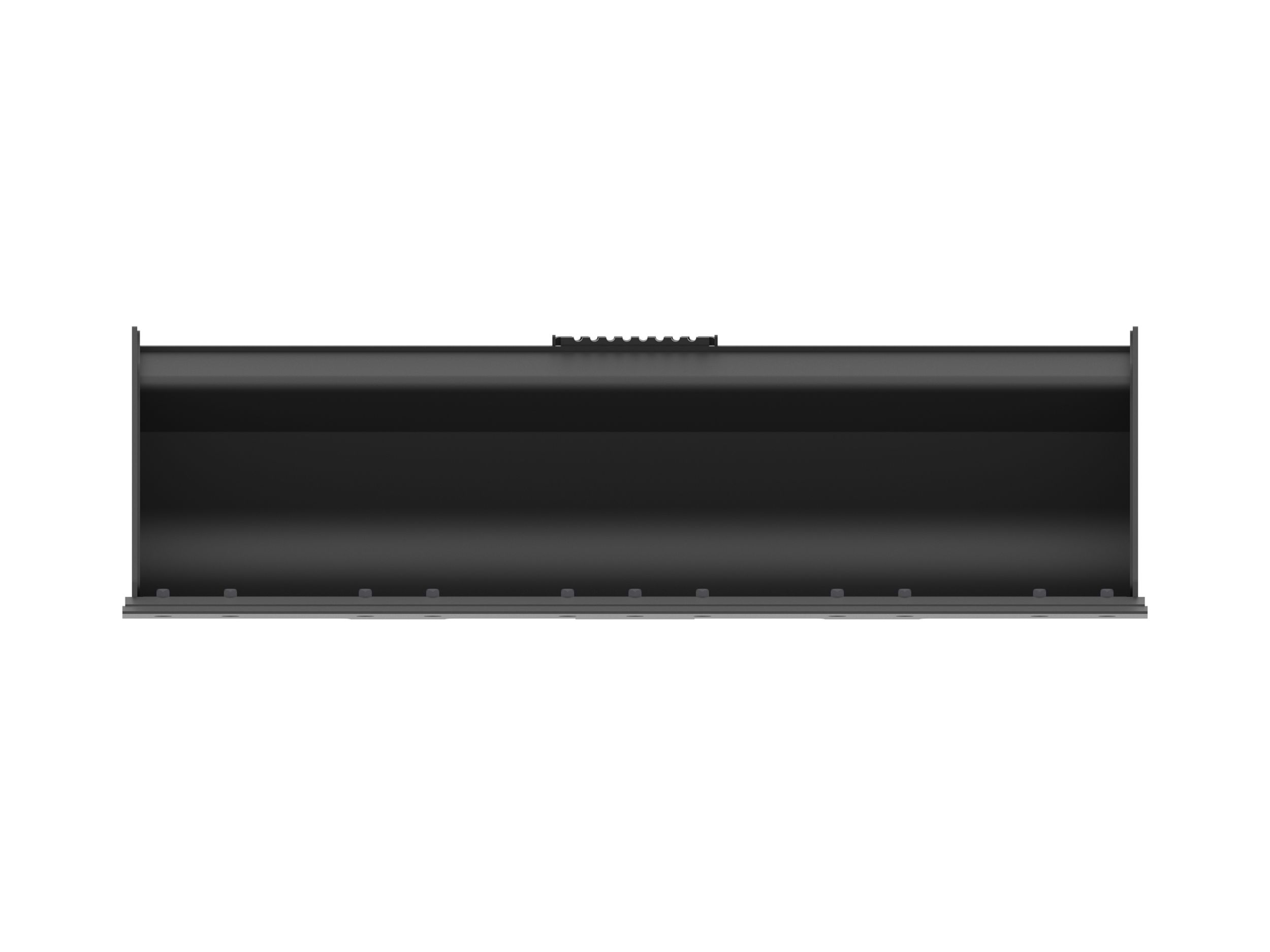

1883 mm (74 in), 0.37 m3 (0.5 yd3) Low Profile Bucket With Bolt-On Cutting Edge
Application
Recommended for applications with tight areas where a narrower, lower capacity bucket is required, such as construction and landscaping. The low profile dirt bucket is designed to provide superior productivity, high reliability and long life in a variety of materials and handling conditions.
Hardened Steel Edges
Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
Full Length Skid Bars
Full length skid bars provide additional floor rigidity and wear resistance.
Reinforced Structure
Gussets and plates specially positioned to provide for a reinforced structure and increased bucket longevity.
Standard Cutting Edge
Standard bolt-on cutting edge ensures a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.
Serrated Safety Step
Serrated step provides safe access in and out of cab for operator’s safety.
| Product Specifications | |
|---|---|
| Width | 1883 mm (74 in) |
| Capacity | 0.37 mu00b3 (0.5 ydu00b3) |
| Weight | 231 kg (509.3 lb) |
| Height | 557 mm (21.9 in) |
| Length | 749 mm (29.5 in) |
| Base Edge Thickness | 19 mm (0.7 in) |
| Cutting Edge Thickness | 16 mm (0.6 in) |
