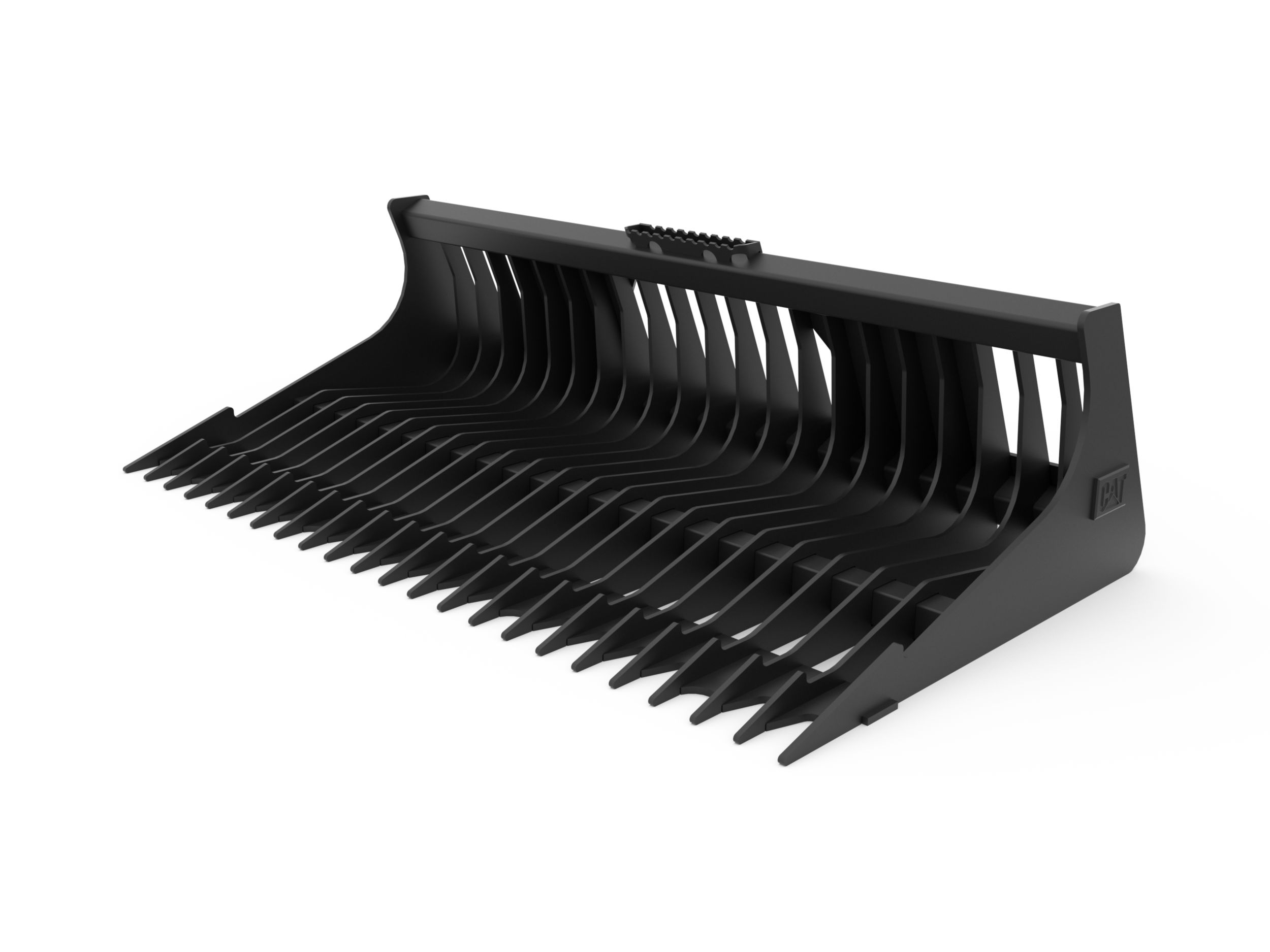

1869 mm (74 in) Plate Tine Style Skeleton Bucket
Application
Designed for screening debris from finer materials such as sand and loose soil, and for reclaiming rock and landscaping materials buried by sediment. Cat® Skeleton buckets are for use on both Cat Skid Steer Loaders and Compact Track Loaders.
Plate Tine Style Bucket
Plate tines are 10 mm (0.4 in) in thickness with fishhook style tine points for better soil penetration to remove roots and reclaim construction material left on the jobsite.
Rock Dam
Rock dam improves material retention, reduces spillage and increases productivity.
Serrated Step
Serrated step ensures operator stability for entering and exiting the cab.
Wide Tine Spacing
Wide tine spacing allows for quicker screening and greater material separation.
Reinforced Structure
Reinforced designed structure with three crossmembers provides greater bucket strength and longevity.
Visibility
Open back allows a better visibility to the bucket for the operator.
| Product Specifications | |
|---|---|
| Width | 1869 mm (74 in) |
| Weight | 347.9 kg (767 lb) |
| Height | 544 mm (21.4 in) |
| Length | 1115 mm (43.9 in) |
| Sidewall Thickness | 12 mm (0.5 in) |
| Tine Spacing | 73 mm (2.9 in) |
| Tine Thickness | 10 mm (0.4 in) |
| Number of Tines | 21 |
| Interface Type | Skid Steer Coupler |
