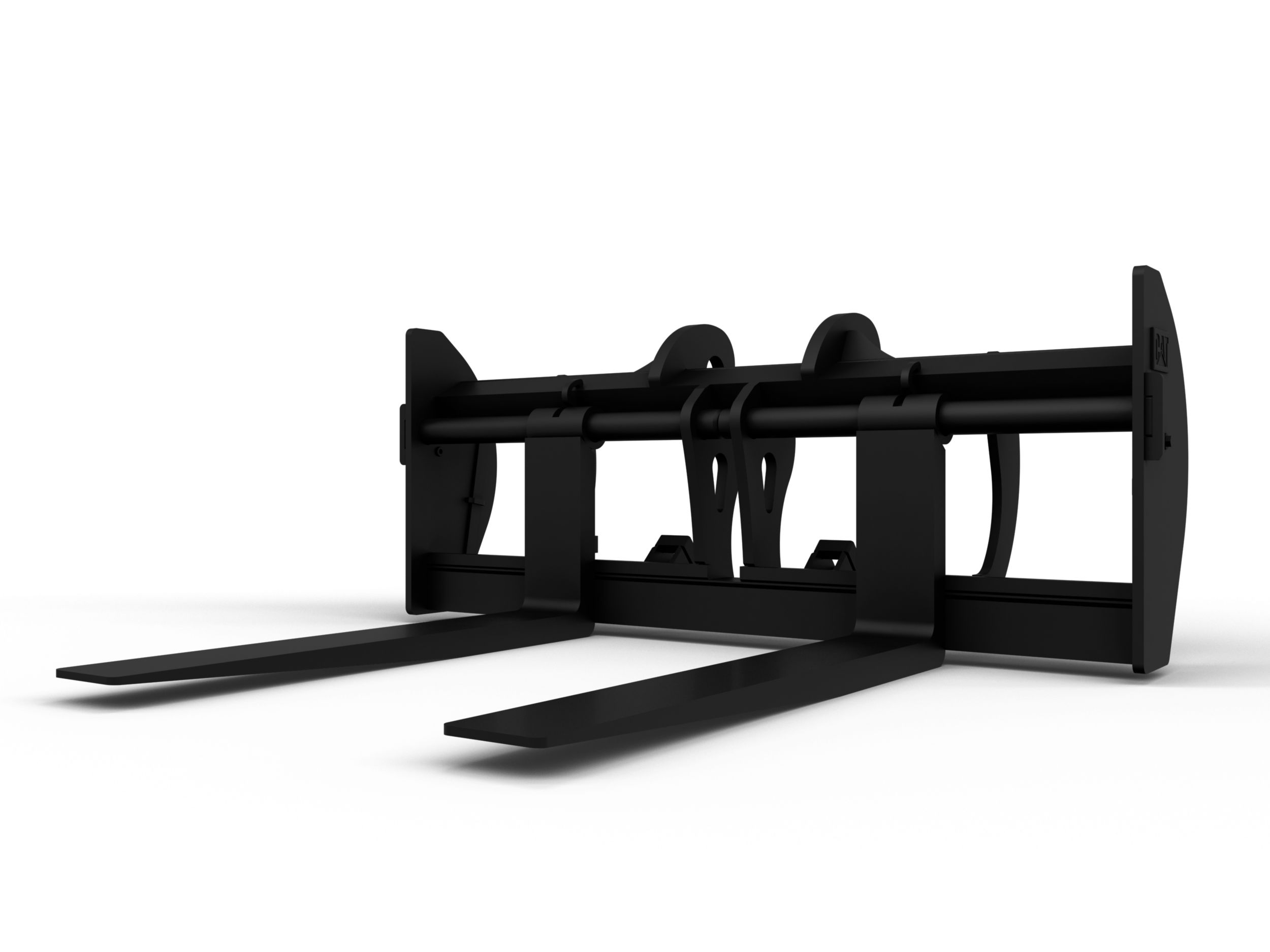

1830 mm (72 in) Pallet Fork on 2134mm (84 in) Carriage, Fusion
100% Compliant to ITA Class IV Standards
- You get more done when the fork fits the pallet. Fork tines fit International Trucking Association standards for palletized loads, so you know it will work for you.
- Work efficiently on and off trucks, containers and loading docks.
- Rated for ITA standard capacities.
Built to Work for You
- You can select from maximum to minimum width
- no tools required. Set it and go. - The six locking points are evenly spaced, 6.3 in apart.
- Choose what works best: 60″ or 72″ non-swinging tines are available to match your typical loads.
- Compatible with any loader with a Fusion coupler
- grab it when you need it. Drop it when you don’t.
Supported by Your Cat Dealer
- Get machine for your forks, machine and everything in between from your local Cat dealer.
- Parts and support available anywhere you work…no matter how far around the world you go.
| Product Specifications | |
|---|---|
| Tine Length | 1830 mm (72 in) |
| Tine Thickness | 65 mm (3 in) |
| Tine Width | 150 mm (6 in) |
| Height | 840 mm (33.1 in) |
| Width | 2134 mm (84 in) |
| Outside Tine Width - Maximum Spread | 2070 mm (87.3 in) |
| Operating Weight | 949 kg (2092 lb) |
