Enquire about "18 m³ (23.5 yd³) Heavy Rock bucket for 6040" Now

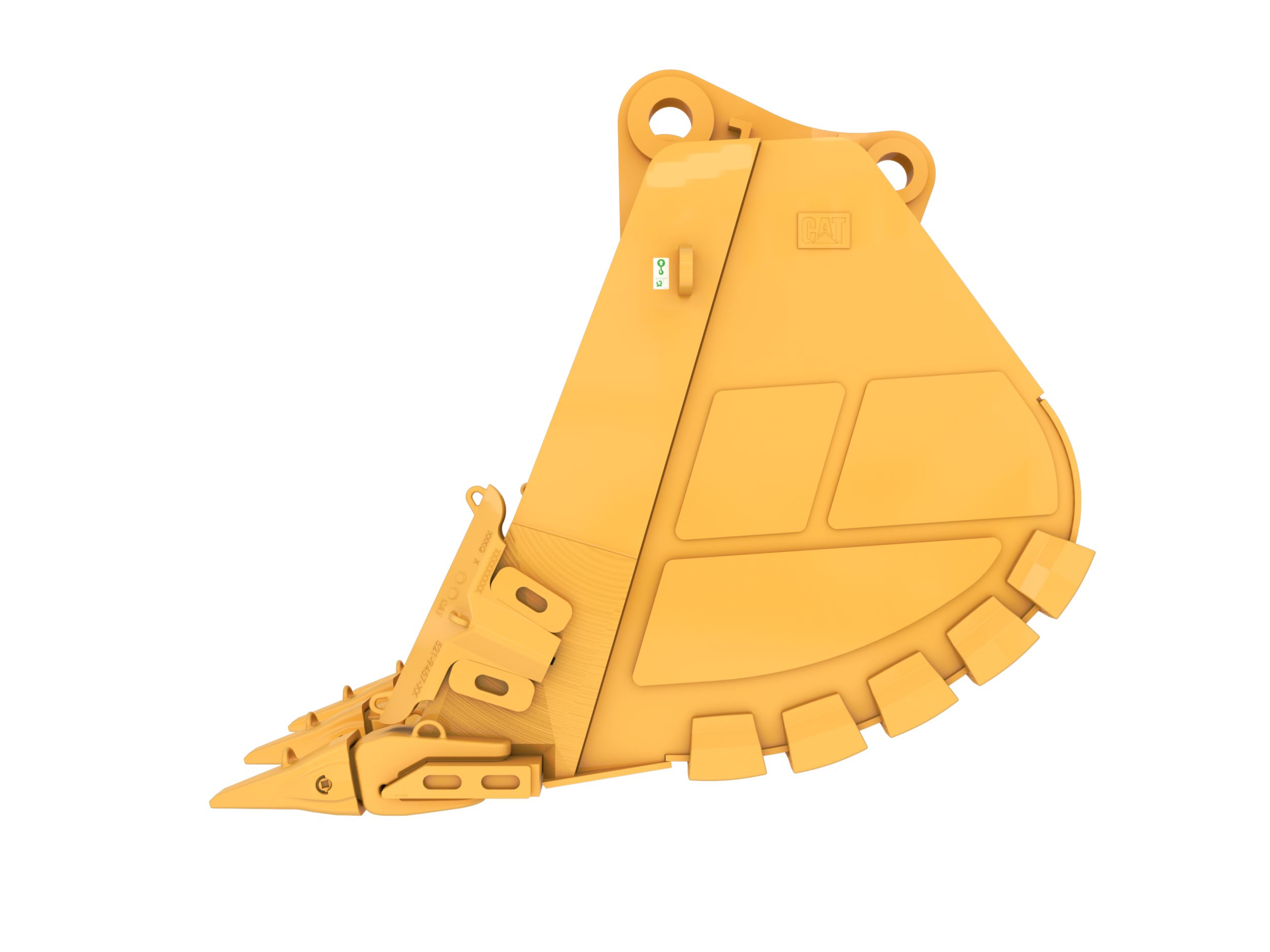

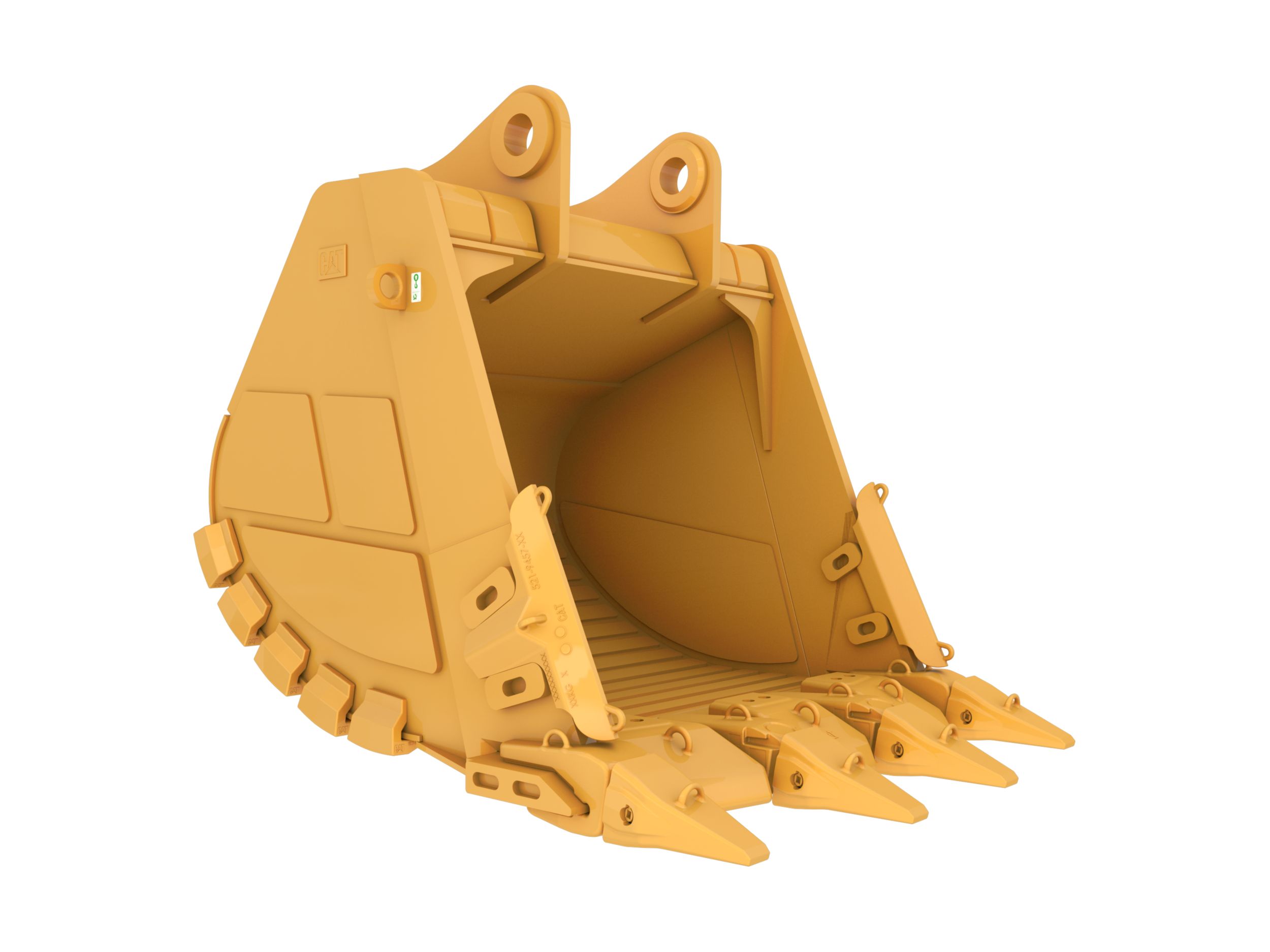

18 m³ (23.5 yd³) Heavy Rock bucket for 6040
Optimum Productivity
A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.
Efficient
Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.
Max Payload
Rated with ISO 7451 payload standards with a 1:1 heap ratio
The Support You Need
Cat buckets are fully covered by the Cat dealer network for round the clock support.
| Product Specifications | |
|---|---|
| Wear Package | High Abrasion |
| Weight | 80006 kg (36290 lb) |
| Outer Width | 4258 mm (167.6 in) |
| Material Density | 2.2 t/mu00b3 (3708 lb/ydu00b3) |
| Inner Width | 3840 mm (151.2 in) |
| Ground Engaging Tool (GET) System | Cat C110 |
| Machine Model | 6040 |
| Capacity | 18 mu00b3 (23.5 ydu00b3) |
