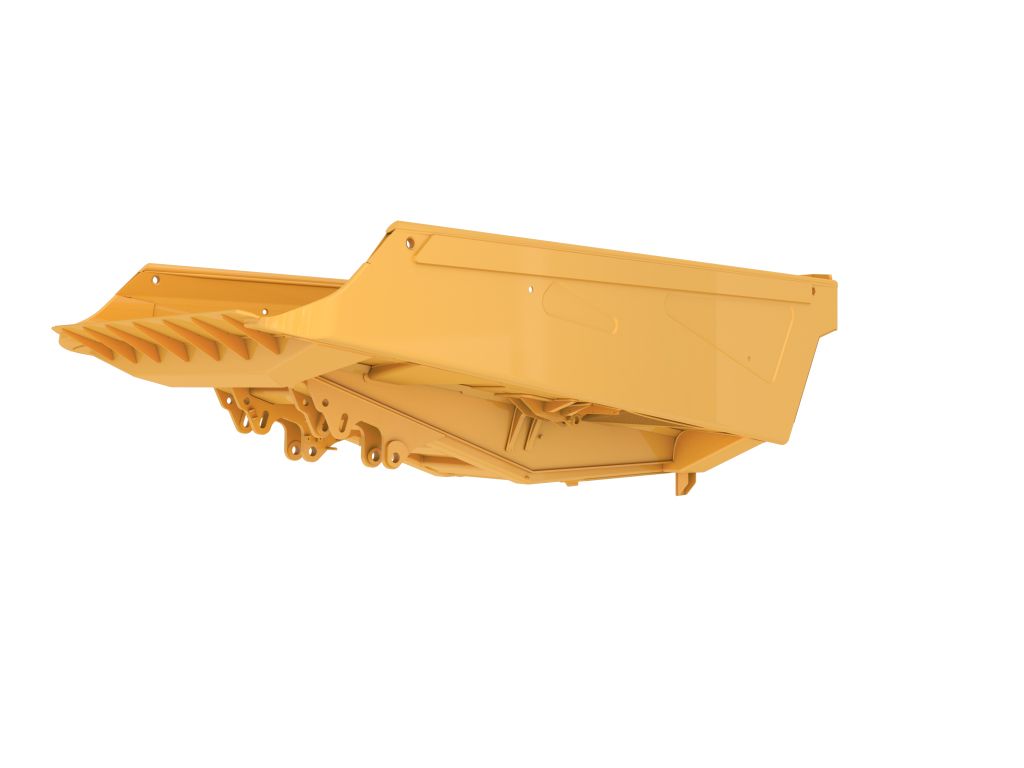

Enquire about "17.5m3 (22.9yds3) for AD30" Now
- The Cat underground truck bodies have the same strength and toughness you would expect of any Cat product.
- Body materials, design and fabrication are specially made for the demanding underground environment and abrasive materials to be moved.
- Cat truck bodies are ideally sized and designed to work as part of a complete hauling system, helping you achieve high productivity and the lowest cost per ton.
- Single-stage hoist cylinders provide fast dump cycle times of 10.5 seconds for raise and 11.2 seconds for lower.
- The optional Truck Payload Management System (TPMS) calculates the payload the truck is carrying and determines truck cycle times.
- Cat branded bodies are built in the same factory as our machines and go through the same strict quality controls.
- Best suit Cat machine balance, support better machine performance.
- Multiple offerings to suit your unique mining application.
- Cat truck bodies are supported by Cat Global dealer network.
| Product Specifications | |
|---|---|
| Part Number | 613-7036 |
| Machine Model | AD30 |
| Payload Capacity | 30000 kg (66139 lb) |
| Body Capacity | 17.5 mu00b3 (22.9 ydu00b3) |
| Base Body Height | 2560 mm (100.8 in) |
| Base Body Width | 2840 mm (111.8 in) |
| Truck Height u2013 Top of Empty Body | 2722 mm (107.2 in) |
| Truck Height u2013 Body Loading | 2560 mm (100.8 in) |
| Truck Height u2013 Top of Raised Body | 5838 mm (229.8 in) |
| Truck Height u2013 Dump Clearance | 547 mm (21.5 in) |
| Truck Length u2013 Overall Body Down | 10160 mm (400 in) |
| Truck Width u2013 Machine with Body | 2840 mm (111.8 in) |
| Truck Width u2013 Machine without Body | 2690 mm (105.9 in) |
| Liner Options | Body liners, impact and/or wear |
