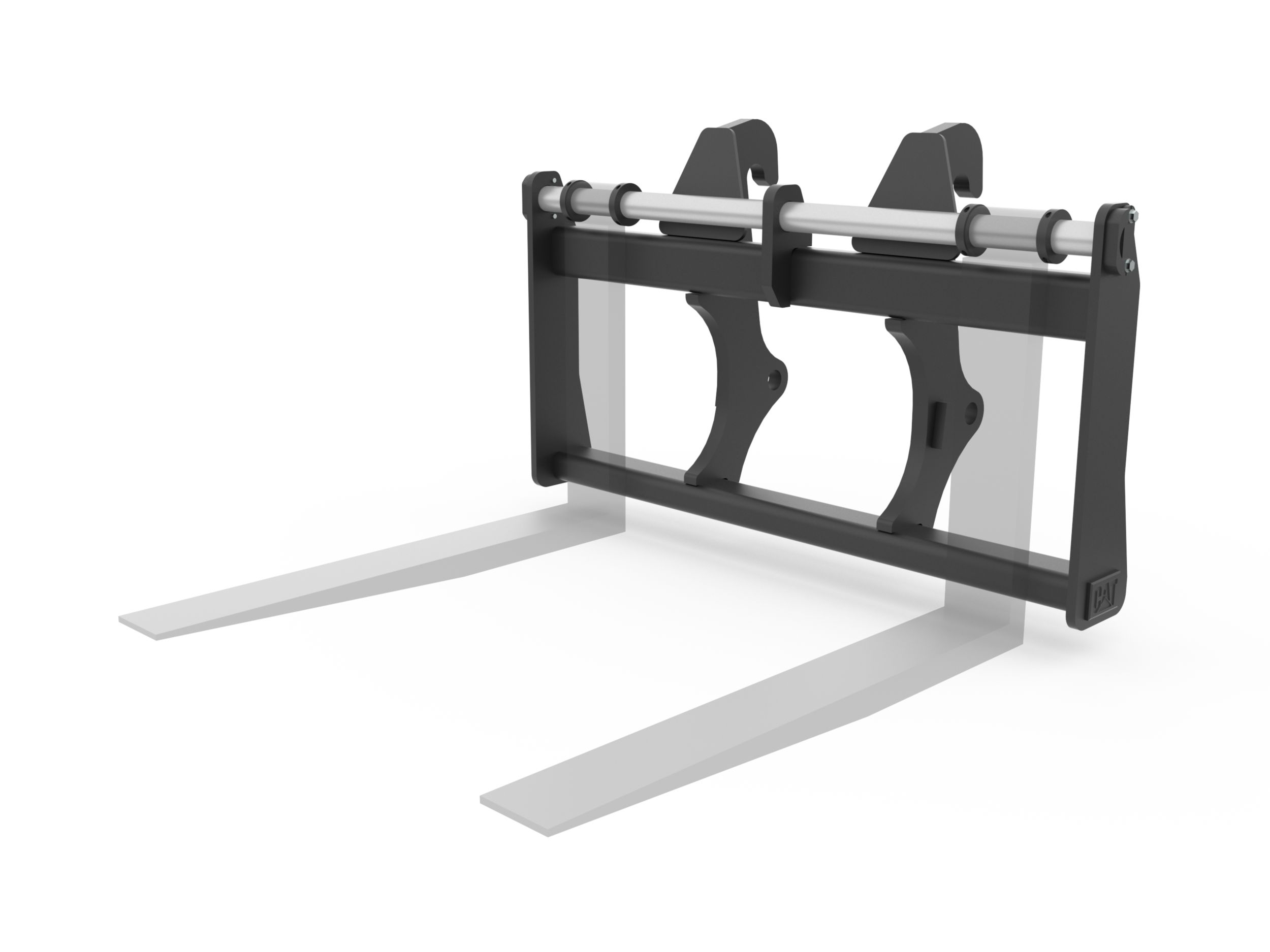

1524 mm (60 in) IT Coupler Pallet Class III Fork Carriage

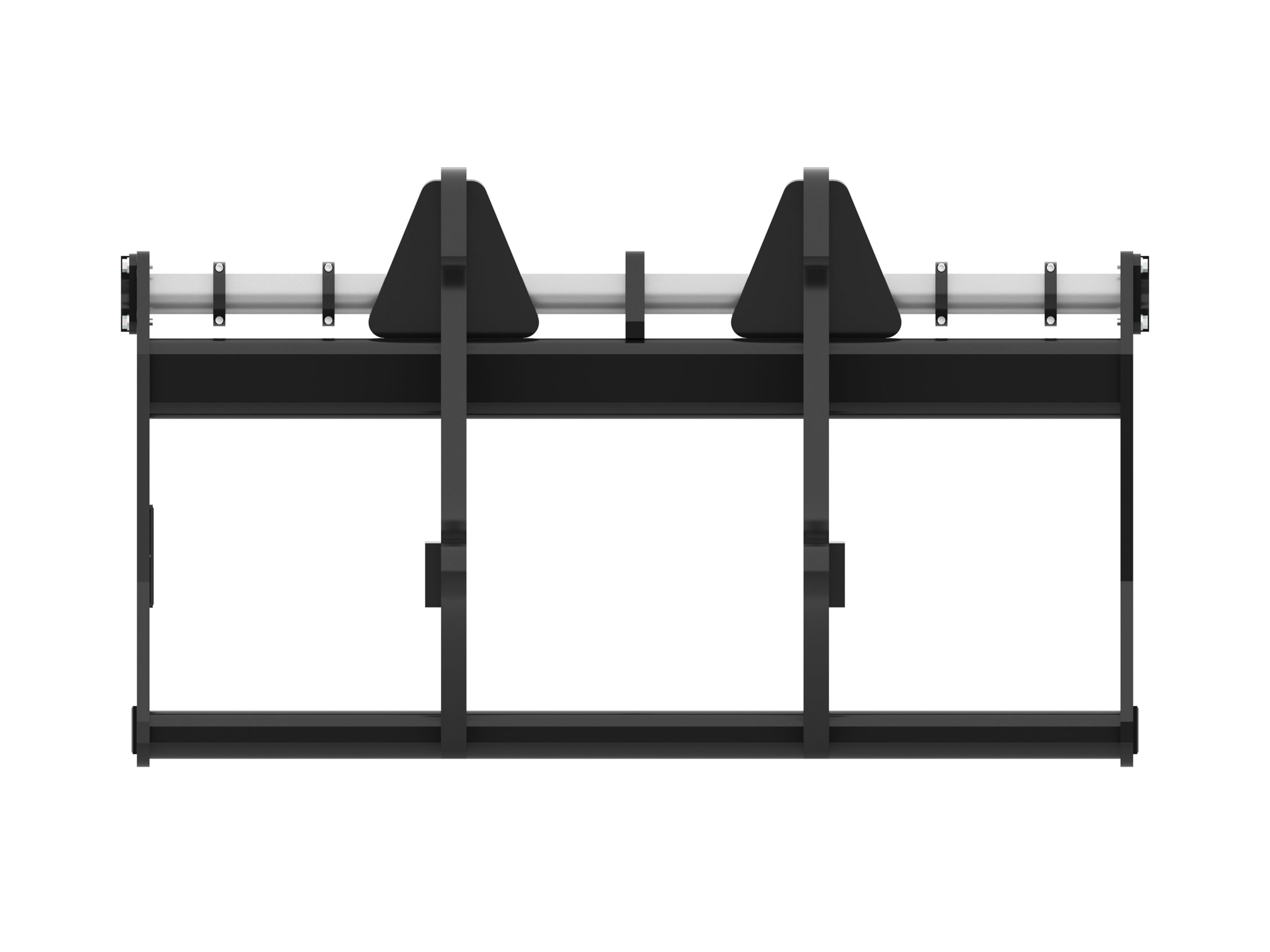

Swinging Tines
Swinging tines feature makes the loading and unloading process easier allowing the carriage to be properly positioned for improved visibility.
Fork Tine Holders
Using the bolts on the rings, set the side adjustment range according your need, avoiding non expected side shifts.
Center Visibility
With a low-profile carriage, the visibility through the coupler is excellent helping the load process across all loader arm ranges.
Side Visibility
Visibility is also optimized across the carriage due the design. Ideal for precise operations avoiding product or truck damages.
| Product Specifications | |
|---|---|
| Height | 941 mm (37 in) |
| Width | 1524 mm (60 in) |
| Overall Width | 1614 mm (63.5 in) |
| Weight | 518 kg (1142 lb) |
| Length | 406 mm (16 in) |
| Tine Spacing | 222 -1318 mm (8.8-52 in) centerline to centerline |
| Interface Type | IT Coupler |
