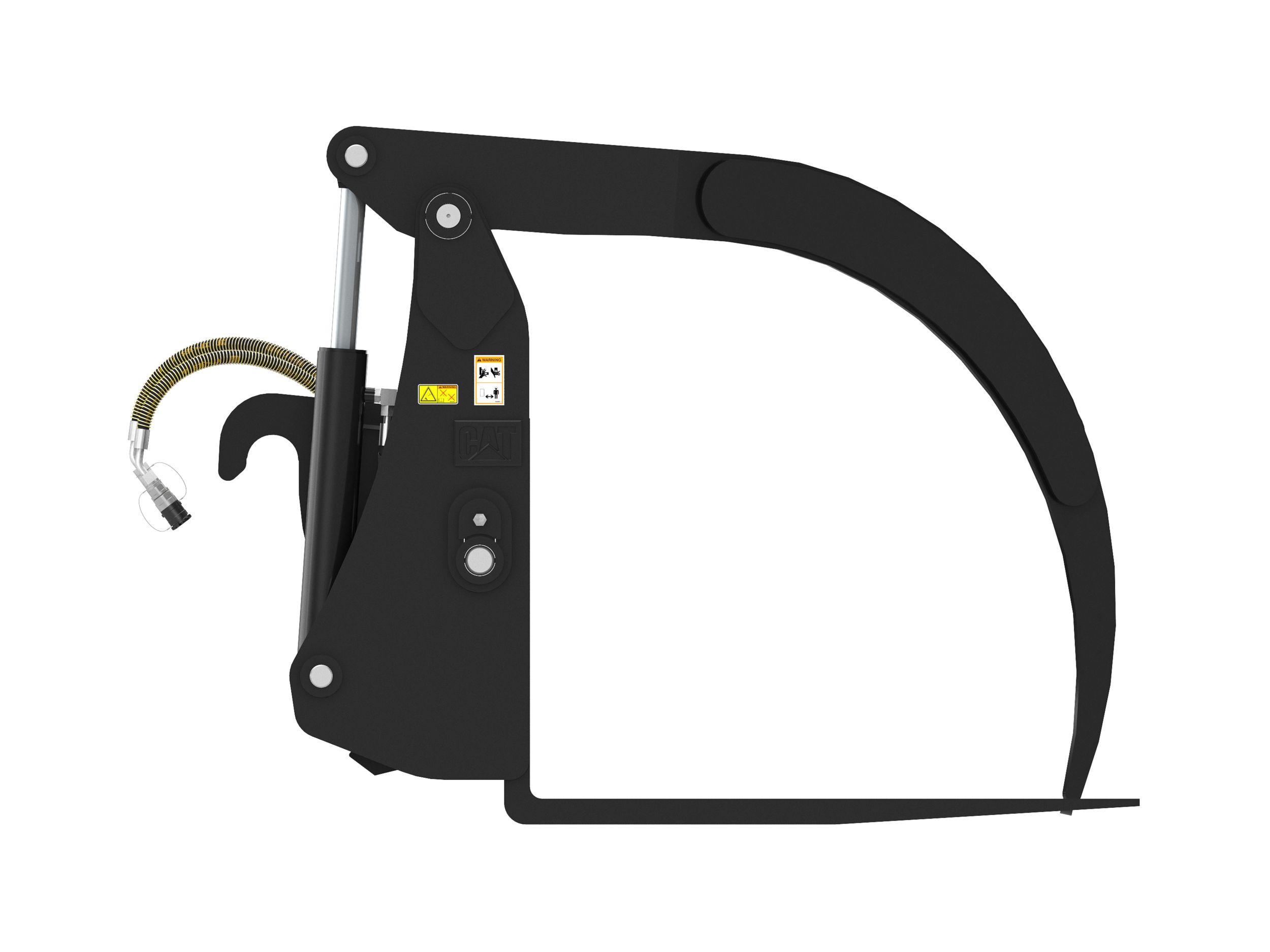

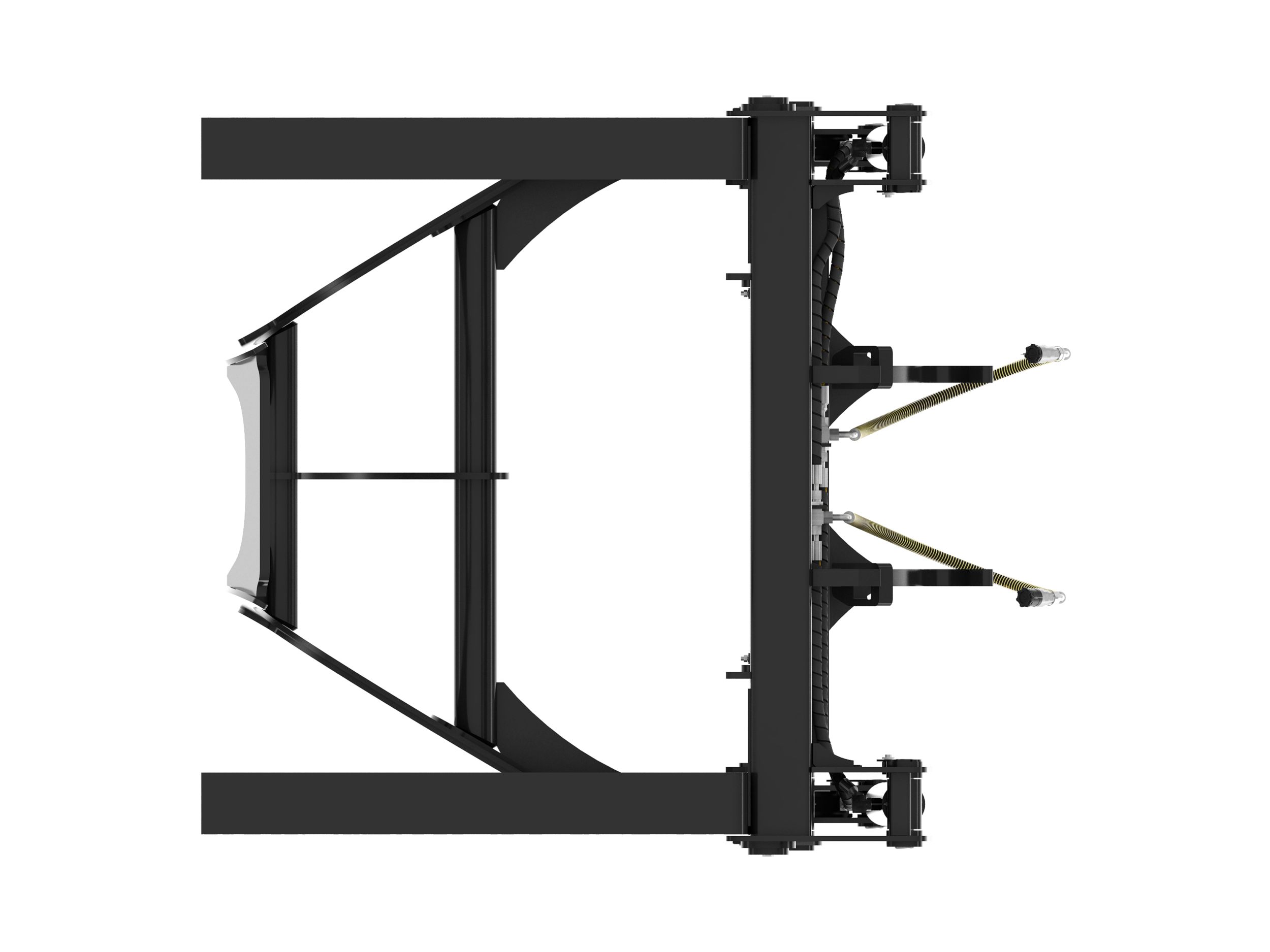

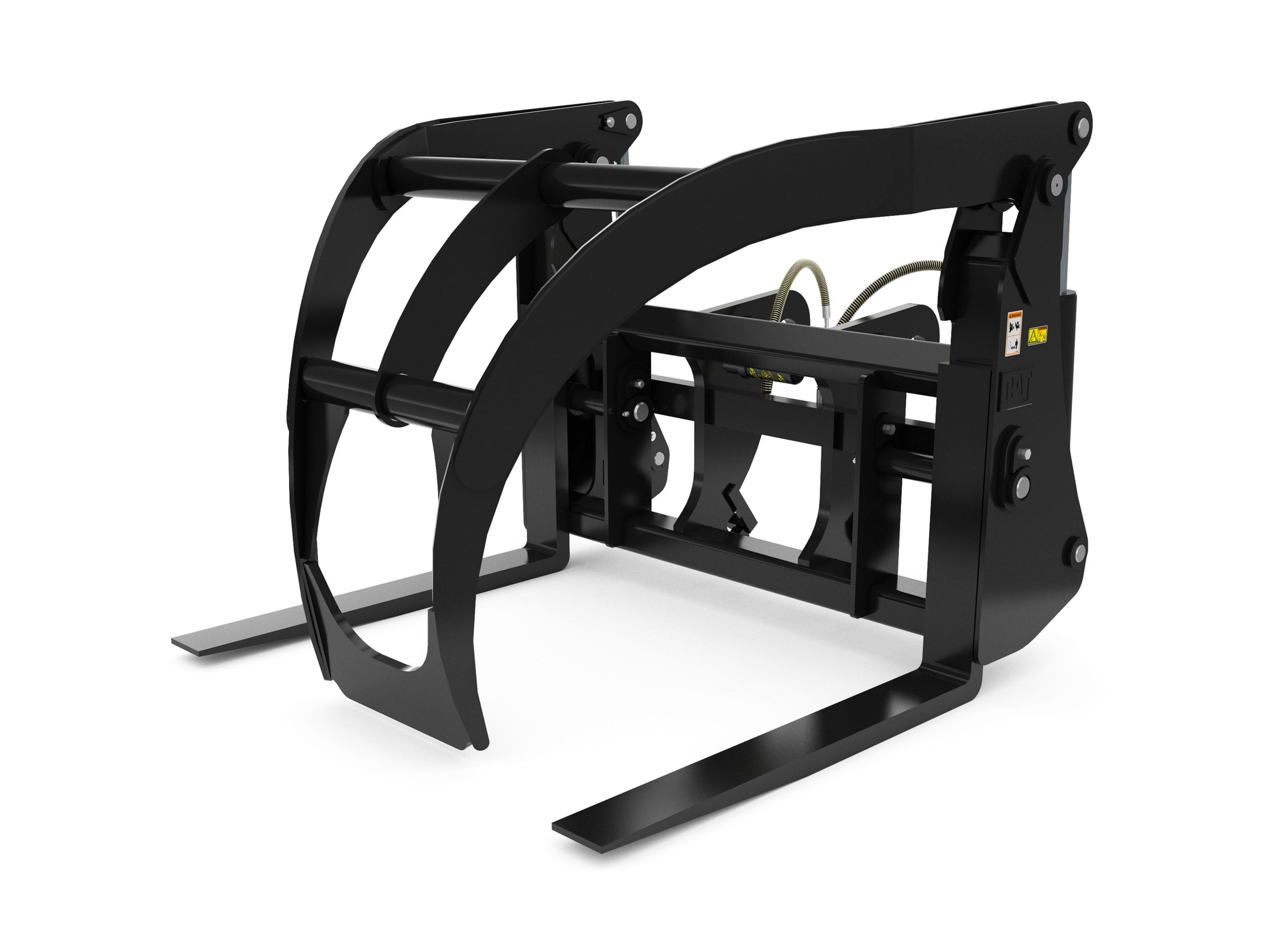

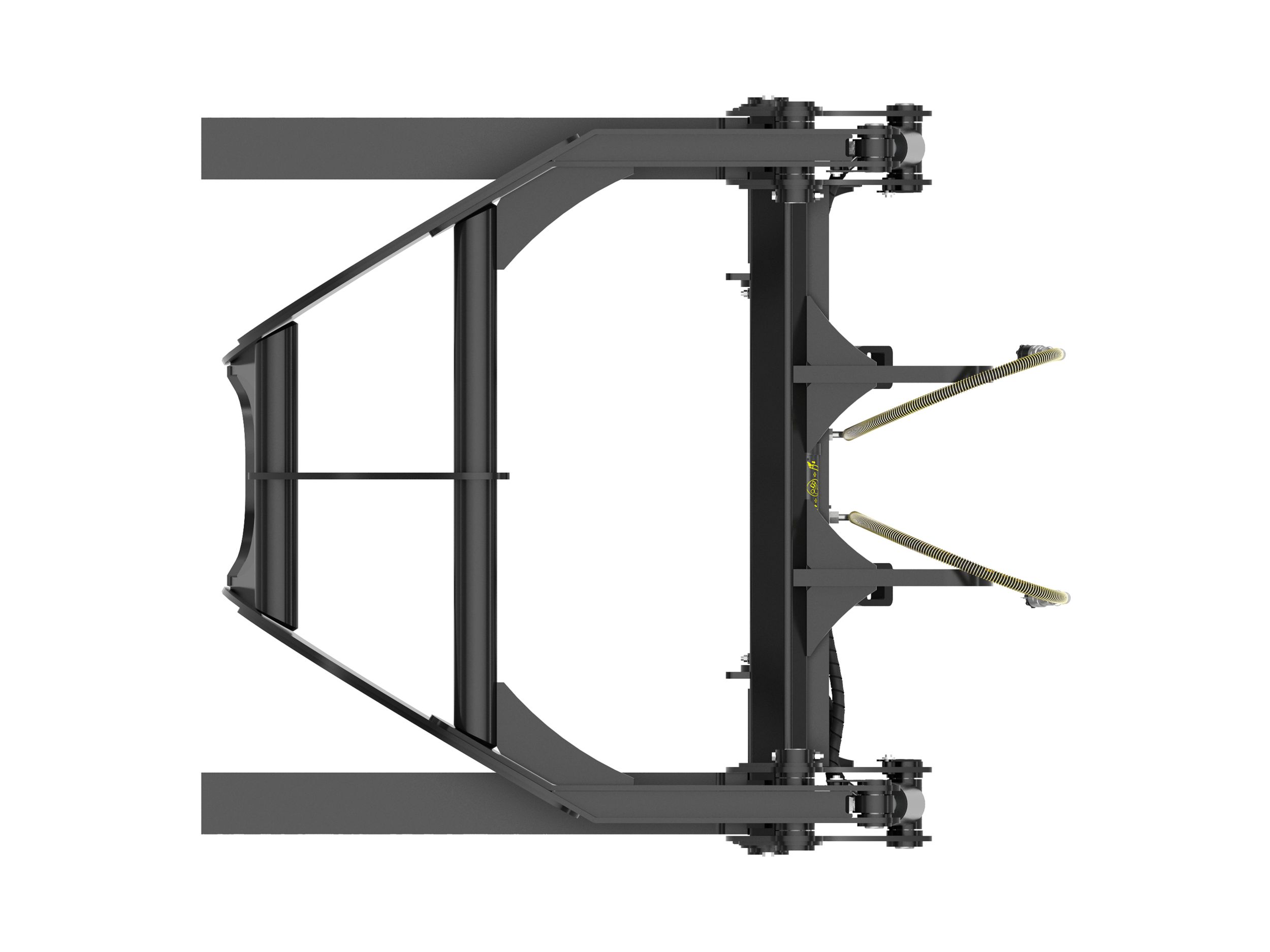

1524 mm (60 in) Fusion™ Coupler Semi Millyard Fork
Application
Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.
90 Degree Flat Back Tines
90 degree flat back tines allows for carrying palletized lumber and other items as well as loose logs.
Adjustable Tine Spacing
Adjustable tines can be configured to 9 different spacing setups, allowing for complete flexibility to your particular applications.
Narrow Top Clamp
Narrow top clamp is designed to close between the tines, which would allow the operator to clamp tightly on a single log.
Floating/Non-Floating Tines
Floating/non-floating tines are adjustable to 3 different spacing configurations, and can be locked, or setup to float.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
| Product Specifications | |
|---|---|
| Width | 2134 mm (84 in) |
| Tine Spacing - Maximum Width | 2086 mm (82.1 in) |
| Tine Spacing - Minimum Width | 1547 mm (60.9 in) |
| Tine Length | 1524 mm (60 in) |
| Tine Width | 152 mm (6 in) |
| Maximum Clamp Opening | 2510 mm (98.8 in) |
| Minimum Clamp Opening | 152 mm (6 in) |
| Weight | 2099 kg (4627.5 lb) |
| Interface Type | Fusion™ Coupler |
