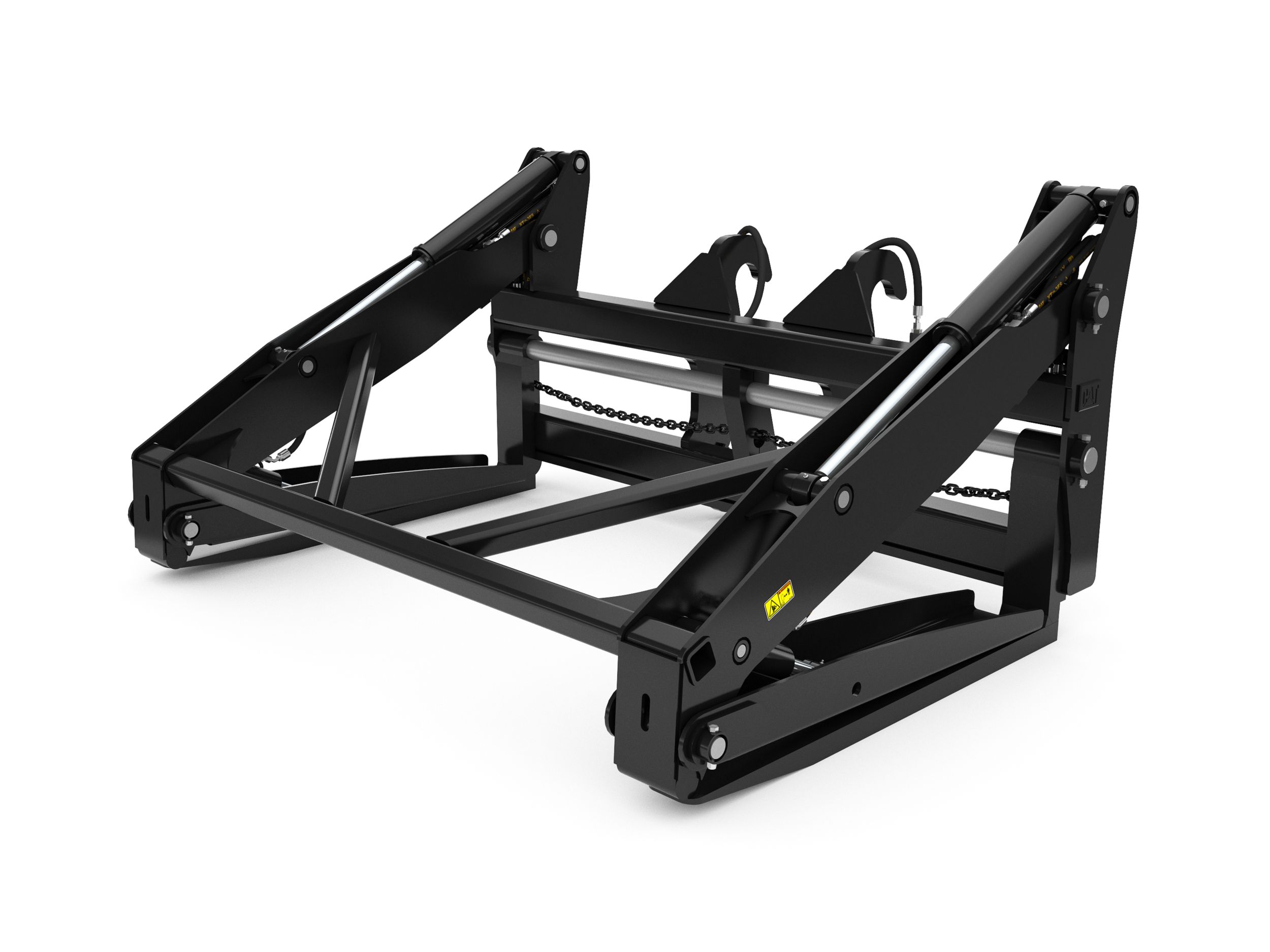

1524 mm (60 in) Fusion™ Coupler Pipe and Pole Fork
Application
Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.
Robust and Versatile Structure
- Robust carriage and top clamp ensure high levels of production
- Wide two-piece clamp holds pipe in place against tines and carriage
- Clamp can be positioned for desirable diameter of materials
- Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity
Adjustable Tines
- Tines width can be adjusted to better fit at application requirements
- No tools required for adjustment
Protected Hydraulic Cylinders
The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.
Pallets and other Materials
If palletized material transport is required, just totally open the clamp and use the carriage as a fork.
| Product Specifications | |
|---|---|
| Width | 2559 mm (100.7 in) |
| Tine Length | 1524 mm (60 in) |
| Weight | 1590 kg (3505.3 lb) |
| Interface Type | Fusion™ Coupler |
| Required Hydraulics | 3rd Function |
| Carriage Height - Closed Clamp | 1321 mm (52 in) |
| Carriage Height - Open Clamp | 2852 mm (112.3 in) |
| Tine Spacing - Maximum Width | 2438 mm (96 in) |
| Tine Width | 152 mm (6 in) |
| Tine Thickness | 64 mm (2.5 in) |
| Load Capacity | 2340 kg (5158.8 lb) |
