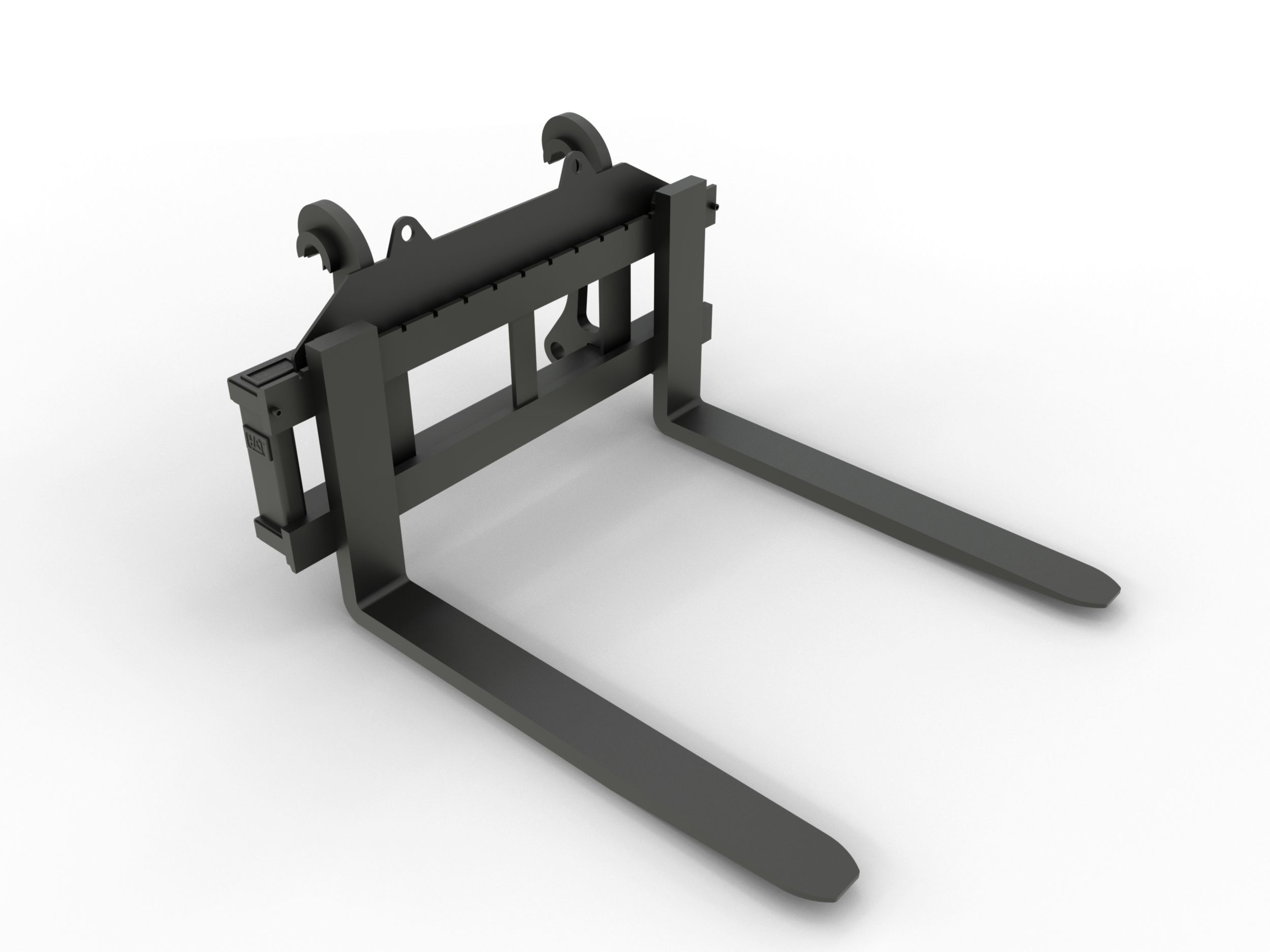

1500mm (59in) Pallet Fork on 2000mm (79in) Carriage, VCE Coupler Interface
100% Compatibility
- Use your Cat loader with commonly available work tools that you may already have.
- Simplify tool management in mixed fleets.
- Meet the ISO237727:2009 standard for loader couplers.
More Breakout Force, Better Performance
- No need to compromise on performance
- this coupler system is designed and built for your Cat Wheel Loader. - Static tipping load is 2% better, breakout force 4% better than third party or OEM couplers.
- Coupler weight and offset are also reduced.
Complete One-Source Solution
- Select the complete OEM solution for job site productivity.
- You’ll have one point of everything
- from tooth tip to radiator
- from your local Cat dealer. - The coupler is backed by a line of VCE-compatible buckets and attachments optimized for Cat loaders.
| Product Specifications | |
|---|---|
| Tine Length | 1500 mm (59 in) |
| Tine Thickness | 60 mm (2 in) |
| Tine Width | 200 mm (8 in) |
| Height | 965 mm (38 in) |
| Width | 2000 mm (79 in) |
| Outside Tine Width - Maximum Spread | 1550 mm (61 in) |
| Operating Weight | 825 kg (1815 lb) |
