Tilting Ditch Cleaning Buckets

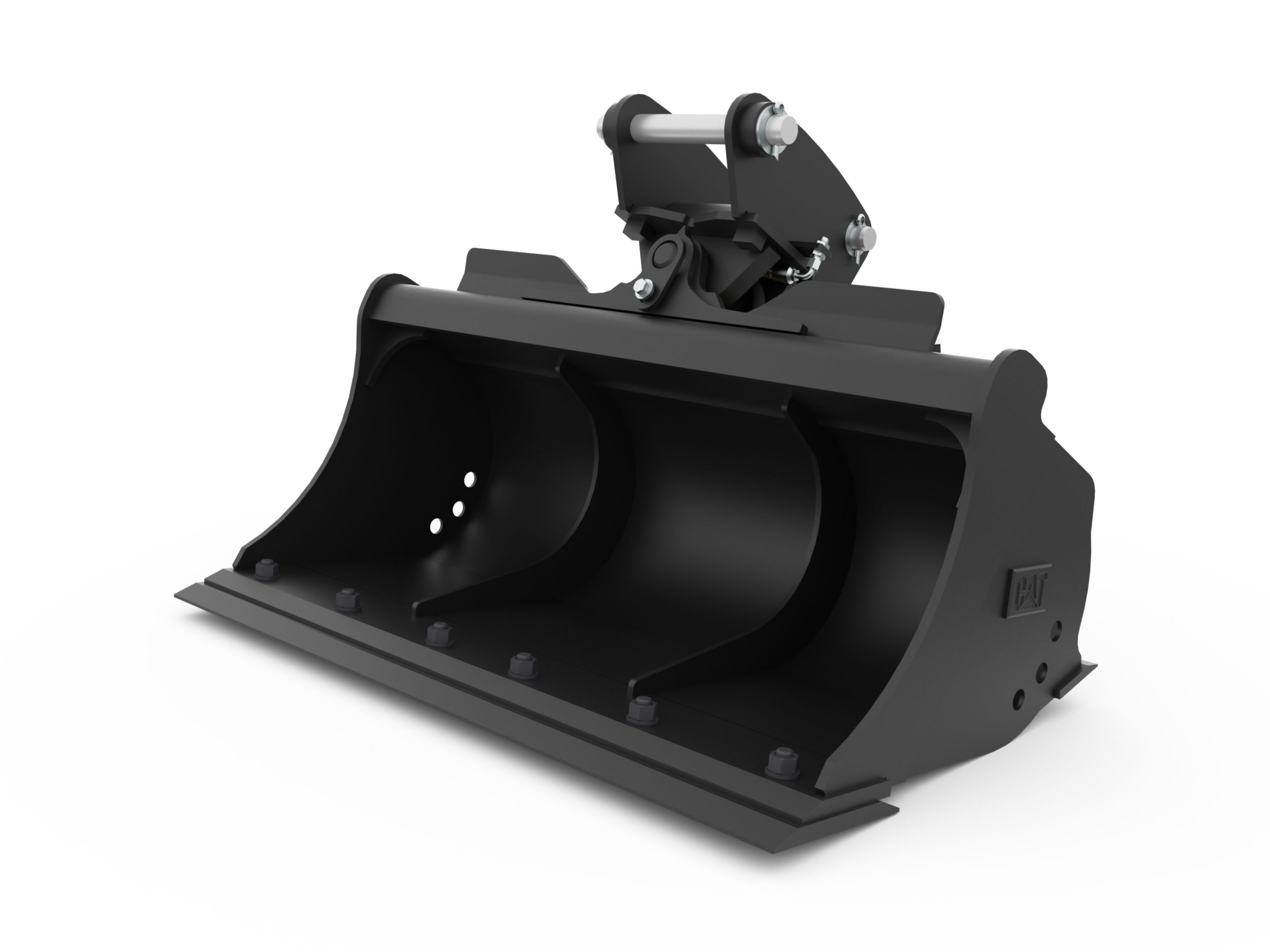

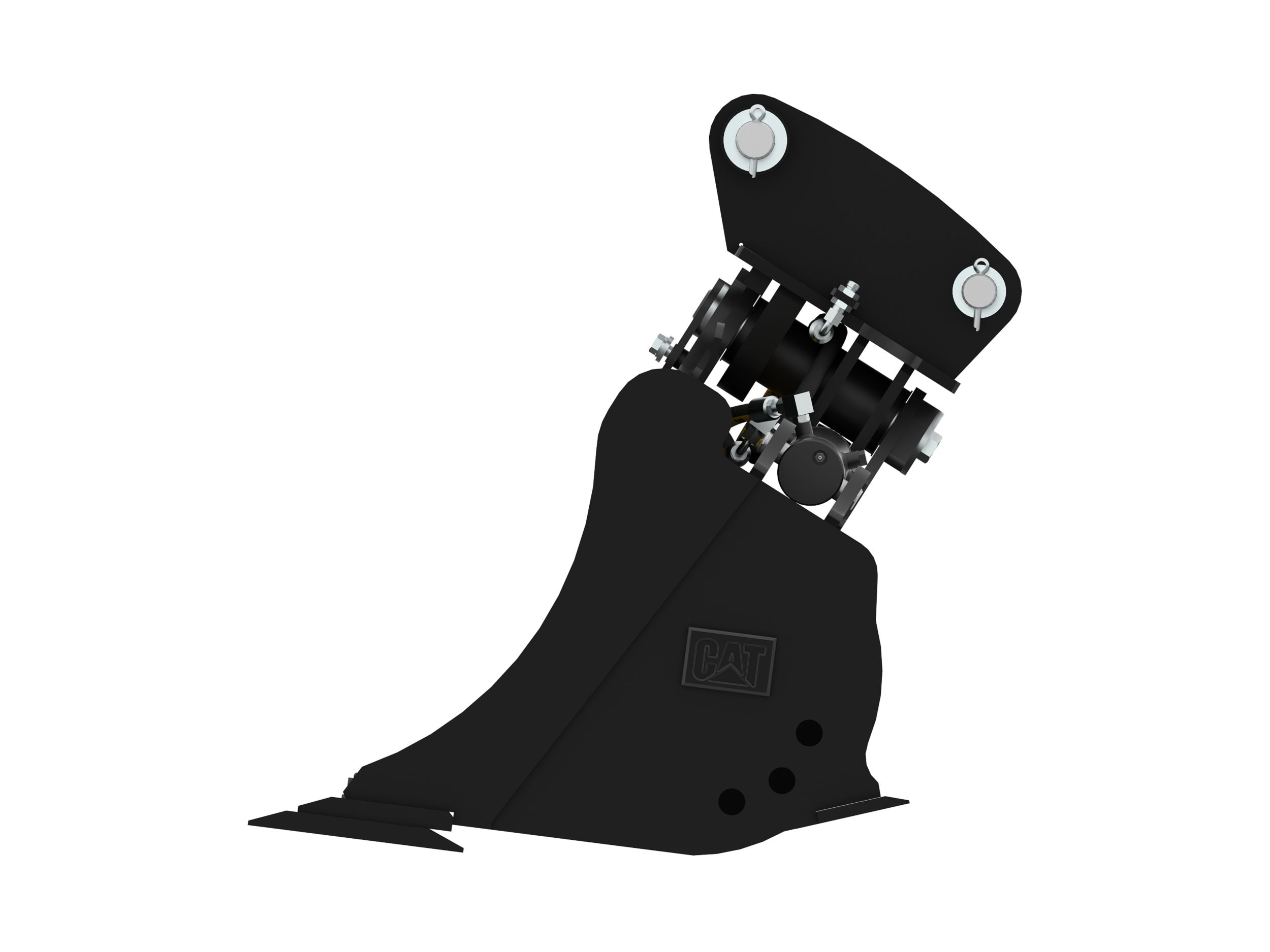

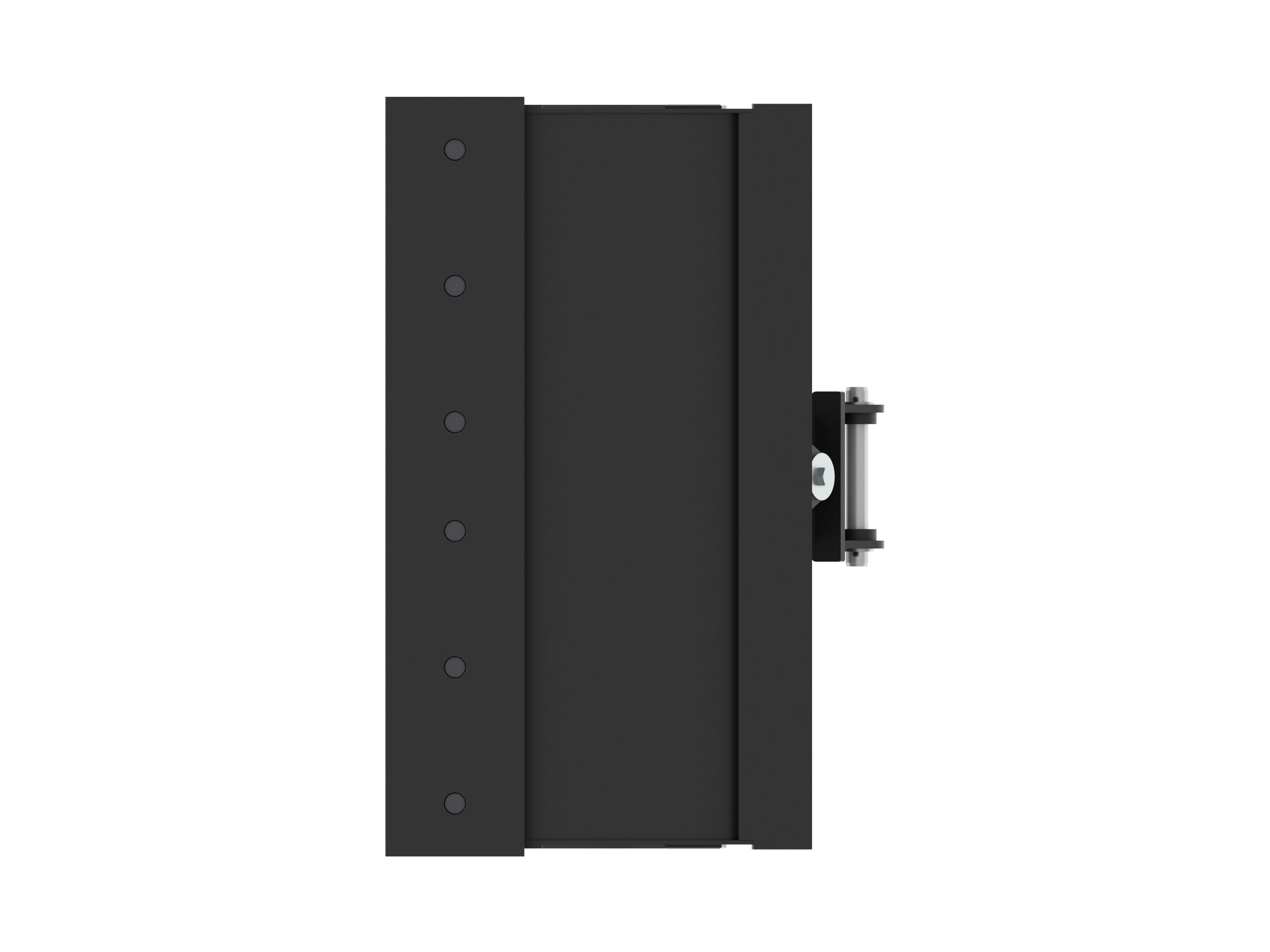

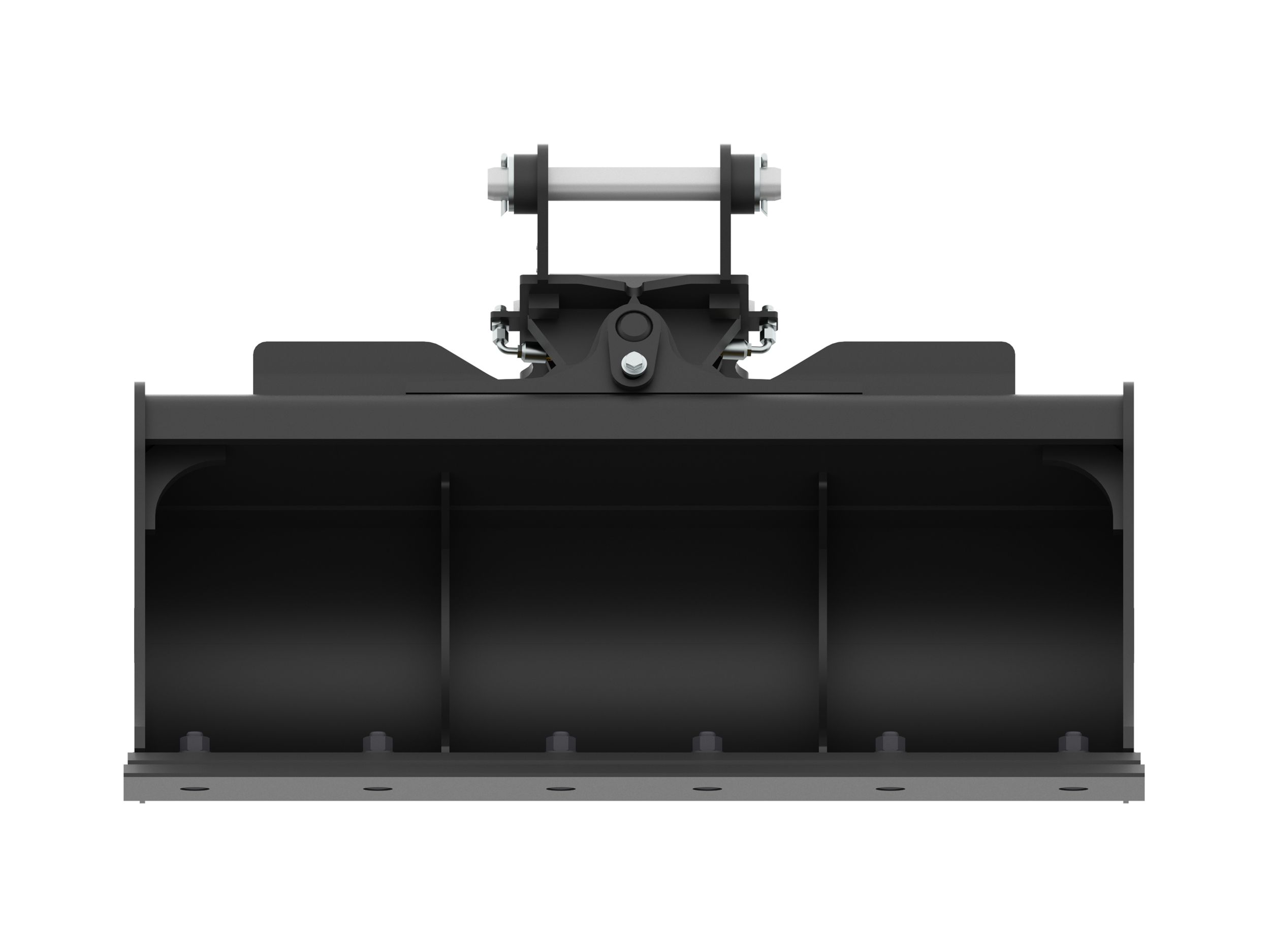

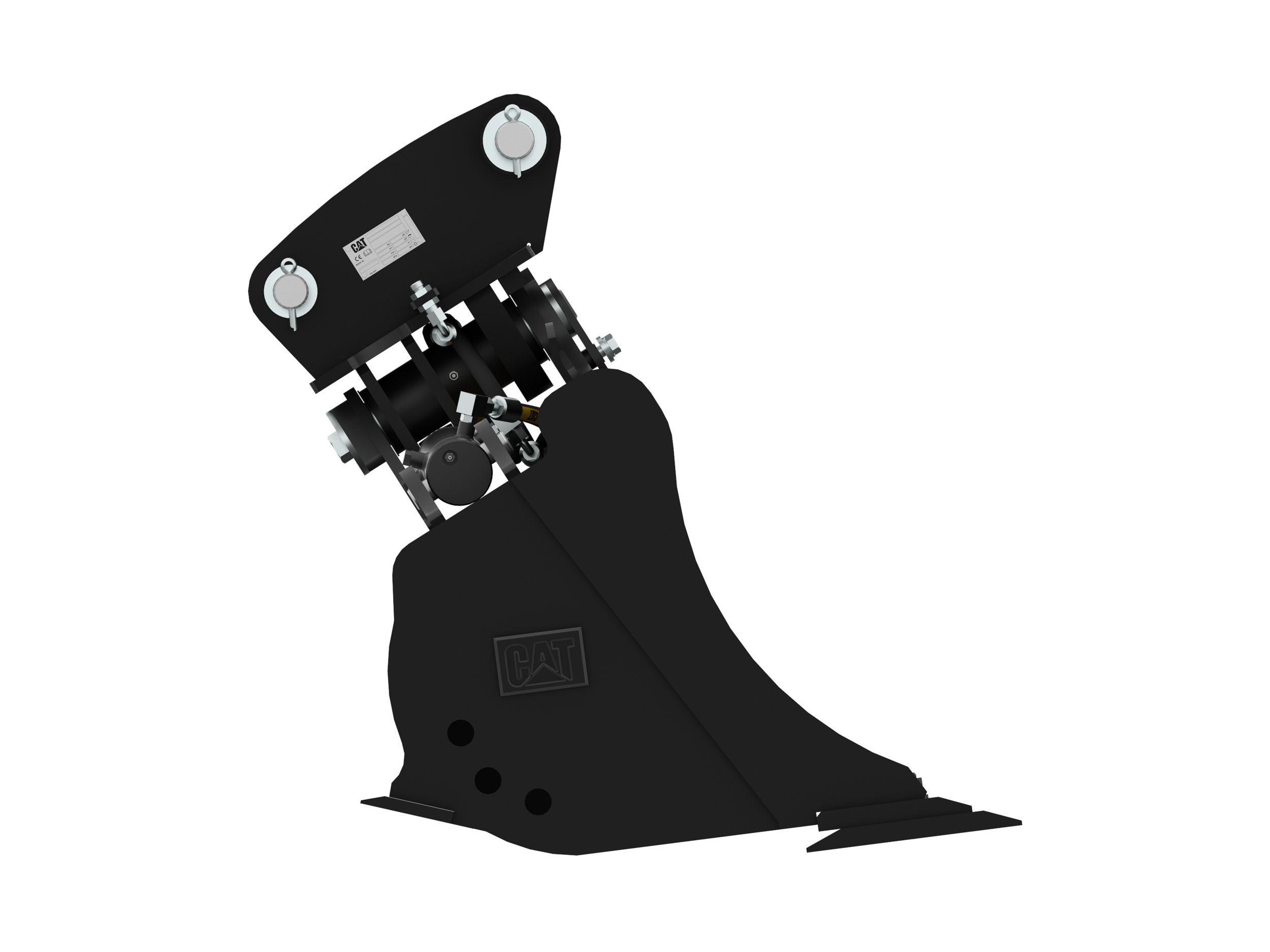

1500 mm (59 in) Tilting Ditch Cleaning Bucket
Dual Cylinder Design
Dual horizontally positioned hydraulic cylinders provide short, smooth cycle times and maximize tilt momentum. The bucket can tilt 45 degrees left or right of center.
Standard Bolt-On Cutting Edge
One piece, replaceable and reversible, bolt-on, hardened cutting edge delivers long life and high performance.
Two Torque Tubes
Two torque tubes provide for stronger support for the side edges, as well as an extra rigid and stable bucket design.
Drain Holes
Standard drain holes allow water drainage from the bucket when working in mucky, wet conditions.
Visual Tilt Indicator
Visual indicator allows the operator to easily see from the cab of the machine if the bucket is horizontal.
Spill Guards
Two spill guards help to prevent material from flowing over bucket into cylinders and causing damage.
Bucket Support Ribs
Two bucket stiffeners from top torque tube to base edge provides additional support during backwards grading, as well as overall bucket longevity.
Integrated Rear Cutting Edge
Rear torque tube doubles as a rear cutting edge, allowing for back dragging applications.
Included Mounting Pins
Includes standard machine mounting pins.
| Product Specifications | |
|---|---|
| Width | 1500 mm (59.1 in) |
| Capacity | 460 l (16.2 ftu00b3) |
| Weight | 540 kg (1190.5 lb) |
| Base Edge Thickness | 25 mm (1 in) |
| Cutting Edge Thickness | 25 mm (1 in) |
| Tip Radius | 1099 mm (43.3 in) |
| Required Hydraulics | 1st Auxiliary |
| Interface Type | Pin On (Pin Grabber) |
